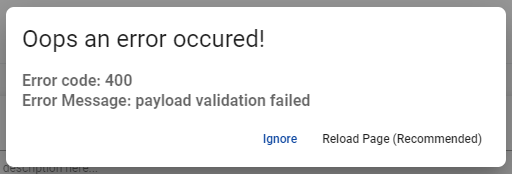

Hi! I've been running into some issues with the Template editor in the cloud the past week or so. I can create new templates and edit recording names, but once I try to add questions or headers, it comes with an Error 400. Nothing happens when I press either option to ignore or reload. If I keep ignoring and fill in questions etc., it never saves the template. I'm using Chrome as browser, if that's relevant to the issue.
@user-695fcf thanks for reporting this issue, this has been fixed if you'd like to try again
Perfect, thank you!
hello.. is there any plug-in that are available to replay the recorded data and also send the frames over the network so i can simulate the real-time data streaming?
Hi, yes, check out https://github.com/psychopy/psychopy/pull/4216/#issuecomment-906379208
Edit 1: Note, the replay script replaces Pupil Capture altogether. Edit 2: Note, that this does not support streaming video (yet) Edit 3: To support streaming video, these functions needs to be adjusted to load video data on demand https://gist.github.com/papr/49f58a894364dd94b23c53e6bc6929d0#file-simulate_ipc_backend-py-L179-L202 and this code needs to be extended to send the image raw data https://gist.github.com/papr/49f58a894364dd94b23c53e6bc6929d0#file-simulate_ipc_backend-py-L43-L44
@papr should I place this in the plugins folder?
No, it is an external Python script.
should I pass the recorded dataset path to "capture_recording_loc"?
correct 👍
@user-0ee84d My apologies, I just realized that you might be interested in simulating the Pupil Invisible Companion network API, not the Pupil Capture network API. Is that correct?
yes.. It is pupil invisible
In this case, the script is not of any use to you as it only simulates Pupil Capture's network API. 😕 There is no simulator of the Pupil Invisible network API.
not the pupil core recording
😦
feature request: Please provide an option to replay the recording of both core and invisible to simulate the network api.
Hey @user-0ee84d! Thanks a lot for the feedback! Could you describe your use-case for this a bit so I can understand what you are going for? For example, why do you need to replay recordings rather than generating actual real-data? And why would you prefer this to run via the API rather than reading the recordings from disk directly?
I record the dataset and use the recorded dataset to write the logic. Later I prefer to test the logic in real-time mode. I can't ask a person to use the invisible every time while writing the logic. @marc
Thanks for sharing! What I understood is that you essentially need this as a tool to support you during development. You are writing an application that is using real-time data, but during implementation it is impractical for you to constantly generate actual real-time data for testing, and would thus like to be able to repeatedly replay pre-made recordings as real-time test data.
We have been working on a new version of the real-time API, which will be released soon. Writing a simulation for the new version might be very easy. We will discuss that internally!
usually, I record hours of data and I use them for testing. It heavily relies on the frames (i process these images) and other metadata such as timestamp, 2D gaze position etc..,
once it works offline, I test it with real people
either updating the pupil invisible companion to simulate the network api or the pupil capture to simulate it would really help.
How are you currently interacting with the realtime API? Do you use Python and pyndsi?
I'm using pyndsi
@marc exactly... That would make development a lot easier...
thank you!... that would really help until the new version is released. I would be looking forward to it.
I could read the recorded data. if I have to send an image to the client via pyndsi, how do I do so?
Doing this for pyndsi is very envolved. I would much rather wait for the new API. The preview of the new Python client can be found here https://pupil-labs-realtime-api.readthedocs.io/en/latest/examples/simple.html Building a mock-up client that reproduces the streaming functionality from a recording will be much easier for that than for pyndsi
i see that pyndsi is used to send the images while zmq is used to send the meta data
pyndsi is built ontop of zmq. Internally, all messages are sent via zmq. But how these messages look like is a matter of the protocol aka ndsi
can realtime-api be installed already with pip?
pip install git+https://github.com/papr/realtime-api.git should work. We have not published it to PyPI yet and the Companion app does not serve this API yet. In other words, you won't be able to test it yet.
I see few examples to receive the data. any examples to send the data without having to use the device?
It would require new code that has the same interface/functions as the api linked above, but does not actually send anything over the network. It would just read data from disk while behaving the same as the actual api. Similar to pyndsi, it would be a very complex task to replicate the actual API including all network messaging. You would have to basically replicate the whole app.
I will use zmq for now
Good morning. We have a pupil invisible and a pupil core. For an experiment, we need to acquire data with these two devices at different times, but we need to synchronize their timestamp with the one of a same pc. I know that a pc could not work as a companion so I'm interested in suggestions on managing this problem. Maybe the companion device could be synchronized with a specific time server? Thank you very much
Hi 🙂 Pupil Invisible Companion uses the operating system's time synchronization feature (NTP) to record time in Unix epoch (passed time since Jan 1, 1970). For Pupil Core, you can either use 1) this plugin to adjust Pupil Capture's time base to Unix epoch, too https://gist.github.com/papr/87c4ab1f3b533510c4585fee6c8dd430, or 2) synchronize the recorded timestamps post-hoc. See this tutorial https://github.com/pupil-labs/pupil-tutorials/blob/master/08_post_hoc_time_sync.ipynb
Both methods assume that the corresponding devices (Android phone and PC) are synchronized using NTP. You can read more about NTP here https://en.wikipedia.org/wiki/Network_Time_Protocol#Clock_synchronization_algorithm
Since you are not recording at the same time, I would assume that you do not need millisecond-accurate time sync, is that correct? In this case, the methods above should be sufficient for your use case.
may i know when could i expect the initial release for real-time api?
We are in the process of running final tests. Unless we find major issues, I expect we can release in the next 2-3 weeks.
simulating the network api with zmq works but not with the same latency as i would obtain from a real-time feed.
while processing real-time, my code is absolutely devoid of lags but when i simulate the zmq, it just crashes in a while.
thanks! i’ll be looking forward to it
Dear dr Paper, we are not recording at the same time but we could need ms-accurate sync. In this case what we can do to obtain this precision in your opinion? Thank you for your answer
Immediately after NTP synchronization usually you have an error of ~0-20ms. If that is not sufficient you can estimate the remaining clock offset to manually compensate it. See this section of the docs for more information: https://docs.pupil-labs.com/developer/invisible/#time-synchronization
Hello! I'm from Singapore and my lab recently purchased a pupil invisible which will be used in our experiments soon. I just had a question about the disinfecting procedure. It was mentioned on the website that: "The disinfectant we use is made from 22.0g Ethanol, 21.0g 2-Propanol, 8.0g 1-Propanol per 100 grams of solution. One such brand name that we use is "Vibasept"." However, we are unable to find its equivalent with a similar composition so I wanted to ask if it is safe to use ordinary alcohol wipes for the frames? If not, could you suggest some alternatives?
Hi @user-bbf384 👋
You can use another brand of disinfecting wipe to clean the glasses.
Important note: Try to squeeze the wipes so they are almost dry before touching the wipes to the glasses. The wipes should be moist but not not wet. We do not want liquid to get inside the frames which can damage the electronics (electronics are not water resistant). Consider cleaning only the contact points of the glasses frames. Do not wipe the eye cameras, world camera, or any electronic contact points.
Hello! Thank you for your quick reply. May I know if using regular 70% alcohol wipes would be okay?
Yes, when keeping the notes @wrp mentioned in mind, this is okay!
Great! Thanks for the prompt replies :)
Hi Is it possible to use the Fixation Detector released on Pupil Cloud (v5.6) on prior recordings that are already on the cloud? If yes, can somebody please tell me how? Thanks!
Hi @user-df9629! This is possible, but only on demand via our support! Please send me a DM with the email address of your Pupil Cloud account and the recording IDs your would like to get fixations for. If it is many recordings, you can also send project IDs instead.
Hello @marc ! Got it. I will create a project and add the recordings in it and email the details ASAP Thank you 🙂
Hello, I need to know if it is possible to do an enrichment with marker mapper with more than one recording? I need the average heatmap of multiple recorsdings.
Yes, you can calculate an enrichment on as many recordings as you want. The recordings just have to be within the same project and all contain the corresponding events you used to define the enrichment.
I also need to know, for a recording with invisible, do I get fixation duration in csv format? i need it for my heatmap analysis.
Yes, fixation data is calculated on upload to Pupil Cloud and is available in CSV format as part of the raw data exporter as well as the marker mapper and reference image mapper
perfect, thank you
Is the heatmap generation script publicly available?
No, the script is not directly available. It is just using numpy.histogram2d to calculate a 2D histogram of the gaze points and cv.GaussianBlur to blur the result.
if yes, I would like to look at it now 🙂
Hi, is it possible to show the fixation id on the gaze overlay video? or is there any way to connect the fixation data in csv to the video? thank you !
Hi @user-a9b74c! The gaze overlay is currently only able to visualize the raw gaze signal and does not consider fixation data. Using the following script you could however generate your own fixation visualization, which included IDs, based on a raw data export. The script is showing a fixation scan path and uses optical flow to compensate for head movement: https://gist.github.com/marc-tonsen/d8e4cd7d1a322a8edcc7f1666961b2b9
Hi 🙂 I saw that it is possible to correct for the fisheye effect using the iMotion export plugin for the core, but not for the invisible glasses. Is there a way to de-distort the images from the invisible glasses if we want our lines to be straight ?
Hi @user-e0a93f! If you are only interested in undistorted scene video with gaze overlay, you can get this from the Gaze Overlay enrichment in Cloud. It has an option to undistort the scene video. The raw undistorted video is currently not directly available, but you could generate it yourself using this script: https://gist.github.com/marc-tonsen/0bff75f776da16c594ced1eef9fdd397
fixation x [px]and fixation y [px] in the fixations.csv refer to? coordinates on the surface? The code here is doing pretty much the same thing: https://github.com/pupil-labs/surface-tracker/blob/master/src/surface_tracker/heatmap.py#L87
If you are referring to the fixations.csv file from the Marker Mapper export, then yes! See the doc entry here for details:
https://docs.pupil-labs.com/cloud/enrichments/#export-format
You are already using the marker mapper, right? If you track the screen with it and edited the surface to exactly coincide with the screen corners, then you are almost done. The mapped gaze on the screen surface is given in normalized coordinates, where the top left corner of the surface is defined as (0, 0) and the bottom right corner as (1, 1). Thus, you simply need to multiply those with your screen resolution to convert to pixels.
thank you @marc 🙂
Hello from BKK, Thailand... We bought pupil invisible since 2020. But we have problem about inaccuracy focus point, even we use QR code at 4 corners at the first frame. We also have issue about Heat map accuracy also. Could you advise us?
Hi @user-3e7550! Could you share an example recording with [email removed] that demonstrates the inaccuracy?
Ok
@marc I sent you 2 set of records from our device.
Thanks @user-3e7550, I'll take a look! I see you also reached out via email, we will respond to you there!
Hi@marc@papr, I would like to ask if pupil invisible can provide information to calculate gaze velocity (e.g., eye image, calculate gaze velocity by regression method). I'm trying to process gaze data using Kalman filtering and I need the measurement for position and velocity.
Yes, that is possible by running custom code on the exported data. You can adopt this tutorial https://github.com/pupil-labs/pupil-tutorials/blob/master/05_visualize_gaze_velocity.ipynb For Invisible data, you need to replace step 1 and 2 with code that converts the 2d gaze pixel locations into 3d viewing directions. Afterward, you can use the tutorial as is.
Thanks for your reply, but I still have some questions. What I need is pixel speed (pixel/sec). There is no essential difference. The method in the tutorial uses the position calculation velocity (pos_diff/ts_diff) What I want to try is to use other information (e.g., eye image difference) to calculate a position-independent gaze velocity. This velocity is then used to filter the position location.
But as far as I know, pupil invisible doesn't provide eye images.
Eye images are provided as part of the raw binary data download (in Drive right-click a recording and select download)
If you want the speed in pixel/sec, can you simply take the position difference of neighboring frames and divide that by the difference in timestamps? The tutorial is doing the same thing but converting the pixels into degrees first.
Yes, this can calculate gaze speed. What I want to do is to use other methods to calculate an additional gaze speed for comparison.
Not sure whether this is an approriate message to this forum. I'm new to the pupil invisible. We made some succesfull recordings. But since one of my colleagues used the invisible, it doesn't display my gaze any more. I read an e-mail on an update that wasm't supposed to be installed? Any one?
Hey @user-e40297! Android version 10 has a bug that makes it impossible for the app to access USB devices. You can check in the system settings which version is installed. Other that that, does your Pupil Invisible show up as connected when it is attached to the phone? The camera and eye icon at the top of the home screen would be in color rather than gray then.
Hi, thanks for your reaction It's Android version 11 security update 1-12-2021 camera and eye icons are coloured (purple and green)
I am assuming you are using a OnePlus8 device, is that correct? In that case Android 11 is fine. The sensors connecting successfully is of course also a good sign. So the issue you see is that while you wear the glasses and open the live preview, no gaze is visualized? If you make a recording, do you see gaze in it? If not, could you please share an example recording showing this behavior with [email removed]
I've send a very small video in a mail. Indeed it is a OnePlus8 device
Hello, I'm currently working on accessing gaze data in realtime, but I'm also interested in obtaining the gaze data wrt a surface in realtime. Is this doable? In other words, would it be feasible to use a script to determine a surface based on surface markers in realtime then extract the gaze data in realtime? If so, does anyone have some examples to point me in the right direction? Thank you.
Hi @user-cd3e5b! Yes that is in principle possible. Its not supported super well, but you have two options:
1) You can use the Real-Time Surace Tracking in Pupil Capture: Using this plugin you stream Pupil Invisible to Pupil Capture: https://github.com/pupil-labs/pi_preview
There you can track surfaces in real-time using the Surface Tracker plugin, which makes its results available to the local network. See the available documentation here: https://docs.pupil-labs.com/core/software/pupil-capture/#surface-tracking https://docs.pupil-labs.com/developer/core/overview/#surface-datum-format https://github.com/pupil-labs/pupil-helpers/blob/master/python/filter_gaze_on_surface.py
2) Integrate with the surface tracking source code The code used for surface tracking is open-source. The repo with the code used in the marker mapper in Pupil Cloud is available here: https://github.com/pupil-labs/surface-tracker
You could write a custom script that uses this in real-time. The biggest issue is that this repo is mostly undocumented and you might have a hard time finding your way around it. It is on our todo list to make this repo easier integrate with, but for the moment only this example exists: https://github.com/pupil-labs/surface-tracker/blob/master/examples/visualize_surface_in_image.ipynb
Hello @marc , thank you so much for your response. This sounds like a great starting point!
Hi, is there a companion app for windows os? Can I use, let's say a windows laptop to record, instead of the provided smartphone? Thanks.
Hi @user-562b5c! No, a Companion app for Windows is not available. The phone needs to be connected to calculate gaze and make recordings. You can however stream the resulting data to a computer in real-time. See here for details on that: https://docs.pupil-labs.com/developer/invisible/#network-api
Thanks Marc, is calculate gaze a windows software?
Lol, I read your message again, sorry get it now.
