I am looking for an easy and non-technical way to stream the gaze data from the pupil lab invivible to a macbook pro. this is mostly for demonstration purpose. I have tried the following link https://docs.pupil-labs.com/invisible/how-tos/data-collection-with-the-companion-app/monitor-your-data-collection-in-real-time.html as suggested on the website, but the page does not seem to open. I would be very grateful for an easy and non-technical solution... many thanks

Hello! I take videos with pupil invisible for my thesis, and I put my videos on pupil clouds but I noticed that the image of some video cuts in the middle of recordings. I would like to select the parts of the video that work but I can not do it on pupil cloud, it takes into account the entire recording.. how can I do?

Hi @user-50cf87! What exactly do you need to get out in the end? - For a gaze overlay video you can cut down the recording using events in the gaze overlay enrichment definition - If it is just about the video, you can cut it using any video editing software. - When exporting all data of a recording, there is not automatic way to crop it down. But the CSV data is ordered by its timestamp, so you could filter it this way.

Head Pose Tracker

Hello, I have a question. I used to use pupil core and in particular the 3d coordinates of the gaze point, can I get that with pupil invisible as well?

Hello folks at Pupil Labs - Last time I checked transferring recordings between workspaces was not possible - Is there any chance this is something in the pipeline for the future? 🥺 . It seems to be a bit of a no-brainer to my mind - to cater for the eventuality of inadvertently capturing recordings while set to the wrong workspace - Unless there is a benevolent reason for not allowing this that I am unaware of.... Plus, there is the small issue of separating concerns for clients post-capture - something I am currently facing...😩

Hi @user-df1f44! This is currently still not possible via the UI. If you have a concrete issue with recordings in the wrong workspace we could try to help you manually! I agree, from a UX standpoint this is a rather obvious feature. It's not quite as trivial to implement as one might expect though, which is why we have deprioritized it so far. Given the interest, we should re-evaluate this!

It took the liberty of creating a feature request for this: https://feedback.pupil-labs.com/pupil-cloud/p/recording-transfer-between-workspaces

Hi@marc，in my use of invisible, it often fails to connect, like this

It usually takes 100 to 200 attempts to connect successfully, and I'm not sure if this is a problem with the invisible or the phone.

Can any Typec-Typec cable be used, as I plan to use other Typec cables.

I'd recommend testing the cable for a couple hours before relying on it!

Specifically, can I try Apple's Typec, which I plan to use?

Or Oneplus' typec.

We have never tried using those cables, so I am not sure. Sorry!

Or can you provide the type of typec you are using?

I think this connection failure problem may come from the cable, and I plan to buy a new cable to test if the problem mentioned above still occurs.

Got it! If the cable is indeed the issue, we'd also be happy to send you a new one!

Because I had this same connection problem with both of my Invisible (unfortunately, I lost a cable, so they used the same one). So I think it's more likely that the cable is faulty.

@marcThanks for your help, I am currently working on head pose estimation work (displacement and pose) and hope to help Invisible in the future.

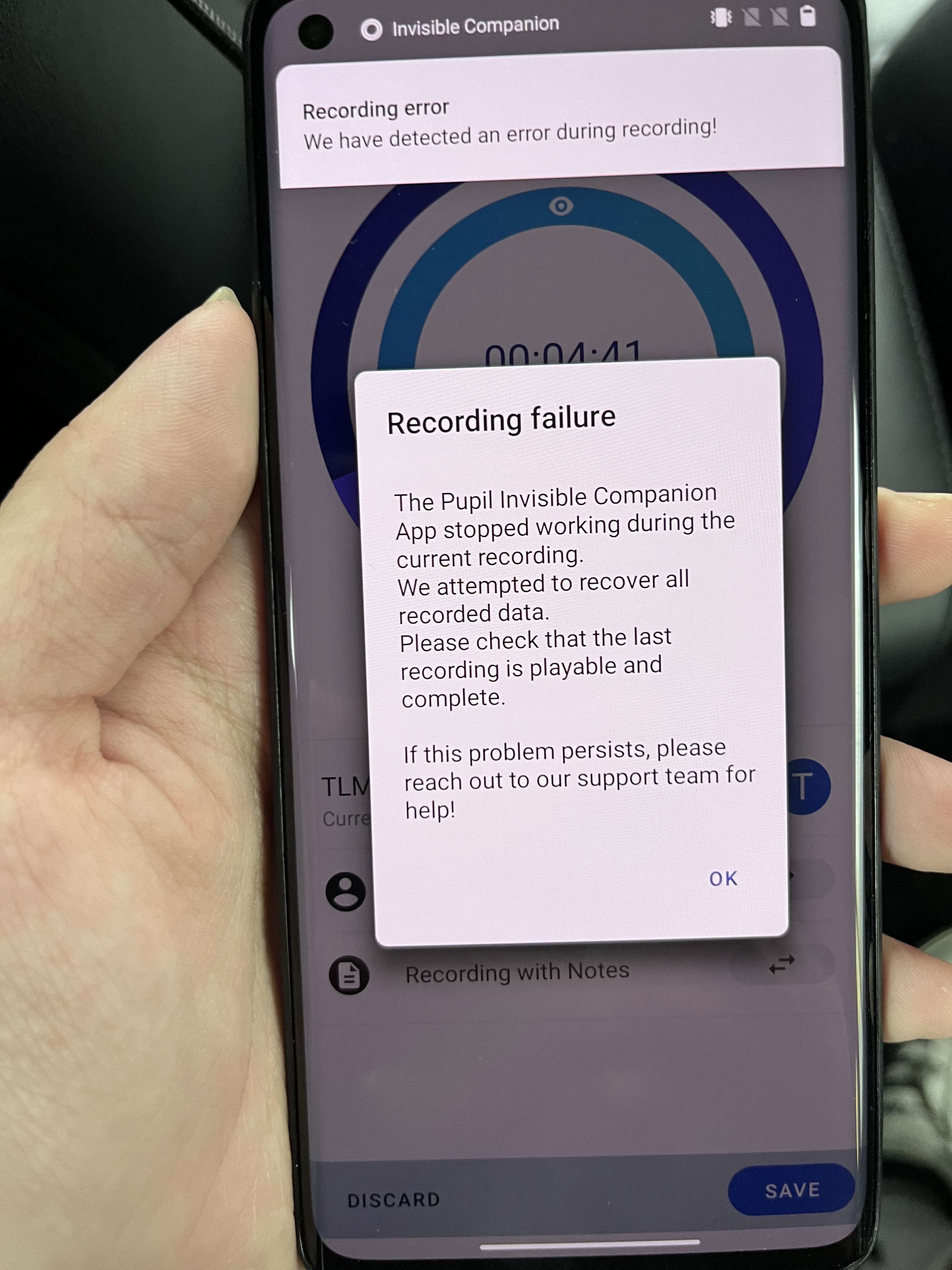

Hello, I'm a newbie of pupil invisible. And I encounter a trouble(like picture),which always when the video longer than 25mins. Is it overheat? Does anyone know any solution?

I will appreciate it!

@user-d407c1 You means just email to this address about this issue?

Sure, thanks.

Hello, at our institute we are using pupil invisible. I remember when I used it last year for a research project there was a "fixation" plugin available in the plugin manager of pupil player. I started working again with the glasses recently and noticed that there is no fixation plugin available anymore in the version that I have installed now (the newest). In the online user guide I also read now that it is not available for pupil invisible. Was it removed in between versions or do I just don't remember correctly that this option existed? Thank you.

Hello! We are using pupil invisible for a TSST dyadic task (two people) and wanted to know if there was an easy way to set up event markers with psychopy to sync the two recordings

Hey @user-46e93e. Are you using PsychoPy to present stimuli? Check out this tutorial for tracking events using Python: https://docs.pupil-labs.com/invisible/how-tos/integrate-with-the-real-time-api/track-your-experiment-progress-using-events/#track-your-experiment-progress-using-events

Hello, I have a question I understand that pupil invisible only provides 2D line-of-sight coordinates, but is it possible to obtain 3D line-of-sight vectors from this information?

Hi @user-746d07! Yes, a 2D gaze point and a 3D line-of-sight are basically equivalent and you can transform each into the other. To do this you need some camera geometry. Using the inverse of the projection matrix of the camera you can "unproject" the 2D gaze point back into the 3D gaze ray.

This might sound complicated if you have not dealt with this before, but there are lots of resources on the internet about this! You can check this how-to guide on how to obtain the camera intrinsics (which contain the camera matrix and distortion coefficients). https://docs.pupil-labs.com/invisible/how-tos/advanced-analysis/intrinsics/

The guide contains the same math/OpenCV method calls you would need to use. The following line is what it comes down to:

rays_3d = cv2.undistortPoints(
    points_2d.reshape(-1, 2), camera_matrix, dist_coeffs, P=None
)

Let me know if you have questions!

@user-746d07 Yes, the scene camera of Pupil Invisible covers the entire active human FOV. The fields of views of our various scene cameras are as follows (horizontal x vertical):

Core: 99°x53° (by default. When using 1080p it goes up to 139°x83° but has a lot of distortion) Invisible: 82°x82° Neon: 132°x81°

So as you can see the vertical FOV of Pupil Invisible is much larger than for Core. You can not change the direction of the scene camera like for Pupil Core, but given the size of the FOV its also not necessary. Pupil Invisible covers the natural FOV very well and even more extreme scenarios, like e.g. interaction with a smartphone which usually happens at steep downwards angles, are covered well.

Neon has an even larger horizontal FOV, but the motivation of this is rather to cover peripheral vision better than to capture more of the active FOV, which is already covered well. If your timeline allows it I'd recommend purchase Neon over Pupil Invisible.

OK,thank you I understood that pupil invisible has a large FOV and covers, for example, when interacting with a smartphone. In pupil invisible, unlike pupil core, I was told that gaze point supports only 2D output. Considering what you said earlier about camera intrinsics, am I right in understanding that if the orientation and position of the face is known, it is possible to obtain the gaze direction in an absolute coordinate system?

Hi, I just found your company in google. I would like to share with you our idea of research. We are working on visual attention, for this we work with database of heatmap gaze (like MIT1003). We would like to construct our own database which will correspond to our cases of studies (static scenes). We would like also to make some studies about eye fixation on a video. Did you have a solution to propose to us?

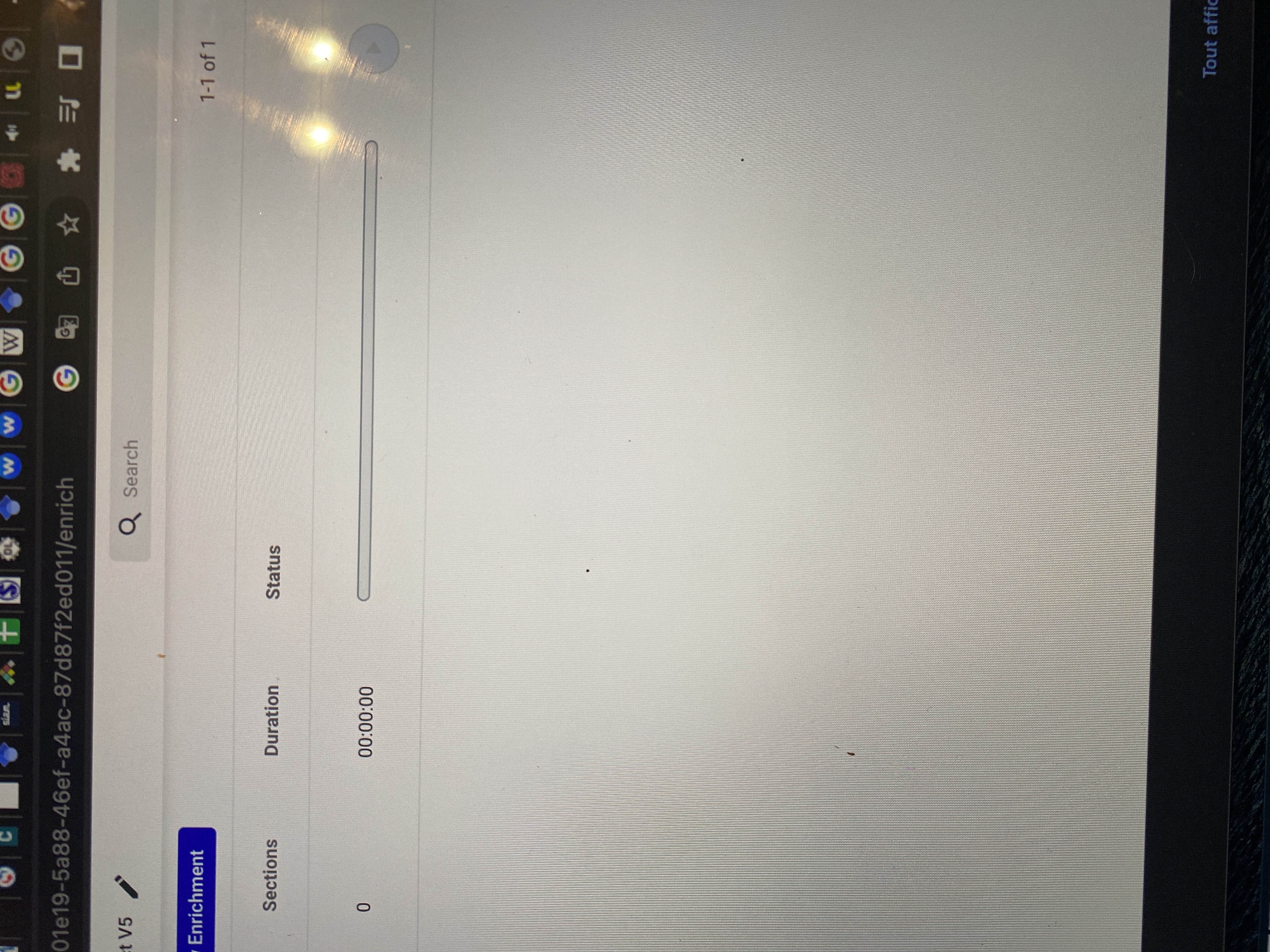

Hi, I’m using pupilcloud for my phd and I have a problem to download a gaze overlay enrichment.. nothing happen when I try to download this enrichment (only for this video in particular and I don’t know why). Do you know how I can upload it?

Hi, i am using pupil to have a small eye tracking event. i wish to know how can i calibrate it to the center as it always tends to point to the left of the actual view.

Hi, I've some problem with the uploading of my videos on the cloud with the Pupil Invisible App. I'm connected on internet and the uploading of the videos stay at 0%. I'd tried to delete all the files of my Pupil Cloud to make space on my account but it doasn't change anything. Another solution could be to export the video files locally (from and to the phone) but the option is not available on the app. Does anyone has a solution ?

@user-5b6152, some more debugging tips here: https://docs.pupil-labs.com/invisible/troubleshooting/#recordings-are-not-uploading-to-pupil-cloud-successfully

We are using real time python API (https://pupil-labs-realtime-api.readthedocs.io/en/stable/api/index.html). We are just is there any way to change the recording filename in the cloud when we are starting the recording using python api method (Device.recording_start())?

Hi Neil, would it possible to set up a time to call with someone who might be able to walk us through tracking events for our specific task? I have it set up but still unsure about how to test it. We are also looking to send it to two separate invisible devices at the same time

Hello again, I tried the above mentioned method for parallax correction, tbh one of the best ways of calibration i have yet seen. my only difficulty is, when the calibration is done from a distance or close proximity, the same calibration tends to change when the distance is changed respectively. how can this be fixed or is SOP for calibration which should be followed? and is it better to calibrate with every new user?

So, whether you use the offset correction really depends on things like the experimental task, the participant, whether the non-offset corrected gaze is accurate enough for your needs etc.

I typically do a qualitative assessment with each participant before deciding!
