Well i have a question. I have some data where only the one of the two eyes had been filmped. Is it possible to get the gaze data out of that?

ai oke

Hi @papr, No I'm very clear that you're inheriting timestamps from the nearest eye camera frame in the gaze data. This is WHY it should not be possible to have 4ms or 8ms intersample temporal distance in the gaze data, and that's a separate issue to the eye camera sample rate actually being 250Hz, not 200Hz, and all the other things. I was able to record eye data from one eye - an artificial eye with no movement whatsoever. I also found in a thread here that if one eye is lost, the gaze data from the other eye is reported without averaging, and we do get some gaze data even though I'm not sure what the spatial coordinates are in this context. So - I'll post the results of taking spatial precision measures later - once we've converted from pixels to degrees, but the temporal precision/sampling frequency is clearly still highly variable even when the 1euro adaptive algorithm is not adapting - as there is no velocity. So - that seems to rule out the filter as the main cause of the timestamp strangeness, at least. See attached.

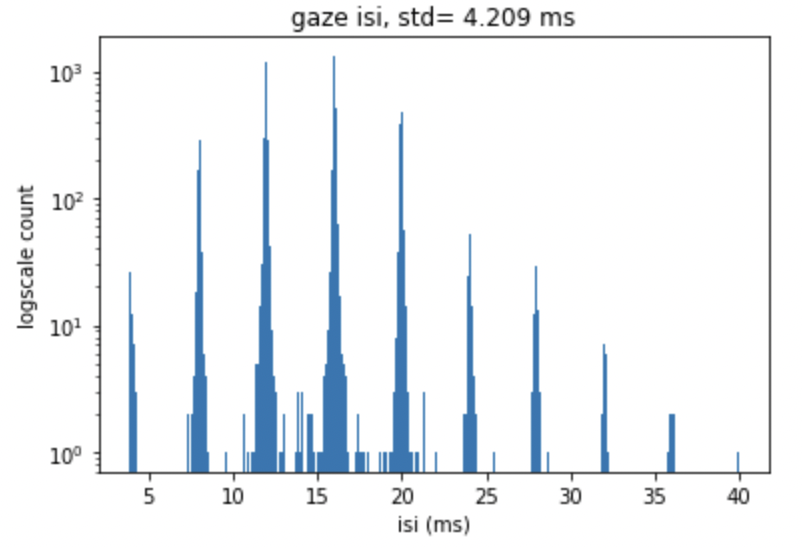

note the standard deviation of 4.209ms is the measure of temporal precision. For spatial precision we'll use SD of intersample distance and the sample to sample RMS. Since we use an artificial eye with no movement, this spatial imprecision should represent system noise - without any biological component - but this assumes some things the the black box right now - would be great to confirm.

I also found in a thread here that if one eye is lost, the gaze data from the other eye is reported without averaging Pupil Invisible does not report gaze data for the two eyes separately. What you are talking about is the Pupil Core gaze estimation. Please do not mix them conceptually!

If the 1euro filter is adapting, this implies a higher processing load which would effect timestamping, according to your description of the pipeline? If the eye camera is sampling at 200Hz, how come there are no isi's of 5ms in the data, which would be the same rate? It's all multiples of 4ms. From my perspective, the precision measures are from this tracker - the software producing them is of less interest to the user - so in all cases I'm talking about the data quality it outputs rather than any comparison of pipeline stages/processing software. We were able to get gaze data from one eye recorded - the artificial eye we use is fairly elaborate and designed to trick ophthalmology imaging equipment - so it works on all trackers we've tried it on - so far 21 different trackers all recognise it as an eye, as it can also produce a bright pupil reflection with on-axis illumination, and all 4 purkinje reflections etc. This is apart from the fact that IF the gaze timestamps are inherited from the nearest eye camera frames that are valid, then since the gaze data / world camera frames are at 66Hz, no two gaze samples should have a 4ms isi unless only the last eye camera frame of that world camera frame period is valid, and the next valid frame is the next eye camera frame, with the two next frames also invalid - i.e. eye camera frames with invalid=0 and valid=1 would be something like |001|100| during two world camera frame periods.

1euro filter is adapting, this implies a higher processing load which would effect timestamping, The frame timestaming happens in P1-3, while the 1eur filter is applied in P4, after the timestamping has been applied already. Also, the "processing load" is negligible in comparison to everything else.

how come there are no isi's of 5ms If I understood it correctly, there is some kind traffic of traffic congestion that causes some frames to arrive more quickly once the congestion is resolved. But this is the part which I still need to understand in more detail.

the precision measures are from this tracker - the software producing them is of less interest to the user I highly disagree with you on this. Most eye tracking hardware is just a set of cameras. The software processing the recorded images is where the Core of eye tracking lies. Also, only understanding the full pipelines in detail will result in the full picture.

Both, Pupil Core pupil detection and Pupil Invisible gaze estimation pipelines work on a best-effort basis. They will take any image as input and try to detect the pupil/estimate the gaze direction. If you do not input the image of an eye, the result will be of questionable quality of course.

world camera frames are at 66Hz This is incorrect. The world camera operates at ~30 Hz.

Could you share an example eye video recording your artificial eye. I am curious how that looks like from the eye cameras perspective.

OK - so if the world camera operates at 30Hz, then it would be |XXXXX1|100000| during two world camera frames. I highly disagree that the hardware is not relevant here - there's a big difference between commercial trackers even in terms of temporal precision across the same sample rates, for example, based on whether the timestamping is hardware driven, as in the LC Technologies trackers, or software driven, as you have here. Also, there's a trade off between eye camera resolution and spatial accuracy and precision, and many other things!

if the world camera operates at 30Hz, then it would be |XXXXX1|100000| during two world camera frames I do not understand this notation and what issue it relates to.

Well - it is an attempt to say that the only possible way to have inter sample times of 4ms inherited from a 250Hz eye camera in 30Hz world camera frames that select 'most recent' gaze sample, is if world-camera-frame-based gaze data has the most recently sampled eye camera image's timestamp, and all but the first eye camera sample of the next world camera frame is lost. X means doesn't matter whether sample is lost or not, 1 means valid sample, and 0 means sample/eye camera frame from which no gaze could be calculated - invalid/lost. Logically, 'most recent' becomes the first eye camera sample recorded after the previous world camera frame, that becomes the most recent even though it's actually ~20-24ms ago, if it's 250Hz, and ~25-30ms ago if it's 200Hz.

Of course, if the eye camera is definitively sampling at 200Hz but producing intersample intervals of 4ms, then that's a very different, and potentially much bigger problem.

....possibly with the time-space continuum? 😛

PS - this: how come there are no isi's of 5ms "If I understood it correctly, there is some kind traffic of traffic congestion that causes some frames to arrive more quickly once the congestion is resolved. But this is the part which I still need to understand in more detail." ....is what I meant by buffer issues yesterday, but it would not produce 4ms apart samples regularly - with no samples that are 5ms apart/at the sample/eye camera frame rate. Thanks a lot and I look forward to your answers - this is a great system, we'll try to max out on possible measures from it once we have a handle on the data quality constraints. I'll try to get you the eye video too, from the artificial eye recordings. Can you give me a quick pixel-to-degrees conversion ratio for the gaze data, or provide the necessary parameters to calculate?

Thanks! Is there a way to bypass the cloud and use the software locally? We can't upload experimental data to cloud - even for a second - without breaking data handling requirements for human research.

Ok, thanks!

Hello! I would like to ask a question about using the Pupil Invisible Glasses which we have available for a research project. The project is about an assistive mobile app for the visually impaired. We would like to only use the Scene Camera of the glasses directly from our app to take a screenshot and/or video feed and get the data real-time to our app. Looking at the documentation the following questions arose: -Firstly, is the above desired functionality or a similar one available using the Pupil Invisible Glasses connected to an android device? (if iOS is also supported it is also very welcome) -If this is possible, how should we proceed to develop this functionality with the available Pupil tools? (E.g. just treat it like an external camera?, use a driver?) Thank you very much for your time!

Hi @user-28da12! This would be possible using Pupil Invisible, but depending on the details it might be more or less difficult! All the data generated on the device (including the scene video) is published to the local network through the phone. So any computer in the same wifi, or another app on the same phone can access all the data in real-time. Receiving the data on a computer that supports Python is very easy, see the docs here for details: https://docs.pupil-labs.com/developer/invisible/#network-api Receiving the data in an Android app is difficult though, since you would need to implement a custom NDSI client for Andoroid, which is not easy. We are however currently working on updating our real-time streaming protocol to RTSP, which would be very easy to receive also on Android. The release of that update is expected this fall.

Note the following additional limitations: - The PI companion app is only compatible with one specific phone model, the OnePlus8. This is mostly because the gaze pipeline is only compatible with this model, which does not seem to be relevant for you, but still the app is set to be not installable on other models. - Further, even though you are not using it, the gaze pipeline will still run in the background limiting the battery life to ~180 minutes.

Alternatively, you could access the scene camera directly from within your own app. The cameras can be interfaced with UVC and there exist 3rd party apps already that can do that. We would however not be able to support you in that development.

@user-bbf437 are you able to upload to cloud if no scene video is uploaded for example?

"Densifying" gaze data post hoc in cloud is re running eye videos through our DL gaze pipeline. While we would love to be able to open source everything, this pipeline is closed source and therefore only available in cloud (not desktop).

Thanks @wrp, am I wrong to think that it only needs the two eye camera videos to work? We may still get into trouble for uploading these too, I will check with my supervisors to be sure. Would the DL gaze pipeline also be available as a standalone, downloadable software?

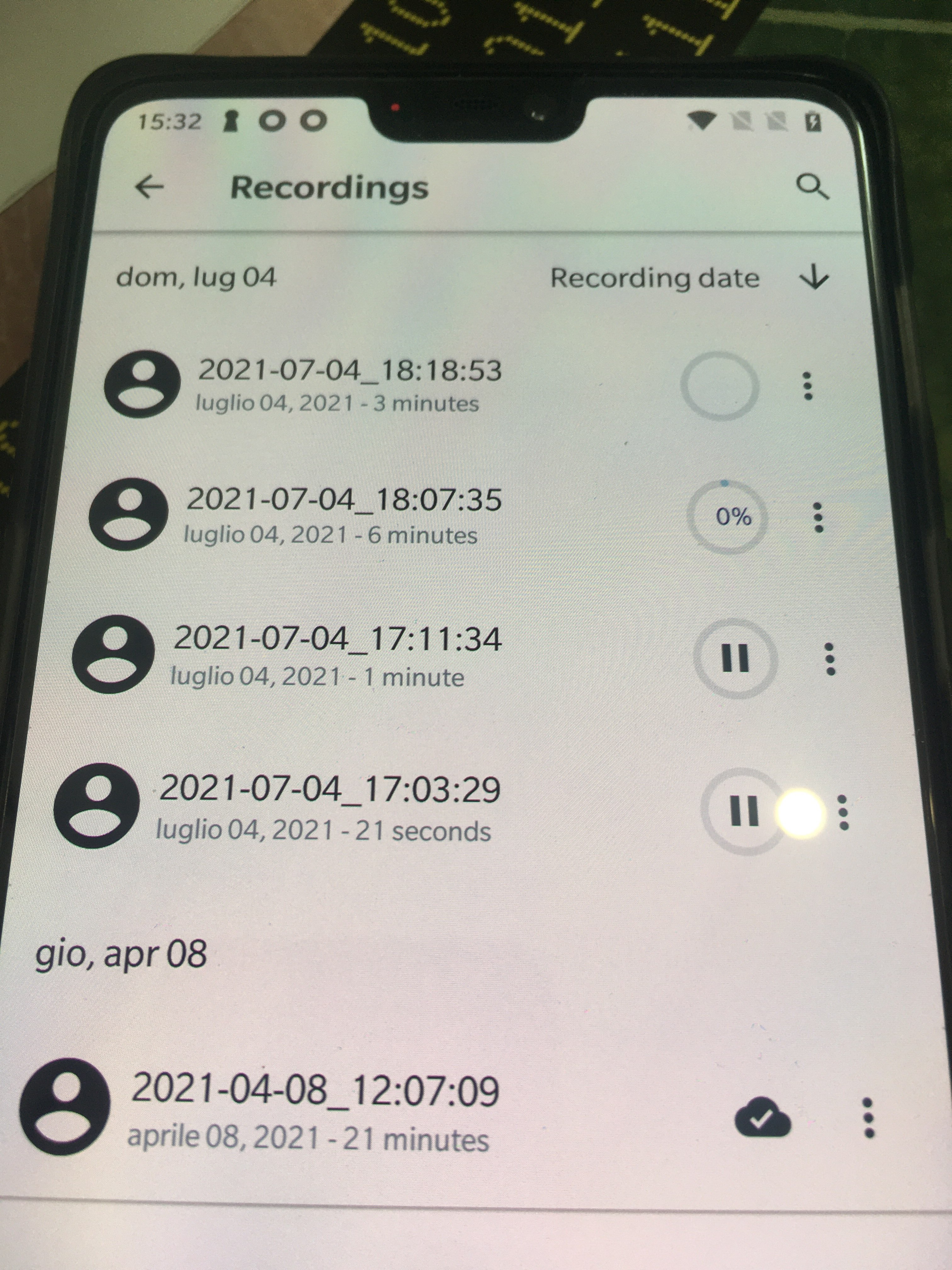

Hi there, quick question: is there any problem with the cloud system? I’m trying to upload a couple recordings but this is what I get after more than 20 minutes...

Hi @user-aaa87b! Please try the following to fix the issue:

1) Make sure your app version is up to date. 2) Log out of the app and log back in. 3) In case that has not yet fixed the problem delete the app's cache. Do this by holding the app icon -> info -> storage -> clear data. This deletion will not delete any recording data but only internal app data.

Let me know in case the issue persists!

Hello Pupil Labs team, I'm trying to get IMU data with this code : https://docs.pupil-labs.com/developer/invisible/#network-api. I added "imu" to SENSOR_TYPES but I dont find the command to get the data. Could help me pls ?

Thanks alot !

Hi @wrp, @user-bbf437, Since this is academic research involving human data, we can't have any access whatsoever for any period of time whatsoever, outside our double-layer protected and fully specified machines. Every person who could possibly access any part of the data for any period of time has to be named and approved, I guess this will not be an unusual situation for researchers. Is there no standalone app that could be used for research data? We wouldn't necessarily need open source, an app that runs offline would be fine?

The eye video cameras run definitively at 200 Hz. We verified this by looking at the hardware timestamps provided by the camera. Unfortunately, these are subject to drift which is why using software timestamps is more accurate on average than using hardware timestamps.

Software timestamps are measured as soon as the frame data arrives on the USB host (Companion device). Unfortunately, the USB transmission is not continuous but subject to a schedule with limited bandwidth. This schedule has a slightly different frequency than the camera sampling. The different modes in the software-timestamp-based isi distribution are an effect from the interference of these two different frequencies.

...note also that the standard deviation in intersample gaze data is 4.209ms. This should not be the case, then?

This is a very high-level description of how I understood the problem. The actual the details are subject to how USB transfer works on the lowest level and I personally do not comfortable in claiming that I understood these details. Nonetheless:

The USB bandwidth is sufficient for transferring eye video data at 200 Hz on average. But this bandwidth is not available all the time. Instead, at some time points there is no transmission, and at others there is more bandwidth available than necessary. The camera always tries to transfer the frame data as quickly as possible. If the frame finished exposing but the transfer schedule does not have bandwidth available at that time, the frame needs to wait. Meanwhile, the next frame is being exposed. Once bandwidth becomes available, the queued frames are transferred and the congestion created by the USB transfer schedule is resolved.

This explains why there are some frames with higher isi than others as well as why some frames arrive shortly after each other. Frame exposure is not blocked by the USB transfer schedule. Instead, the camera continues exposing frames while previous frames wait for their transfer.

I cannot explain it better than this. I really hope this makes some sense to you.

standard deviation in intersample gaze data is 4.209ms Please remember, that gaze timestamps are a subset of the eye video timestamps because gaze cannot be inferred at the same frequency as new eye video frames are being sampled. Therefore, it is expected that gaze timestamp std is higher than eye video timestamp std.

Also, the gaze pipeline does not have a concept of time. It just takes two images as input and produces a 2d point in scene camera coordinate space.

If the temporal precision/sampling regularity is unknown up to tens of ms then we will have a hard time extracting e.g. fixation durations validly. If it's very irregular but known and measured we can still work with it to get fixation durations at the granularity indicated by 30Hz scene camera (+- 33ms, roughly - though as you can see, there are almost no gaze samples with that interval or close to it - which should be around the middle of the most common interval mode if the most recent eye camera sample's [email removed] [email removed] were inherited at 30Hz without extensive loss).

Here's the plot again, to save you scrolling:

well i have a question. I have to maps that my pupil player cant open. However the recordings are still intact i guess. Can someone help me

2021-07-09 16:22:30,227 - MainProcess - [DEBUG] os_utils: Disabling idle sleep not supported on this OS version. 2021-07-09 16:22:30,612 - player - [INFO] numexpr.utils: NumExpr defaulting to 6 threads. 2021-07-09 16:22:39,483 - player - [ERROR] launchables.player: Process player_drop crashed with trace: Traceback (most recent call last): File "launchables\player.py", line 934, in player_drop File "pupil_recording\recording_utils.py", line 40, in assert_valid_recording_type File "pupil_recording\recording_utils.py", line 59, in get_recording_type File "pupil_recording\recording_utils.py", line 119, in _is_pupil_invisible_recording File "pupil_recording\info\recording_info_utils.py", line 90, in read_info_json_file File "json__init__.py", line 299, in load File "json__init__.py", line 354, in loads File "json\decoder.py", line 342, in decode json.decoder.JSONDecodeError: Extra data: line 2 column 1 (char 693)

maybe a stupid question but how can i remove that

i send both the files

send both

@papr Can you guys comment on the road-map for the invisible? Specifically, the ability to 1) calibrate to an external reference and calculate approximate EIH signals, and 2) the ability to filter based on some measure of confidence, or at least to detect and filter out blinks ?

SOS - I have a 53 minute recording that I have been annotating (I am 25 minutes in)... pupil player is not responding and my cursor is just spinning round and round. I do not want to force quit and loose all of my annotations. Is there something I can do? Does that data save automatically if I force quit?

When I export my pupil player files there is no fixation.csv ... why would this be? also there is no such thing as "fixation detector" on my pupil player.... in order to do my work I need the fixations and fixation durations. Can someone please help me?

Hi! Are you using a Pupil Invisible recording? Fixation detection is not available for Pupil Invisible within Pupil Player. The according plugin can not be enabled and the exports do thus not include the fixation csv file. Within the next couple of weeks we will release a fixation detector for Pupil Cloud though! Did the non-responding Pupil Player problem rewolve itself?

Dear Pupil Labs engineers, I am wondering why the data frequency is different between companion and cloud for invisible? Is it just kind of ‘license’ issue, or any post-processing or ‘(deep learning based) filling’ procedure happens in the cloud?

Hi @user-d8879c 👋. Traditional fixation filters, like the one in Pupil Player, generally work well in static conditions, e.g. when the wearer is seated. However, they become less reliable in dynamic conditions, e.g. when the wearer moves freely in their environment. We chose to disable the dispersion-based filter for Pupil Invisible recordings because, a) we had not formally tested it with Pupil Invisible, and b) we are releasing a new velocity-based filter for Pupil Invisible that will provide more robust fixation classification in dynamic conditions, which are often expected with Pupil Invisible use. For reference, you can also make annotations within Pupil Cloud. Once you have added your recordings to a Project, you can insert events (annotations) in the 'Events & Sections' window (far right of screen)! The fixation detector will be added as a free update, and then you will be able to download fixation and annotation data from Pupil Cloud.

@nmt Thanks for clarifying. Isn’t it possible to do same in powerful enough system in local like core does?

@papr continuing... https://discord.com/channels/285728493612957698/285728635267186688/864258349445283890

@nmt @papr https://discord.com/channels/285728493612957698/285728635267186688/864258349445283890

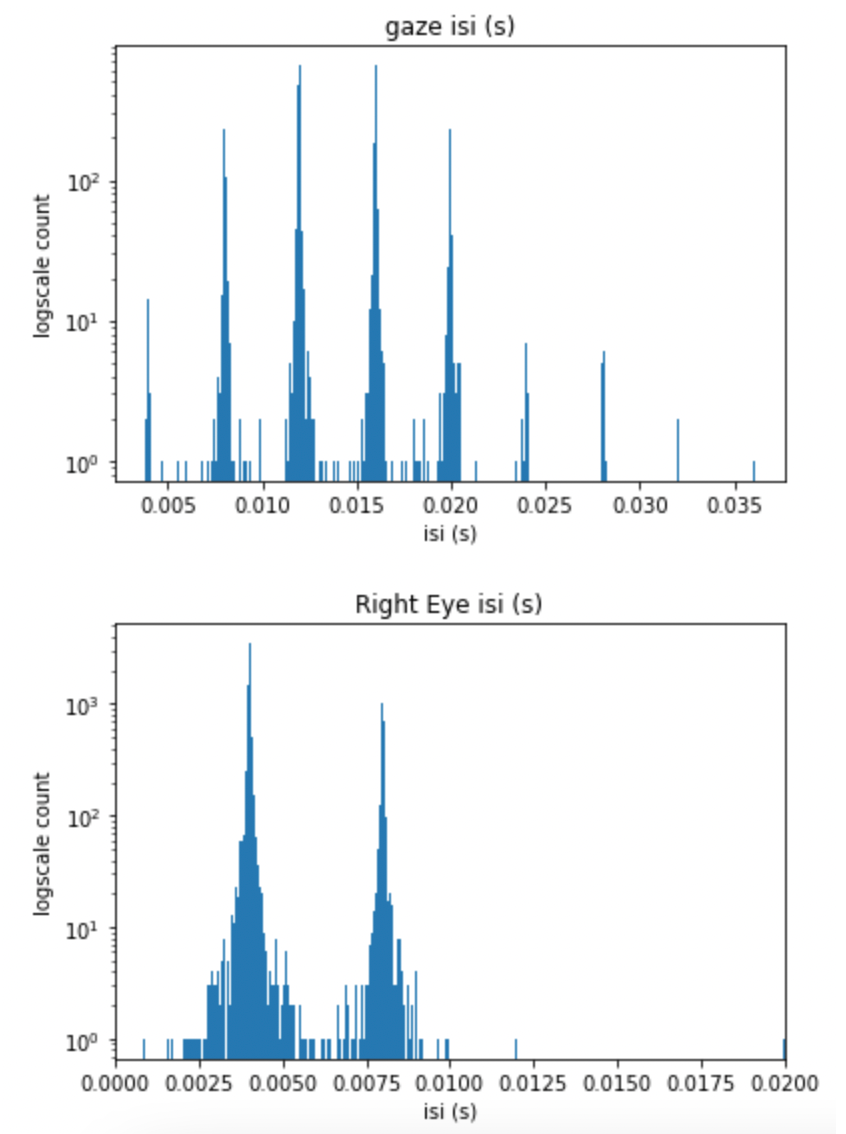

we want to take measures of e.g. cognitive load via fixation durations, effect sizes are not very large, so any explanation you can offer for why the gaze and eye samples are coming out in multiples of 4ms sampling rate, then? If the eye camera and original timestamps should be at 200Hz and unedited, then the graphs above which are intersample times for the data we've recorded with the IP do not make sense, neither does lag introduced - it's waaaaaay too regular. Please note the gaze isi here is from gaze data, not eye camera - that's below. This would have direct impact on choice of, for example, dispersion or velocity based event detection, as well as what granularity of eg fixation durations we can expect to validly measure, I think?

papr — Today at 11:29 PM At the moment, I can only offer my previous response to this question https://discord.com/channels/285728493612957698/633564003846717444/862723198617649172

papr — Today at 11:31 PM @user-359878 Also, these numbers are averages. The scene camera has a variable frame rate, too.

Human Bean — Today at 11:32 PM There is no way the data above would lead to averages at 200Hz/5ms intersample time (isi), though?

It's a small point compared to which sample of many eye camera frames is actually inherited in the gaze data - though. This implies a much larger range than even the isi range, because at 200/250Hz eye camera data for 66Hz gaze data, which sample/frame is used to estimate gaze position being 'most recent' means that depending on loss rate, 'most recent' could be 4ms previous, right up to ~30ms previous or more...??? Or is there a way to know which of several possible samples contributing timestamps to gaze data was used to calculate gaze position?

Or is there a way to know which of several possible samples contributing timestamps to gaze data was used to calculate gaze position? "which of several possible samples" - you are referring to eye video frames, correct? If this is the case, you know the answer to the question already: Each gaze position is calculated based on a binocular pair of eye images of which it inherits the left eye's timestamp. So yes, it is possible to know which of several possible (eye video frame) samples is contributing (image data and timestamps) to gaze data.

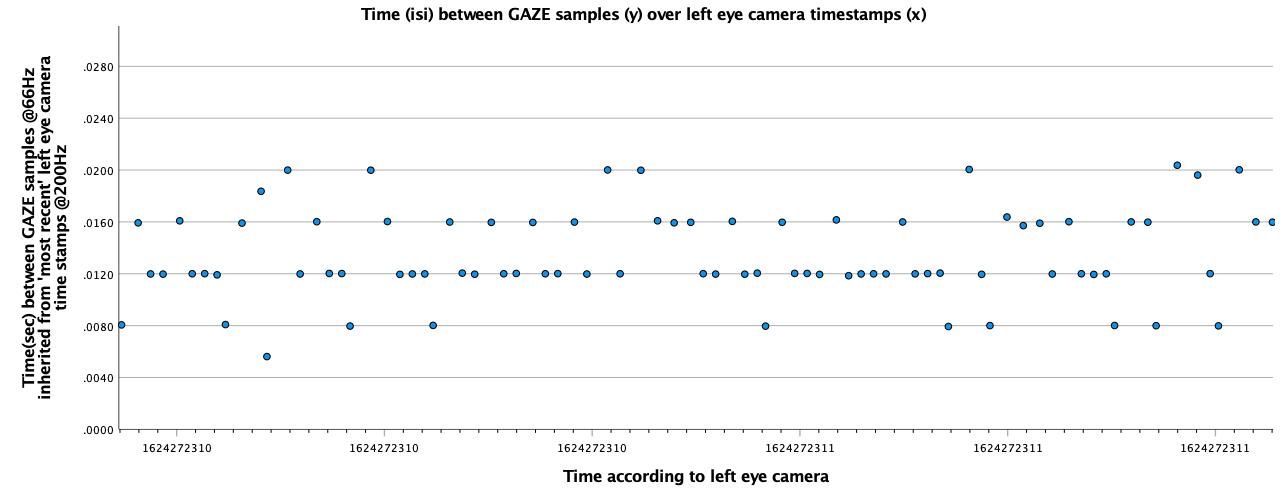

If gaze data is 66Hz, and inherits most recent sample from eye camera, then your isis should be somewhere between 17+/-4(or 5...)ms. As you can see in the plot above, the majority of isi's in the gaze data are, however, shorter than this by far. Is this due to loss of eye camera frames and inheriting 'most recent valid' sample through loss? This would explain the very short isi's as described many times, but I have no answer to whether that's what's happening. Thanks.

Valid=produces gaze coordinates, i.e. correct feature extraction. Invalid=no gaze coordinates, system missing or 0,0 (bad to use 0,0 to indicate loss as it is a coordinate, but some trackers do this nonetheless) gaze coordinates with a timestamp.

It's OK if it takes a bit of time to answer this - but it would be great to know that you understand what I am asking!

As I said before - great piece of kit, we're just trying to max out what we can validly measure from it.

Fixations durations require clarity on this or they're not valid.

I think just taking your notebook illustration and changing it so that some eye camera frames produce no gaze data, and describing what happens, would suffice!

Thanks again

OK. So you are saying that there is no instance where the eye camera frames produce 'loss' - i.e. can not be used to infer gaze? i.e. 'most recent' L+R eye camera frame is always available for gaze estimation, meaning gaze data is always 17ms +0->5ms intersample time if you are not uploading to cloud, with no samples missing? This is what I understand from your reply above - and that would be good to know - but it still doesn't explain the actual intersample times of 4ms and multiples thereof in the gaze data....? What am I missing here? Thanks.

doesn't explain the actual intersample times of 4ms and multiples thereof in the gaze data.... This is just a result from the eye video software timestamps having a multiple-of-4ms isi. If the eye video timestamps had a multiple-of-11ms isi, so would the gaze data.

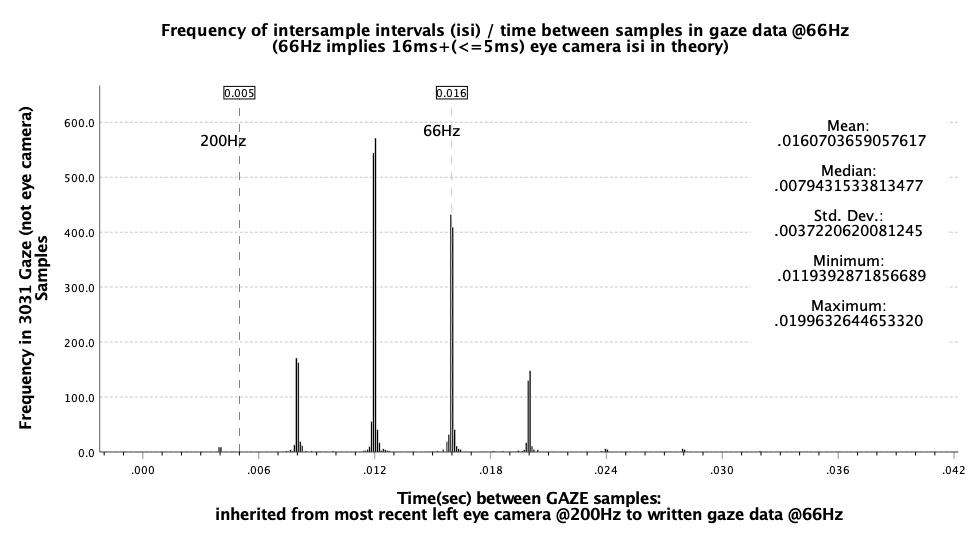

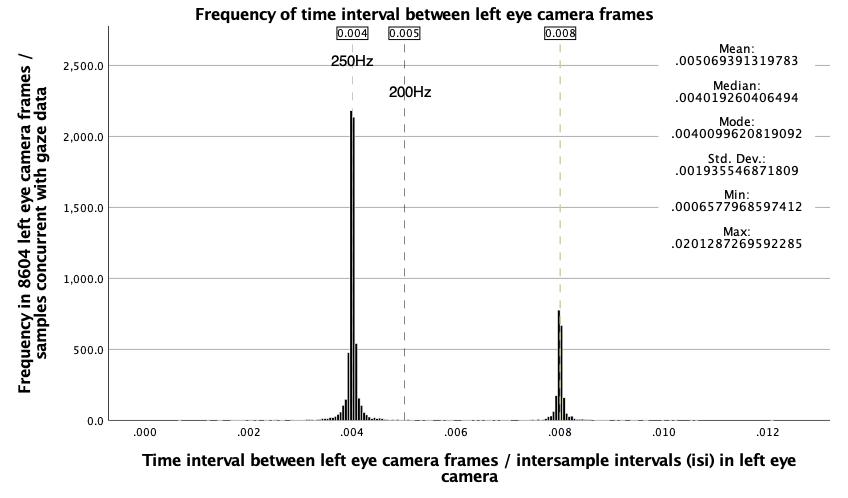

In the left eye camera, the temporal imprecision of sampling averages just under 2ms (Std. Dev.), with maximum loss indicated by just over 20ms between samples. When those timestamps are inherited/subsampled and pasted to 66Hz data, the time between samples ranges from 4ms to more than 20ms in this short, zoomed in period I've got in the second graph, most frequently they are 12ms apart, i.e. ~82Hz?! and in eventual gaze timestamps shown in graph 3, the most common time between samples is 12ms, followed by 16ms with nothing in between - quite tight distributions are modes that are multiples of 4ms. 66Hz is not inherited - there's no gaps of about 15ms between samples, 60Hz looks fairly common with ~16.66ms isi. Temporal imprecision of gaze data is just under 4ms (Std. Dev.). Over an e.g. 500ms fixation duration, this imprecision in sampling is additive over 33 samples gaze data, or 100 samples over eye camera frames.

the regular loss of eye camera samples (every 4th one?) I need to repeat myself. The 4th frame is not dropped or lost. It is just delayed due to USB transfer scheduling.

Well, that's even worse than loss - because you've gaze coordinates reported with the wrong timestamp, frequently up to 20ms or more per sample! correct?

PS - we can correct for ALL of this.

Yes - in other words - this is temporal inaccuracy, alongside temporal imprecision, but that isn't the ONLY source of error here - see above.

This would seriously mess up event detection. Temporal accuracy and precision is just as important as spatial accuracy and precision, especially since it was mentioned somewhere above that a velocity based event detection would be used.

We will figure out how to correct for all this, and do dual recordings to help demonstrate exactly what the effects of such temporal issues is for recording eye movements, and send all to you.

Meanwhile, the plots above are very telling!

They are based on the dataset I sent before.

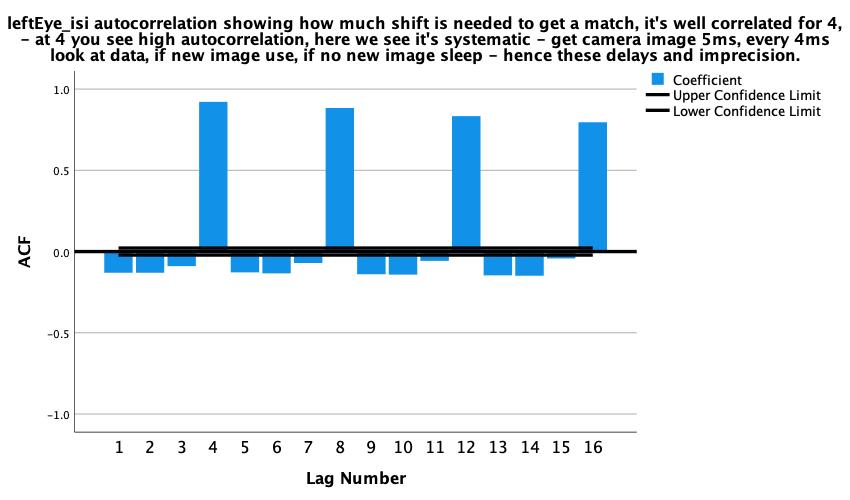

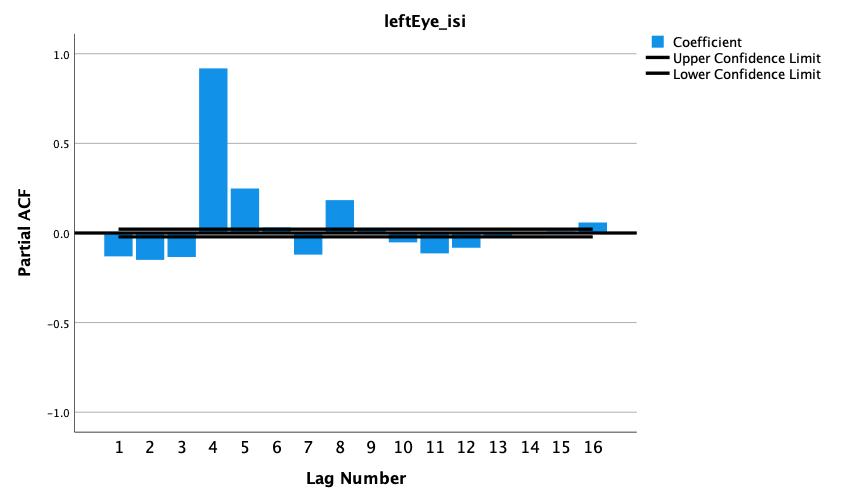

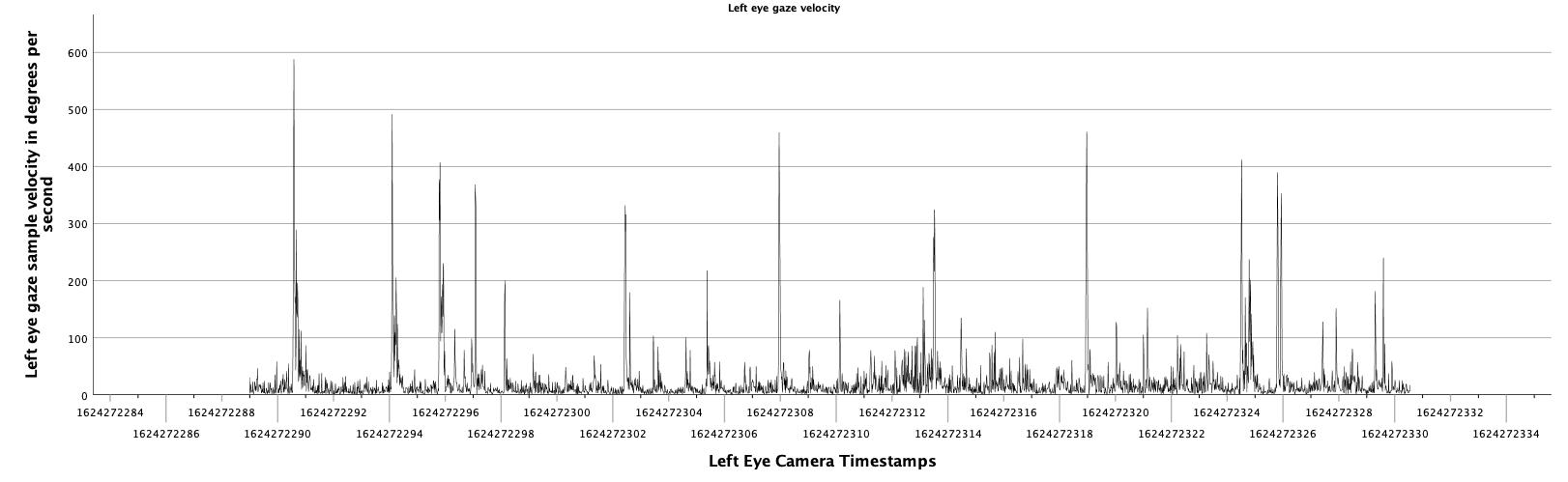

If you look at the left eye camera timestamps in there, you can see the regular gap every 4 samples or so throughout.

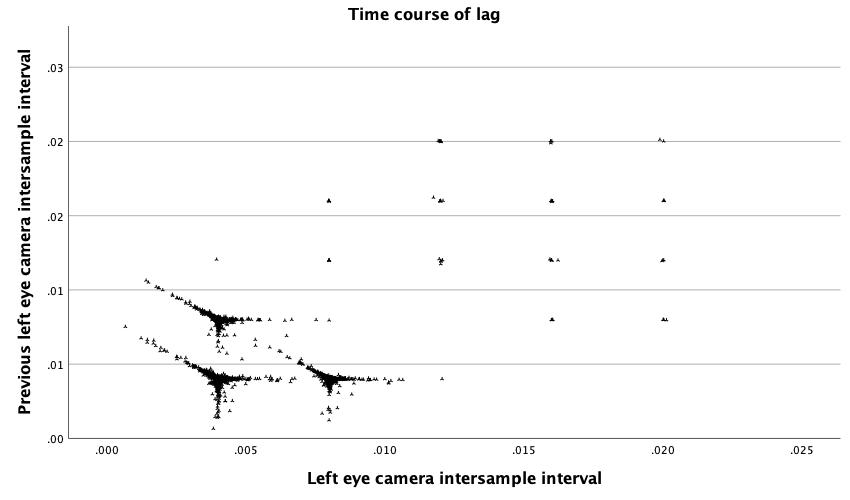

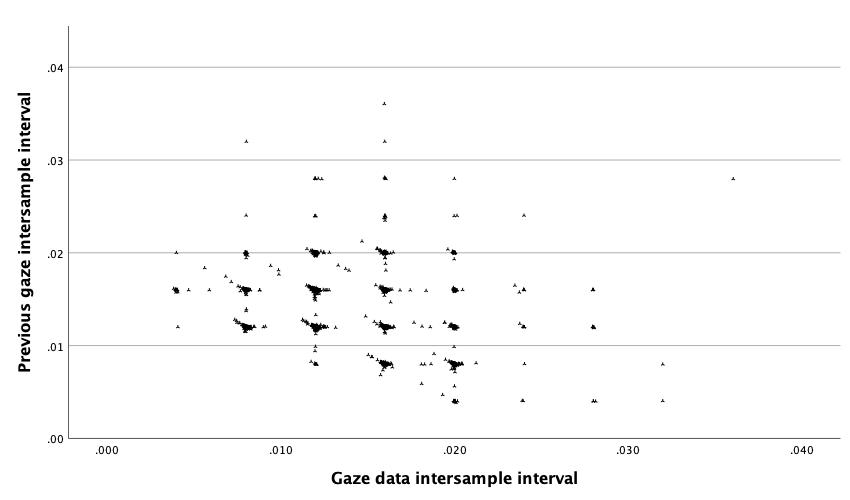

Well - it's not quite so systematic or the whole story, see plot above comparing previous lag to current lag....and the negative correlation...anyway - more later.

We'll attempt to deal with this in a similar way to the ioHub.

It's part of the general psychopy release.

Any thoughts from the paper sent previously, with artificial eye to remove processing variance?

It's done when the particular system is integrated, based on known pipeline.

Here's a link to the original standalone version from our project, but it's long out of date - maybe there's documentation in there. https://github.com/isolver/ioHub

Yep - another reason to integrate with ioHub now!

Researchers everywhere would be very happy...

😉

We are working on that for Core 😉 Btw, I am struggling to find best practices on how to use the ioHub API. Do you have a minimal example experiment that uses one of the existing eye tracker classes?

I didn't write that code, Sol is the guru on these things - so I rather just refer to his documentation, but if you want to integrate then contact him - he is usually exceptionally generous if you have the time to do the work...

I think the old repo above has such a minimal example, have a look and if you don't find what you need ask again and I'll dig something up.

Incidentally we've just used one of the switches Sol is building now with the IP tracker, so we get very carefully coupled response times with eye data. Works great and may be helpful for many who want e.g. a reliable common trigger for data streams - see here: http://labhackers.com/

and specifically the MilliKeyDelux Upgrade here: http://labhackers.com/millikey.html

the light sensor would remove all problems in having the tracker running separately to display, for example 🙂

@papr does it seems reasonable that you might have 5ms per sample assumed in phone, when it's really something like 5.0065160515003005 ms in the camera, leading to drift? This would explain the 1ms shift in offset we're seeing every 153 samples (i.e. every 765 ms), but there are other sources of error too - still thinking, but confirmation of this would help.

Hello, what is PI's IMU format and units? would it be acce_x, y, z, rotation x,y,z? Thanks

Hello Pupil Labs Team! Are the timestamps for the world images in local recordings set on the Pupil Invisible itself or on the phone? I mean, do the timestamps represent the exact time at which an image was made or is it the time when the image was made + the transfer time from the Pupil Invisible to the phone. And if it includes the transfer time, how big this latency could be?

Thank you!

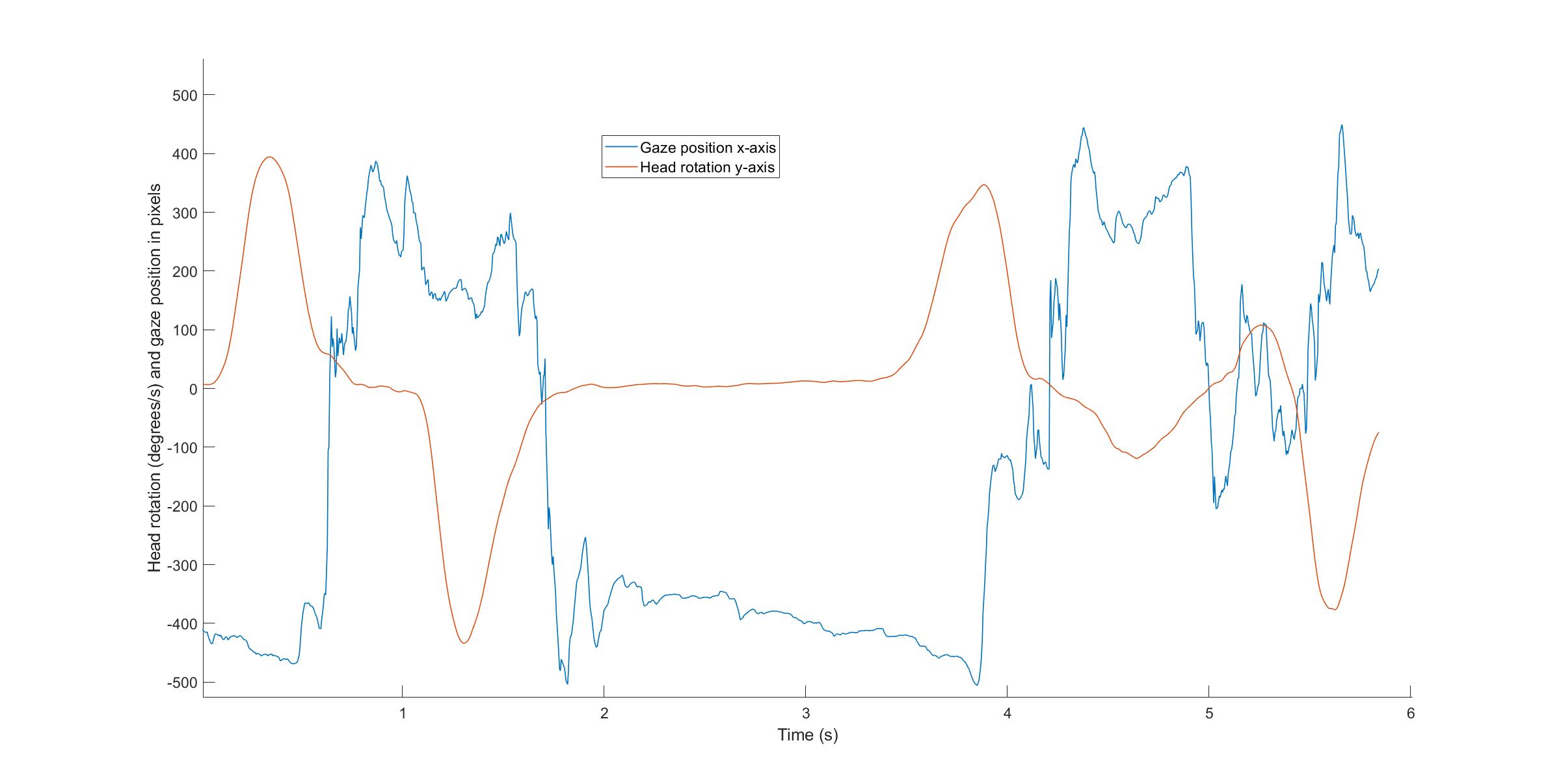

Hi! Is it possible that there could be also a time delay between the timestamps of the gaze data and the IMU data? In the figure the head rotation precedes the change in eye-movements, but normally it is the other way around.

Has there been any updates on methods for correcting these timestamps?

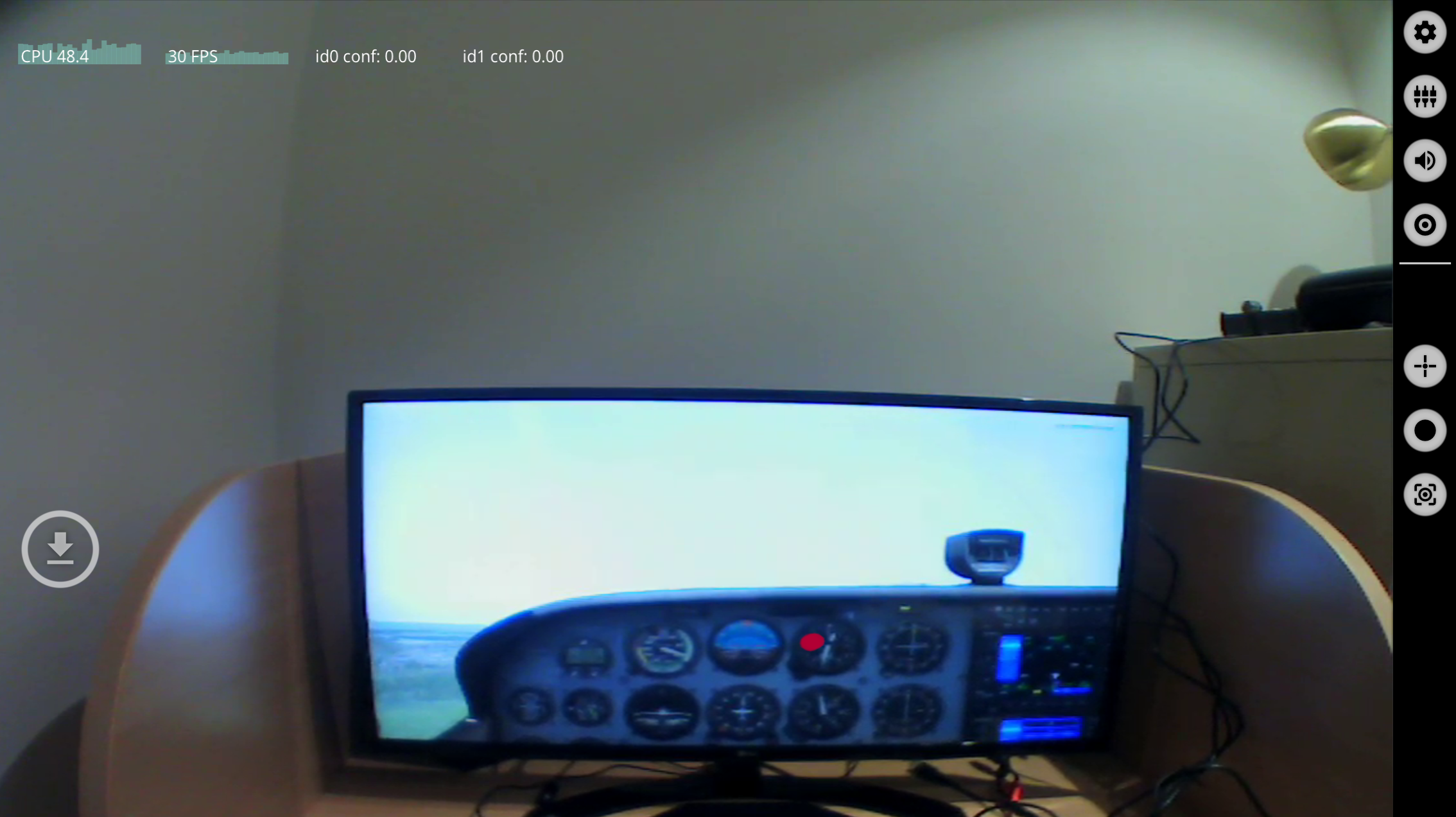

Hi, I have taken some recordings using the Invisible and now have them in Pupil Player, I can only seem to get the 'Vis Fixation' to show up, and not the 'Vis Cross' or any of the other 'Vis' options. Any Tips? Thanks in advance!

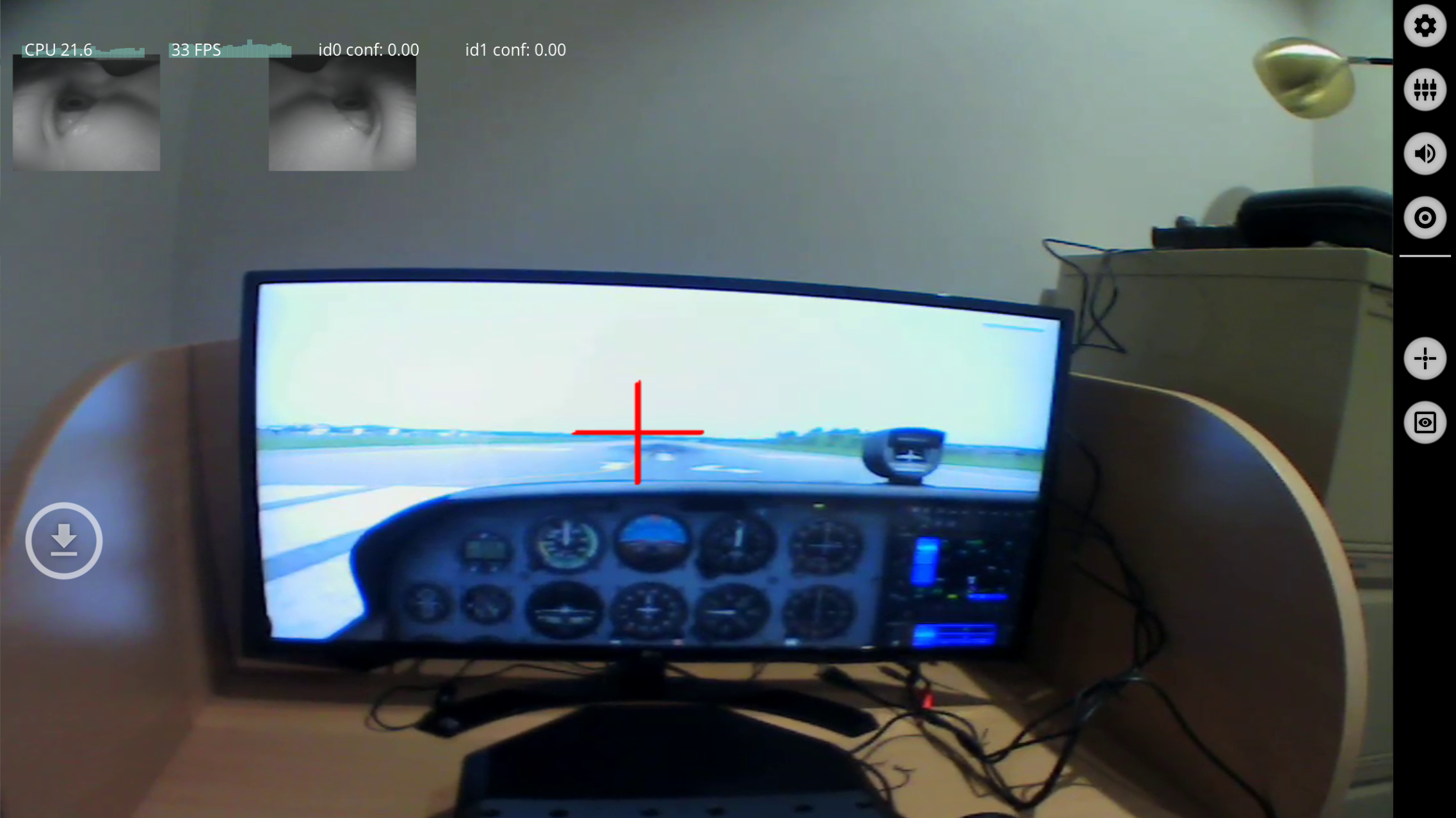

I just tried it again with another recording and having the same issue. In the photo you can see I have 'Vis Circle', 'Vis Fixation', and 'Vis Cross' turned on but only Vis Fixation is showing up. Perhaps its a setting I have to adjust on the pupil companion app? Tomorrow when I'm back in my lab I will have a look.

That worked! Thank you very much!

Which version of Player are you using? Would it be possible for you to share the recording (or any recording that shows this issue) with [email removed] I would be interested in finding out was went wrong here.

I am using version 3.4.0 Ok, perfect! Sure, I'll send an email, any reference I should add in? That would be great! Just mentioned the issue briefly. Sending a gdrive link is fine with us.

Hi 🙂 Is there a fundamental reason why it is unavailable for pupil invisible ? (I went through the code very quickly and did not find anything exotic about the invisible glasses i.e. unavailable data) I came across a voluntary disable around line 280 of fixation_detector.py so I am guessing I'm missing something. Could you enlighten me please ? If it's not the case and it is just not a priority at the moment due to lack of time, feel free to tell me. I might consider stepping into the code!

Thank you very much! This feature will be a game-changer for me 😉 While I am at it, will you implement saccades and smooth pursuit detection?

Ok thanks!

@user-2d66f7 FYI - my team has also found temporal offsets between gaze and IMU data. PL is aware and actively trying to address the issue. The offset is not constant between recordings, and perhaps not even within a recording.
