Is it generally a good practice as part of the data pre-processing to exclude the Fixations that appear near the blinks? (e.g., 100-150ms before and after the blinks). If yes what is the easiest way to do that? Also, is it necessary to apply this? what are the drawbacks of not doing it? The only think that I am interested about in my analyses is the fixation duration within AOIs and I am using Windows system. Lastly, are there any common good practices that will guide me for preparing the datasets for the analyses?

Thank you very much, Panos

Hi @user-412dbc , apologies that your earlier message had gotten lost.

• Research groups may filter data differently based on blinks, depending on the experimental paradigm. Filtering data for 100-150 ms before and after blinks, as you suggest, is commonly seen in the literature. See this post from my colleague, @user-480f4c , for more info: https://discord.com/channels/285728493612957698/633564003846717444/1270305458493849661
• If you want to filter data during a blink or around a blink, then you find the corresponding timestamps in the other data streams and simply ignore those datapoints in subsequent analysis. How exactly this is done depends on your programming/analysis environment. In Python, the pandas library can be quite helpful for this.
• Whether such filtering is strictly necessary depends on your research goals. The decision is ultimately yours. A drawback to not filtering data during a blink is the potential to mistakenly conclude that a person looked at something critical when their eyes were actually closed.
• If you want fixation duration within AOIs, then you may find the Surface Tracker docs and this Pupil Tutorial helpful. It shows how to load, process, and visualize fixation data for a surface. You can then extract the duration of each fixation on the surface.
• For common practices, I recommend browsing through the published eyetracking literature. We maintain a list of publications that have used our eyetrackers. You can filter and view publications that only used Pupil Core.

Thank you very much Rob for your help, I deeply appreciate your and your colleagues' efforts.

I already took a look at some of these papers and noticed that none of the papers that I have read (until now) explicitly stated that they filtered their data for blink artifacts. Nonetheless, I will try to work that out in Python. Or else I am thinking to adjust the minimum fixation duration to 130-150ms that will also act as a protective factor for blinking impact. From your answer I suspect that there are not any programs that can load Pupil Core's datasets and remove the blink artifacts automatically, right?

Hello team, we have a question. We're analyzing an experiment with the help of an engineer who's processing the video images to determine where the participants are looking at each moment and categorize what they're looking at (whether it's the target, a distractor, etc.). However, he has some doubts about which is the best file to analyze. He's using 'world.mp4' to project and extract image data, 'world_timestamps.npy' to retrieve the correspondence between the timetags and the video frames. With the 'fixations_timestamps.npy' and 'fixations.pldata' files, a function has been used to extract the information and combine it into a single data structure. From these files located in the main folder, we primarily get the image coordinates. But there are more files within the 'offline_data' folder related to fixations. We want to make sure we're extracting data from the correct files. Thank you very much!

Another question is that the fixations have thresholds to determine whether something is considered a fixation or not (based on angle and time). My concern is that during execution, the gaze might move faster and not consider certain areas as fixations when, in fact, they have been viewed. Should we adjust the fixation thresholds to make the detection more accurate? Or instead of using fixations, should we rely directly on gaze data or another less processed file? Thank you!

Hi @user-4514c3! I have some follow-up questions to help me better understanding what you're trying to achieve and how I can help: 1. What exactly are you doing with the scene video frames that requires you to consume real-time fixation data stored in binary format (.pldata)? 2. Regarding gaze vs fixations - what sort of task were your participants doing?

Hello. I installed pupil core software v3.5 on Ubuntu 24.04.1 LTS , but pupil capture, player and service are crashing and not starting. I installed pupil_v3.5-8-g0c019f6_linux_x64. It says cysignals failed in the terminal. How can I get it to work on my system?

Hi @user-f7a2f7 , can you try the following:

• Rather than starting it from the terminal, can you use the mouse to click on the App icon in the Applications launcher?
• If you are on a laptop with an NVIDIA card and you have NVIDIA drivers installed, than make sure to right-click the app icon and choose “Launch with dedicated GPU”

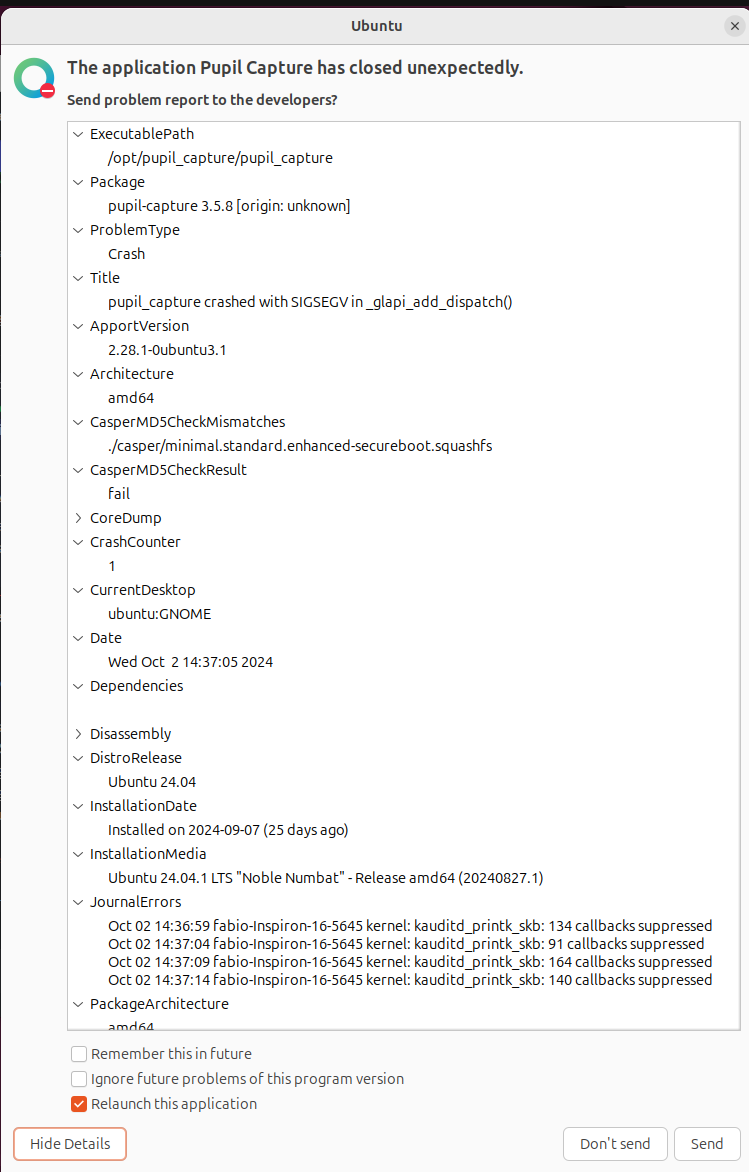

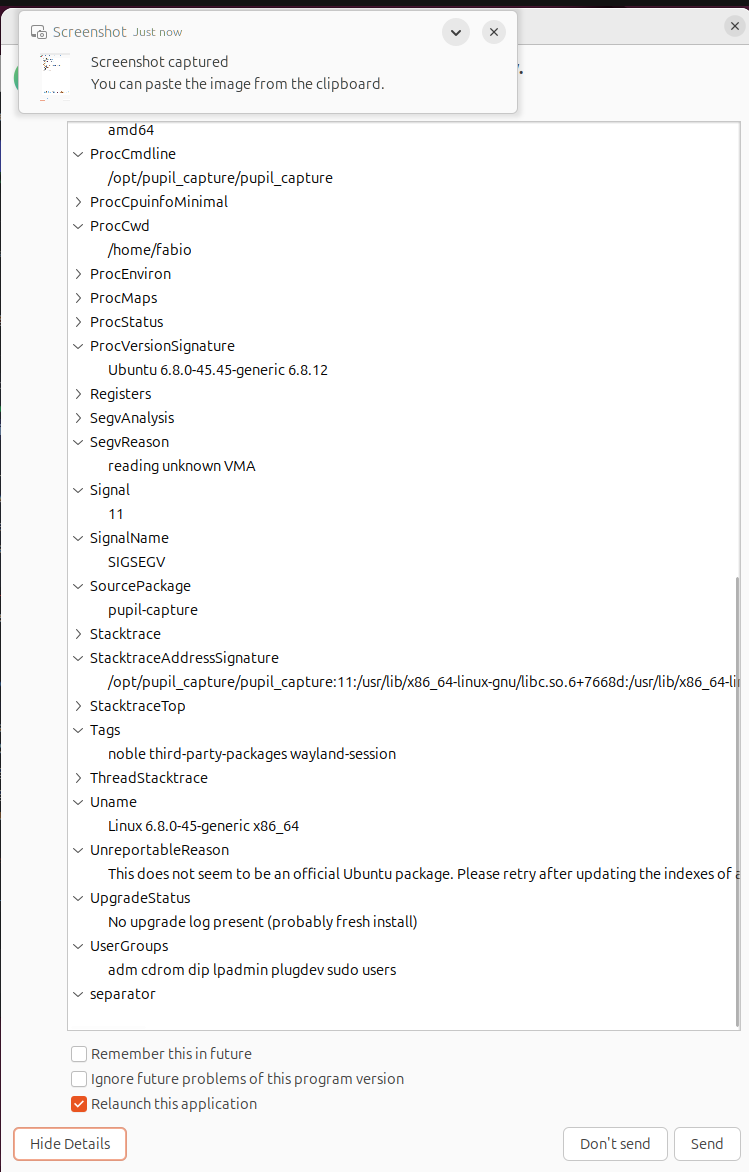

Yes, I did use the mouse to click on the App icon and it crashed and I got the attached error. I don't see launch with dedicated GPU with right click. Is it missing any dependence? I see only New Window and Open in Terminal options with right click.

@user-f7a2f7 Are you on a system with an Nvidia graphics card?

My laptop has an AMD radeon graphics card and the pupil software crashes right way. I am running pupil capture in another computer that has an NVIDIA GeForce RTX™ 4090. In the other computer it starts and I can see the two eye cameras, but crashes when I hit record and nothing is saved.

There's nothing inherently wrong with consuming those files directly. However, they are an intermediate format, saved by Capture and intended to be loaded by Pupil Player. You can then export data into .csv files as needed. If you haven't already, read the Player docs.

Both workflows have been employed by our users. However, if you want to tweak the fixation detector thresholds, you'll need to use Pupil Player. Choosing the right thresholds for your task can be worthwhile. For an overview, read this section of the documentation.

Another reason to use Pupil Player is Surface Tracking. You have Surface Tracking markers visible in the screenshot you've shared. Do you intend to create AOIs and map your fixations to them?

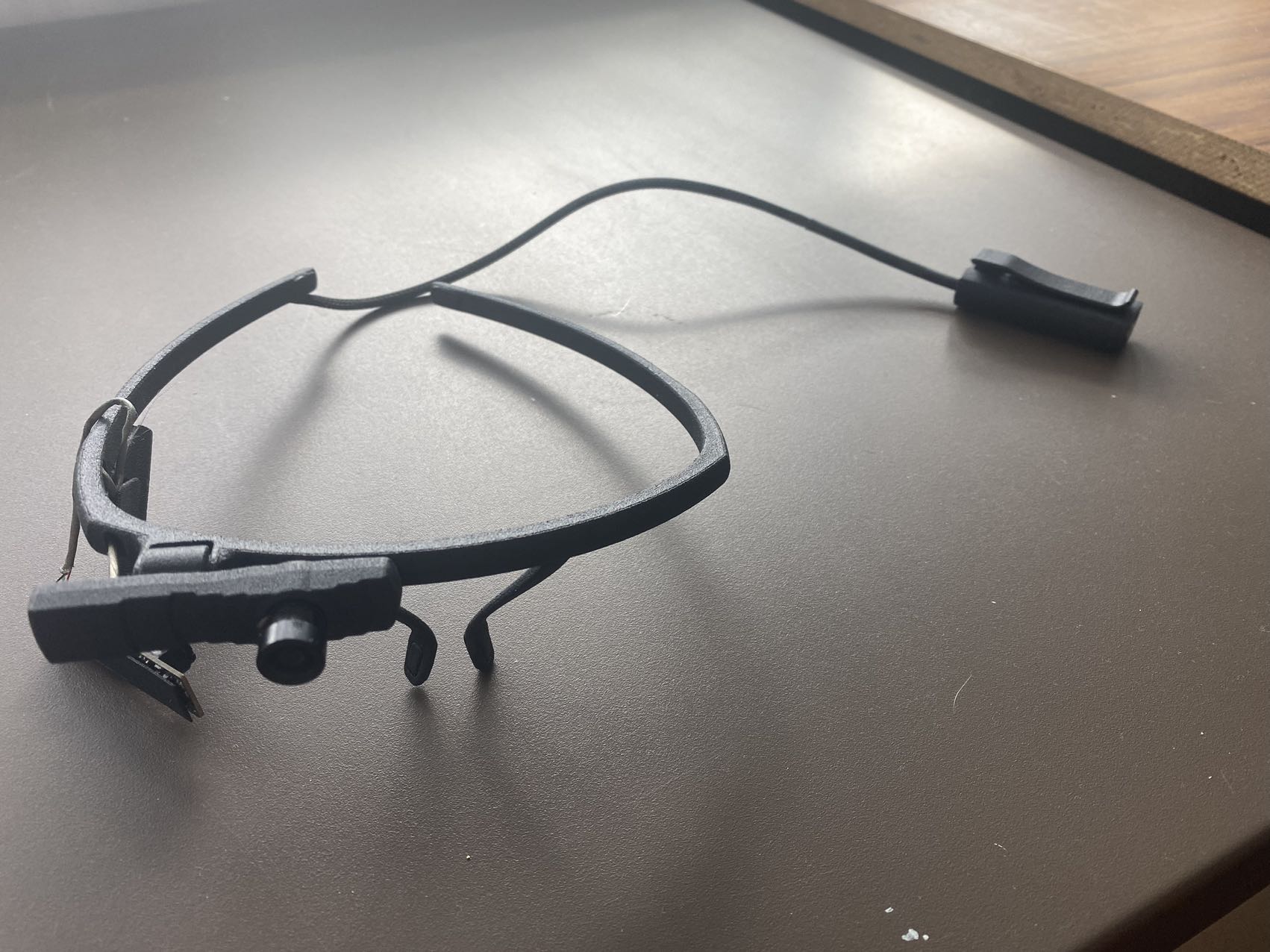

I am currently using the Pupil Core eye-tracking device . The setup includes only one pupil detection camera on the right side. I have been trying to perform calibration, but I consistently receive the following message:

“gaze_mapping.utils: An unexpectedly large amount of pupil data (> 20%) was dismissed due to low confidence. Please check the pupil detection.” “world - [INFO] accuracy_visualizer: Angular accuracy: 3.308 degrees” “world - [INFO] accuracy_visualizer: Angular precision: 0.123 degrees”

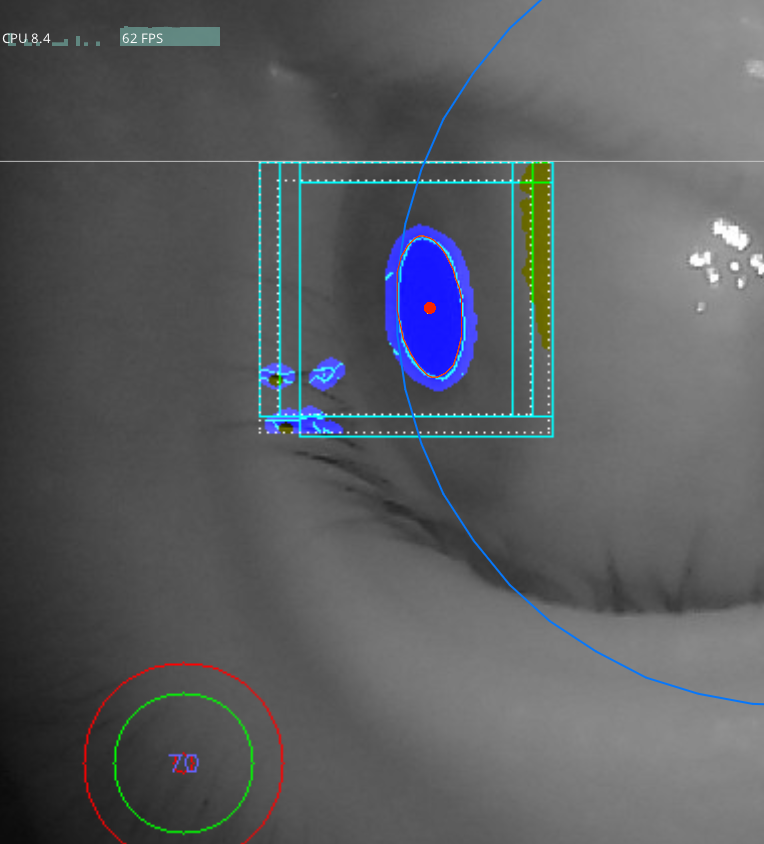

I’ve also noticed that when I keep my head still and look towards the upper-left corner, the device has difficulty detecting my pupil. Attached is an image showing my pupil while looking in the upper-left corner. Could this issue be caused by my eyelashes, and is that why there are inaccuracies in the tracking data?

Additionally, I tried adjusting the Outlier Threshold in the Accuracy Visualizer from the default 5.0 degrees to 1.0 degree, but the error did not decrease. Could you provide advice on how to further improve the tracking accuracy?

Thank you for the helps. 😉

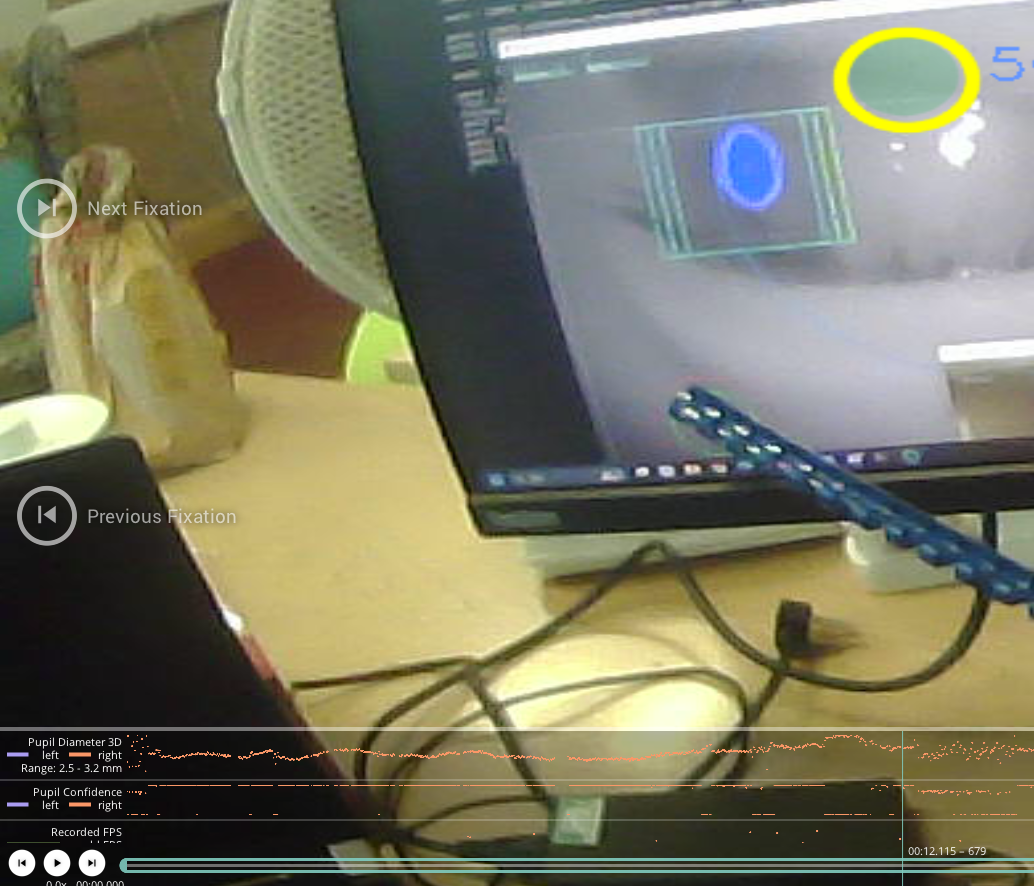

@user-471c66 On top of @nmt's answer. Given that in one of the images that you shared, it seems like the eye brow is confounding the pupil detector, you may want to try setting a region of interest to delimit the areas where pupil can be found, more info and a video on this message: https://discord.com/channels/285728493612957698/285728493612957698/1214561339947876392

Hi there, my lab has been using the raw MP4 videos from the Core to study blink amplitude. I was wondering if it is possible to set the frame rate of the eye cameras to a fixed one as the variable once means I cannot determine the blink duration outside of the pupil player.

@nmt Hi Neil, thank you for the respond. I have recorded a clip and followed your instruction. The folder is about 36MB, I have upload to the cloud. https://drive.google.com/file/d/1PsAMMwtR_TOAn7cIkg2zB11C9DoIy4_n/view?usp=sharing Thank you for the help.

@user-d407c1 Hi Miguel, thank you. I tried with different angles, but seems like it always can detected my eye brow. I saw a video from official website that core could use a extender? And that might help? But I checked my box, it does not have that item.

Hi again, I have been trying to find out how the Blink Detector estimates blink duration. Compared to the Tobii eye-trackers and our own algorithm, the Pupil Lab's blink detectors have significantly longer blink durations and I was wanting to know if there is some coefficient that is applied seeing as the Blink Detector uses pupil signal to determine blink onset and offset?

@user-ac0587 , for this question, I recommend checking the Blink Detector documentation.

There is no coefficient applied. Blink onset/offset are computed directly from 2D pupil detection confidence and the associated timestamps are used directly.

Note that you can change the default Blink Detector Threshold.

If it helps, the code for the Blink Detector is available on Github here.

Hello, I was doing a recording when the pupil capture software crashed with no error message. I now have a recording folder but if I try to open it in the pupil player program I get "player - [ERROR] launchables.player: InvalidRecordingException: There is no info file in the target directory.". Is it possible to recover the data in any way?

Also, while watching the following recordings I get the on-screen error "PLAYER: Error dc\PLAYER: error y=97 x=100" and the pupil data disappears. Any idea if this is recoverable as well?

Hello everyone, if I want to try to add the appearance-based deep learning line of sight estimation method to the Pupil core code, that is, complete the line of sight estimation through binocular images, is there any more convenient way, such as developing a plug-in; but I I have read the Plugin API tutorial on the official website, but I still don’t understand it in particular. Is there any faster way to learn it?

Sorry, after it crashed the first time I launched other recordings. That's what I mean with "the following recordings"

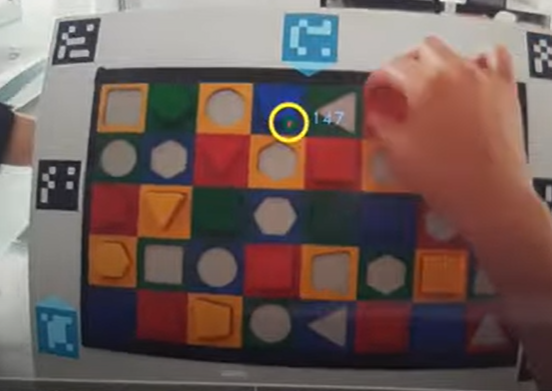

Hello! We are currently analyzing data for a poster, but we’ve noticed that the fixations are not being marked correctly. We also have a few questions regarding this:

1. How can we match the fixations to the world_frame while losing as little information as possible?
2. What are the coordinates (I believe fixations and gaze use a bottom-left origin, and the image has a top-left origin)? (We found a related reference here: https://github.com/pupil-labs/pupil-tutorials/blob/master/07_frame_extraction.ipynb)
3. Are the image coordinates referring to the distorted image as shown in world.mp4, or is the image already processed in some way?

Hello! We want to run code only about gaze mapping (producing and mapping the red circle ). Which code do we have to run from github?

Hi We are a group of robotics Uni students and we are currently working on using the pupil labs core for some form of control interface. I am wondering if there is a way to access the live camera feed outside of pupil capture from the cameras on the core, i havent been able to find a solution for that, so i thought i'd ask here. Could there also be some compatibility issues with pupil capture and openCv?

ok thanks i will try it.

Hello! We are using Pupil Labs Core products well. However, we have a question. When looking at the CSV file, it seems that gaze normal0 (x, y, z) and gaze normal1 (x, y, z) are used to infer norm_pos. We're curious about the procedure for how this happens. Could you point us to which part of the source code we should look at? I think it might be in the gaze mapping section of the shared module, but it's more difficult to analyze than expected, and it seems challenging to run only that specific part of the code. Also, are there any examples in Pupil Helpers or Pupil Tutorials related to the content mentioned above? As a graduate student in the related field, I have gained significant help from your products, I look forward to your response. Thank you.

@user-3187b1 , for a saved recording, the position of the red circle in pixels (i.e., in 2D world camera coordinates) is essentially provided by Pupil Player. You load the recording into Pupil Player, enable the Raw Data Exporter plugin, and scale the resulting norm_pos_x/y value in the exported gaze_positions.csv file. The exact scaling factor will depend on the resolution setting you have chosen for the world camera.

You can also obtain norm_pos_x/y in real-time via the Network API.

Gaze position in 3D real-world coordinates is more involved. While the Raw Data Exporter plugin also exports gaze_point_3d_x/y/z, the Z component of this value can be unreliable over about 1 meter distance.

However, it is of course possible to determine how gaze maps to 3D world coordinates. One approach is to use computer vision algorithms. I would recommend checking our publication list to see how others have approached this problem with Pupil Core.

Gaze Plugin

Hello - is there a product suitable for urban outdoor research? Is there a special offer for a university?

Hi everyone! We have just purchased Pupil Lab's Core for our lab as I had the expectation I could still use the Android app to use the Core on the go. Does this mean I can only use the Core attached to a laptop/desktop to use it?

Hi all, can someone help me? One of the wires on my bare metal neon's PCB got disconnected. Can I resolder that or do the PCB and wire need to be replaced?

Hi, Has anyone added a second scene camera to the core?

Hello everyone, I have a question. My custom deep learning gaze estimation plug-in inherits 'PupilDetectorPlugin'. I want to get the images of the left and right eyes at the same time, but in this way 'frame = event.get("frame")' only The data of the left eye or the right eye can be obtained randomly, so I want to know if there is a way to obtain the data of the left and right eyes at the same time.

Hi, @user-fb8431 - let me see if I can help

I want to get the images of the left and right eyes at the same time

This is fundamentally impossible. The left and right eye cameras are two separate sensors on two separate devices. They will basically never capture images at the exact same moment in time - and if they ever do, it's a coincidence. You will need to capture one frame and save it in a variable to be processed with a frame from the other camera once that one arrives.

...only The data of the left eye or the right eye can be obtained randomly

Well it's not really random. The cameras operate at their configured sampling rate and, as soon as the sensor transmitted an image to the PC, you'll see an event for it in your plugin. The frame rates aren't exact though, so you'll see some fluctations in the sampling rate, but that's really as random as it gets

Hello everyone, I was wondering.. to use the surface tracker plug-in it is necessary to use “apriltag” markers or you can also use custom markers to define the surface of interest (for example: colored squares) ?

Hello! I have installed the Pupil repo on Ubuntu and was able to run python main.py capture. I want a minimalistic run without world camera and other things. I just want to get 3D coordinates of the pupils in real time. Is it possible? Do you have examples of code for similar tasks where I could learn?

Thank you.

If I run python main.py service from this repo: https://github.com/pupil-labs/pupil
I see 2 eye images with tracked pupils colored in red. I would like to have 3d coordinates of pupils or a full gaze message with frequency 200 fps.

Ideally I would prefer to get it in python. For example I tried to use pupil_labs.realtime_api.simple and the following code:

from pupil_labs.realtime_api.simple import discover_one_device
device = discover_one_device()
gaze_sample = device.receive_gaze_datum()
left = (gaze_sample.eyeball_center_left_x, gaze_sample.eyeball_center_left_y, gaze_sample.eyeball_center_left_z)
right = (gaze_sample.eyeball_center_right_x, gaze_sample.eyeball_center_right_y, gaze_sample.eyeball_center_right_z)

but it requires a phone with installed Neon Companion. I tried to find a way to avoid using cell phone and connect glasses directly to my PC. I tried to avoid using the cell phone in order to simplify my setup and to receive the gaze datum as fast as possible (without use of network),

Is it possible to connect glasses to a PC (Ubuntu) directly and recieve gaze data in python code with 200fps?

It's technically possible to run Pupil Capture/Service software with the Neon system. But note that it is experimental. Let me take a step back - can you elaborate on your end goal with all of this, what's your research question/application?

Hey everyone! 🍀

We're working on a new research project that involves tracking the eye movements of both a child (aged 3-5) and their parent while they watch cartoons together. We’re using two computers, each connected to a separate eye tracker. We’re doing calibration one after the other—first for the parent, then for the child. So far, everything works smoothly for individual recordings, but we’re about to start testing with dyads, and we want to make sure everything is set up correctly before we dive in 💪 .

I have a few questions and would really appreciate any advice:

Syncing two trackers: Do we need any additional tools to ensure proper synchronization between the two eye trackers running on separate computers? Is there a recommended way to align the data from two separate devices?

Security concerns: We’re using university computers, so we want to make sure that our experimental setup isn’t accidentally tampered with by others. Any tips on how to lock down our setup or prevent accidental interference?

Calibration tips: Do you have any suggestions on how to handle calibration for both participants (child and parent) to get the most accurate data? Should we be doing anything differently for dyads?

Additional tools or plugins: Are there any extra plugins, software, or tweaks we should consider for running two eye trackers simultaneously? Anything that might help us with data collection or processing?

We’re writing everything in Python using PsychoPy, and it’s been great so far for individual tests. Just want to make sure we’re covering all the bases as we move to working with parent-child pairs.

Thanks so much in advance for your help! We’d be super grateful for any insights or recommendations 😊

Hi, I have a question about intrinsic/extrinsic parameters. I have learned that intrinsic parameters can be obtained from camera_models.py. After performing calibration, is there a way to export the extrinsic parameters separately?? Thank you

For the calibration, there aren’t any specific tips tailored for dyadic screen-based experiments. However, ensure that the pupil is centered in the camera's field of view when positioning the eye cameras, and that the 3D model is properly fitted around the eye. I also recommend reviewing our best practices for conducting experiments with Pupil Core to ensure accurate data collection.

Regarding data processing, could you elaborate on how you intend to work with your data? This will enable me to provide specific recommendations.

Hey all, I would like to use Core on a participant and an external camera to film him while wearing it. Is there an already developed way to syncronise both recordings? Or, is it possible to get the clock value (or something similar) from Pupil Capture?? This way I can leftJoin the clock value from both and then sync it

The connector and wiring of the eye camera have come off. Is it possible to reconnect them?

Hi. I have a question regarding calibration. In Core, there are three calibration methods: (1) using a screen marker, (2) using a single marker, and (3) using natural features. When I tried methods (2) and (3), they didn't work well, and it displayed that the confidence was below 20%. Is there any reference video that shows how to actually perform calibration?

Hi @user-d407c1 , thank you for your response.The eye camera's video is working without any issues, and I am able to capture the pupil and eyeball. Calibration using the screen marker works fine, with a confidence level of almost 100%. I've checked the documentation about calibration on the website, but it's possible that I might be misunderstanding it. Therefore, I would appreciate it if you could provide a detailed explanation or any reference videos regarding methods (2) using a single marker and (3) using natural features.
