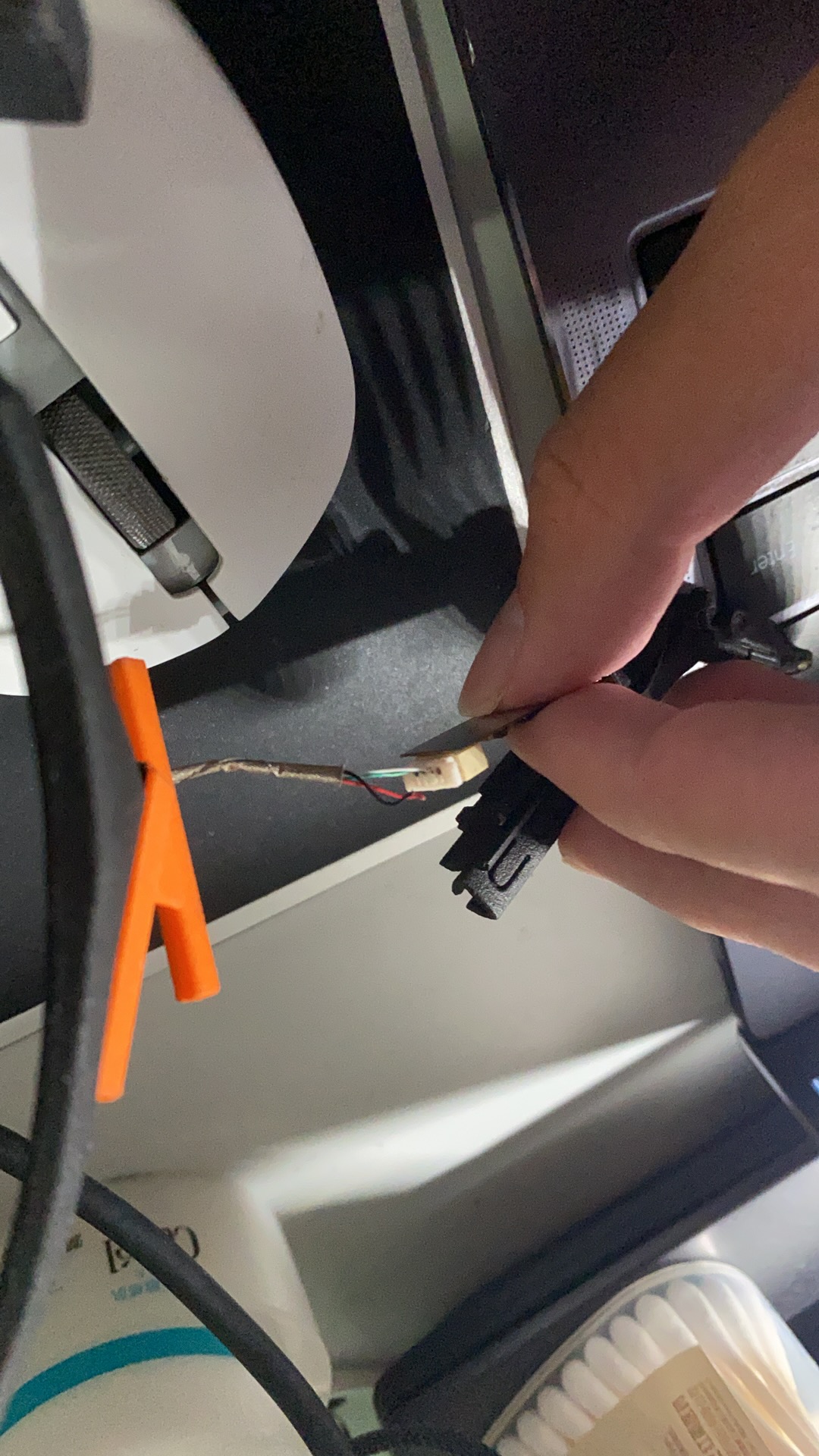

Hey there! I`m in a desperate situation - > wrong USB adapter fried a component on the PCB... PLEASE: Can anyone tell me what the component is?

Please contact info@pupil-labs.com in this case

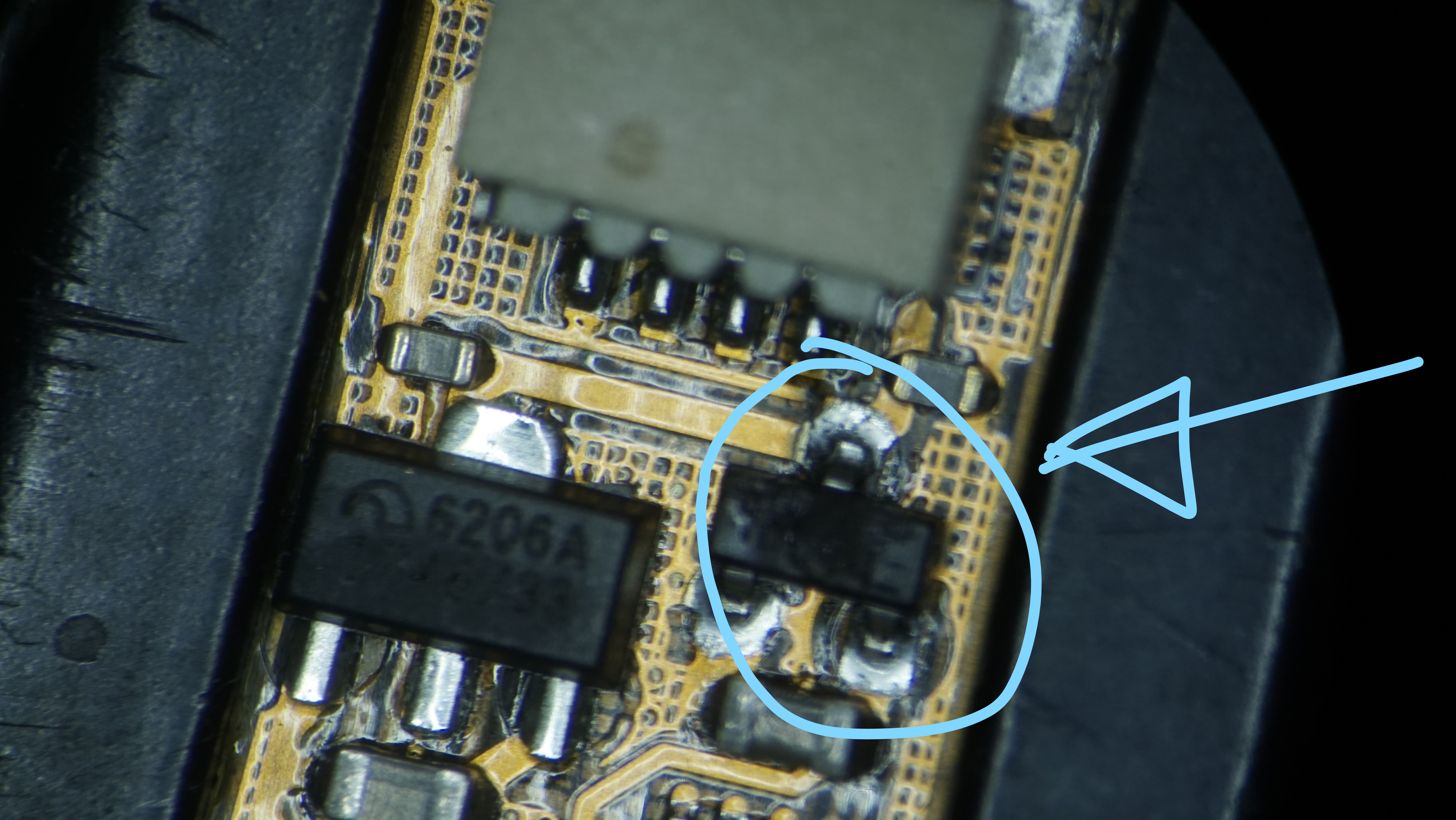

Hey again! Can anyone please tell me the labeling/text on the COMPONENT IN THE IMAGE of the previous post? (mine is fried and i need to replace the component) Thanks!

I'm worry about wether to create surfaces before recording or post hoc on player after recording

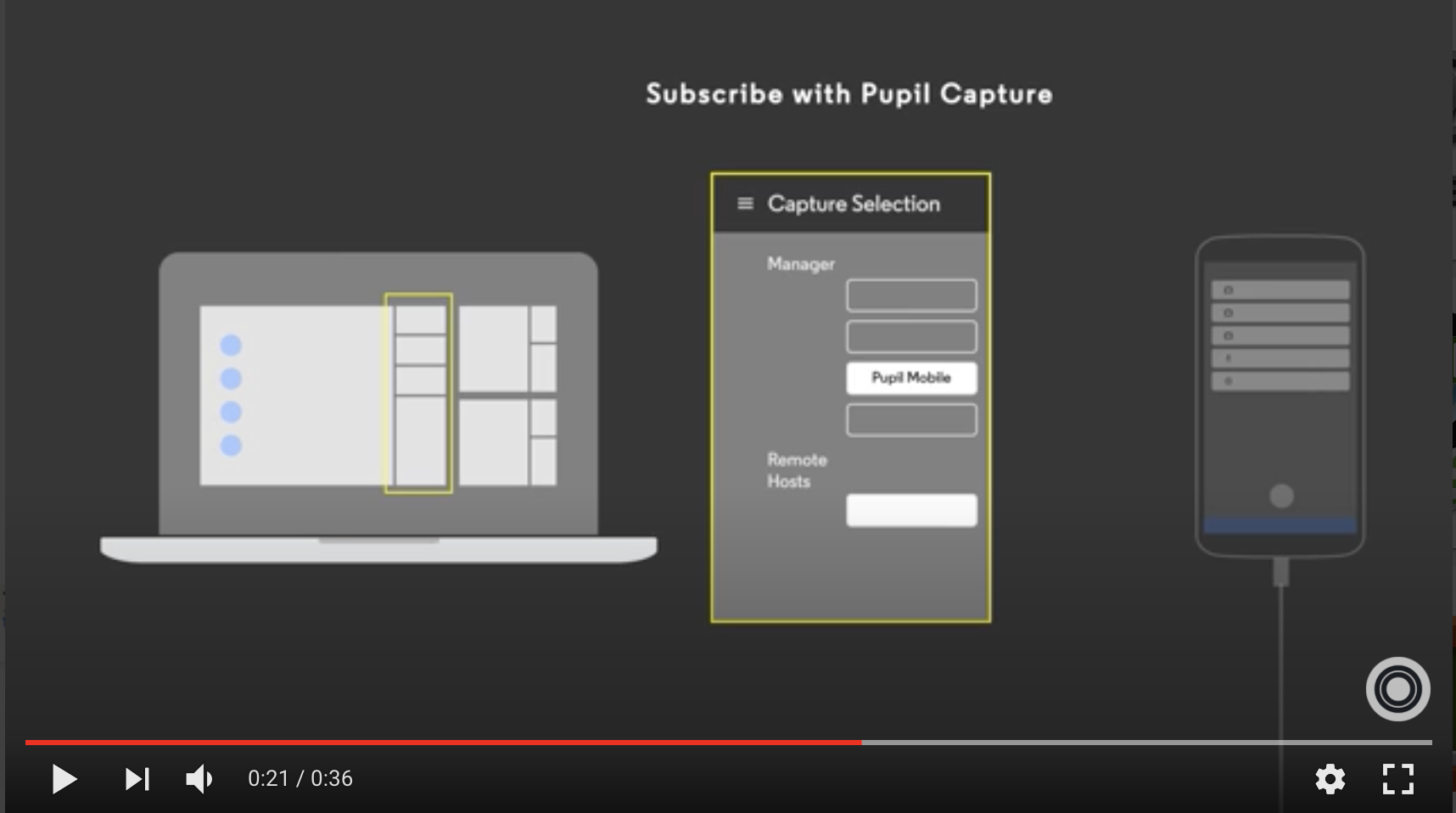

Hello ya'll Iwas just wondering if anyone had been able get pupil mobil to work with a older phone then Nexus 5x. In my research lab were trying to use an adapter and a galaxy note 4 to work, it doesn't seem like it will. It seems from past messages I read you need a direct connect. Im pretty new to alot of this and I was just wondering why an adapter won't work?

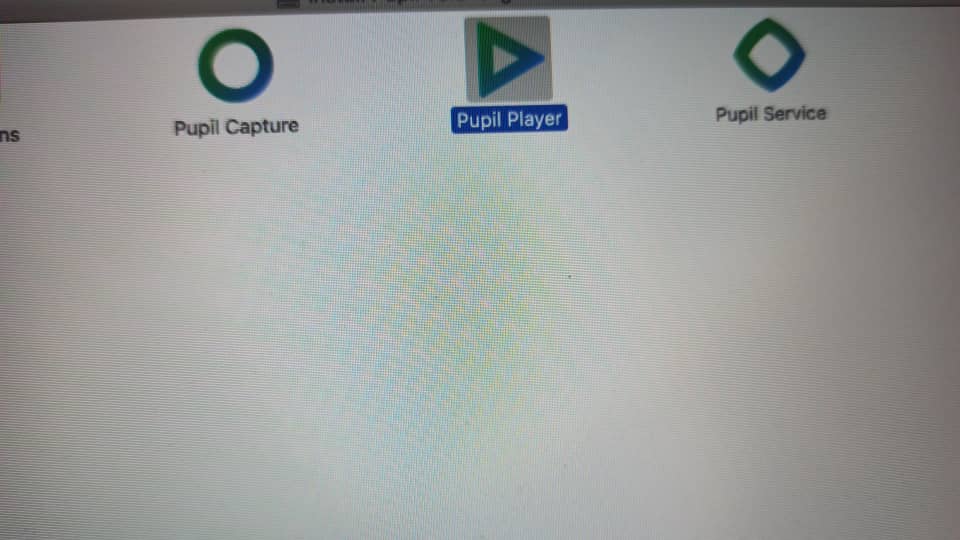

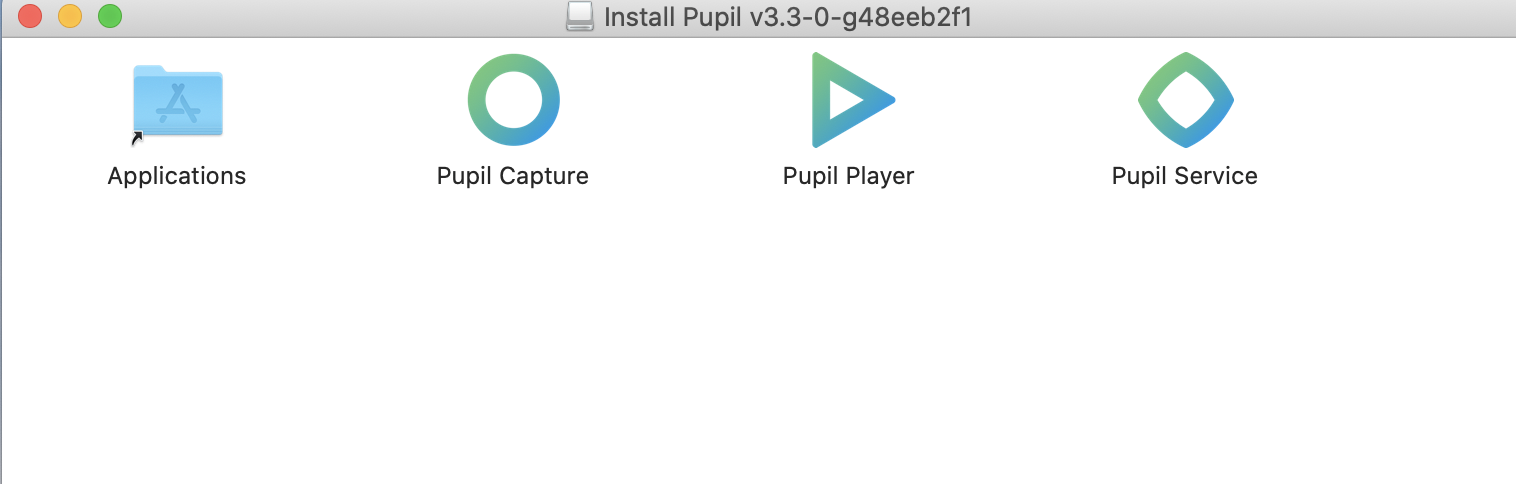

Hi, I installed V3.3-0 on My Mac (as below picture). But I'm not able to open Pupil Player Software. Any suggestion?

nothing

let me check!

How do people define/recognize a drift and correct it? I have also noticed that in some cases it takes a while for the fixation detection algorithm to work after a blink or a saccade (if the eyelid is droopy). How are others accounting for or are you?

Hi. Is there any standard for the value in the area pointed to by the red arrow, that is, which value is usually more appropriate? thank you

Hi there, so I ran an experiment with the pupil labs eye tracker and unfortunately didn't define a surface for my computer screen. So now I need to match my eye data with the data from psychopy posthoc (I'm running a reaching task). I did record multiple calibrations that I coded into in the experiment. Is there an easy way to access these calibrations? Can I export them somehow (I found them when I go on "Posthoc gaze calibrations" in the player but I don't know how to export them...

Hi

Please how can we deal with issue of low precision when doing AOI analysis of targets that are of equal sizes? Can the surface created for the targets be of different sizes?

How can I access the GazeData script?

Thank you for your reply! I didn't use the markers unfortunately... And I already collected a big amount of data. Is there any other way to match the eye data with my other data (in scale)? I'm really stuck with this and I understand that it's been a big mistake not using the markers.

Hi Does anyone know that how pupil core acquires 3d gaze data? (Is there any publication?) I want to know how to calculated 3d gaze positions, which are shown in "fizations.csv."

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using PupilLabs;

public class Data : MonoBehaviour
{
    public GazeData gazeData;
    private Vector3 direct;
    private float distance;
    private Vector2 norm;
    // Start is called before the first frame update
    void Start()
    {
        direct =new Vector3(gazeData.GazeDirection.x, gazeData.GazeDirection.y, gazeData.GazeDirection.z);
        distance =gazeData.GazeDistance;
        norm = new Vector2(gazeData.NormPos.x, gazeData.NormPos.y);
    }

    // Update is called once per frame
    void Update()
    {
        Debug.Log(direct);
        Debug.Log(distance);
        Debug.Log(norm);

    }

}

is this the correct way to access Data?

when i run the script on unity this is what it says "NullReferenceException: Object reference not set to an instance of an object"

anyone know how to fix it? or is this normal?

Pupil Core uses https://docs.pupil-labs.com/developer/core/pye3d/ to generate 3d pupil data which is then mapped into a common coordinate system (scene camera)

Looks like this topic would fit the 💻 software-dev or 🥽 core-xr channel better. Unfortunately, I am not a Unity expert. If I had to guess, gazeData is not set in your example.

Hi, just following up, how do I correct for drifts in fixations or gaze data? This came up during calibration too and the RAs made a note of it during data collection. Also, on the export info csv file, what is the difference between absolute and relative time range? I'm interested in calculating total task time (which is how the data was clipped during the export in player). These are the numbers from one of my exports: Relative Time Range 00:02.479 - 20:14.249

Absolute Time Range 1523.005157 - 2734.774731. Thanks!

Also, relative time range is in the following format right: minutes:second:millseconds?

Thanks! But that gives me a duration value a couple of decimal points higher than what the exported mp4 video shows. It's a small 0.9 difference when the values are rounded.

exported mp4 video duration How are you getting this value or which software displays this value?

To be sure, you can also look at the exported world_timestamps.csv. It includes absolute timestamps for each exported frame.

Its windows media player. Got it! Yes, those values line withe export info.

Is there a way to quatify amount of drift occurring and then decide if it's worth correcting for? Would you suggest discarding those data? For most (not all) recordings, the RAs noticed drift at the bottom of the screen where the tabs were black and white (perhaps because the colour scheme was similar to a calibration marker is my best guess).

You can only quantify it if you have reference data to compare the gaze estimation to. Concretely, you could use the post-hoc calibration to add manual reference locations and run a validation on that particular time section.

Okay, so ideally, if there is good data without drift, I can use its gaze esimation data and compare it with the data with drift. That's problemation because at a particular time, two people can be fixating on different spaces on the screen so the calibration may fail.

I feel like we have different concepts of drift. Gaze estimation errors are usually dependent on the location of the actual gaze (scene camera center is usually more accurate than scene camera borders). If the accuracy for a specific location decreases over time, e.g. due to headset slippage, then I would speak of drift.

So, technically, during a calibration, there can be no drift (as in the definition above).

two people can be fixating on different spaces on the screen so the calibration may fail I do not understand this statement. Is this something specific to your experiment setup?

Okay, yes I see. I was talking about a shift in gaze. So, the participant's were looking somewhere else and the scene camera shows the location of the gaze that is a few centimetres off than their actual, reported gaze. This came up during calibration and we just carried on collecting data regardless. What to do in this case? As for headset slippage, I am not sure if that actually occurred or to what extent. Some people definitely moved their heads a lot. Visually during exports , I have been noticing lack of fixation markers at the bottom of the screen for a few participants (i have yet to visualize problematic data yet, only going through clean data for now).

Usually, you calibrate because you do not have a valid gaze estimation yet. Therefore, it is kind of difficult to talk about gaze estimation errors during calibration. Usually, it is recommended to perform a validation directly after (same procedure as calibration but with different marker locations) to evaluate the calibration quality.

When people look down, their pupil is often occluded by their eye lids. This might cause you lack in high confidence gaze or fixations at the bottom of your screen,

Okay, so basically there is no way to correct for slight shift in gaze points that we observed at the bottom of the screen post an otherwise successful calibration? We did perform a validation. What happened was after multiple validations with the same issue, data was just collected anyway because no solution worked.

Hi everyone, I am new to pupil player and honestly, as a MD, not very IT-talented.. We are using pupil player to count fixations and measure dwell-times on a specific projekt. I defined my surface but when I press 'e' the tables remain empty. Everything works well on my colleagues computer. I realised that the plugin 'fixation detector' is missing and nowhere to find. A quick internet research didn't provide an answer. Deinstallation and Reinstallation didn't solve the problem. Thank you in advance!

thank you for your quick answer! where can I find this information? In the about section I only see that it is Pupil Player V3.3.0.

@user-22c43d starting in version 3.2 we disabled plugins that were not relevant/robust for Pupil Invisible recordings. (I am assuming that you are opening Pupil Invisible recordings). Therefore you will not see the fixation detector plugin in Pupil Player v3.2 and above with Pupil Invisible recordings. Please see release notes: https://github.com/pupil-labs/pupil/releases/tag/v3.2

That being said. We are working on a new fixation detection algorithm that will be available (hopefully soon) for Pupil Invisible recordings. This will be available in Cloud.

Ok I got it, thank you! And yes, in the general settings section I just saw that it is Pupil Invisible recordings. That's why it is working on my colleagues computer, he has an older version. Is there a possibilty to download the older versions in the meantime?

Found the version 3.2 in the links you sent. Thanks!

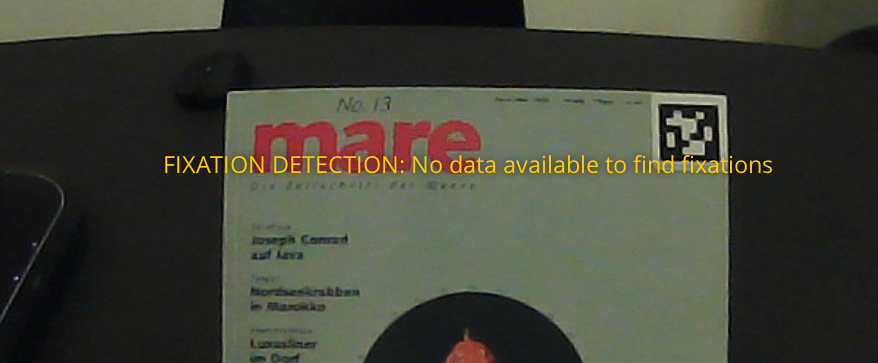

I downloaded V3.2 now but there is still no fixation detector..🤷‍♀️

Please allow me to clarify version < 3.2 should have fixation detector for Pupil Invisible recordings.

Please note that it is not recommended to use Pupil Core's fixation detector for Pupil Invisible recordings. ⚠️ The fixation detector in Pupil Core works well for Pupil Core recordings, but was not designed for Pupil Invisible and therefore may not be accurate in classification.

ok. Is there an alternative way to count fixations/dwell-times until you released the new algo?

ok thanks, will discuss this in our group. Thank you for your help!

@user-22c43d has your group considered using Pupil Cloud BTW?

not yet, as far as I know.

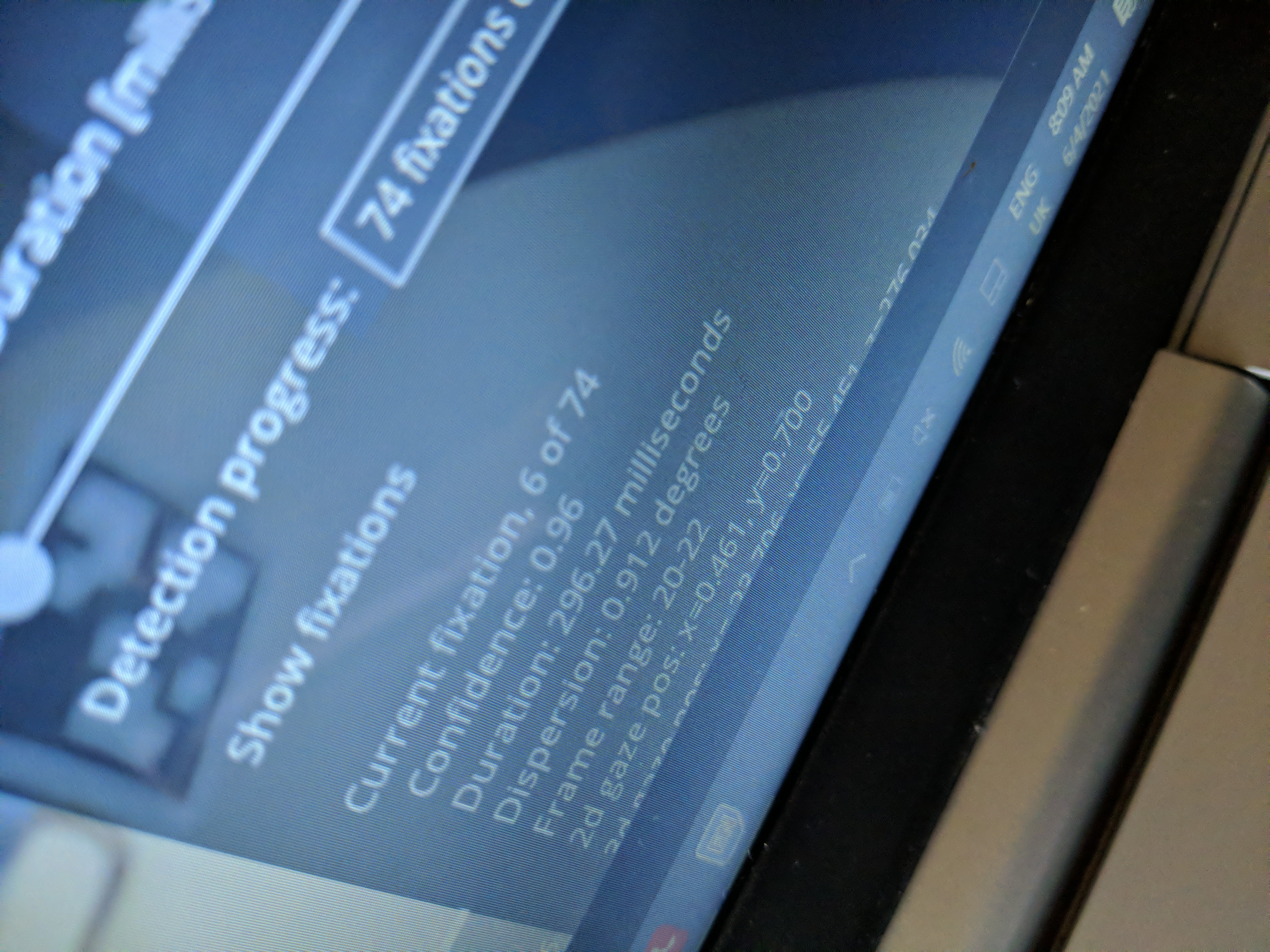

Here is a timestamp showing here

The first is a single point in time (speciically, relative time since the first scene video frame). The second is a time period. This is not comparable.

The exported file only includes absolute timestamps. The displayed relative time is just as an intuitive reference for the playback ui.

I mean we computed the differences between consecutive timestamps and then

The differences in consecutive fixation duration.

Both seem the same

Absolute time refers to "pupil time", the timestamps that were recorded during the recording

Thanks

What of the Annotations timestamps? Does it align with the fixation data?

Thanks

Please how can we get an audio sync to pupil lab system? Or is there plugin for audio system... ?

We planned to use an eternal audio recorder but am not sure how that can be in sync with the recording

Hi everyone, we are considering getting the Pupil Labs add-on for HTC Vive, and were wondering if it will be compatible with the new Vive Pro 2 headset?

Hi there. I have been trying to run pupil_capture on PopOS 20.10 (also in arch) for the past 4 days and just realized that my user was not in plugdev group.......

Hi 👋 based on images of the Vive Pro 2, it looks like our existing Vive add-on will not be compatible with Vive Pro 2. A dedicated Vive Pro 2 is not on our roadmap. If you are purchasing Pro 2, can offer to a de-cased version of our Add-on with cameras and cable tree for custom prototyping. If interested send an email to [email removed]

Hi 👋 Sorry you spent so much time on this. For future readers of this thread please check out documentation here: https://docs.pupil-labs.com/core/software/pupil-capture/#linux

we are also very much interested in this, i guess more generally a solution for precise syncing of an external TTL/DIO to the system would be incredibly useful not just for audio (but for displays, button presses, events, etc)

Hello ! I am trying to install a plugin for pupil lab but I have some issues. When I try to install all Python dependencies, I use the requirements.txt file from the root of the pupil repository. I use this command :

python -m pip install -r requirements.txt and here is the error :

ERROR: Could not find a version that satisfies the requirement pyre (from pupil-invisible-lsl-relay) (from versions: none) ERROR: No matching distribution found for pyre

So I try to install pyre-check with this command : pip install pyre-check

And here is the error : error: Microsoft Visual C++ 14.0 or greater is required. Get it with "Microsoft C++ Build Tools": https://visualstudio.microsoft.com/visual-cpp-build-tools/

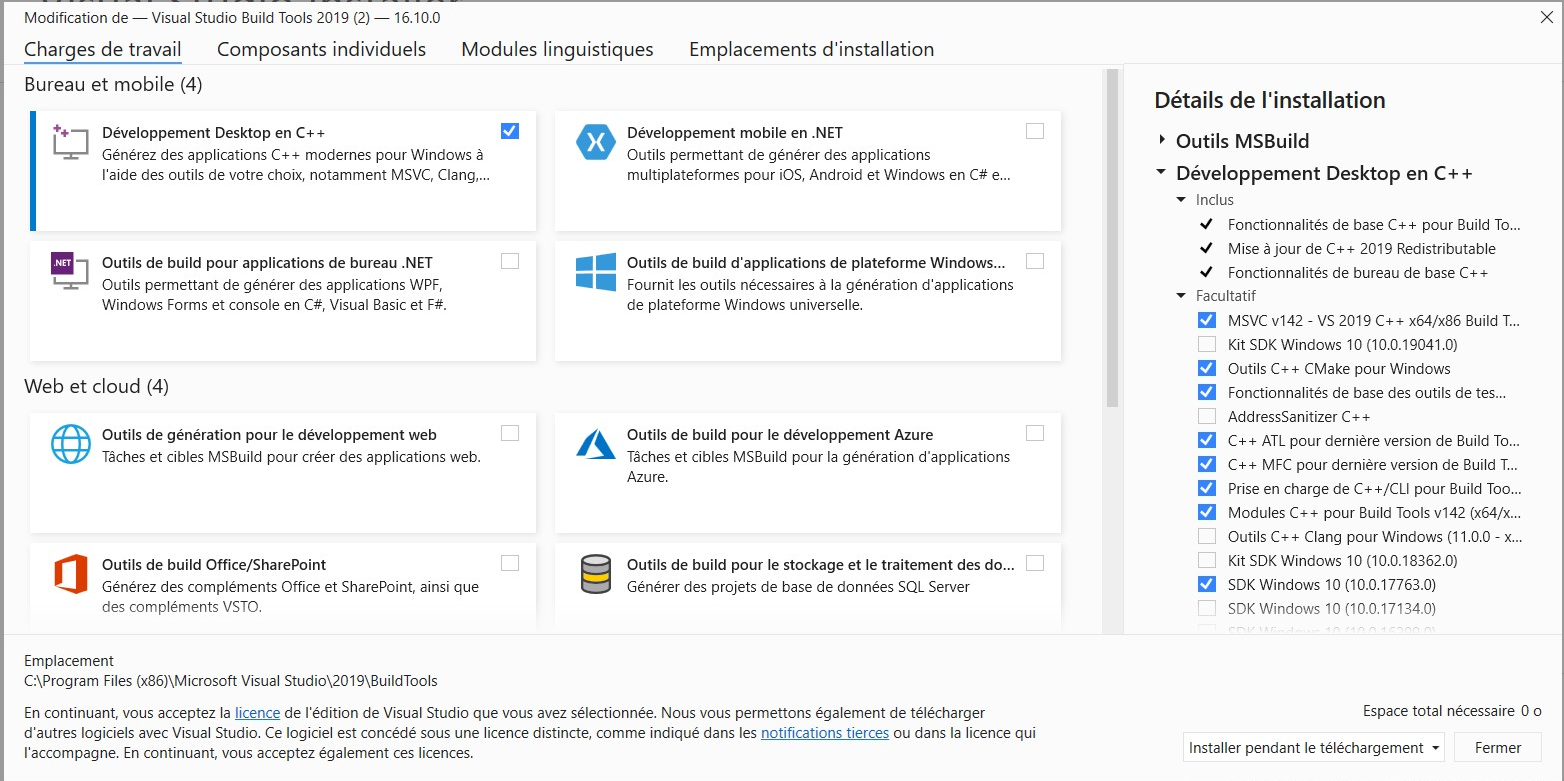

But I already install Microsoft C++ Build Tools with many tutorials, you can check on the following screen picture. Do you know how to solve my problem ? Or an other way to install a plugin ?

Apologies, the pyre repository is going through a name change right now, which is conflicting with the requirements.txt file. Please delete the [email removed] lines at the bottom of the requirements.txt files and install ndsi via one of these wheels: https://github.com/pupil-labs/pyndsi/suites/2900326485/artifacts/64999752

Hi, I have some quite long recordings (everything from 10-40 minutes) where I want to export the raw data, surface data and annotations. When using Pupil Player I have ran into some unexpected crashes. Here is (parts of) the log from when exporting began until it shut down:

Offline Surface Tracker Exporter - [INFO] surface_tracker.background_tasks: exporting metrics to my_path\Pupil data\participant_502\000\exports\000\surfaces
(........)
Offline Surface Tracker Exporter - [INFO] surface_tracker.background_tasks: Saved surface gaze and fixation data for 'Monitor'
Offline Surface Tracker Exporter - [INFO] background_helper: Traceback (most recent call last):
  File "background_helper.py", line 73, in _wrapper
  File "surface_tracker\background_tasks.py", line 318, in save_surface_statisics_to_file
  File "surface_tracker\background_tasks.py", line 385, in _export_marker_detections
TypeError: 'NoneType' object is not iterable

player - [INFO] raw_data_exporter: Created 'gaze_positions.csv' file.
player - [INFO] annotations: Created 'annotations.csv' file.
player - [ERROR] launchables.player: Process Player crashed with trace:
Traceback (most recent call last):
  File "launchables\player.py", line 720, in player
  File "surface_tracker\surface_tracker_offline.py", line 287, in recent_events
  File "surface_tracker\surface_tracker_offline.py", line 308, in _fetch_data_from_bg_fillers
  File "background_helper.py", line 121, in fetch
TypeError: 'NoneType' object is not iterable

player - [INFO] launchables.player: Process shutting down.

Do I have to wait for something to load in Player before exporting? Neither blinking detection or fixations were turned on here.

Which pupil Player Version are you using? @user-764f72 please have a look at this issue and check if this is already a known issue

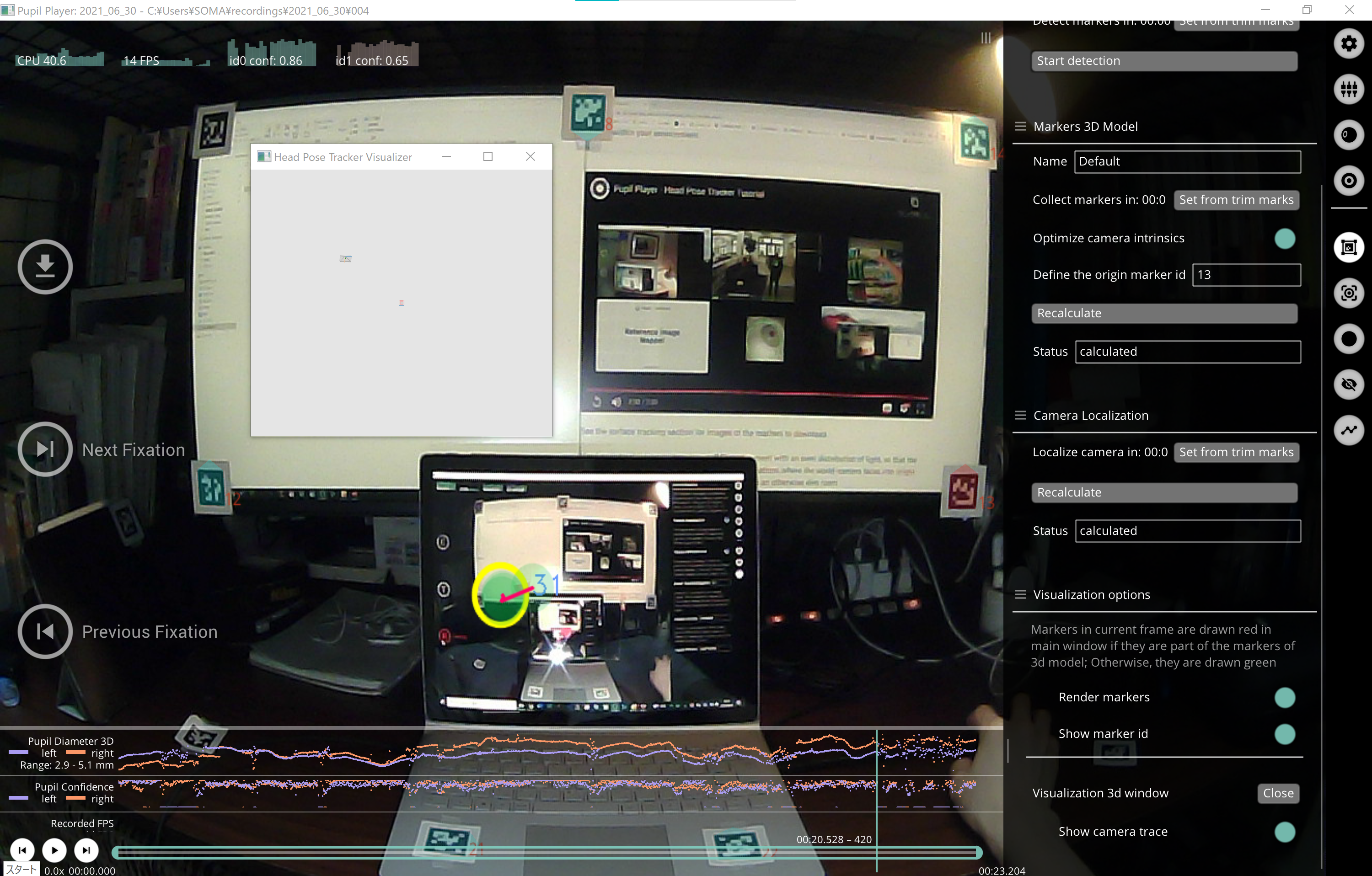

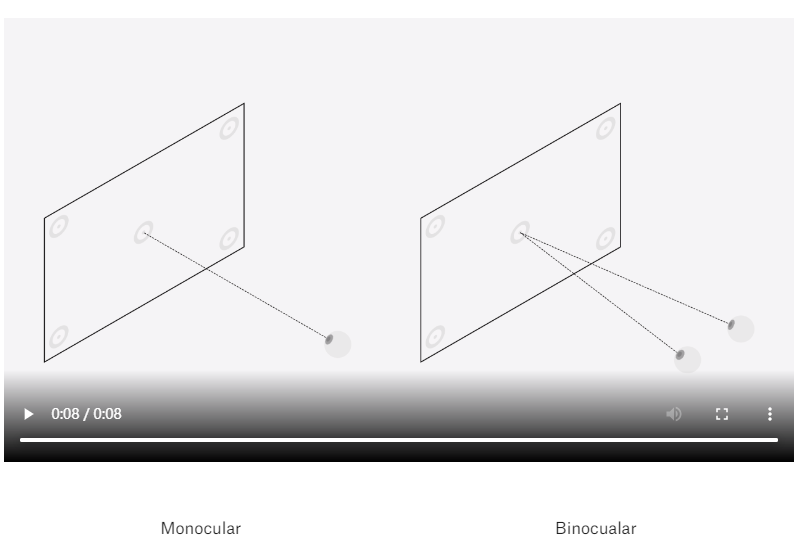

Hi I have some questions about the picture below. What are the special cases? Thank you

Hello ! When I deleted the ndsi @ lines of the requirements.txt I had an error like this : ERROR: uvc-0.14-cp36-cp36m-win_amd64.whl is not a supported wheel on this platform. I tried to install Pyuvc 0.14 with other links but it still has the same error... Do you know my problem ? I am on windows 10

Most of our wheels are currently only available for python 3.6 on windows. You are likely running a newer version of python.

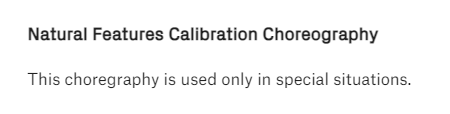

Hi @user-4bc389. The natural features calibration is mainly for situations where you have no access to a calibration marker: https://docs.pupil-labs.com/core/software/pupil-capture/#natural-features-calibration-choreography In general, this method is less reliable as it depends on communication between the wearer and operator

Hi @user-4bad8e. You can calculate visual angle changes between consecutive gaze_point_3d values relatively easily: https://discord.com/channels/285728493612957698/285728635267186688/692710274066677820. The trickier part is using this to classify saccades. Just looking at the data within fixations.csv will likely not be sufficient as the dispersion-based fixation filter is not optimised for saccades – there is no guarantee that the changes between fixations accurately reflect saccadic dispersion.

@user-4bad8e there are community projects that have that implemented saccadic analysis, e.g. by @user-2be752 https://github.com/teresa-canasbajo/bdd-driveratt/tree/master/eye_tracking/preprocessing

I am still trying to get your last responses to me. Thanks....they are just esoteric for now

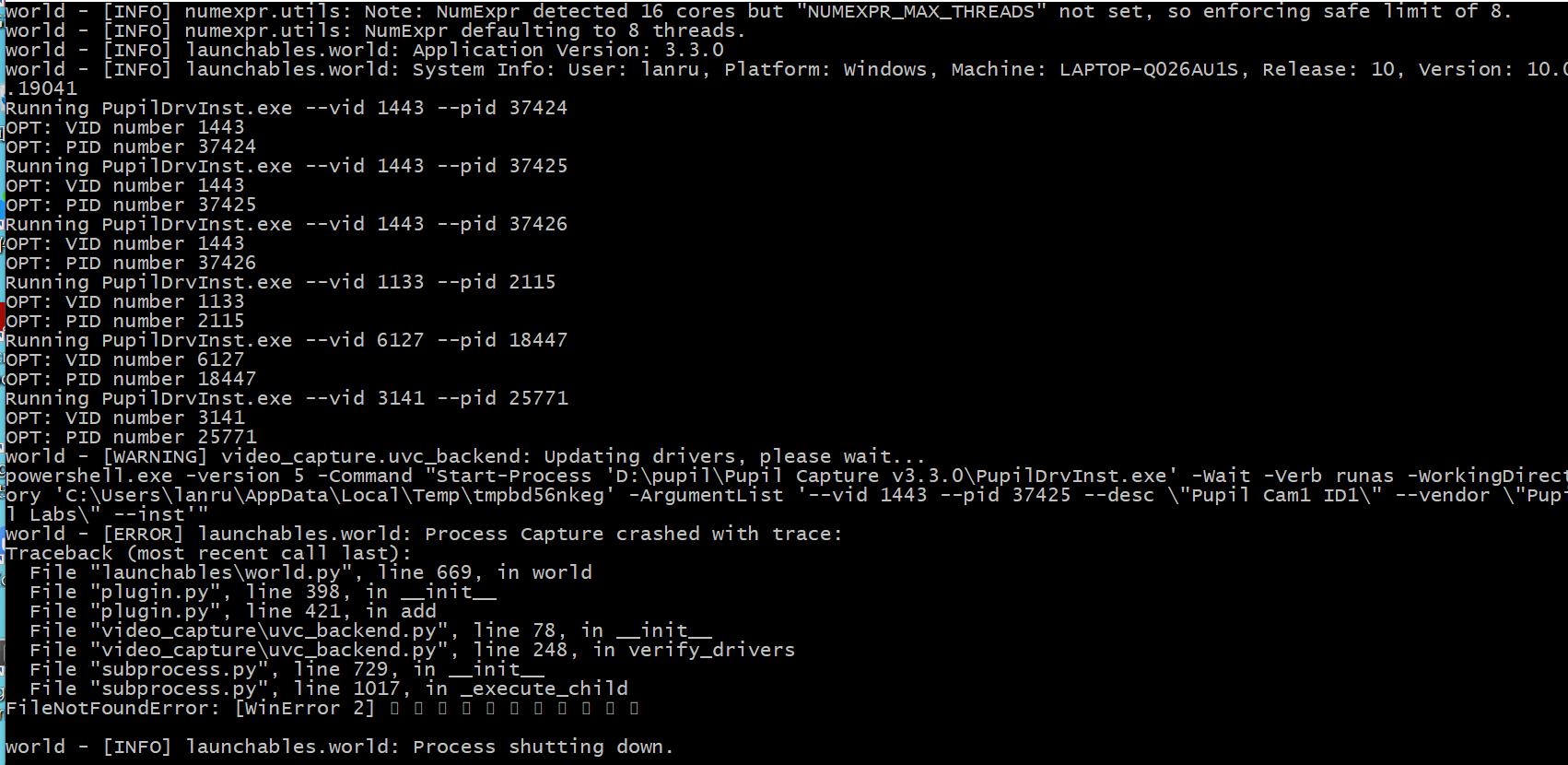

Hi all, I get a very similar error information as the issue https://github.com/pupil-labs/pupil/issues/1764 with version 3.3.0 when I open the pupil eye capture. I have tried the suggested solutions in that issue, but unfortunately they don't work for me. Does anyone have some clues on how to fix this? Thanks!

world - [WARNING] video_capture.uvc_backend: Updating drivers, please wait...
powershell.exe -version 5 -Command "Start-Process 'D:\pupil\Pupil Capture v3.3.0\PupilDrvInst.exe' -Wait -Verb runas -WorkingDirectory 'C:\Users\lanru\AppData\Local\Temp\tmpgt4z7836' -ArgumentList '--vid 1443 --pid 37424 --desc \"Pupil Cam1 ID0\" --vendor \"Pupil Labs\" --inst'"
world - [ERROR] launchables.world: Process Capture crashed with trace:
Traceback (most recent call last):
  File "launchables\world.py", line 669, in world
  File "plugin.py", line 398, in __init__
  File "plugin.py", line 421, in add
  File "video_capture\uvc_backend.py", line 78, in __init__
  File "video_capture\uvc_backend.py", line 248, in verify_drivers
  File "subprocess.py", line 729, in __init__
  File "subprocess.py", line 1017, in _execute_child
FileNotFoundError: [WinError 2] 系统找不到指定的文件。

world - [INFO] launchables.world: Process shutting down.

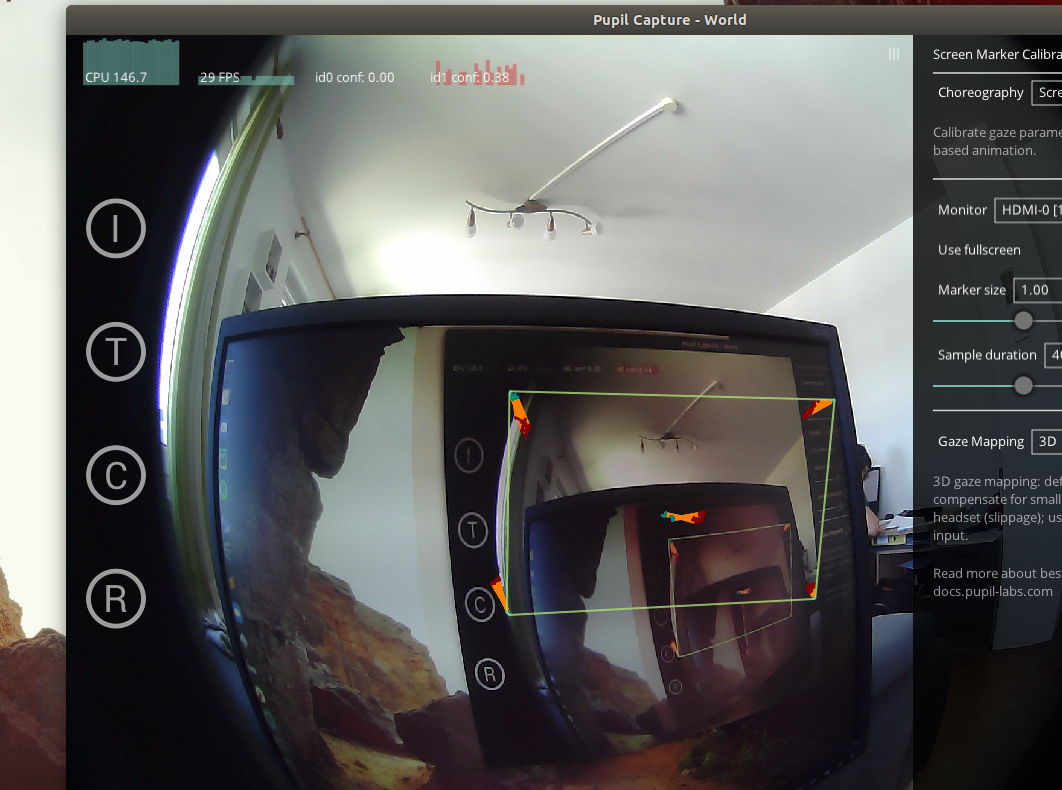

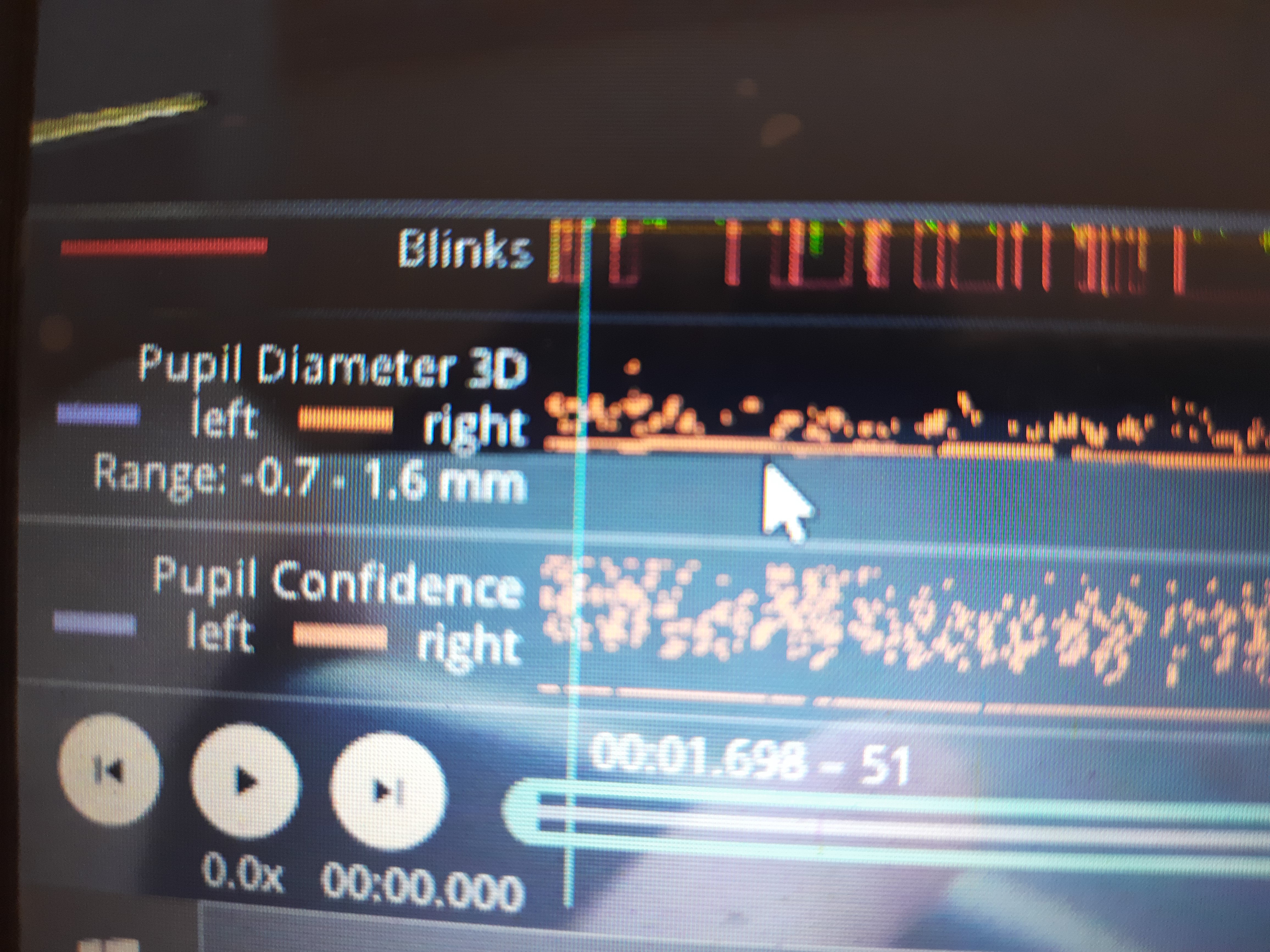

Hi What could be the cause of the problem in the picture? thanks

It's millimeters within the scene camera coordinate system.

Hi, so I am interested in counting fixations and dwell times per AOI. For fixations (defined as the number of times spent fixating in an AOI), I am thinking of each counting fixation id (9, 3, 6, etc) as one and then summing the number of times it occurs over my pre-defined area. We have defined dwell times as percentage of task time spent fixating in an AOI. So, my goal here is sum the durations of all fixations within an AOI and then calculate what percentage of task time it actually was. Does this make sense? I just want to run the logic by someone to make sure I am thinking/using the exported values correctly. We are not using gaze data to get dwell time.

Summing the durations of each unique AOI fixation would have been my approach, too.

yes, that is what I've been doing. I have been noticing this in addition to the fixation marker not showing up on screen. Some are essentially gaps where the person is looking somewhere but we don't know where exactly. From an analysis pov, what do you recommend? Should I get rid of this data? I am thinking if there is some way to salvage this data.

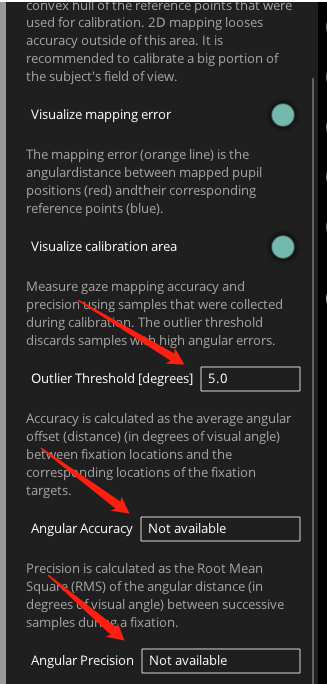

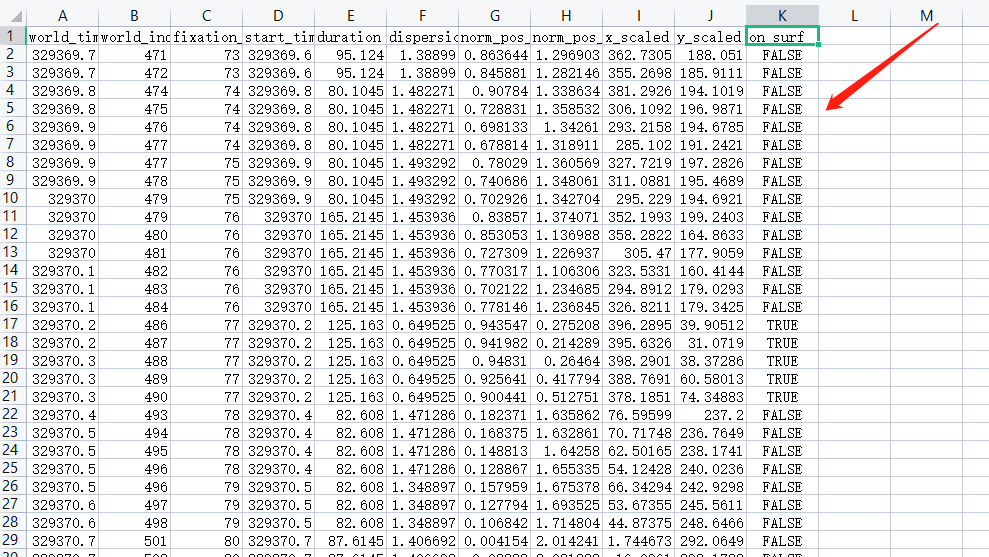

Hi . What does the place pointed by the red arrow in the picture mean，thanks

@papr In other words, false means that the data does not fall into the AOI, and true means that it falls into the AOI, right?

@papr I see thank you

@user-908b50 This is where things can get quite subjective. Sometimes it's clear that the wearer was looking within an AOI even during periods of lower confidence. And in these cases, reducing the minimum data confidence can work. But if pupil detection quality is too low, the fixation result might be invalid. Deciding what is and isn’t valid can become difficult. I would try reducing the minimum data confidence to see what happens. It might be obvious that the results can be trusted, or vice versa.

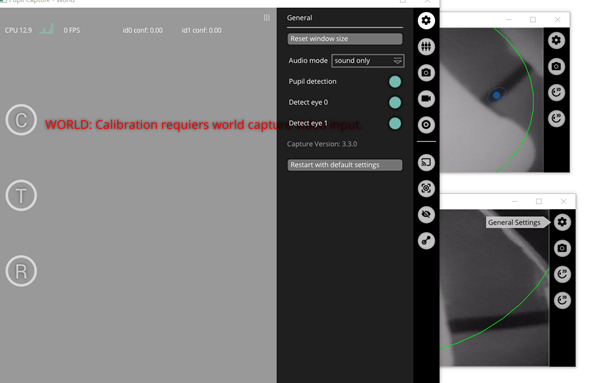

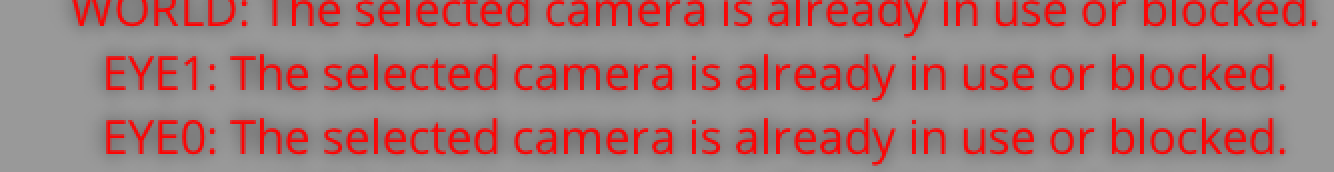

Hello, it's the first time I'm using pupil core and it's showing me this error. I don't know what to do, if there's anyone who can help me

No, I did not receive the request for administrative privileges shortly after starting the application

no i don't see any other terminal

you mean this ???

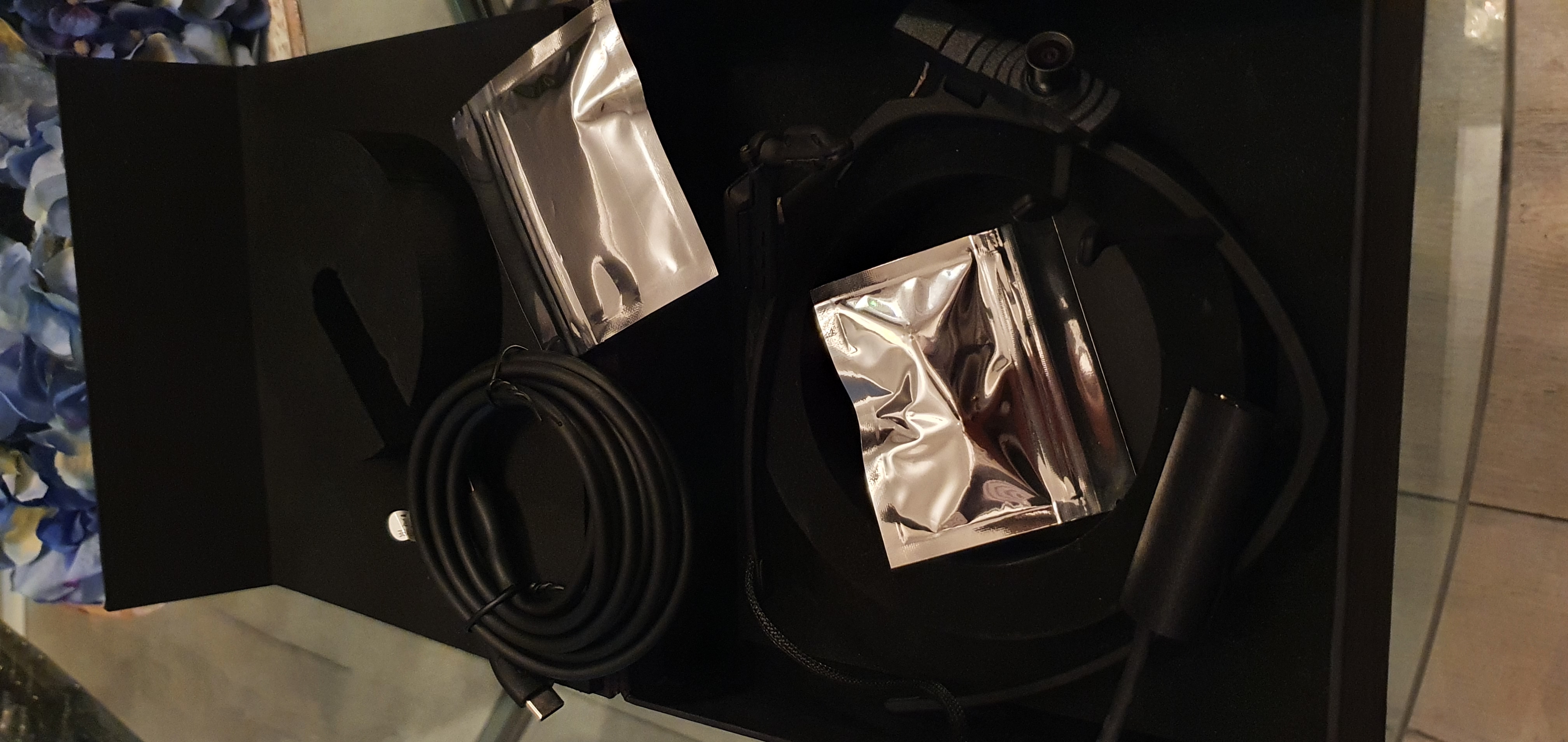

Ah, you are using an older model. In this case, you need to install the drivers by hand. Please follow steps 1-7 from these instructions: https://github.com/pupil-labs/pyuvc/blob/master/WINDOWS_USER.md

Hello

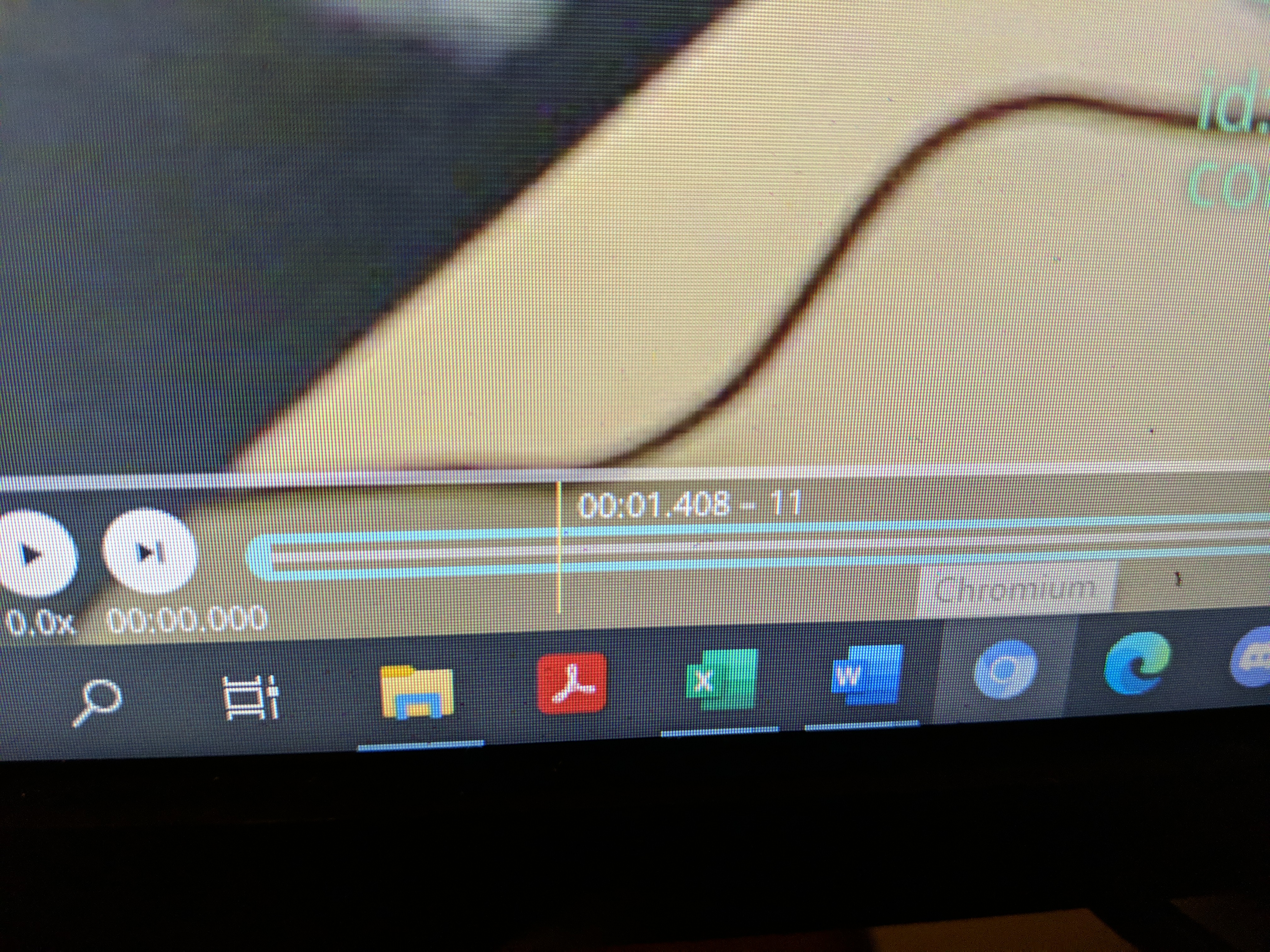

Is the frame time in player in milliseconds... It looks like it will start with millisecond, enter second and then minute.

its minutes:seconds - frame index

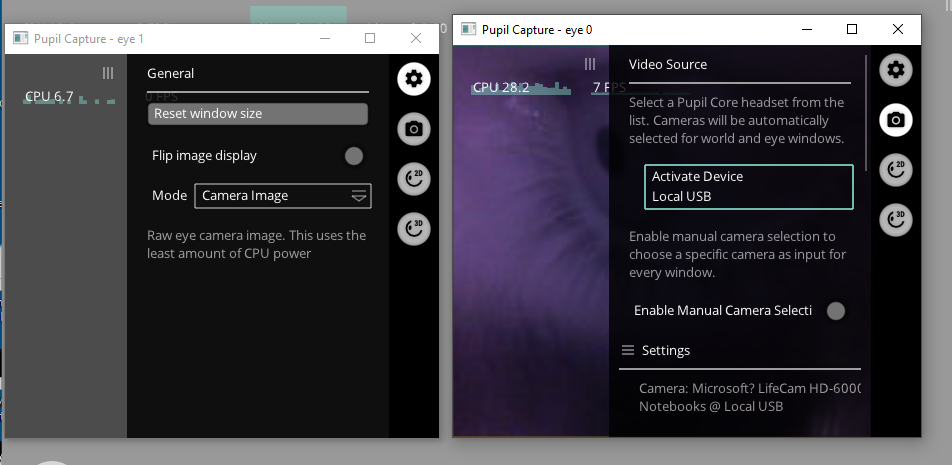

one camera works but the other one doesn't i can't make it composite parent

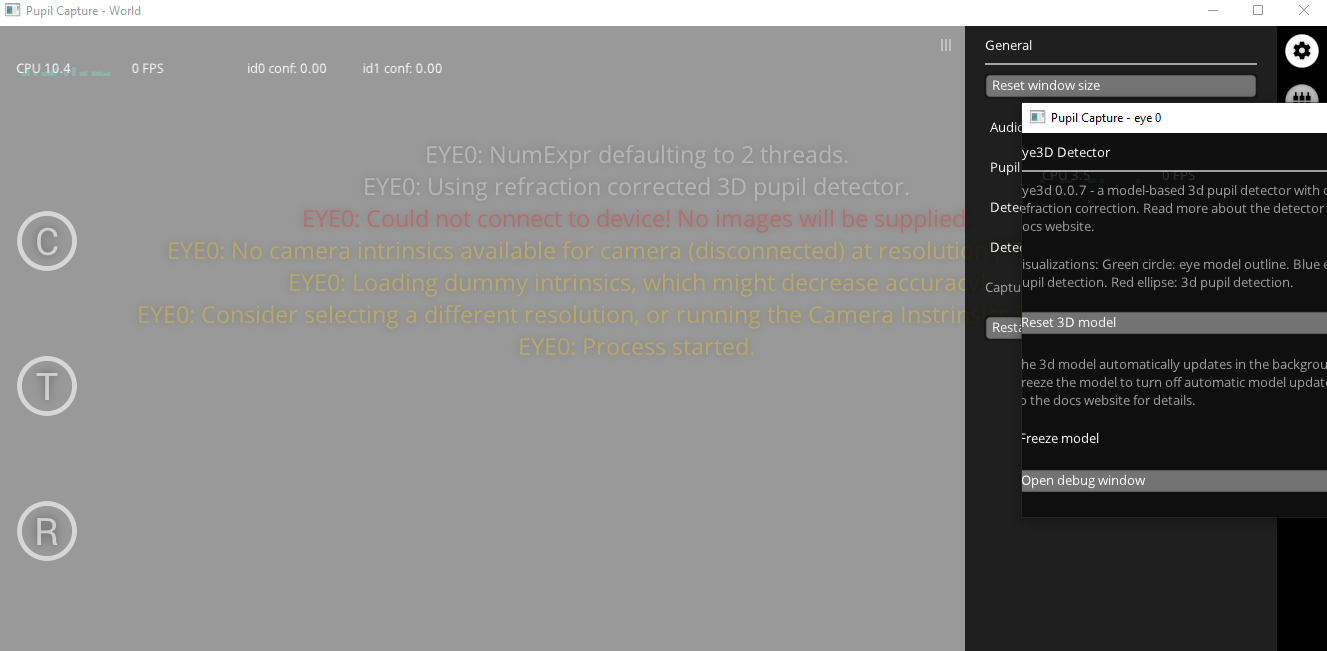

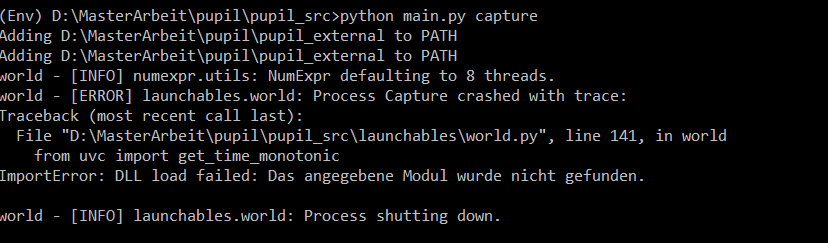

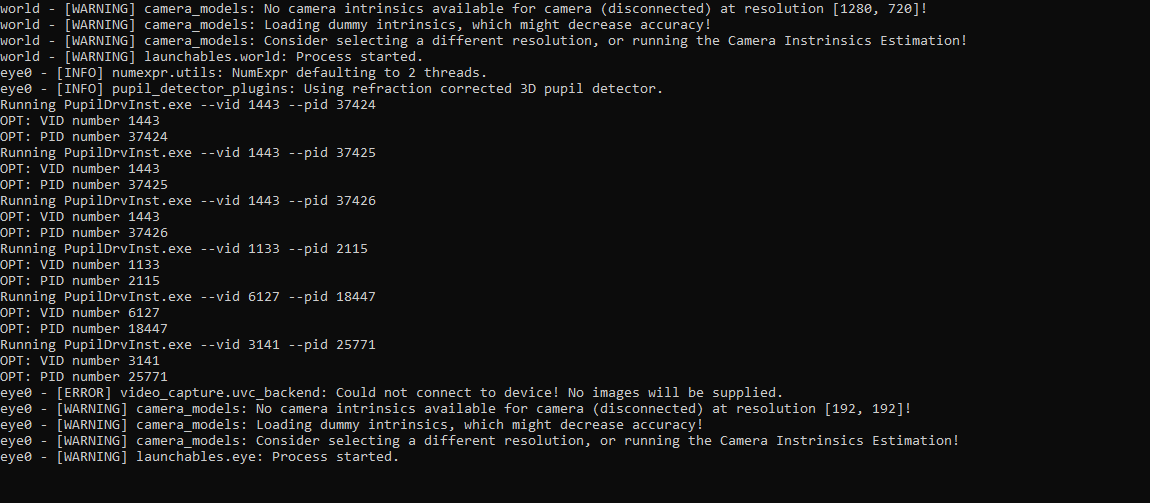

Hello, I still got stuck in this error(following picture). Could someone has a clue on how to fix it? thanks!

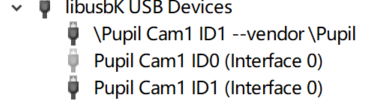

I think it is probably due to the driver, my pupil cameras under libusbK look wired

Yeah, there is definitively something going wrong during driver installation. Could you uninstall these again and then try the steps 1-7 from these instructions to manually install the drivers? https://github.com/pupil-labs/pyuvc/blob/master/WINDOWS_USER.md

I know I have asked this question before. I'm sorry.

Problem: words displayed on a screen are blurry to view on player. What do you think might have happened or what do you think can remedy this?

Is the Computer screen resolution or the resolution set in Capture matter?

Or must both resolutions align?

Hi, @papr - Do you know if there is a flowchart/something similar floating around, or one that I might be able to get access to, showing the process of how confidence is calculated for the 2d pupil detector?

Also, the same question, but for the process of pupil fitting

Hi, sorry to bother you again. After I move the pupil cam 1 ID0(composite parent) to the libusbK, the program can start and the two windows for the eyes work normally. But I just found the calibration function doesn't work and gives the information " Calibration requires world capture video input." , like the following picture. Since I am using the HTC Vive add-on, should I also move the HTC Vive (composite parent)to libusbK? Or do you have some clues on the possible reasons leading to this problem? Thanks!

Hello

Those gaze points before fixation Begin should be called what ?

If there a gaze at frame 7 follow by a fixation at frame range of 8-12, what's the name for that gaze points at 7?

There are various types of eye movements. If a gaze point does not belong to a fixation, it is most likely a saccade, but might be part of an other eye movement type, too.

They are the same timestamps but with different clock starting points. The UI only displays the timestamps up to a 3-digit precision. That should be sufficient for your use case.

You probably need to adjust the focus of the world camera lens to suit the camera-to-screen distance in your experiment

Hi, I am currently trying to run pupil labs capture from source on linux. As far as I'm aware, I have installed all required dependencies, however, when trying to run main.py, i get an error that the OpenGL module wasn't found. I already tried just installing the module with pip, however that fails as pip claims to be unable to find the module - any idea what the issue may be/ how to fix it?

Okay, thanks - i think i found the issue now, apparently the requirements.txt script did not run through properly and I didn't realise that. The script apparently errors out when trying to install pupil-apriltags==1.0.4 and pye3d==0.0.7, both times because the module six is not found...

hm, six is installed, OS is Ubuntu 20.04 based, python version is 3.8.5

sure

That is the part of the script output where it tries to install apriltags

the error message for pye3d is the same one basically as far as i can tell

That did it 👍
Should i do the same for pye3d?

That worked, thank you very much! 😄

Hi there, I ran into a problem with the pupil detection today (this hasn't happened before and I have collected about 20 participants already). The eye tracker was not able to detect the pupils at all and I'm not sure what the reason is for this. This participant had green eyes, could this be a problem? Is there a way to adjust the settings to still detect the pupils in a situation like this?

Thanks! I will check it. But just in case, I would like to make sure my drivers are now installed correctly since the name pupil Cam1 ID0 --vendor\Pupil looks wired and there are only two pupil cams under libusbK(plus hidden ones). 🤔 Could you please kindly check it out? Here you can see the picture:

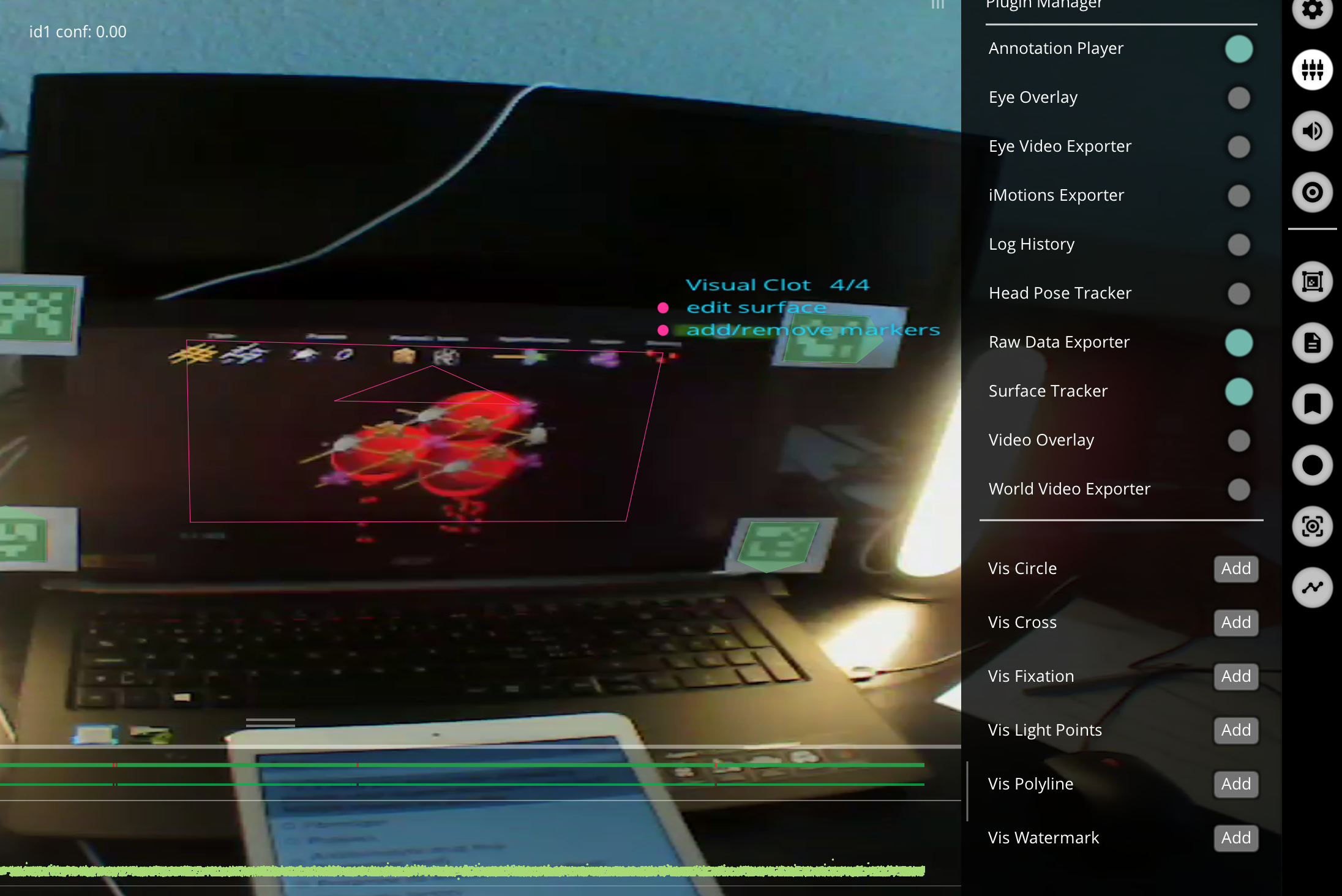

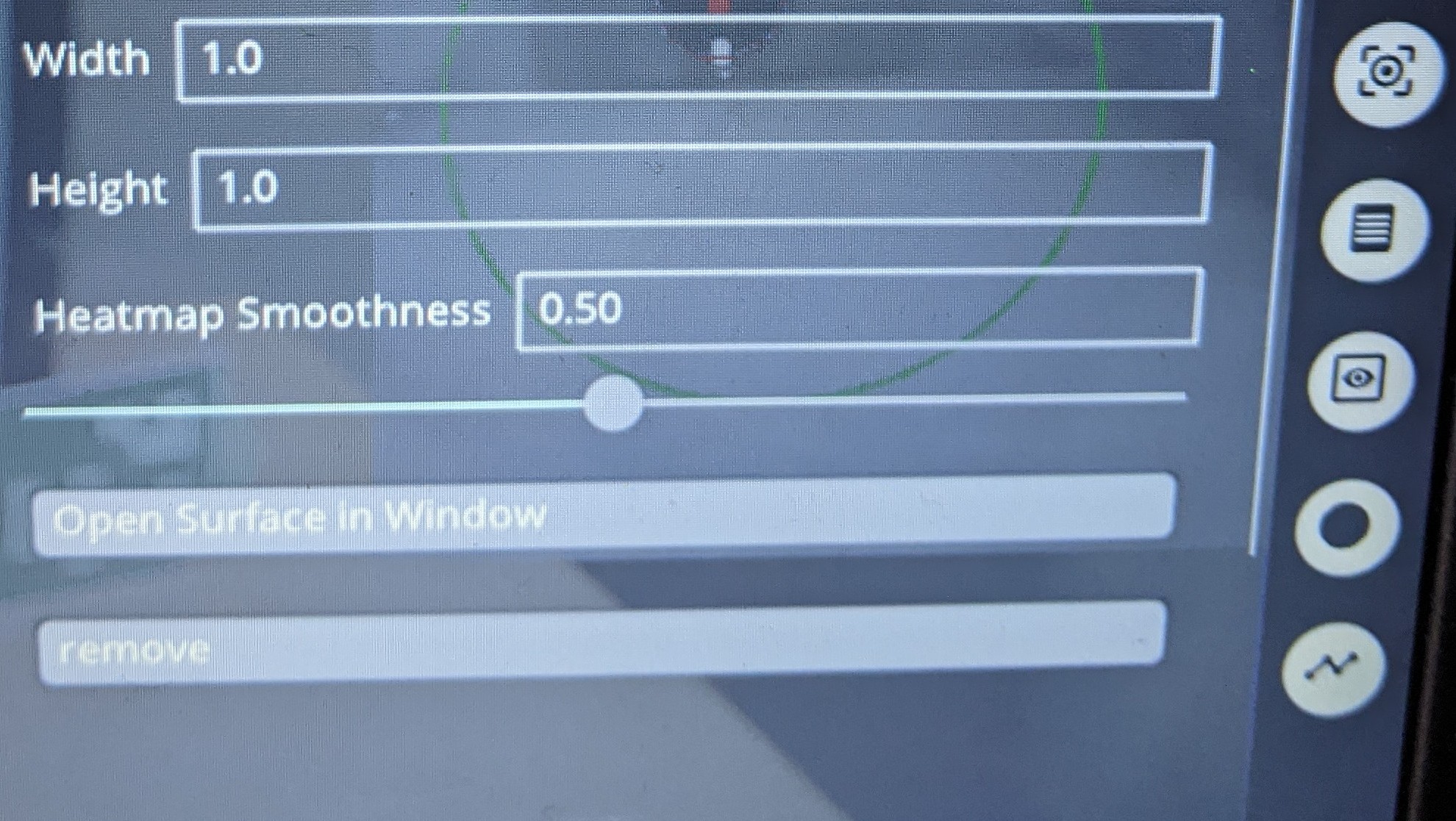

Why are the width and height of the surfaces created not really adjustable?

Please describe the behaviour that you are encountering and how it differs from the expected behavior.

The size is used to define the internal AOI coordinate system. It makes a difference if you look at the surface-mapped gaze data and the heatmap.

To adjust the surface definition, click the edit surface button (top right of the surface) and move the corners of your surface into the desired position

The "blurryness" is a function of the width/height and the heatmap smoothness. Larger width/height -> more heatmap resolution.

Also, how do you automatically annotate the data? I have been doing it manually.

Traceback (most recent call last): File "launchables\world.py", line 751, in world File "camera_intrinsics_estimation.py", line 323, in recent_events cv2.error: OpenCV(3.4.13) C:\Users\appveyor\AppData\Local\Temp\1\pip-req-build-cg3xbgmk\opencv\modules\core\src\matmul.dispatch.cpp:439: error: (-215:Assertion failed) scn == m.cols || scn + 1 == m.cols in function 'cv::transform'

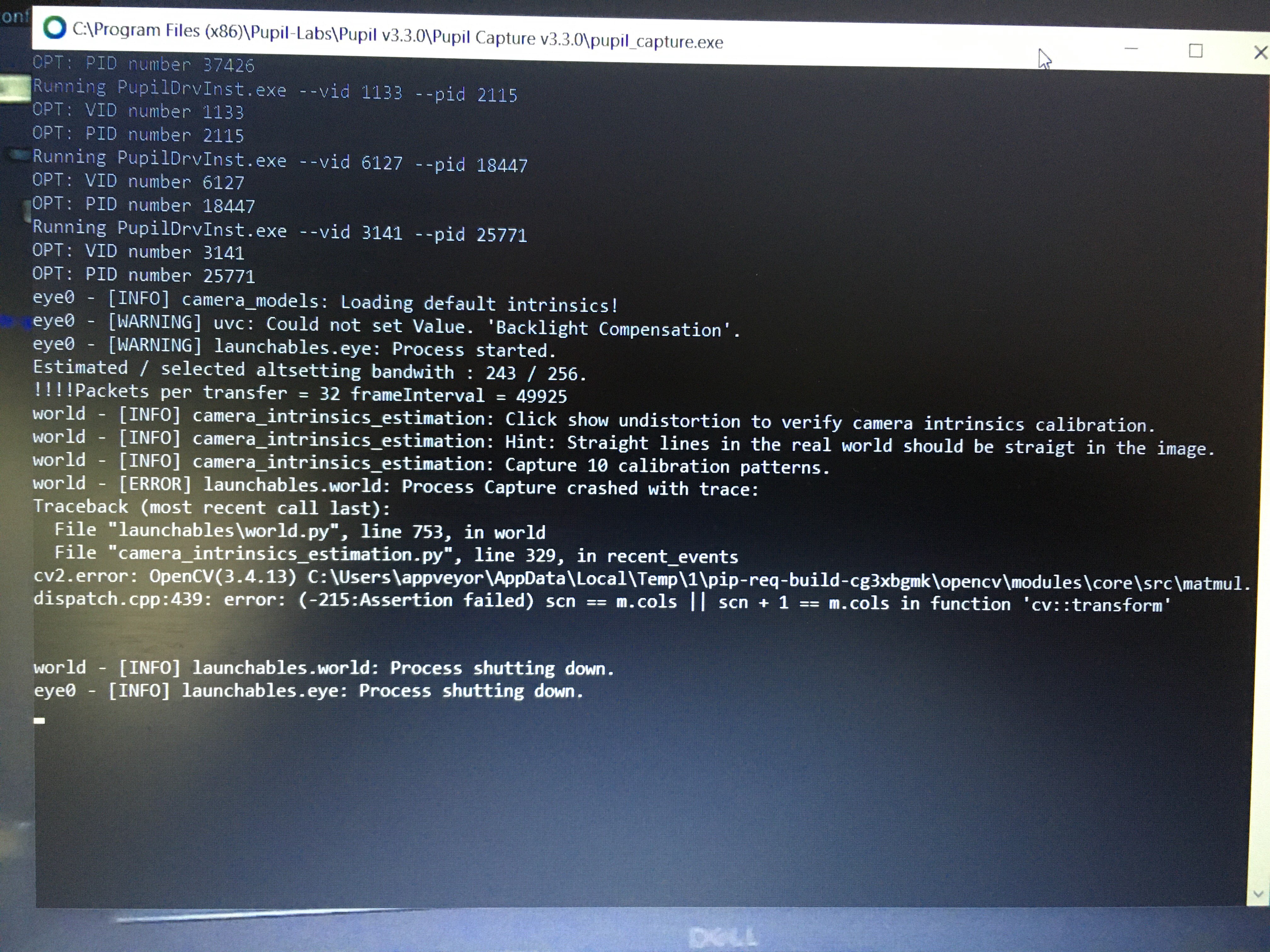

Hi I get this error when I am trying to do the camera intrinsics estimation: Traceback (most recent call last): File "launchables\world.py", line 751, in world File "camera_intrinsics_estimation.py", line 323, in recent_events cv2.error: OpenCV(3.4.13) C:\Users\appveyor\AppData\Local\Temp\1\pip-req-build-cg3xbgmk\opencv\modules\core\src\matmul.dispatch.cpp:439: error: (-215:Assertion failed) scn == m.cols || scn + 1 == m.cols in function 'cv::transform'

the world and eye processes shut down and the capture is not responsive

Hello. Is it possible to estimate the depth of the users' viewing place in real space from the world camera using gaze_point_3d_z in fixation.csv?

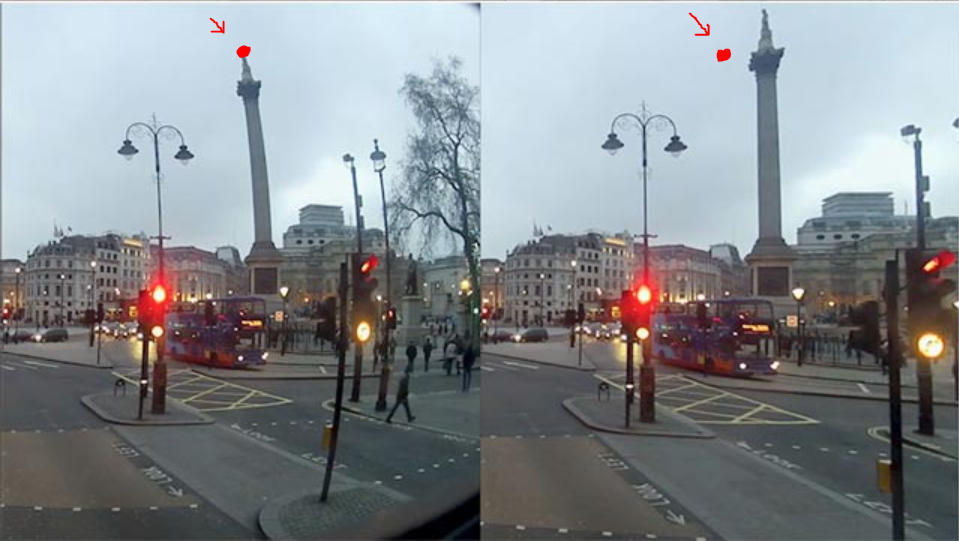

Hi @papr, since upgrading to version 3.x, gazepoint positions seem to be MUCH noisier than v2.6, has anyone else noticed this? I confirmed this by recording with v2.6 capture, and creating gaze mapping with both 2.6 and 3.1 (both their own post-hoc calibration and new gaze mapping). You can see clearly during the visualization of the gaze position that player 3.1 created with the same recording is jumping around all over the place, while 2.6 is quite stable. This will become a problem with anyone who records with 3.1 and can't go backwards to use the 2.6 algorithm (theoretically this should be possible with video alone, is that correct?)

Sure, thank you. To be specific, the recording was done in 2.6 (since 3.1 recordings aren't backwards compatible), and it was the 3.1 remapping that was the problem. Recording in 3.1 and mapping still has the problem. I will share both the original 2.6 mapping and 3.1 mapping folders. THANKS!

Hi

Is it possible to visualize the overall scanpath of the task? A static image of the order of fixations?

@papr, is Pupil Core monocular 200Hz? Thanks.

Hi all, sorry for asking again about a topic which has been discussed already, but I am trying to use the latest Pupil Capture (3.3.0), on Windows 10, to work with my pupil core device (high-speed 120hz worldcamera + binocular 200hz eye cameras). It seems there is no way to have the device recognized by the PC. I have also activated the Administrator account, but the device is not listed under the "libUSBK Usb Devices": it is rather listed under "USB (Universal Serial Bus) controller", but with the following errors (I try to translate them from Italian): - unknown USB device (failed port setting) - unknown USB device (failed request device descriptor)

When I have tried in the lab, at some point - after installing the software as administrator - it worked for few seconds (and the device was listed under libUSBK Usb Devices) but then it stopped. I read previous posts, and one of the suggestions (may 15th 2021) was to install an old version of PupilCapture: is this the only possible solution? In this case, which is the suggested version?

Thank you very much, best regards nicola

Probably a simple question, but i just cant find a solution: since im using the nework api (and already had to use the suicidal snail method and restart the subscription, since the data comes faster in than i can work through it),

how do i map the gaze to the world camera? i have normalized coordinates, but those are for the world window, and i cant find a way to get the world window as a topic, so my python script only has the world_frame, and the normalized position is not corresponding to the coordinates of that.

maybe in other words: is there any way to get the world window coordinates for the world frame from the network API over ZMQ?

big thank you if somebody has an idea

Hi @user-6e6da9. If you subscribe to the gaze datum, norm_pos is gaze in the world camera image frame in normalised coordinates. If you want the 3d point that the wearer looks at in the world camera coordinate system, look at gaze_point_3d (https://docs.pupil-labs.com/developer/core/overview/#gaze-datum-format). If you haven’t already, check out the Pupil Helpers repository for examples of receiving data in real-time: https://github.com/pupil-labs/pupil-helpers/tree/master/python

It would be correct, if i could calibrate the pupil labs that the calibrated world window is the same size as the world_frame. As it stands, its always a rectangle (or shape) in the world_frame in pupil labs, and the norm_position is for this smal part of the world_frame. And this would be okay, if i know, what the Thats what i tried. the problem i have: it coresponds to the calibrated window in the world frame. But i dont know where the window is. the norm_pos corresponds with the position in this window for me.(using the norm_pos of base_data) if i look at the corner of the calibrated window, i already get (1,0). But that is not the corner of the whole world_frame.

if i look at the 3D data, it is even more off. gaze_normal_3d is almost at the edge of the screen, and norm_pos of gaze 3D has a negativ normalized position. none of those would correspont to the correct pixel on the world_frame

Gaze: {'eye_center_3d': [-417.07332897871754, 75.0570080555142, -15.841330035112268], ' gaze_normal_3d': [0.9893230944326201, 0.050810551746338056, 0.1365946655382179], 'gaze_point_3d': [77.58821823759251, 100.46228392868323, 52.456002733996684], 'norm_pos': [0.7362048359425144, -0.08089865886879655], 'topic': 'gaze.3d.0.', ... 'base_data': [{... 'norm_pos': [0.7015782696975317, 0.034688731852176025]...]}

thats what i have done, but since the norm_pos correspont to the callibrated frame in the picture, and not the whole world frame, it yields a wrong position.

Is there a way to only choose one eye for the results in pupil player? So only results from the left eye should be exported?

hm, ok. i tried it with the norm_pos from gaze3d, and got wrong positions, but then it seems to have been because of calibration or delay in receiving the data... norm_pos of the base data seemed to be more acurate.

Is there a reason why e normalized position between 0 and 1 can deliver negative numbers? i know floating point can be tricky with fine precision, but this should not really be if it detected a gaze... is the correct way in this case to just take the absolut, or to map if(x<0 ) x = 0 ?

Thanks a lot for the answer 🙂

Does the filtering of the data work in the fixations_on_surface csv? or what do you mean exactly with filtering posthoc?

so ill just rename all eye0 files (the video, the timestamps and the lookup) and run post hoc. Thanks @papr

maybe in a few days. Essentially, im using the method described in recv_world_video_frames_with_visualization.py, but the opening of the frames with cv2.imshow takes to long, and i already had to implement the suicidal snail pattern to close and reopen the connection

In regards to the negative coordinates... that was a missunderstanding i had, i asumed if a gaze it outside of the world_frame, then it does not get recognized. knowing that positions <0 and >1 are posible explain why i was so confused, sins the documentation says it returns a normalized position between [0,1]. With that knowledge it makes more sense, when you add that to a suboptimal calibration values as 1.4 and -0.3 are rather confusing without it...

im receiving it first and only show them when i show them whewn receiving gaze data, but the drawing/opening takes long enough (windows pycharm or ubuntu pycharm), for now im more then happy with the help you gave me, and i will report back if i find whats causing the delay in case that somebody has the same problem 👍🏻

Thanks. After validation, the calibration area masked with green line go off and another small smaller one is formed. Does it mean that only gazes within the validation box are accurate?

Exported data such as the fixations are averagely calculated from both eyes right ?

Does it mean that only gazes within the validation box are accurate? No. It just means your validation area was smaller than your calibration area. Validation does not change the accuracy of your calibration.

Fixations are calculated based on gaze. Gaze can be both: monocular and binocular. The system tries to maximize the number of binocular mappings given these conditions: - both pupil datums from left and right eye have high confidence - both pupil datums are close in time In all other cases, gaze is mapped monocularly.

lik

Hello,I have a pair of pupil core labs for sale, the product is new

if you are interested please contact me

[email removed]

Hi! 👋 I’ve had two participants with intense blue eyes, where the 3D model flickers constantly (between 0.8-1.0). Any idea what causes this? The pupil seems to be well lit and is centered within the cameras FOV, similar to all other participants I’ve had earlier.

As long as 2d pupil detection works well, and there are sufficiently different gaze directions, the eye model should be stable. The iris color should not play a role regarding model fitness. If you have trouble with model stability you can always freeze the 3d eye model to enforce a single model.

Could you provide an example recording with data@pupil-labs.com ? This would allow us to give more specific feedback.

Hey i have a question regarding the core eye tracker. I run an experiment and record for about 3 minutes. When i open the sheet that records the diameter 3d in mm during that recording , i get ranges from 0.01 mm to 3.5 mm The problem is that i know that there are absolete numbers (0.01 for examoke) So i dont know which numbers i should include as real measurements. Also keep in mind that during the expeeiment, the eye pupil wasnt exactly at the green circle of the eye tracker, so it wasnt always taking accurate measurements. So how can i know the right real numbers inside the pupil_positions.csv file?

I have read it before

But it does not answer my question

Slowly move your eyes around until the eye model (green circle) adjusted to fit your eye ball If everything is setup correctly, the green circle should no longer move around.

I know that, what i am saying is that i have already taken the recordings and i dont know which points in time the green circle was positioned correctly (because the eye was moving)

Once you have a stable model, you will also see more realistic diameter values in the range of 2-9 mm. Of course, it is not always possible to estimate the diameter reliable, e.g. during blinks. It is recommend to discard entries with low confidence, e.g. lower than 0.6

So i should discard the values less than 0.6 mm

Right?

The export has a column confidence. Entries with a confidence lower than 0.6 should be discarded. If you are interested in further processing options, I recommend having a look at: Kret, M. E., & Sjak-Shie, E. E. (2019). Preprocessing pupil size data: Guidelines and code. Behavior Research Methods, 51(3), 1336–1342. https://doi.org/10.3758/s13428-018-1075-y

Also, it is good practice to freeze your model once it is fit well. If you have already finished all your recordings, you can still try running the post-hoc pupil detection in Player. Start the process until the model fits the eye, pause the processing, freeze the models and hit restart. It will apply the frozen model to the whole recording.

Awesome man, i will try that

Thanks @papr , you are a very helpful guy

Is the pupil diameter range 3d values in the pupil player accurate?

Can i take it onto account?

I am uploading a photo of it

So is this recording invalid?

Is there a way to get accurate estimations from this recording?

So what should i do after i run the post-hoc pupil detection?

I clicked on "redirect"

Okay

So what should i send exactly to that email?

Great

I will send it now

What should i write in the email subject?

Great man😃

I sent you the email

It is from [email removed]

Did i send you a wrong file?

Should i send the whole folder?

Or just that file?

Okay

But the file is 600 MB

It is so big, is that okay with you?

Okay

I will send it, but i will need to do the same thing with about 10 different recordinga

Recordings

So it would be better if you can tell me what to do

Because adjusting those 10 recordings will take all your day

And then duplicate it?

Okay

I am uploading the file

Hey @papr

The file just finished uploading and the message was sent

Okaaaay

I have another video for someone without glasses

Can i send it to you?

Awesome

So is it hopeless for that video?

I will check how much I can get out of it tomorrow.

Great , man

I sent you the other file

And i reallllly appreciate your help @papr 😃

Hi, I have a few questions regarding pupil size measurements: 1) How much of a difference in pupil size (in mm) between eyes can be considered normal? 2) I noticed quite large differences in pupil size measurements between offline & online analysis, which of the 2 methods tends to be more reliable and is there a way to check which method performs more accurately? 3) I have some recordings with pupil size measures frequently being below 2mm (which I thought was the natural lower range of pupil size), even when detection confidence is high. Are these measurements valid?

Hi, anywhere can I download the Pupil Mobile App (apk)? As I cannot install through Google Play.

Mail sent now ✉️

How can I subscribe with Pupil Capture from the remote host?

@papr I dont find any "Capture Selection" option from Pupil Capture interface.

@papr Thanks!

There're something wrong with my macOS version Pupil Capture. The headset is connected via USB-C, it says device found but I got no video signal, both world camera and eye camera.

If I select "Local USB" option, I got the following error message

Is it possible that you started Capture multiple times by accident? Or have a different program accessing the cameras? If not, please try restarting and trying again.

@papr I've restarted it and nothing changed. Here's the log file

2021-06-16 18:33:45,207 - world - [WARNING] launchables.world: Process started. 2021-06-16 18:33:45,208 - world - [DEBUG] ndsi.network: Dropping <pyre.pyre_event ENTER from bbff2452a3cc44629a11d4c351cc7baa> 2021-06-16 18:33:45,208 - world - [DEBUG] ndsi.network: Dropping <pyre.pyre_event ENTER from 24cbe3897bcf47b380d2e55f47face19> 2021-06-16 18:33:45,387 - world - [INFO] video_capture.uvc_backend: Found device. Pupil Cam1 ID2. 2021-06-16 18:33:45,394 - world - [DEBUG] uvc: Found device that mached uid:'20:4' 2021-06-16 18:33:51,113 - world - [INFO] video_capture.uvc_backend: Found device. Pupil Cam1 ID2. 2021-06-16 18:33:51,121 - world - [DEBUG] uvc: Found device that mached uid:'20:4' 2021-06-16 18:33:56,588 - world - [DEBUG] uvc: Found device that mached uid:'20:3' 2021-06-16 18:33:56,589 - world - [ERROR] video_capture.uvc_backend: The selected camera is already in use or blocked.

It is possible that there is an issue with the usbc-to-usbc cable. There are different types of usb-c cables and some of them are limited regarding what data they transfer. 😕 Do you have a different cable that you can try?

OK, I'll try other cables. many thanks 🙂

Is there any plug in available for pupil core eye tracker? Tobii has developed a SDK for Unity and Unreal Engine so far I know. If I want to use eye Pupil Core eye tracker in Unreal Engine, how can I do so?

Hi@papr，I try to get images from pupil-capture and process them, but the processing speed of my code is less than 30hz. The sample code has the following description: * # The subscription socket receives data in the background and queues it for # processing. Once the queue is full, it will stop receiving data until the # queue is being processed. In other words, the code for processing the queue # needs to be faster than the incoming data.* I would like to ask if there is a way to get only the latest image frame.

I think my equipment Pupil Core ML-016 has a little problem because the main body and the eye camera is loosely connected which sometimes cause unstable video stream of the result in my computer. After being used for a week, now I can't receive any information from it so I opened the connection part of the eye camera and the main body and found that there are two wires seems to be disconnected and the white junction is loose so it can be easily pulled out. I wonder what can I do to fix it or could you please guide me how to get such equipment by myself (I searched on shopping website but couldn't find ML-016).

Hi, I am new here and a rookie at that. I just got Pupil core from a senior colleague, and I have been able to do the set up. However, I am confused on how to approach my specific problem, which is to use Pupil core to collect data of object locations. Say I am holding an object, I want to be able to locate the object I am looking at, hence generating series of images + label. So essentially, I want to use Pupil core to generate data for a model I am about to train. I want to be able to use this data for multimodal fusion. Please, any pointers would really be appreciated. Thank you.

Hi, welcome! Check out this community fork https://github.com/jesseweisberg/pupil I think it does exactly what you are trying to do

Hello folks, I have a question and I would be very thankful if you could answer this to me: When recording with the glasses it's nice to use the "fisheye" lens, because you have more information in the picture. I need to de-distort / equalize the image for object detection. But in theory, if you de-distort the image, the gaze data is not correct anymore, right? To me it seems like a very common problem so my question is if there is a build-in tool to adapt the gaze data to the new de-distorted image?

oh this sounds great thank you very much, I will check this out ! 🙂 🙂

Hi all I have another question, does gaze calibration affect the accuracy of the pupil size measurements?

Thanks! The 3d model stability can be optimized by adjusting the 2D detector settings and giving the model time to stabilize while the participant moves their eyes around, right?

Is it possible to recalibrate to monocular calibration post-hoc if one eye generally yields lower confidence?

Okay, like renaming eye0 files to something else so that it is not “picked up” by pupil player?

Hi, in my recent recordings, the blue pupil estimation (?) heavily diverges from the actual measured pupil (red). Wonder, what may be the factors influencing that?

Setting Info: auto exposure mode (since the illumination changes constantly today), in algorithm mode: pupil int. range: 3, pupil min: 5, max: 50 freeze 3D model (after doing a rolling eye test, so that the green eyemodel adjusts correctly) model sensitivity: 0.997 resolution: 192x192, fr:120

oh and using the orange arm extenders

will do!

Hi, @papr thank your response yesterday, I just found out my Pupil core has no world scene camera, is it something I can purchase separately? I also didn't see any slot to plug it in assuming I can buy separately. Please see attached picture.

Pupil Core comes with a scene camera be default. It can be configured otherwise before purchasing, see here https://pupil-labs.com/products/core/configure/ I am not sure, if the scene camera can be installed post-hoc. Please contact info@pupil-labs.com in this regard.

Hi there! I’ve installed for the first time Pupil core on Win10 (I normally use Ubuntu). Everything went on quite fine, however when I start the intrinsic estimation Capture freezes and I get this message. Any help? Thank you all.

Is C:\Users\appveyor your local user directory? Probably not, correct?

Hi , I did not find these two calibration configuration methods in the capture, are they canceled?

Which camera model and resolution did you choose?

Eye: Pupil Cam2 ID0 @ Local USB, Framerate 200, Res. 192, 192; World: Pupil Cam1 ID2 @ Local USB, Framerate 60, Res. 1280, 720.

Apologies, I meant distortion model, not camera model. It is a setting in the plugin's menu.

Hey there I have to work on recordings that were done with pupil capture version 0.7.6-2 and I would like to work on them with the new pupil player version, if possible. When I tried to import them the Player said "this recording needs a data format update, open once in pupil player v1.1.7" Now my question is, can I download the Pupil Player version v1.1.7 somewhere, or is there another way for updating the data format?

Please use the radial model for the 720p resolution

Hello

I know there are manufacturer's values for Accuracy and recommendation. Please are there values for best practices when using 2D or 3D pipelines? Or can we just choose an average visual angle we got from our pilot studies, use it to calculate the stimulus size?

You should use the accuracies reached/measured in your pilot studies. Every experiment is different and it is important to make sure it works as expected.

Hi guys, I am wandering if it is possible to calculate saccades when the recording is done using LSL. In the output .xdf file I have several variables. In fact, I have 22 variables like gaze_point_3d_y, confidence, etc. And I suppose these variables are the same than the one you obtain when you record using pupilCapture (but I'm not sure about that). Is there a simple way to visualize saccades in the data ? Maybe by computing the difference between the center of the screen (or the center of the visual field) and the position of the eye (gaze position I suppose) ? Thanks for the help

And I suppose these variables are the same than the one you obtain when you record using pupilCapture That is correct

In general, saccades can happen everywhere in the field of view. Do you have an experiment setup that expects saccades from the center of the screen? I, personally, would start by visualizing the gaze data itself before looking at higher level eye-movement classifications.

Hello and help! I was hoping to run an eye tracking study tomorrow with the VR eye tracker (silly I know) - at the moment I have about half an hour it's a 2 hour round trip to pick up an HTC Vive Pro. Question - just ran the demo and installed the recording software - the demo raycasts are all over the place and not where I am looking - I can't see any errors but pupil confidence is < .8 - I am wearing contacts does that affect it? Any quick tips?

I did some OBS screen capture and the pupil seems well detected to me.

Hi again 🙂 is there an easy way to update the meta file format of already exsisting recordings?

What I'd like to do is to analyse blinks with the new pupil player using the plugin, but I have recordings from Pupil capture version 0.7.6-2 unfortunetely

when trying to open the recordings, pupil player said I need to update the data format of the recording

Yeah, read more about it here https://github.com/pupil-labs/pupil/releases/v1.16

yeah, true 😄 okay, but how do I do that? Can I get this version somewhere?

perfect!!

when downloading it, will it overwrite the version I already have?

The upgrade happens inplace.

Okay, thanks a lot!!

@papr thanks! It's raycast data for a brain injury population - looking at cognitive function - have things already setup with Pro Eye - but given equipment shortages, I thought I'd try to get the Pupil Labs happened - turns out it will probably take me more than a couple of hours - I am going to sit down properly and read the instructions. 🙂 For now, think I'll make do with the roundtrip.

Mahlzeit everyone. I'm still working on installing/implementing pupil-labs on my Win10. I'm trying to follow the documentation step by step and after the updated requirement.txt i got a bit further but now i'm stuck at this:

Do you know what i'm maybe missing?

I didn't... where can i find it?

Hello, we want to cite the PyE3D application in our paper. Is Swirski and Dodgson, 2013 appropriate to cite?

please cite https://dl.acm.org/doi/10.1145/3314111.3319819

Hello! I am having some trouble with the Network API. It does not seem to do anything when I run the pupil_remote_control.py script from my command prompt, nor does it seem to do anything when I run the same code from a Jupyter Notebook. However, it shows that the code is running. Is there something additional that I must do to actually connect to my Pupil Core device?

How do I check what port I am using?

Sorry that I am very new to networking

Ah okay, thank you so much!

Hi, I am trying to do offline blink detection in Pupil Player, but it will not detect any blinks. In the GUI it does not show any activity either, just the horizontal threshold lines. The following was written to log:

player - [WARNING] blink_detection: No blinks were detected in this recording. Nothing to export.
player - [DEBUG] blink_detection: Recalculating took
    2.7310sec for 670779 pp
    245614.05567290605 pp/sec
    size: 0

Thanks in advance 😄

Edit: And just to be clear, the recordings are long (~45 min) and include a lot of blinks and confidence drops. When I import shorter recordings, blinks are detected.

Anyone here can help on how to build in an audio capture plugin in Capture software?

It is nice if we have such plug in

If after calculating the Target size and we got say, 2.8deg x 2.8 deg, can we still account for offset in player by adding margins when creating surfaces ?

Hi, I tried to open the old recordings in player version 1.16 like you said, unfortuntely it tells me it can't open the file, that the directionary is missing. Any ideas?

Yes, I dropped the whole folder (e.g. '000')

it contains the info file

player - [ERROR] launchables.player: InvalidRecordingException: There is no info file in the target directory.

okay, I'll send you one of the folders thanks!

This is what I mean by no activity 🤔

It's a normal recording directly from Pupil Capture. Gaze and fixations are working.

total time is calculated based on the first and last timestamp. They seem to be very far apart in your case, such that the result is zero.

Please export the pupil_positions.csv and share it with data@pupil-labs.com such if you want us to investigate.

Feel free to try it on the data (participant_503) that I sent you for the surface cache bug. I will send you an exported pupil_positions.csv for another recording as well. All my recordings are indeed very long, around 2700 s, so that might be the problem.

Mail sent now 📬 Thank you.

participant_503 works for me

@user-597293 Could you follow this step please? It might give us an indication of what is wrong.

The pupil_positions.csv looks good. I will have to investigate this in more detail next week

Found the issue. You are using the R pupil-remote command in your experiment, correct?

The issue in participant_503 is that it contains pupil data from before the time reset. Player sorts the data by time and places these at the end because they have a large timestamp. These large timestamps are then used to calculate the filter size and timeline subsampling.

You can use this notebook and adjust it to remove these samples https://gist.github.com/papr/96f35bebcfea4e9b9552590868ca7f54

- filter_pldata(info_json.parent, "pupil", lambda d_ts_topic: d_ts_topic[1] >= start)
+ duration = info_data["duration_s"]
+ duration += 60.0  # add a generous buffer
+ filter_pldata(info_json.parent, "pupil", lambda d_ts_topic: d_ts_topic[1] <= duration)

Ah, I see! Looking through my code it also seems like I've forgot to add a sleep call between setting the time and starting recording. Thanks a lot 😄

@papr @wrp Hey again, I got the IR's soldered on and now at the stage of getting the cams setup on the Pupil Software, however, when I open Pupil Capture (as Administrator), the camera image does not show up. Ive tried uninstalling devices in device manager as per the guide, but still no image. It says "Camera not found in red when opening the software, and when looking in the camera menu, it says camera is blocked?" Both laptop and desktop doing the same thing. What should I do?

Hi! I have two questions, 1. How to use Pupil Lab eye tracker in unreal engine? 2. according to the VRPN wiki (https://github.com/vrpn/vrpn/wiki/Available-hardware-devices) the Pupil Lab's eye trackers are unsupported by VRPN. Is there anyone, or any source to add pupilLab device drive?

Hi, Quick question on fixations.csv vs. fixations_on_surface_*.csv. The latter contains several samples per fixation_id, with differences between screen coordinates for each sample.. Any reasons not to use the average of all samples with same fixation_id? Fixations are exported with a large dispersion value as I am only interested "the bigger picture" in terms of gaze position, so minor differences in position won't matter anyways. Thanks in advance 👍

Hello, I have a question: When calibration happens in the Pupil Labs Core software, is that done individually for each eye or is the "cyclopean eye" the one that's calibrated?

Okay, I see. In terms of which of those three models is used to put the gaze location dot on the screen, I'm guessing that depends on the confidence values of each eye in a given frame of input?

Meaning, when one eye's confidence drops, it will switch to the monocular gaze location of the other eye?

Okay, I think I understand. Thank you for the quick answer!

Hello I had to suspend my project and could not follow for a while. So pelase forgive me if I put questions that have already been answered. I will be glad to follow your links in the chat history, in case.

@papr @user-597293 I am sorry if this message looks long, but I believe I have to provide some framework to ease whoever tries to help.

I am working with recorded videos with a camera that gets both eyes frontally. My aim is to study the dynamics of eye movement while they are following a target. My currently intended flow is as follows [with issues/questions in square brackets] : 1. I get a .h264 video file (RaspberryPi + HQ camera + raspivid, setting only resolution=1920x500 and fps=60) [ - the resulting file, checking with ffplay is 25 fps, not 60. Any clue? - what are better suited video recording format/codec/settings, for pupil to read the video then? - for precision/synchronisation purposes, I'd like to get the actual timestamps in my video, any advice how to make raspivid save them in the video file? ] 2. I crop the video to obtain two videos, one for each eye [ - I am using ffmpeg from command line, but it is quite cumbersome to use those ] complex filtergraphs [. Any advice on using a programmatic approach (python/jupyter) ]

1. I submit those videos to pupil_capture or pupil_service and get pupil x, y, accuracy, eyeblinks (then fixations, saccades... etc.) by querying Pupil Remote service via the Network API [ - which of the three programs pupil_capture/ _service/_player is better suited for doing the modelling/processing? is there any even better option (e.g headless)? - until last attempts there was no way to synchronise the timing of the two videos. Has something changed in this respect? - if I get actual timestamps in the video file, will each eye output data be referred to those? Or should I rather provide a _timestamps.npy file explicitly? ] Please feel free to direct me to outer links, or tell my that my workflow has to be changed from scratch. I'd like to stay on a traced path and not far from what others are doing. Thank you very much.

1. (Last but not least) Are there experiences of running pupil on a RPi4?

@papr hello, im sorry if these questions were already asked, but i couldnt find in the history answers to them so im going to ask. 1. Based on what i understood from the documentation the coordinates of the pupil positions are relative to the camera, is there a way to calculate the positions (horizontal and vertical positions) of the eye itself? 2. Is it possible to calculate the gaze based on different "conditions"? (i mean based on the same pupils video and calibration i can calculate both the monocular gaze for each eye and the binocular) 3. Is there a way that i can take the current pupil positions that i have (in which their horizontal and vertical components are dependent on their angle to the cameras) and calculate the eye's horizontal and vertical components from them? (with or without the gaze detection)

Thanks alot!

Hello. Thank you for your kind supports. I am trying to use offline head pose tracker to calculate subjects' head moves while experiments. Could you tell me the conditions when the data of the world camera's pose is recorded in head_pose_tracker_poses.csv?

Thanks for the quick reply, i need to measure and compare the vertical and horizontal movements of the eyes(their movement and the difference in their position). Is there a way to calculate the movements and their ratios between the eyes? I was thinking of using the gaze tracking and the pupil data (probably Phi and Theta) of the eyes to calculate the ratios, is it possible? (about my third question i basically need to make it so that i can caculate the eyes movement and that they will be in the same coordinate system)

Hi @user-4bad8e. Can you elaborate a little on what steps you have taken for head pose tracking, e.g. have you used tracking markers, were they detected okay in the head pose tracker plugin? https://docs.pupil-labs.com/core/software/pupil-player/#head-pose-tracking

if you are only interested in relative movements, you can use pupil data. relative changes in theta/phi as well as circle_3d_normals are comparable between both eye cameras

This is a screenshot.

You do not seem to have sufficient scene camera movement in order to triangulate the other markers in reference to the origin marker.

The good news is that you can reuse the 3d model from other recordings or even Pupil Capture.

You can use Pupil Capture to build a model, too! This can be helpful to get feedback in realtime

Got around to assembling my Pupil Labs 3D printed eye tracking headset today. Not impressed with the design. Found it brittle/fragile. The cable guides broke off the eye camera mount and, more importantly, the world camera mount snapped when trying to attach it to the headband rod. Does anyone know of an alternative headband design?
