Thank you for your work. Could you please answer the following question?

Q1 What are the continuous operating time limits for each of the three products (Neon, Invisible, and Core)? For example, I planned to operate Neon for 3 hours the other day, but after about 60 to 90 minutes of use, an error occurred on the smartphone application (NeonCompanion app automatically closed, an error message was displayed, etc.), and it became unusable for several tens of minutes (the sensor part of the eyewear was hot, but is that related to the application error?).

Can you drag the bottom left corner of the surface down so you cover the full windshield? Or was this trapezoid shape intended? It looks like the surface visualized to the right of the video is warped due to the geometry of the surface.

Yes, you'd want to set the surface such that it covers an appropriate portion of your windscreen. Please try clicking on 'Reset Surface', then drag and drop the corners of the surface to the desired locations.

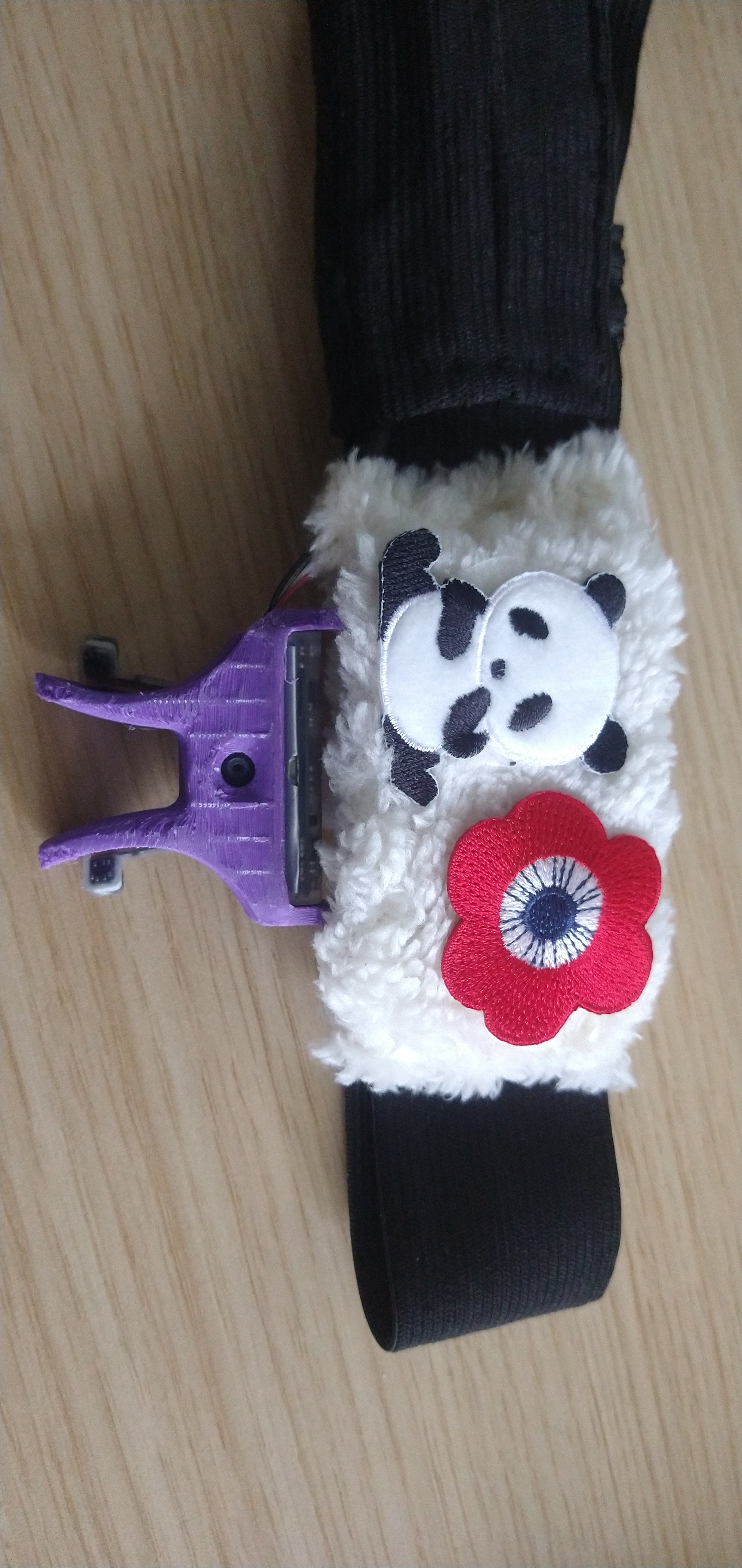

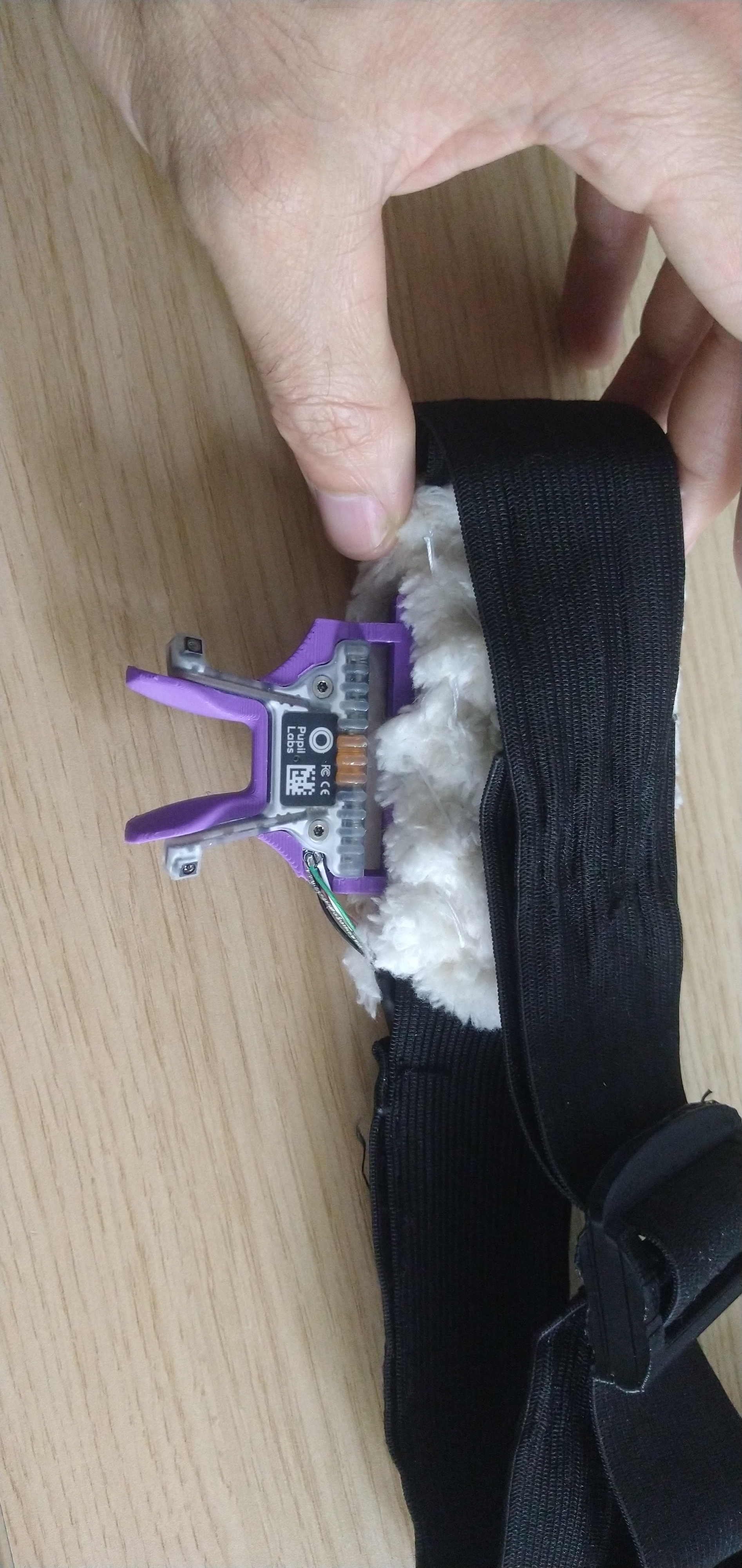

Hi ! I'm from a Cognitive Sciences Lab. We are using a Neon module to study baby cognition. We've had trouble using the Neon glasses meant from children as our age group starts at 12 months: their heads are too small. Therefore we've had to 3D print our own frame based on PupilLab's own 3D models (see pictures of what we've made attached). We've been testing with this successfully, but occasionally we get a "sensors failure"/"recording failure" message, then the recording keeps going but without eye-gaze data.

How can we minimise this occurence ? Is this linked to our custom frame or is this a more general problem stemming from Neon Modules ?

Thanks for sharing those pictures! Really great to see this integration of the Neon module. As for the errors you're getting, it's a little difficult to pin down whether that's something to do with the module, nest or custom integration, or even the app version you're using! Please open a support ticket in troubleshooting. It will prompt you to enter some details that will help us look more closely at the issue, and we'll go from there.

hey quick question, can we move the recording into another work space in pupil cloud

hello. I've not managed to get the standalone Neon player to run (on a 2020 imac running Catalina). Installs OK, but doesn't launch. When I run in terminal I see some ImportErrors about libraries, libavformat. Is this a known issue? I'd like to get it working please

Hi, @user-53a8e1 - are you running from source or using the bundled dmg installer?

Can you share the log file? You should find it in the neon_player_settings folder

Your home folder. E.g., /Users/your-user-name/neon_player_settings

Hi, is it possible to download the recordings with the fixations and gaze on it? When I download the recordings from pupil cloud, I only get the raw recording without anything on it. Thanks!

Thank you! We will need to investigate further, and this will help.

In the meantime, are you able to run from source?

Thanks for the reply, after applying the enrichment how do we find out if the marker is detected in a particular frame or not ?

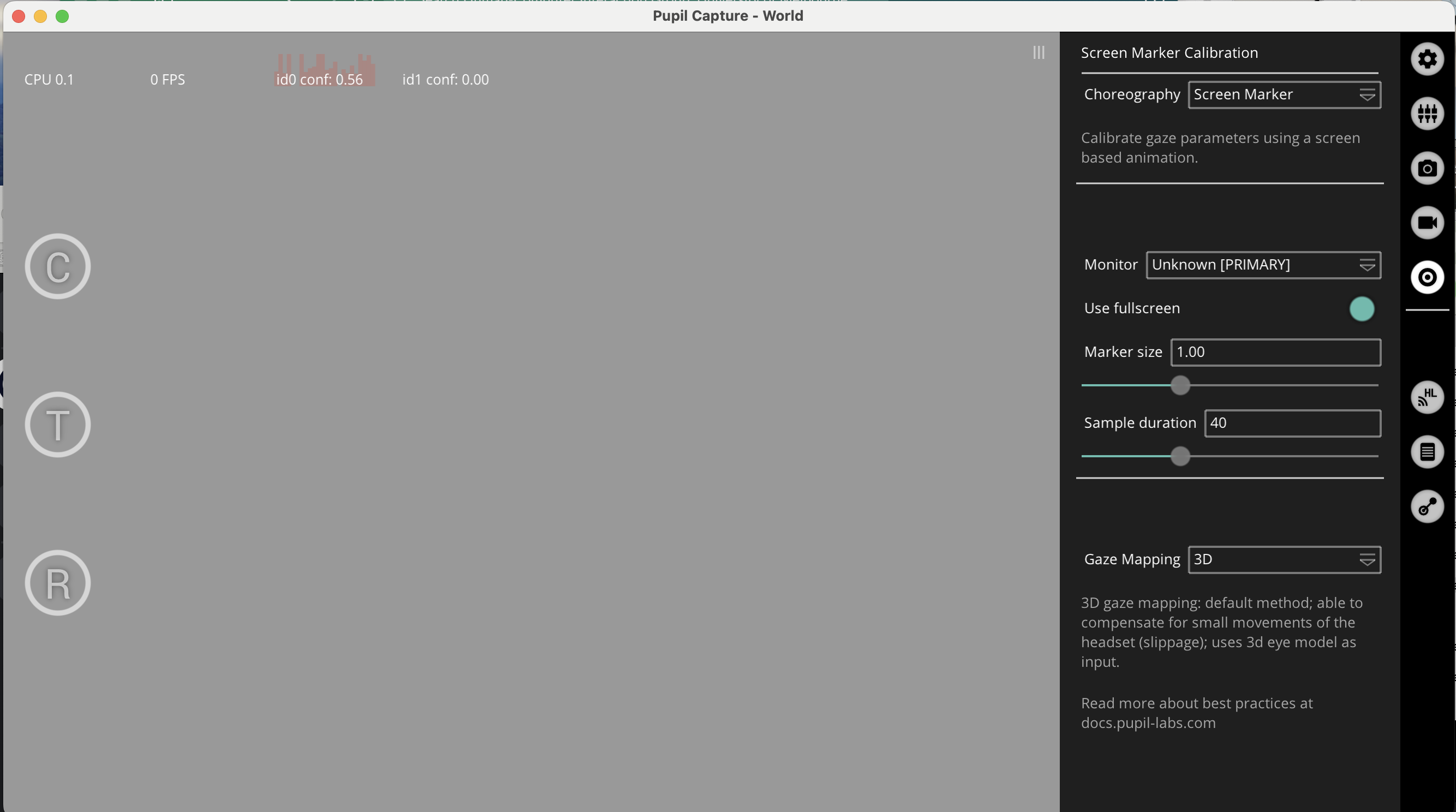

I cant see anything even the eye tracker is connect to laptop(mac)

Hi @user-820f0e 👋

Neon is not designed to be used with Pupil Capture software. You connect Neon to the Companion Device for data collection. Please could you clarify your use case?

@user-820f0e can you clarify what you mean by "quality of recording video"?

Also, can you give an example of your research goals so that we can provide more concrete suggestions?

I want to do a user study research, and the place that my participants look at are important. from the quality I mean, I need to read qr codes using open CV, so the frames need to be in a good quality. from pupil_labs.realtime_api.simple import discover_one_device device.receive_matched_scene_and_eyes_video_frames_and_gaze()

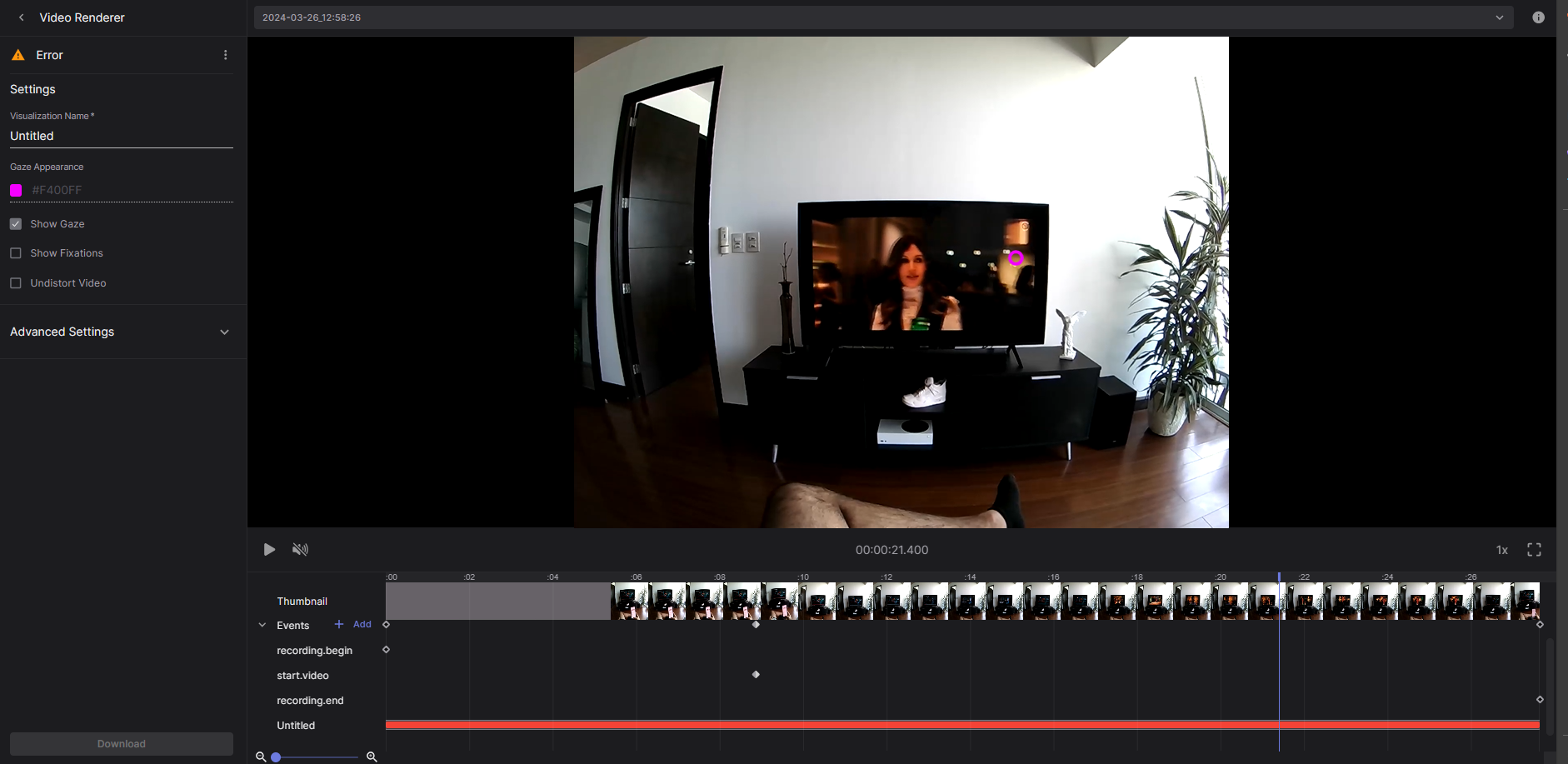

I have a (probably dumb) question about pupil cloud. When I choose Video Renderer and some other enrichments it says "Recordings: You can select which recordings you want to include in the enrichment.". But when I choose these, it seems to automatically run on all the recordings in the project. How do I select which recordings to run it on?

OK thanks! You should probably change that documentation that says you can select which recordings then!

The announcement channel doesn't allow comments, so I will write here. It's great there are some potential Neon Companion app improvements! HOWEVER, do you think it would be possible to give users warning of an upcoming release? We had a study going on today and when we turned the phones on this morning, right before participants were arriving, the apps automatically updated, which was not ideal for our circumstances and caused some unforeseen issues. I will be sure to keep the phones off internet in the future. But on the other hand we would want to back up data to Pupil Cloud, so needing to leave the phones disconnected from internet indefinitely is not ideal. An unexpected update can really disrupt research. Would it be possible to provide a week's, or at least a few day's, notice in the future?

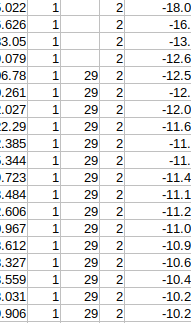

"Hello @user-4c21e5 , I have a inquiry regarding the gaze.csv file. I noticed that there are X and Y coordinate values present during a blink event. Could you please clarify why X and Y coordinates are recorded during blinks? Additionally, I'm curious about how fixations and blinks might overlap in the data. Is interpolation utilized to handle such occurrences?"

Hi @user-e91538. Regarding the gaze x/y values overlapping with blink events, note that Neon's neural network always outputs some gaze values, even with the eyes closed. As for the overlap between fixations and blinks in your data, during some parts of the blink sequence (when the eyelid starts closing or when it starts re-opening after the blink), the pupil is still visible which can explain the overlapping fixation/blink classifications.

Now, how can you deal with blinks? Blink interpolation is a common approach to deal with blinks when preprocessing pupillometry data, and in general, we'd recommend discarding data points that are so close to the blink onset and offset.

OK, that's really helpful to know. Is that an Intel Mac or an M1?

Is there a way to re-upload recordings from the phone onto the cloud? We had a few recordings that were corrupted on the cloud but on the neon companion device (one note) they are valid.

Hi @user-757948 - I'm replying to this question: https://discord.com/channels/285728493612957698/285728493612957698/1215217152722731008 here. Can you please describe the issue with are experiencing with your recording on Pupil Cloud?

@user-480f4c Hi Nadia, so I have the upload setting enabled on the companion app and the video uploaded initially. However, on the cloud, it stated that the video was corrupted and unviewable. I checked the original video on the companion app and the video was not corrupted, so possibly something happened during upload? Is there a way to re-upload the video from the companion device onto the cloud?

thank you

Good morning Team Pupil Labs

The newest update to the companion was a nice touch, especially the part where we now can adjust manual exposure live and see the result.

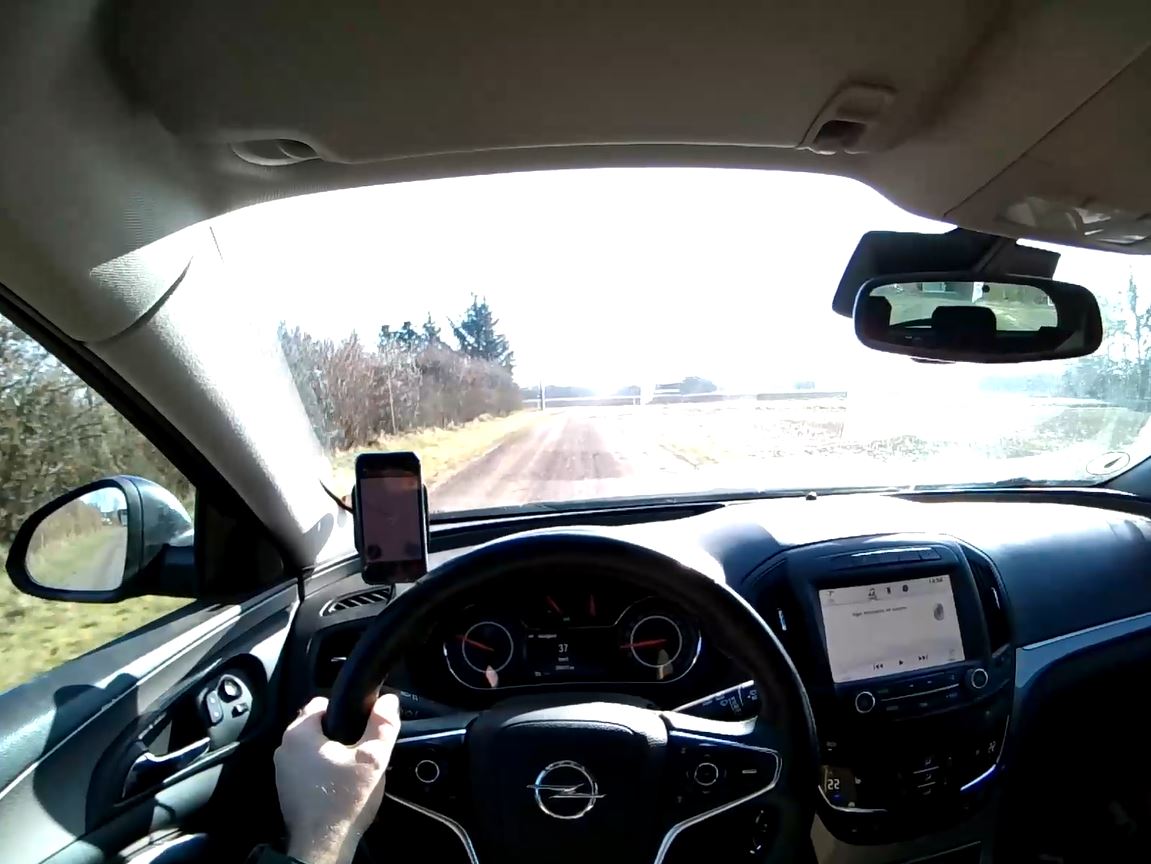

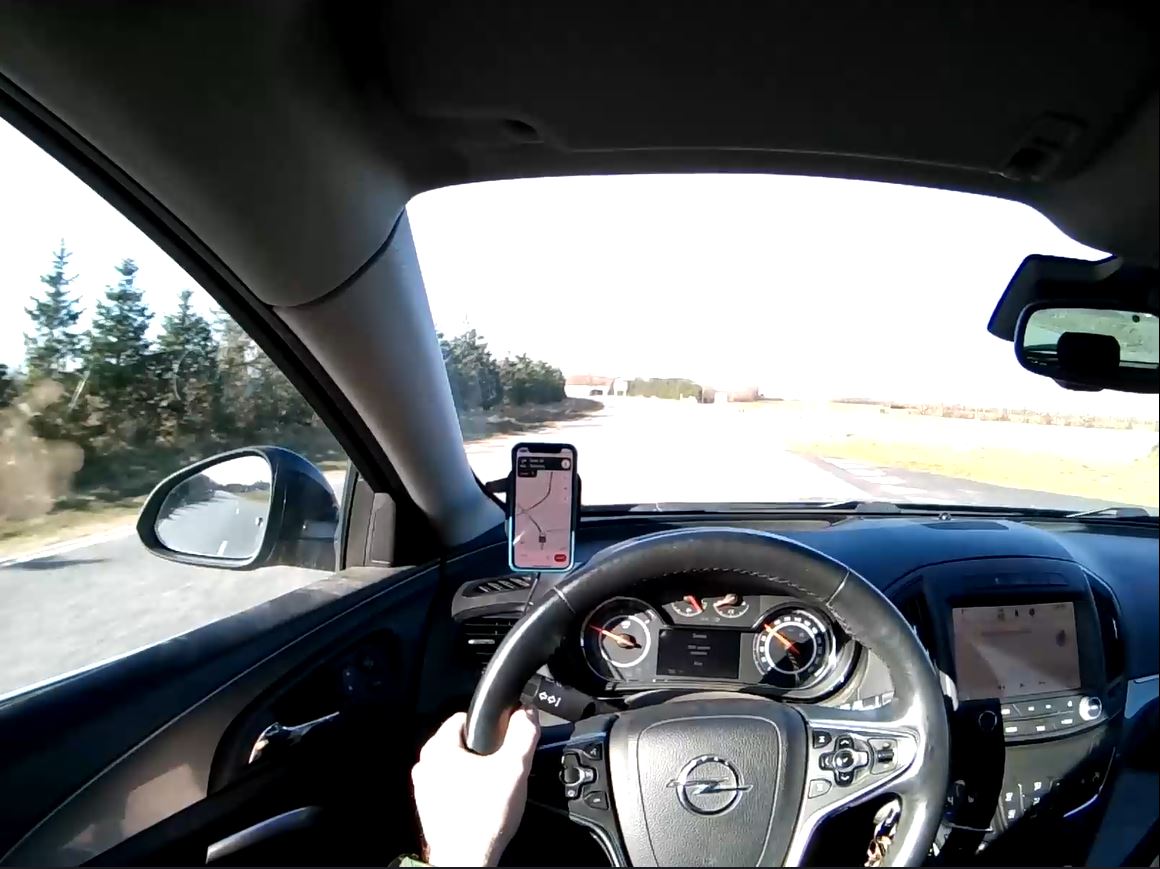

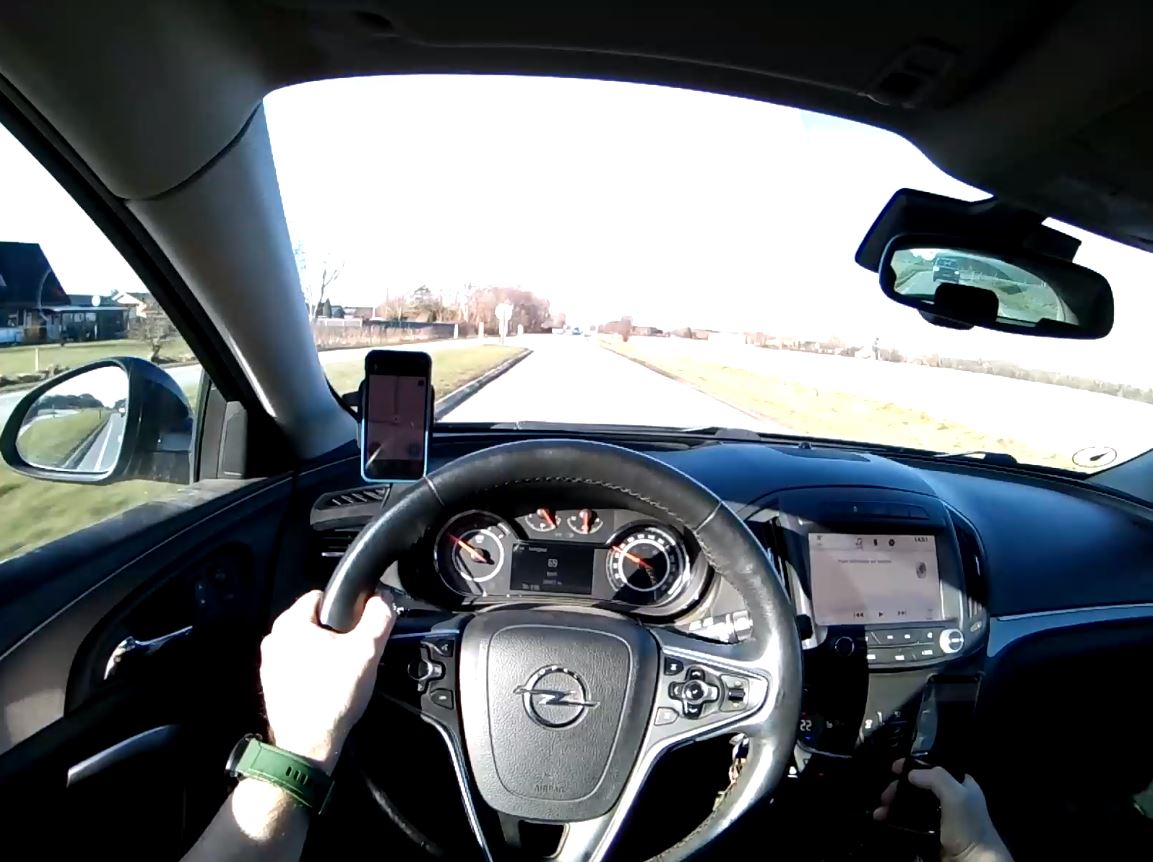

But here is the major problem, that renders the glasses useless now. The manual exposure does not go down as far as in the previous version of the neon companion.

Even when the manual exposure is set to "0", the video is extremely over exposed. When we set the exposure value to "0" with the last version, it was completely dark.

Kind regards

@user-480f4c Thank You for Your fast answer, as usual👍 But at the moment we can't use the glasses, because of bright sunshine. Is it possible to downgrade the NEON companion app to the version before the latest release?

@user-480f4c But that is not the case, that it's only the GUI. When using the old version, we were able to drive in direct sunlight and turn the exposure value down to "0" and then the cabin of the car would almost be all black and under exposed, but the wiew through the front was perfectly exposed.

Thanks, @user-6c4345. We're looking more deeply into this now!

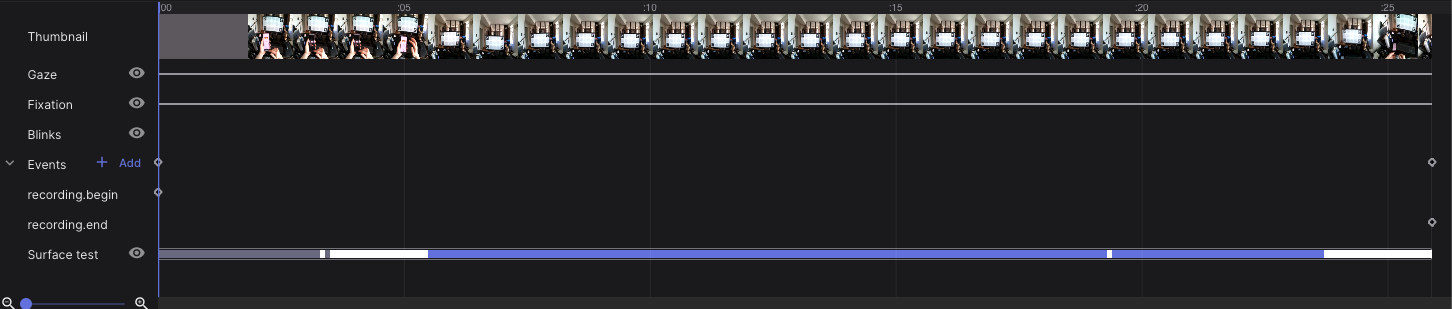

Thank you for the response, if my understanding is right if its blue the marker is detected and white when its not.

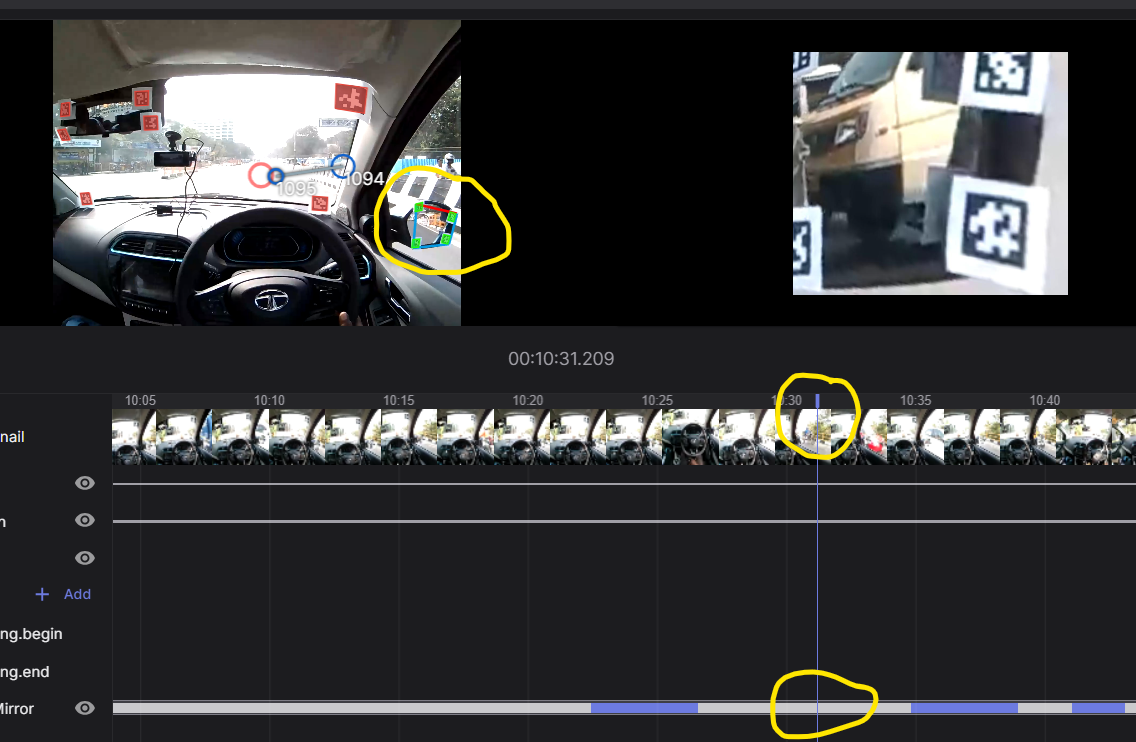

But it my case as per the timeline its showing that the marker is not detected but in the video its detected ?

Hey team, we are looking at fixations from the marker mapper enrichments and found a couple of fixations like this where the Gaze detected on surface column has a "true" value and yet the coordinates are negative or greater than 1, how is the gaze detected on surface boolean determined?

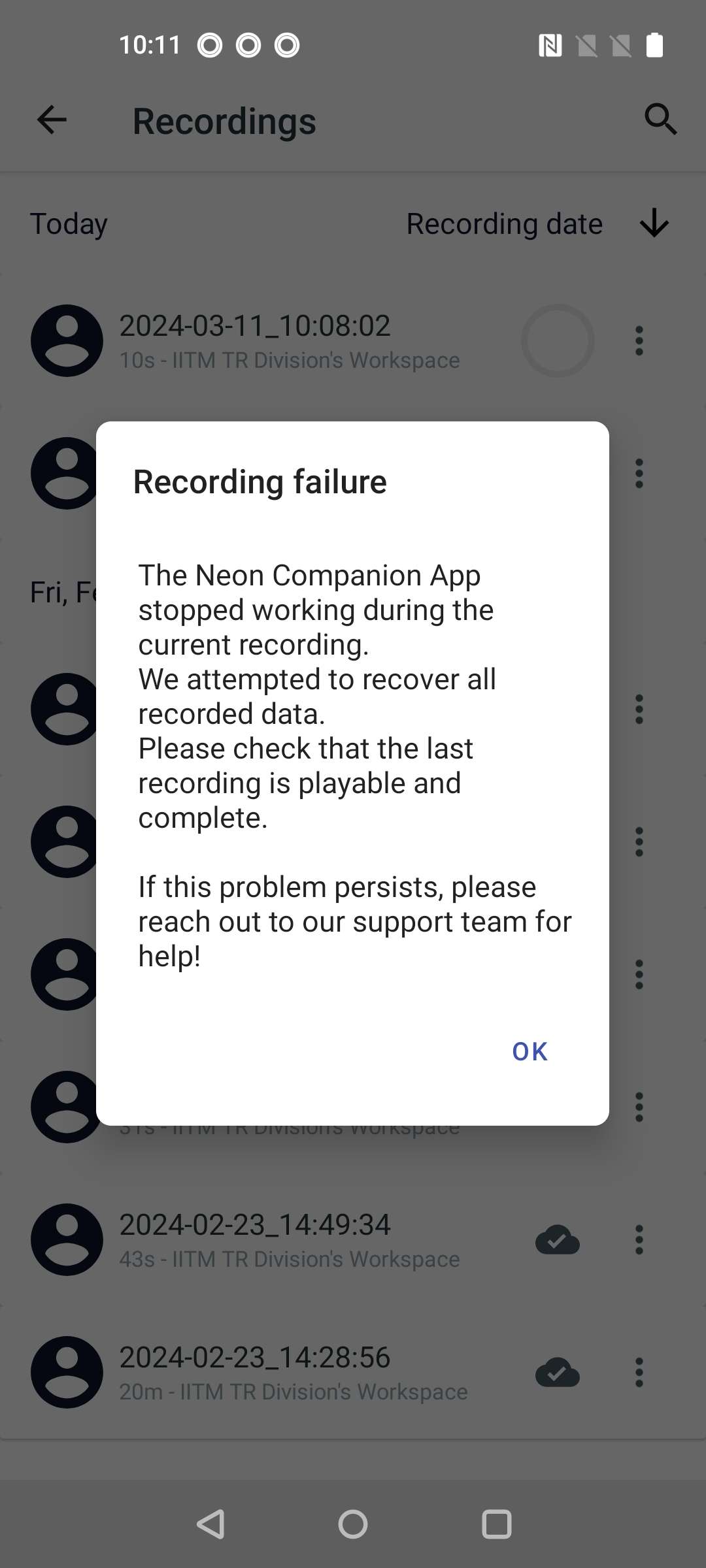

Hey, I started recording today and as soon as I click the start record button it's stopping and showing like this ? What is the problem

Hey Neon Dev Team!

We are working on a project where we want to combine the neon sensor module with additional sensors (IR camera, ToF sensor, Radar). We are currently triying to figure out how we could combine all data streams (Neons cameras+IMU and our additional sensors). Our goal would be to run everything through a microcontroller so we can manage time sync and then output all the data via usb. Do you have any documentation on your datatransfer and usb implementations?

Thanks! Paul

[email removed] 👋 ! Neon does require

Hi Neon team, I have a question about a log message sent by the realtime api. When I used realtime api to send_event, I noticed that this log message was printed to console for every timestamp: "1709135269094 - pupil_labs.realtime_api.simple.Device.receive_data - INFO - Found matching samples. Time differences: scene - gaze: -5.337s scene - eyes: 1.509s gaze - eyes: 6.846s" This is just an example for one timestamp. Can you explain what these time differences are and how we should care about them? For most of the time, the time differences are 0. However, there were some times (especially at the end of the experiment), the time differences look odd: they can be Nans or pretty large (>20s). When we saw those "red flgas" time differences, how should we deal with them? Should we remove those timestamps from the analysis of the gaze data, for example? Also, I think the timestamp here is using the same clock (i.e., the clock used by the companion app) as the data files (e.g., gaze.csv), right?

This was also my question before. [email removed] for asking and thank you @user-480f4c for the reply. Now it makes some sense. I want to have a deeper understanding of how Neon's nueral network works, and how Neon detects fixation, blinks, etc. Can you point me to some documents or papers that I can read about it?

Hi there, I have a question about the neon's just act natural frames. Would it be possible to switch out the lenses in that frame with sunglass lenses or shaded lenses, as is the case for the pupil invisibles?

Hi @user-ebe453 ! Shaded lenses are not included in the bundle, but yes you can remove the clear ones (simply pop them up, like on any horn-rimmed spectacle frame) and you can order some sun glasses lenses at your local optician store and pop them in.

Edit: We would recommend that you use a hex Allen key to remove the module from the nest prior to pop the lenses to avoid damaging it.

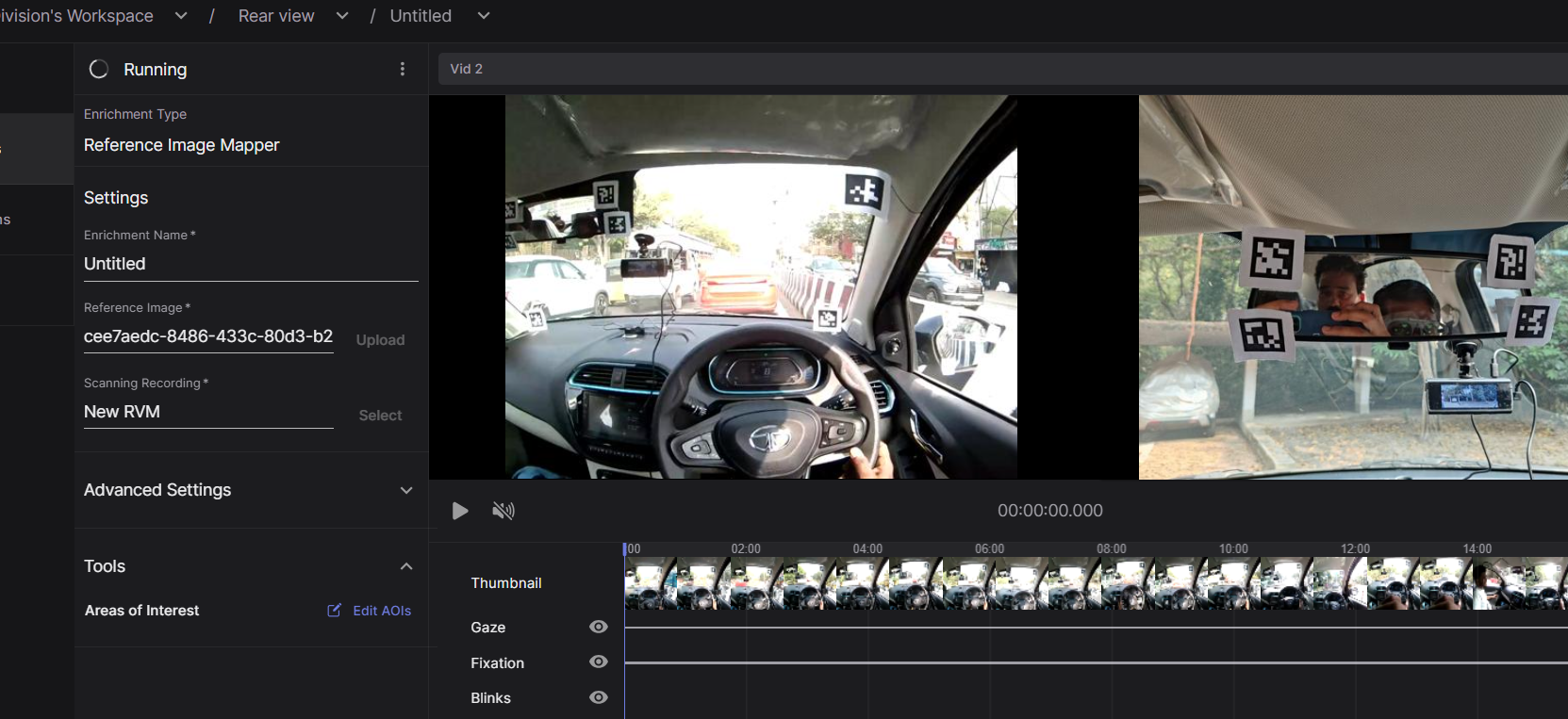

Hi, the reference image marker enrichment is running for very long and the analysis is not getting over. what might be the problem ?

When the realtime api receives a frame of video from the world camera, it will search through its previously received gaze data and eye camera frames to find the data from those streams whose timestamps most closely align with the timestamp of the frame from the world camera. This under-the-hood work is done to accommodate the receive_matched_scene_and_eyes_video_frames_and_gaze and receive_matched_scene_video_frame_and_gaze functions. The timestamps used for comparison are generated on the companion device when the data is generated - not when it is received by the PC and, as you suspect, match up to the data files.

The large differences in timestamps you're seeing may be indicative of some networking issues, and is probably worth investigating, but it should only affect the stream of data from the companion device to the pc. The data in your recording, including events you send to it, will be aligned despite these messages.

Hi @user-b6f43d - The processing time for your enrichment can vary depending on several factors. The duration and number of recordings included in the enrichment and the current workload on our servers are two major variables.

Can you also try a hard refresh just in case your browser has put your tab to sleep - "Ctrl" + "F5" (Windows) or "Command" + "Shift" + "R" (Mac) - and let us know if the issue persists?

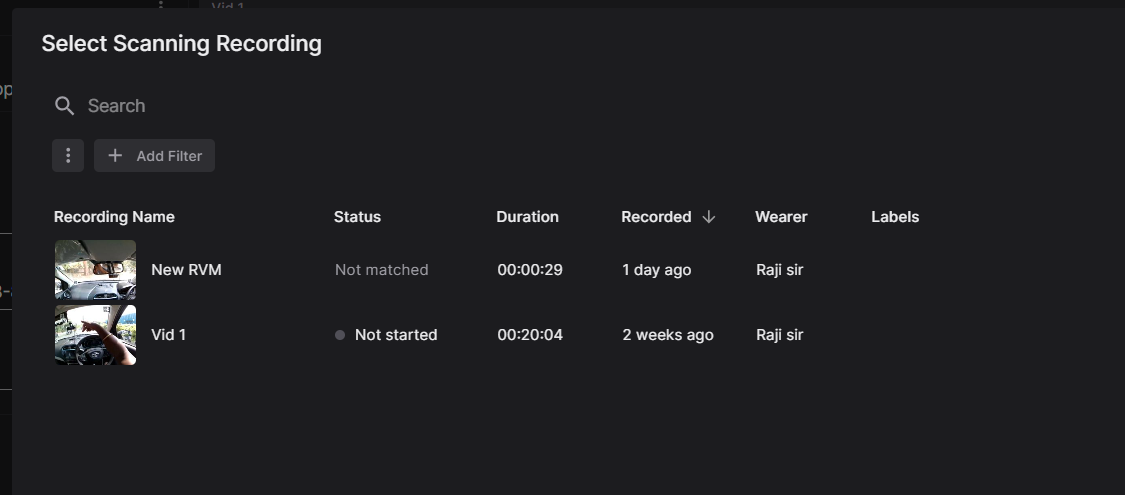

The video i want to select is showing as not matched ? what doest that mean ?

@user-b6f43d can you please create a ticket in our 🛟 troubleshooting channel? This will create a private chat where you can share more details about your enrichment.

Hello, could you please help me figure out, what the timecode of an event in a recording is, if it says eg. "1705588216629891452"?

thank you! Is the the option to track down how many fixations in a scene, which starts and ends at a certain point of the recording (for example 00:05:03 - 00:07:43) were made and how long they were? I wouln´t need the real datetime for that 🙂

Hi do you have any pictorial illustrations for how to setup the hardware? (connecting the phone to the glasses and the app setup)

Thank you

I'm attempting to use one of my recorded videos as a scanned video for the reference image mapper in Pupil Cloud. However, all of my recorded videos are over 3 minutes long. When I crop them using Neon player, I'm unable to figure out how to open them with Pupil Cloud. Upon exporting the data, all I can see is gaze and timestamp information. Could you provide guidance on how to properly crop and utilize longer videos with Pupil Cloud for reference image mapping?

There isn't an option for that just yet, but it has been requested as a new feature. When you have a chance, you should upvote that feature request. In the meantime, you will want to record a separate video whose purpose is just scanning the environment.

Hello together! I have the following problem: I am performing a reference image mapper enrichment, but although the process says it's "completed", the gaze over the reference image does not appear, and when I try to create a heatmap, nothing appears over the reference image. The bar below the video remains grey no matter which video I select in the top selection. Only if I select the Scanning recording option for both selections the bar does appear in purple and the gaze appears across the image. But then I can't make a heatmap out of it. What could be the problem here?

The Enrichment-ID is: b46d0879-91de-4525-83d2-92e7532b18a9

Hi! Quick quetion: Is there any way to connect timestamp [ns] in gaze_positions & timestamps [seconds] in eye0_timestamps? I firstly assumed that these columns have the 1 to 1 relationship; however, sometimes the number of rows in gaze_positions is fewer than eye0_timestamps. Therefore, I cannot decide which frame (pts in eye0_timestamps) generates a gaze (gaze_positions).

Hi @user-3d8000! It seems as though something during the setup of the enrichment wasn't suitable for successful mapping, for example, the scanning recording or the reference image. Have you run successful reference image mapper enrichments before in the past?

Neon. More specifically, exported data using Neon Player e.g.

wc -l eye0_timestamps.csv
  119958 eye0_timestamps.csv
wc -l gaze_positions.csv
  119858 gaze_positions.csv

Yes I did.

Thanks Neil! One request for future: eye0_timestamps.csv having a column of "timestamp [ns]" would be very helpful. One can check from which frame a gaze / blink datum coming easily without passing through pupil cloud.

It's difficult to say without seeing. If you're able, you can invite me to the workspace such that I can provide concrete feedback. Let me know and I will DM you my email.

Hi! I'm just costing up a research council bid in the UK. I'd like 10 pairs of Neon 'Just Act Natural' - to use in the UK and the US. Can I have a quote with an academic discount, please? (Nora, University of Southampton UK)

Hi! Facing some sensor issues where most recordings get interrupted by the error message "Sensor failure - The scene scamera has stopped providing data. Please stop recording. etc". This is the first session where we've encountered this issue, any advice?

Hi Nadja, sorry - what kind of a formula is that (1e9)? How can I devide a number by a letter? Please help... 🙂

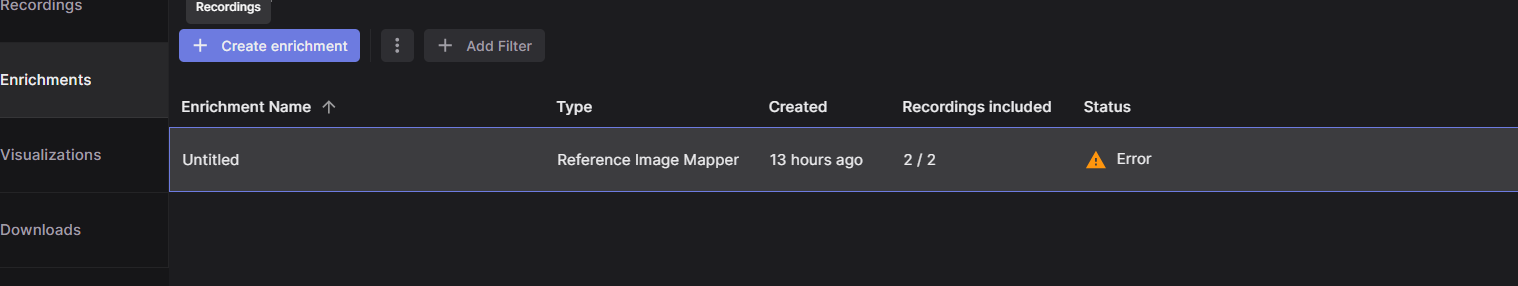

Hi. All my reference image mapper enrichments face error in pupil cloud. How should I find what the problem is?

Hi @user-46e202 👋 ! There could be few reasons why it failed, if you hover over the triangle denoting errors, you might see something on the lines of "the reference image and scanning recording could not be found".

On a nutshell, the reference image mapper would look for points in the reference image, construct a 3D representation of these points using the scanning recording and then try to locate this geometrical construct on the rest of recordings.

Why it might not have found it? * - Featureless image:* If your image does not have points (like a white wall), they are malleable or dynamic, they might not be found.

• Occlusions: If there are many occlusions on the video, these points can not be found:

• The scanning recording: If you did not move and capture the image from different points of view, or you did move quite fast, or there were strong changes in composition or illumination, the algorithm could have also failed to find it.

With out seing the image and scanning rec is hard to say...

Did any of the points above relate to your use case? No? Feel free to share the scanning recording and reference image here for further feedback. Alternatively if they are of a sensitive nature, you can simply invite us to your workspace.

Thanks, that's a bit more specific, could you please share the enrichment ID?

Thanks! I will ask our Cloud team and get back to you!

Hi @user-46e202 ! the Cloud team found and solve the issue. Please let us know if that is not the case.

The issue steamed from not allowed characters in your reference image upload, the filename will be sanitised in the near future but while this check is implemented, you may want to use only UTF-8 characters in the name of your files.

Hi Neon team, I'm trying to understand the meaning of the "timestamps" in different files. So in the gaze.csv, according to your wbesite, the timestamp is timestamp of the eye video frame this sample was generated with. Are these timestamps in the same time space as the timestamps in the event.csv (including the events sent by the realtime api)? In other words, are they all in the same clock of the Neon companion app?

Hi @user-613324. The Neon Companion App automatically saves timestamps for all data generated, yes. In relation to events sent by the real-time API, the app assigns a timestamp by default upon arrival. However, if preferred, you can also send a custom timestamp for your event. Read more about that in this section of the docs.

Hello! I'm using Neon for an experiment involving mother and infant interactions. Currently, I am trying to create a heatmap of the infant's gaze on the mother's face, averaged over trials. I have run a Face Detection enrichment, but I'm finding it tricky to work with the raw data since the face_detections timestamps don't exactly line up with the gaze_data timestamps. The approach I've taken so far is that I've used the merge.asof function in pandas to merge the two data frames based on the nearest timestamp, and then I've checked if the gaze coordinates for each timestamp fall within the bounding box of the face for the same timestamp. I'm worried I'm losing too much data this way. Is there by any chance a script for generating a heatmap of gaze position on face? Or, do you have any suggestions about the best way to go about this? Thank you!

Hi, I just bought Neon but the app does not recognize the device, could you help me?

Hey, I am wondering something... since when was saccades.csv included in the timeseries data downloaded from Pupil Cloud? I have seen no mention of this anywhere... not even listed in timeseries download dropdown of files, but the file is there. Does every video uploaded to Pupil Cloud contain this file in the Timeseries download? I would like to use this file rather than having to determine saccades manually, but there is 0 information about it anywhere, which has me questioning its accuracy and such...

Hi, thanks for the info and tips. Last one for now: is there a possibility to download the events.csv ONLY? I already downloaded the Timeseries - which was quite timeconsuming and would like just to refresh the events.csv.

Hey! I was wondering one thing about the heatmaps generated through our enrichments. What are the metrics used for generating them? i.e. What do the colors mean? I see that they vary from 0%-100% on the bar on the left, but what exactly are these percentages referring to?Thank you so much!

Hi, I had a question about heatmap visualization in pupil-cloud. So for example we have two videos where one is 10 minutes long and the other one is 2 minutes long. Does the visualization normalize the data from these two videos in any way? Because otherwise the data from the longer video has is far more effective in the heatmap.

Hi Pupil Labs team! I finally got my glasses. 1. A quick question, ror people who wear prescription glasses, it's okay to wear the glasses after the module? 2. The pupil cloud sign in, does it have to be the same gmail as the on the Neon Companion app?

Hi @user-0001be 👋 ! Placing glasses on top of or under the frames is not recommend, as it will lead to a reduction in data quality/accuracy and will also be difficult to wear. Neon is compatible with contact lenses, though, and we offer frames that have magnetic, swappable lenses, called "I Can See Clearly Now".

You can have other accounts on Pupil Cloud that can view/edit the same workspace ("Invite Collaborators" under the Workspace dropdown menu), but you will need to first sign in with the same Google account as used for setting up the phone to do the initial invite of other accounts.

May I ask if you have had your free 30 min onboarding call yet?

Hey Pupil labs team! In the "Neon Player" under the "Gaze Data" section, what metrics are used for correcting the gaze offset in the horizontal (x) and vertical (y) directions (I mean the -0.5 to 0.5)? Also, how does the pixel information correlate with this standardized measure? Thank you in advance for your reponse.

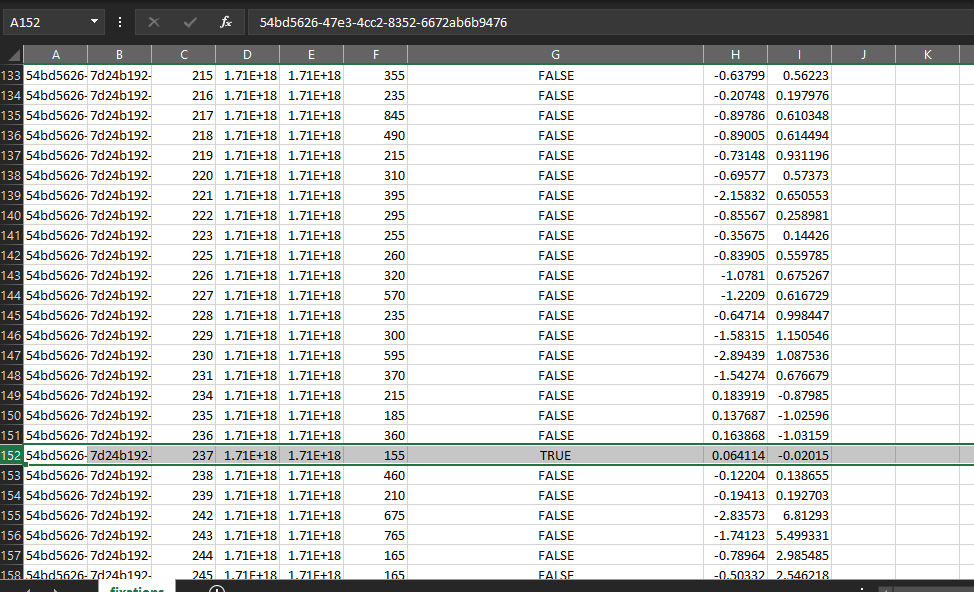

Hello everyone! Does the statement (true/false) in the fixations_on_face.csv. presume, that there was a face detected? Thank you so much in advance!

[email removed] We are scoping a new study, doing eye-tracking with older people (above 65). Given that at this age group there are often multiple eye-conditions (bifocal lenses etc) we are wondering if Neon is the right option for us. The version with the prescription lenses goes from +/- 3 which can already be limiting. Can the Core be used with a person own prescription lenses? do you have any reference examples of such studies with elderly participants? (or video recording that you could share over a DM?)

Cheers!

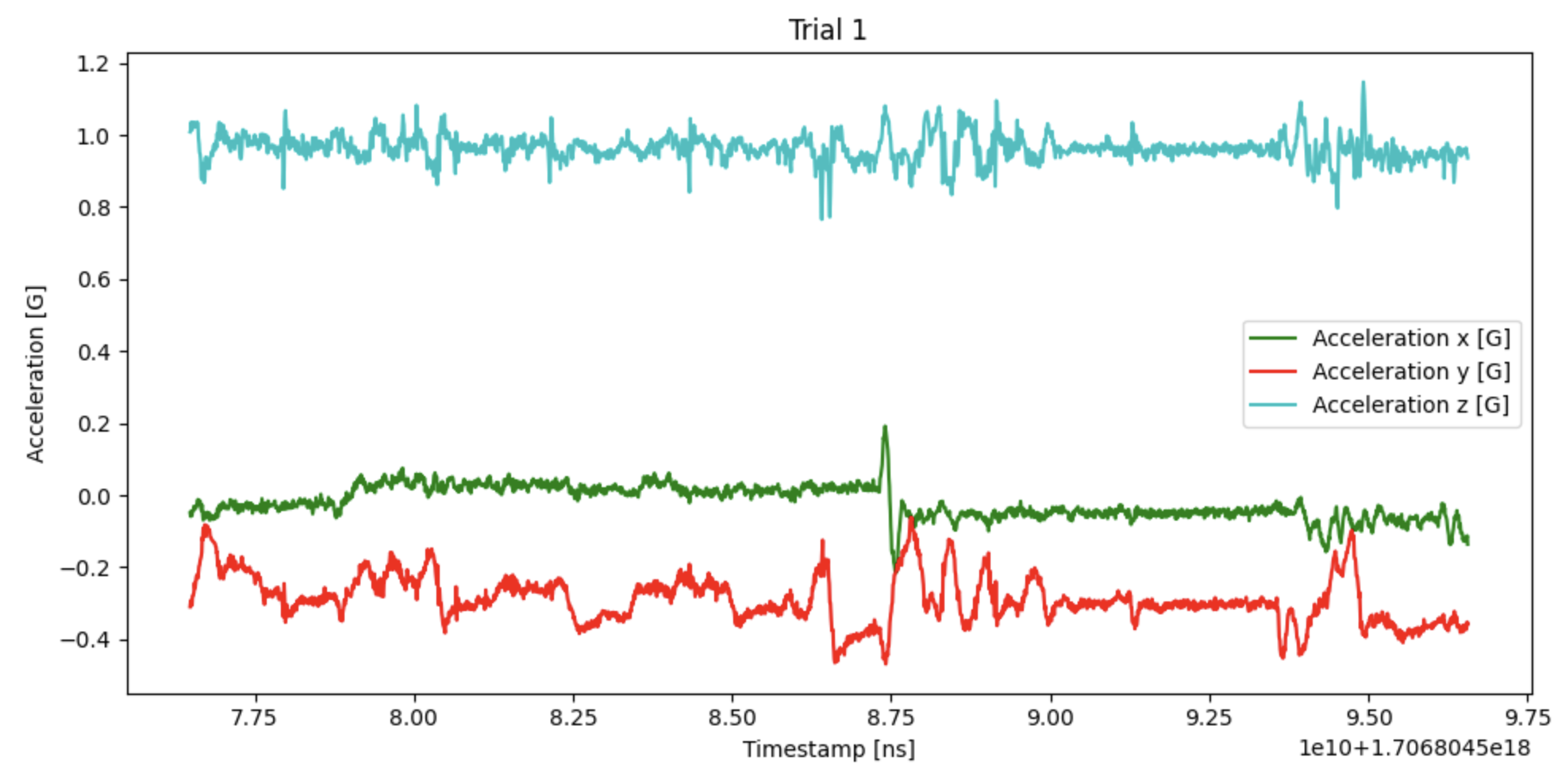

Hello, I am looking at the acceleration data from my recordings, and it looks a bit odd. I'm wondering why the z-component is centred around 1. See attached for an example. It's like this for all of my recordings. Has anyone else encountered this problem?

This is because you are subjected to 1G from earth's gravity.

Hello, why is the cloud not allowing me to perform a simple visualization ? I've even downloaded the gaze.csv but the cloud is not letting me perform the render. Any help? Thanks in advance!

0f55bd1a-e96e-4fc6-82ed-94eeb8b39166

@user-831bb5 this should be fixed now!

hey! when i open the scene camera view in the neon companion app it segfaults after a bit of time (10 secs to a few mins) ://

06-03 06:28:14.055 997 997 F libc : Fatal signal 6 (SIGABRT), code -1 (SI_QUEUE) in tid 997 (init), pid 997 (init) 06-03 06:28:14.062 997 997 F libc : crash_dump helper failed to exec, or was killed 06-03 06:28:14.651 1197 1197 F linker : CANNOT LINK EXECUTABLE "/system_ext/bin/qcrosvm": library "libsimplelog.dylib.so" not found: needed by main executable 03-27 08:44:46.188 4967 4967 F linker : CANNOT LINK EXECUTABLE "/system_ext/bin/qcrosvm": library "libsimplelog.dylib.so" not found: needed by main executable 03-27 08:44:46.206 4973 4973 F libc : Fatal signal 6 (SIGABRT), code -1 (SI_QUEUE) in tid 4973 (init), pid 4973 (init) 03-27 08:44:46.228 4973 4973 F libc : crash_dump helper failed to exec, or was killed 03-27 08:44:50.181 5688 5688 F linker : CANNOT LINK EXECUTABLE "/system_ext/bin/qcrosvm": library "libsimplelog.dylib.so" not found: needed by main executable 03-27 08:44:47.864 6903 6903 F linker : CANNOT LINK EXECUTABLE "/system_ext/bin/qcrosvm": library "libsimplelog.dylib.so" not found: needed by main executable 03-27 08:44:51.863 8873 8873 F linker : CANNOT LINK EXECUTABLE "/system_ext/bin/qcrosvm": library "libsimplelog.dylib.so" not found: needed by main executable 03-27 19:44:41.207 32690 307 F libc : Fatal signal 11 (SIGSEGV), code 1 (SEGV_MAPERR), fault addr 0x5f1a in tid 307 (pool-18-thread-), pid 32690 (illabs.neoncomp)

any idea what’s up? thanks!

and "fixation on face" = false preassumes, that there is a face detected (but not fixated) or could it be, that there isn´t a face destected at all, that one could look at?

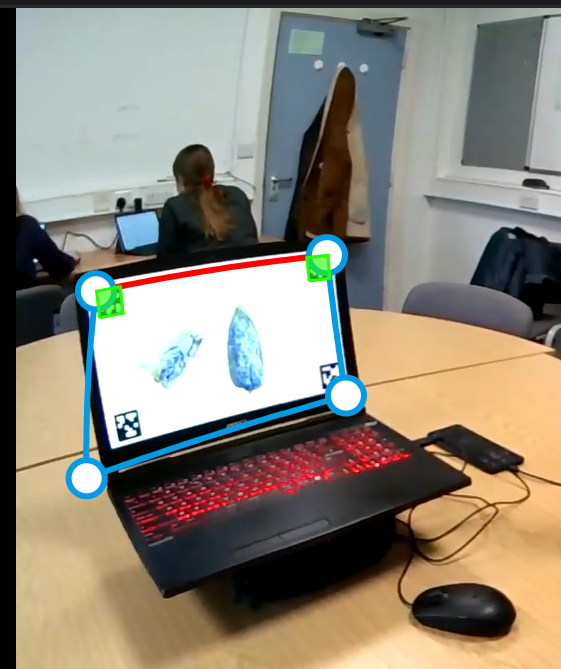

Hi there - I have the following situation where the marker mapper are not really detected but it seems something else is detected instead (not sure what) - see image attached:

ce5dafa8-5843-4a5b-869c-321fb78c1431

It seems to work now! thanks

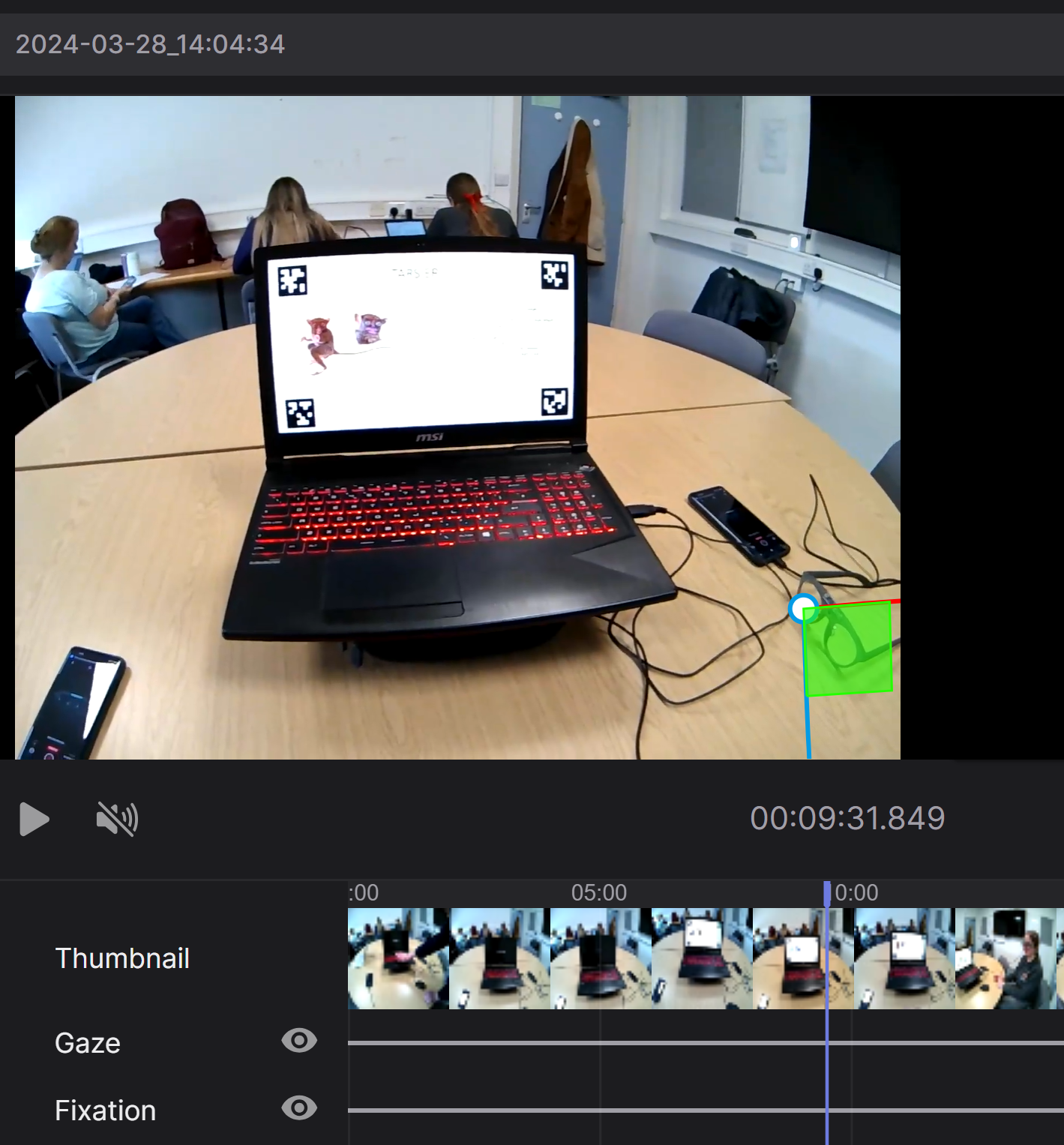

although it still does weird things like this:

Hi Miguel, apparently I need the Pupil Cloud API key for the code. Where can I find it? Thank you so much for helping!

thanks for your quick response! Wish you great holidays!

Also, is there an option to import event timecodes into Pupil Cloud?

You can add event during the recording using the realtime api.
