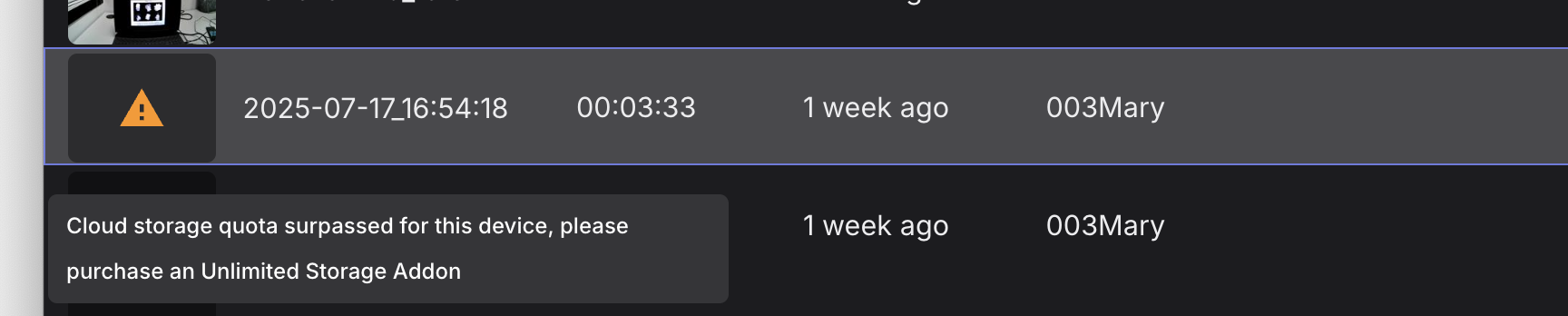

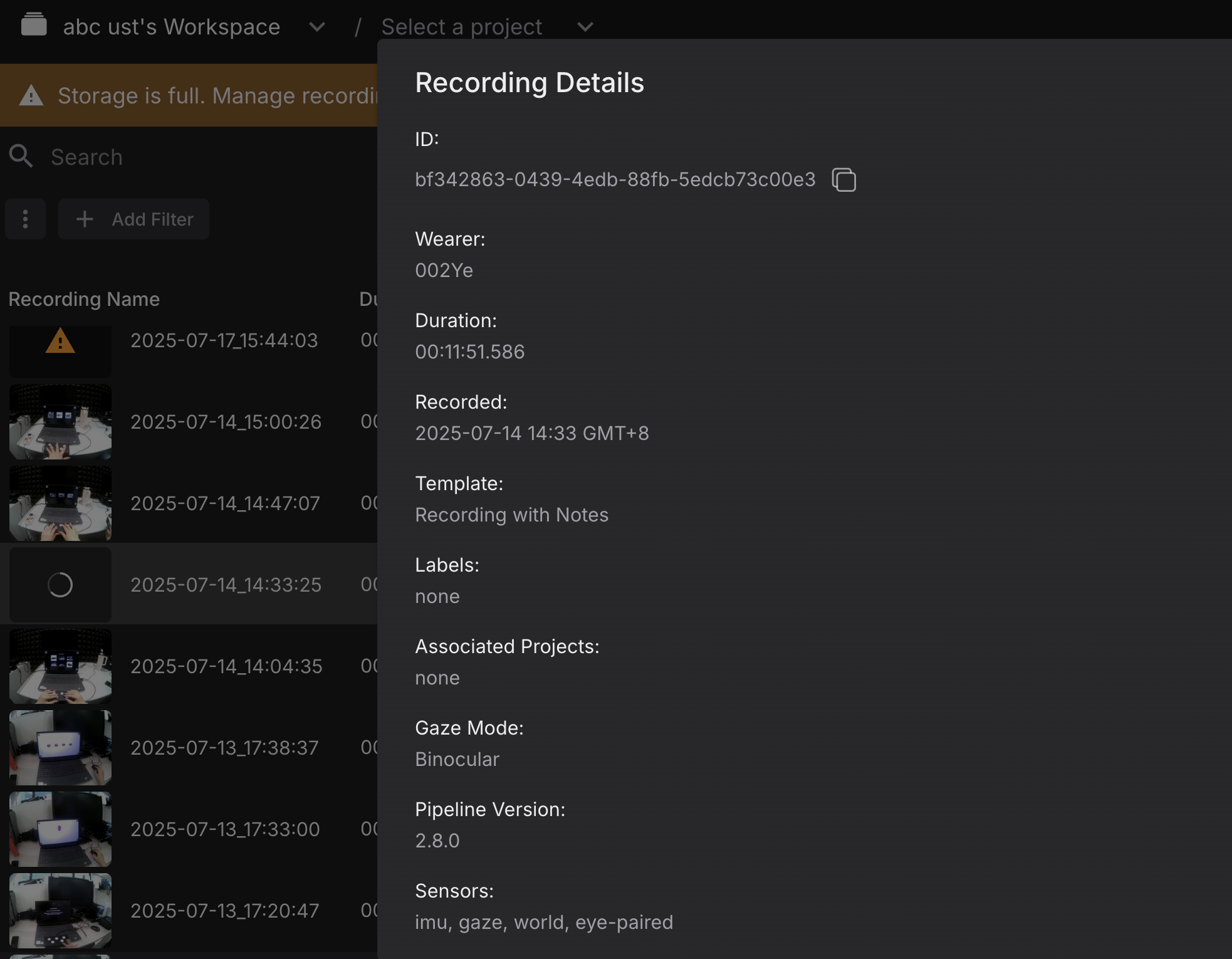

Hello, I had a question about the storage. In my cloud data it says I have a full database of 2 hours, but when I go to delete videos it still continues to tell me that I have full storage and that I need to manage it. I am not sure what is going on.

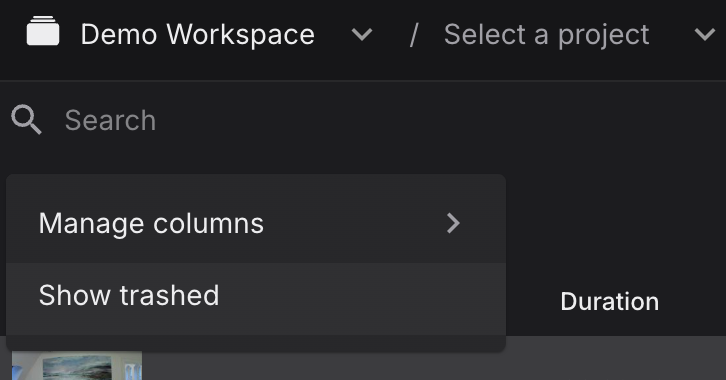

Hi @user-7e49f7 , have you also deleted these recordings from the Trash? See attached image.
Are questions about neon player okay here?
Of course!
So I was downloading the video from neon player but I can see that my gaze data is completely empty and I was wondering what could be causing this?
Just to be sure I understand, do you mean "export the video from Neon Player" or "downloading the video for Neon Player"?
I click to the left side of the neon player with the download symbol.
I see. And you are inspecting the gaze_positions.csv
file in folders like recording_folder/neon_player/exports/000/
?
Did you need the video after I downloaded it from neon player?
I mean the original recording that you load into Neon Player, not the exports.
What do I need to do when my reference image gives an error. I tried other images of the environment but none of them is working. Can anyone help me
Hi @user-35255b , apologies, your message feel off our radar.
If you could invite cloud-support@pupil-labs.com to your Workspace, then we can investigate. Please note that then we will be able to see all data in said Workspace until the investigation is complete.
Hello, we have an offline Windows 10 machine where we installed PsychoPy 2024, but we were unable to install (lots of network errors) the Pupil package using PyPI (https://pypi.org/project/psychopy-eyetracker-pupil-labs/#history). Is there a way to install the pupil lab package without internet access? Also, is there a list of all the necessary dependencies?
Hi @user-f4b730 , it is in principle possible to install Python packages without internet access. However, doing so for PsychoPy's plugin sub-system might require extra steps. The PsychoPy team is better positioned to answer this question and it might be best to check on their community forums .
Hi everyone! I’m working on synchronizing multiple data streams for a recording session, and among those streams I have three Pupil Neon devices. I’m currently using LabRecorder (LSL app) and successfully recording synchronized data from all three Neons into a single XDF file. However, I’d also like to synchronize the data stored on Pupil Cloud for the three devices. I’ve read about lsl-relay, but I’m wondering whether it’s effective when working with three Neon devices simultaneously. Is there a recommended way to handle this kind of multi-device synchronization between LSL recordings and Pupil Cloud data? Thanks a lot for any advice!
Hi @user-b407ae , the lsl-relay
is deprecated in favor of the integarted LSL functionality in the Neon Companion app.
If you want to synchronize the Timeseries CSV data from Pupil Cloud, then you only need to send some Events to Neon during the recording, perhaps one every few seconds. These Events will be saved in Neon's recording timeline and LSL's. Then, after you have downloaded the Timeseries CSV data, you simply align the Events with their corresponding entries in the LSL stream and you have synchronized.
Hello! I want to export the gaze data (fixations, saccades, blinks, etc.). I have two methods, either using pl-rec-export or from Pupil Cloud. But since Pupil Cloud creates additional grey frames at the beginning and end of the main data, and I don't prefer using it, because later on, I need to extract frames from the original raw video exported from the phone (which does not contain grey frames). When reading the caveats of the pl rec export function, they said: "Fixations and saccades detected locally might vary from those exported from Pupil Cloud. This is due to differences in real-time gaze inference when compared to the full 200 Hz gaze data available in the Cloud." After comparing, I found that the number of fixations and saccades slightly differ, along with their characteristics. My question is: Despite this difference in detection, can I use only data from pl rec export and consider it as reliable 100%? Because my main interest is to keep using the raw video file exported from the phone, not the one with grey frames from Pupil Cloud.
Hi @user-5be4bb , the pl-neon-recording
library is now preferred for working with the raw data at the command-line or programmatically, rather than pl-rec-export
. You can also use Neon Player to export the raw data to CSV.
The pl-rec-export
library was reliable, but on the latest version of the Neon Companion app, fixations and blinks are computed in real-time and saved on the phone. Saccades are taken as the inter-fixation intervals. Aside from that, the pl-neon-recording
library exposes a more ergonomic programming interface.
Please note though that gray frames do not interfere with analysis. You can simply skip over them. Otherwise, the Timeseries CSV data is in principle the same data as saved in the Native Recording Data, but in a more user-friendly format, and re-processed at 200Hz.
Hello, I performed an acquisition with the Pupil Labs Neon. The recording on the cloud is fine, and I downloaded the “Native data recording,” but when I drag the folder into the Neon Player it opens briefly and then the program closes. I tried downloading the folder again, but the same problem persists. Could you tell me why this is happening? Thank you very much!
Hi @user-a4aa71 , could you provide the logs in the neon_player_settings
folder? This is found in the user directory of your computer. You can send it via DM, if you prefer.
https://discord.com/channels/285728493612957698/733230031228370956/1385099425680064562
Hi Pupil Labs, We're trying out the new GPS app but when we click the white button to start recording, it turns to gray and displays the message "Initializing sensor ..." The message doesn't go away and if we click the recording button again, it displays the filepath where gps csv is stored. All the stored csvs are however blank. We've allowed location and other settings and the phone is connected to internet. What could be going wrong here?
Hi @user-ccf2f6 , great to hear you are using it! How long are you waiting? You may need to wait about 10 seconds for the GPS sensor to fully initialize and start providing data.

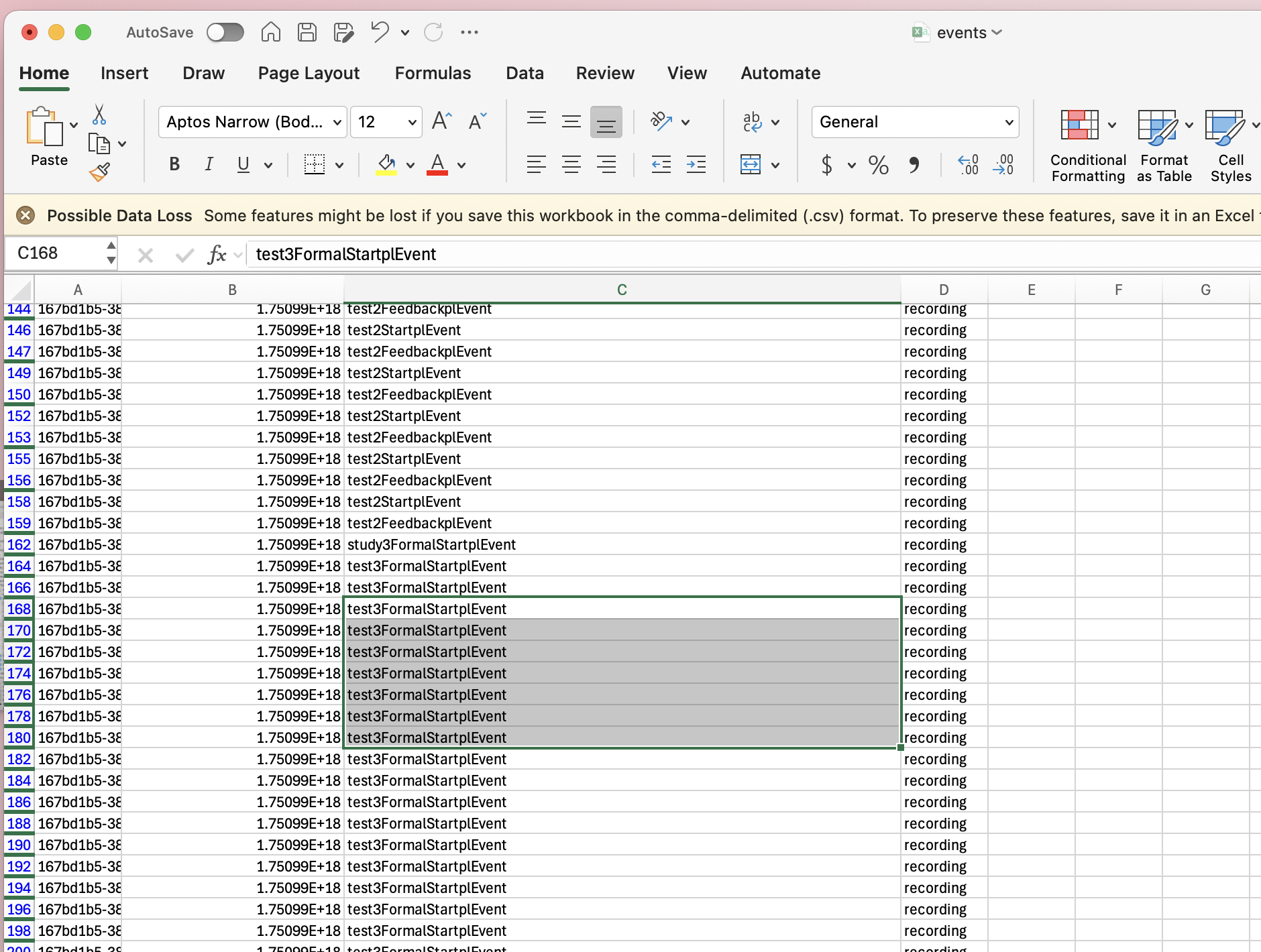

For the event.csv, is there a way that I could define each trial with a unique name to send to the eye tracker? Currently, it does not indicate the unique trial name. I am using the plEvent component of the pupillab's plugin.
Hi @user-9a1aed , similar to how my colleague @user-d407c1 explained here (https://discord.com/channels/285728493612957698/1047111711230009405/1385566090607984660), this is possible in PsychoPy. It requires the use of their variables and conditions files. Since this is more about creating a custom string in the context of PsychoPy's system and not specific to the Neon PsychoPy plugin, their Support team might be better positioned to help you with this request.

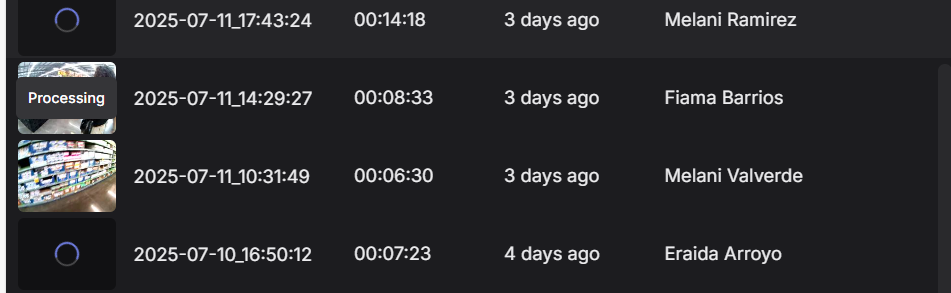

Hi, I'm currently trying to enrich my recordings on the Pupil Cloud using a reference image of the environment, but I keep encountering an error that prevents me from proceeding. The error message I receive is: "The enrichment could not be computed based on the selected scanning video and reference image. Please refer to the setup instructions and try again with a different video or image."
All my recordings are successfully uploaded and visible on the Pupil Cloud. I've tried using multiple reference images — including screenshots taken directly from the video and separate photos of the environment — but none of them work. I also attempted the enrichment with different scanning videos and different timestamps within those videos, but the same error keeps appearing. Could you help me?
Hi @user-35255b , please see my message here: https://discord.com/channels/285728493612957698/1047111711230009405/1390102265414815866
For the neon eye-tracker, when the white LED is on, what does it indicate?
I am using the eye-tracker today, and the LED was on. After the recording session, I looked at the recording, and there was no fixation information (red circle) on the video. Does this mean the eye-tracking data is lost?
Hi @user-5b6ea3 , the data might be recoverable, but this a sign of a potential hardware issue with your Neon module. Could you open a Support Ticket in 🛟 troubleshooting ? Thanks.
Hello! I was hoping to get some advice on how to best use events. Each of my recordings contain 16 events with unique labels to preserve their order over the course of the task (e.g., Event 1, Event 2...). I then run the Reference Image Mapper on the full recording and draw AOIs. My goal is an output file with the fixations to each AOI during each event. However, I noticed the event labels are not included when I download the Reference Image Mapper report. I understand one solution would be to run a separate enrichment for each event, however this would be quite time intensive given the large number of events and recordings. What is the best way to obtain an output file with fixations to the AOIs in each event?
Hi @user-13d297 , sure! All Enriched data is on the same time axis as the rest of Neon's standard data. So, you can still run the Reference Image Mapper on the full recording, if you prefer that approach. Then, use the timestamps in the events.csv
file in the Timeseries Data download to filter and choose subsections of the AOI fixation data to analyze or export to a separate file.
Hey you guys! Our lab just got our pair of Neon glasses and we’re testing them out today. We’re super excited about them! Just a quick question: do other people notice that they are a bit hot to the touch after using them for prolonged periods of time? After 20min or so they’re getting pretty warm. We plan to run experiments that are an hour or more. We’re curious about others’ experiences and how they might address this in their labs. Thanks so much!
Hi @user-ffef53 , are you referring to the Neon module or the phone? The module is expected to warm up during normal use and the phone can also warm up. Please see this message for more details, also if you'd like foam pads for your frame: https://discord.com/channels/285728493612957698/1047111711230009405/1383005671611433083

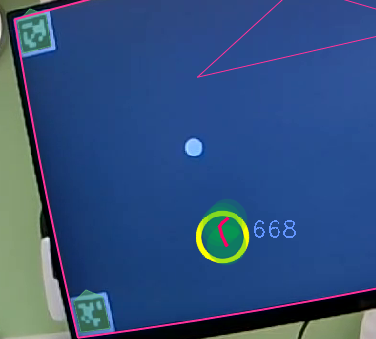

The recordings on Pupil Cloud showing that some of the tags are detected while others are not --> is built using jsPsych.
Ok, thanks for clarifying. Then, would you be willing to share the psyexp
file for that recording with us at [email removed] Because the discrepancy in your video between the gaze circle in the app and the real-time gaze cursor in the PsychoPy program is not expected, unless there was lag or transmission delay.
Thx! I will send the file here
I am connecting the program and the Neon eye tracker using Wifi. Not a hub. Will it cause the delay?
Hi @user-b407ae , you are welcome!
If the goal is simply to align the Neon and LSL streams for sync purposes, then you can use the basic Timestamp on arrival
method.

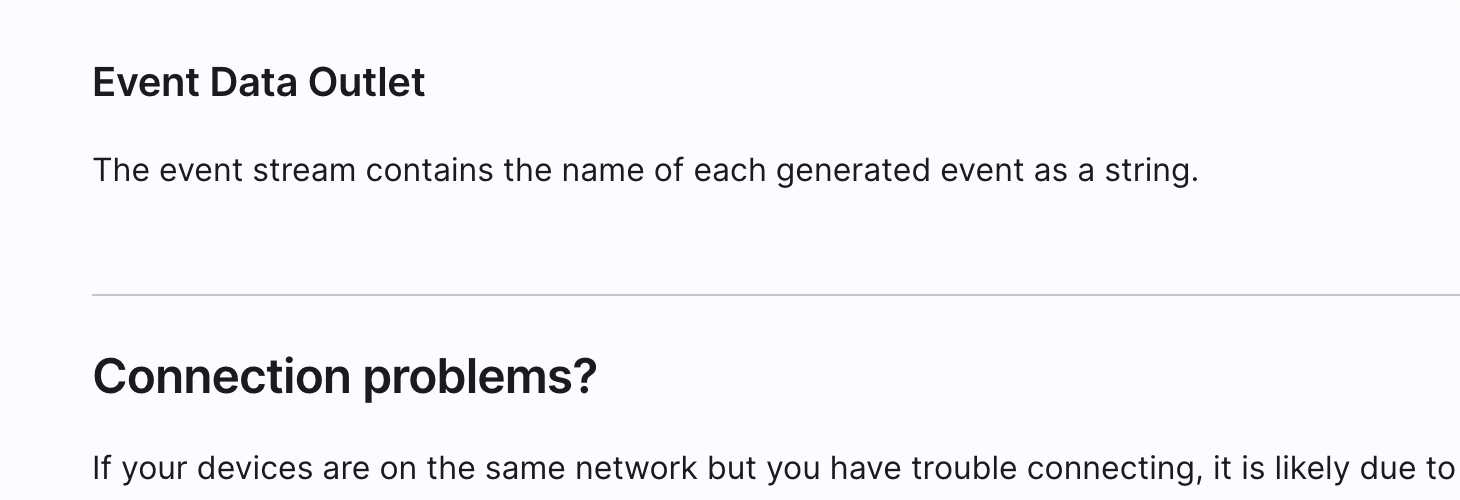

And the second link directs to the Event Data Outlet
section of our LSL Integration Documentation. That section is brief and shows at the top of the browser, just above Connection problems?
as in the attached image.
Hi, I am using QR markers for years, but I was wondering whether it is possible to put the QR markers in the video in pupil cloud after the gaze measurements.
Hi @user-3c26e4 , do you mean edit the videos digitally to post-hoc insert "virtual" QR codes? If so, then this is not possible on Pupil Cloud. The QR codes must be physically present in the scene, at the time of recording.
If you are looking for a markerless approach, then we would recommend the Reference Image Mapper.

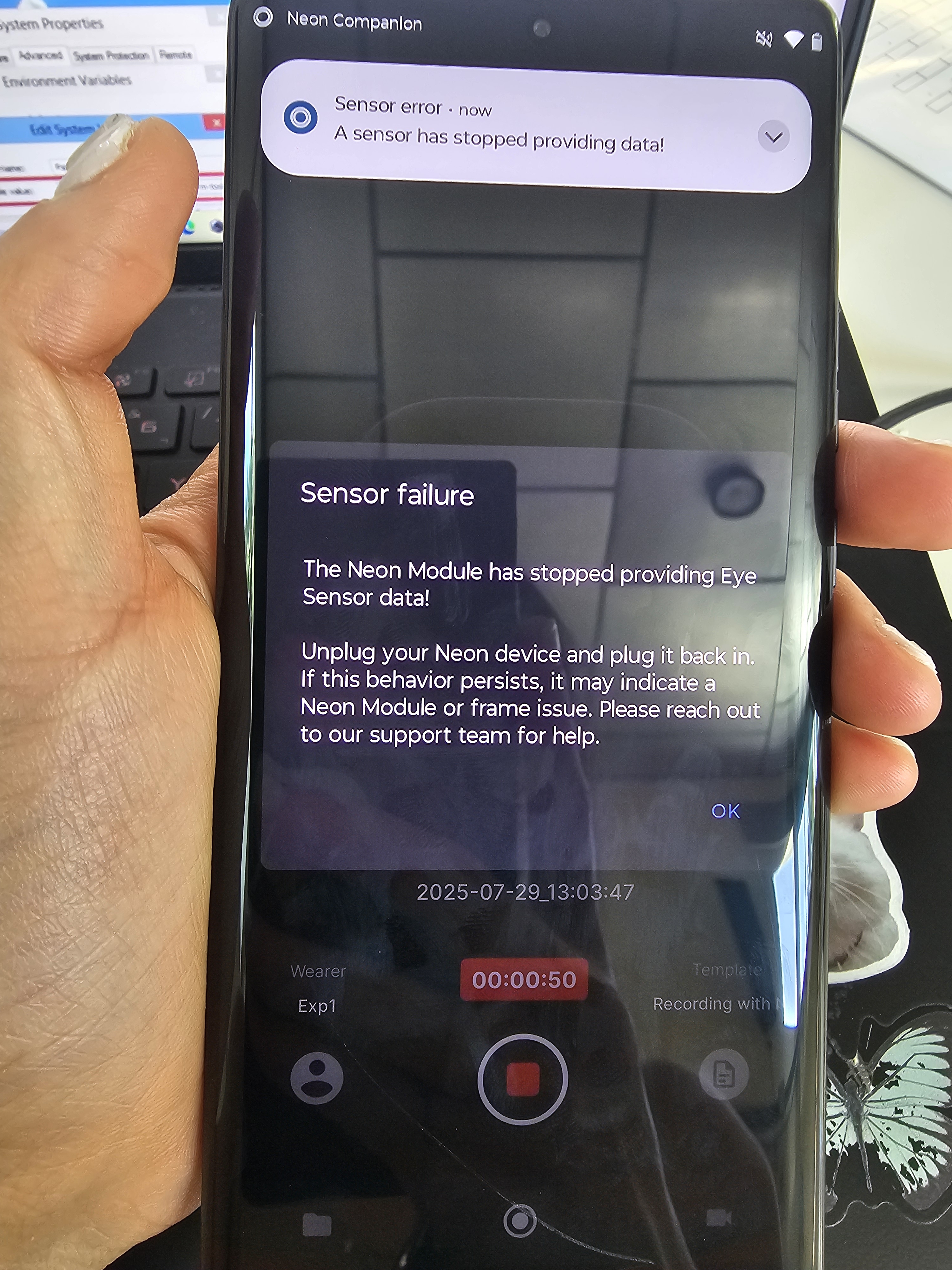

In one of our experiments using the pupillabs neon device, when checking the data collected in pupilcloud we observed that sometimes blinks where not detected for some participants while for others there was an ! error and no pupil diameter was calculated...Any ideas of what happened?
Hi @user-11dbde , can you open a Support Ticket in 🛟 troubleshooting ? One of us will respond in the morning.
Hi, We're conducting a study using the Neon eye tracking glasses and are collecting an hours worth of data per participant. However, we've reached the 2-hour Pupil Cloud storage cap and are looking for alternative ways to manage and store our recordings without losing the data we want to analyse. Any suggestions on the best way to mange this issue would be great.
Hi @user-a578d9 , first, note that once you have deleted a recording from your Trash on Pupil Cloud (or it is auto-deleted from Trash after 30 days), then it is permanently removed from Pupil Cloud (it will of course still be available on the phone, provided you did not delete it from there, too). So, if you are unable to obtain an Unlimited Storage Add-on and you will choose your current workflow, then be sure to make local backups, either by downloading the recordings from Pupil Cloud, or exporting the raw data from the phone via USB cable.
Then, with a free account, any time you delete a recording from Pupil Cloud, it frees up the queue for more recordings.
You can also do analysis on the raw data from the phone locally with Neon Player or even load up the raw data into Python with the pl-neon-recording library. Just note that features like Reference Image Mapper and Face Mapper are Pupil Cloud only.
Hello! Just received the neon glasses (very cool), have done a few recordings and it seems well. Unsure if I'm missing something so thought I'd come onto this and asked, but once exported the videos, the pupil-tracker (the lil circle on the screen itself), is no longer there (still on the raw recording on the neon app). Only have played around with the pair for 30mins so still quite new to it!
Hi @user-03b75d , great to hear you are enjoying it!
Your device is working fine and what you report is expected. To get a video with the gaze circle, try the Video Renderer Enrichment of Pupil Cloud or the Video Exporter plugin of Neon Player.
If you have not yet had it, I recommend signing up for your free 30-minute Onboarding call. Just send an email to info@pupil-labs.com with the original Order ID.
Hi! I'm trying to download data from the cloud, but I'm experiencing unstable download speeds — they fluctuate a lot (from 0 up to around 65), even though my internet connection is stable. Because of this, the download fails. Could you please help me troubleshoot this or suggest what I can do to fix it?
Thanks in advance!
Hi! I'm trying to download data from the
Hi everyone,
I'm working on an exploratory study focusing on shopper experience in a supermarket using Pupil neon eye tracking glasses. The goal is to understand attention and engagement patterns (e.g., what products shoppers look at, dwell times, etc.).
However, I don’t have reference images or a static scene to map gaze data onto. The supermarket is a dynamic, complex environment, so traditional surface detection and reference image-based AOIs aren't feasible.
I'd really appreciate help with the following:
How can I analyze gaze data without reference images? Are there best practices for working with raw gaze or world camera video in dynamic environments? What metrics can I extract in this context? For example: heatmaps Fixation durations Dwell time in broad regions (e.g., shelf vs. signage) Gaze distribution over time Any recommended tools or workflows for post-processing or annotating gaze data manually or semi-automatically? If anyone has worked on similar mobile eye-tracking studies in naturalistic settings, I’d love to hear how you approached the analysis.
Thanks in advance!
Hi @user-67b98a! Thanks for your question. Could you elaborate more on which areas of the shopping environment you're investigating? You do mention shelf vs signage. For these, our reference image mapper enrichment will often work well. E.g. check out this supermarket shelving example: https://docs.pupil-labs.com/neon/pupil-cloud/enrichments/reference-image-mapper/#_3-supermarket-shelf
Hey @user-67b98a, I'm a fellow researcher. If you haven't come across them yet, I highly recommend the Fundamentals of Eye Tracking series of papers, written by experts especially for researchers who are just starting out with eye tracking. They write about choosing tools, for example, in this paper: https://link.springer.com/article/10.3758/s13428-024-02529-7 As a relative beginner with eye tracking, I have personally found this series extremely accessible and helpful, so perhaps you will too.
Hello Neon Team. Just to now if someone is having problems when dowloading timeseries CSV from neon cloud. I am experimenting really slow donwloads that don´´t come to an end

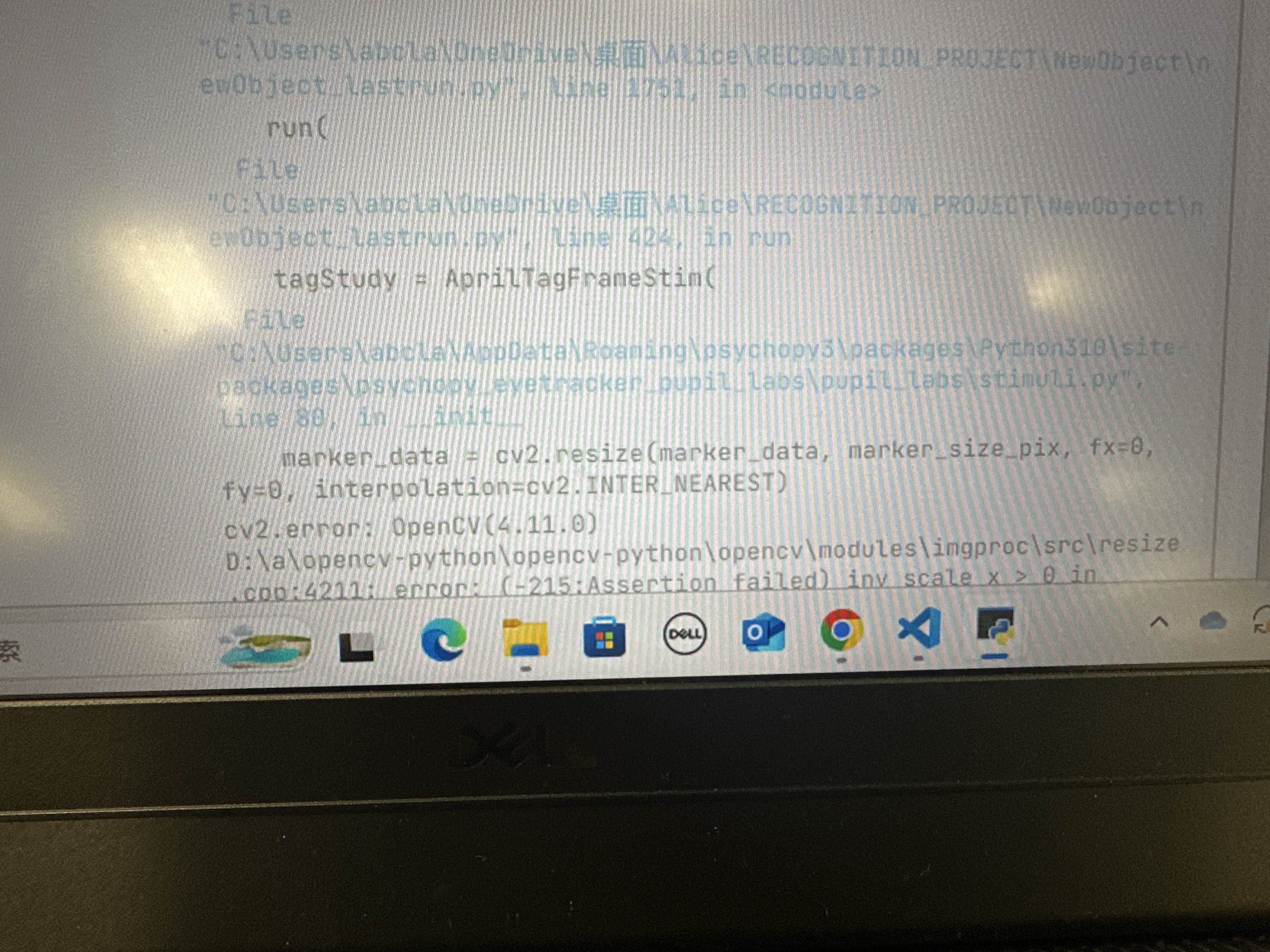

Hi Team, I received this error when I was using the April tag frame. From the demo program, the experiment is using Height. But for my other program, I use pixels. So I converted the size [w,h] of the tag frame from [2,2] to the window size in pixels [1360,768]. May know if I did the conversion incorrectly to cause this error? thx!
Hi, @user-9a1aed - if your experiment is configured for pixels, I think you should leave the values for size and marker size as-is and instead change the spatial units (for both of those) to "Height"
Hello, I am master student at Ulm university. We are conducting a research. We have one problem. When we are trying to do a enrichment and after when we try to donwload this enriched video. All of the other videos datas are also coming within specific videos excel. We tried to change wearer but didnt work. You can see the screenshot. I would be very happy if you could help us download the data of just the video we selected.
Hi @user-b5b5ba , do I understand correctly that you want to download the Enriched data for just one recording?
yes @user-f43a29
I see. To do this:
32/34
or 28/34

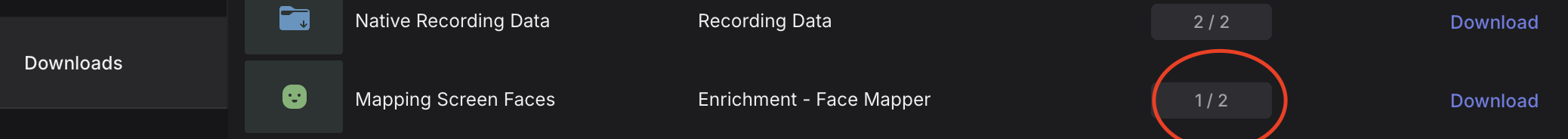

, etc in the "Recordings" column. In the attached image, I clicked on the 2/2
button.Download
button.Note that changing the wearer on the recording will not have any effect in this regard. It would be recommend to revert the selected wearer for that recording to the profile of the person who wore Neon at the time of recording.
@user-f43a29 it worked thank you so much
Hello, the following questions appeared during my recording, I would like to ask if my recording record can be found?
Hi there! Our lab just got the Neon glasses and we've been playing around with some mini experiments. I had a few questions for the community:
Thanks in advance for your help!
Hi @user-ffef53 👋 ! Welcome! All of that is already possible, let me clarify some aspects and walk you through the workflows:
Neon Export
folder to prevent affecting the normal app's operation, but if you are going to delete the data afterwards is also fine.With the data already on your computer, you have different options to export the relevant CSV files.
You can load your recordings into Neon Player, then, go to the Plugins menu, enable the streams/plugins you want to export (e.g. gaze, pupil size, eyeball position) and click Export to generate the corresponding CSV files.
The general workflow is described here.
Just keep in mind: Only the enabled plugins will be included in the export.
2: Programmatic CSV export
If you're working in Python, and want to programmatically export the data to CSV files, you can leverage our pl-neon-recording
library.
Here you can find a full example on how to export the data onto CSV files.
Let us know if you have any questions or get stuck somewhere.
Hello. I am a PhD student collecting data from the Neon glasses in children for a continuous recording of ~20 min. I have plotted the pupil size (collected from the 3d_eye_states.csv file) but am struggling to interpret where the blinks are - I am wondering if you have any advice? (I can send picture of the plot/data if that is helpful - there are many downward spikes, but they vary in their depth and occur at very irregular time periods - so am not sure whether they are blinks or not)

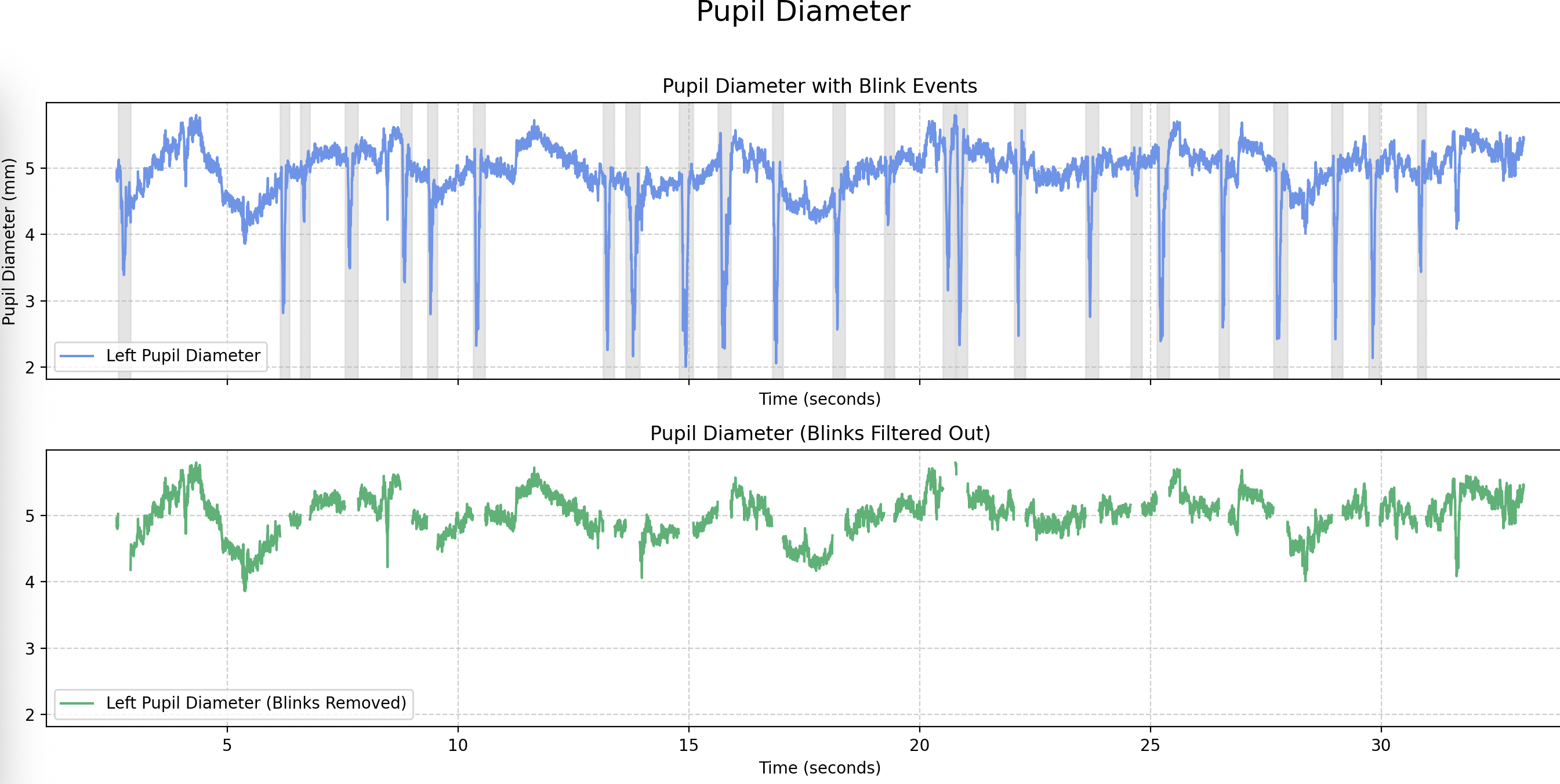

Hi @user-f389a1 👋 ! You can find the blink data in the blinks.csv
file.
By default, NeonNet would try to infer pupil size at all times, even during blinks. You'll typically see a rapid drop in pupil size, though it may not reach zero. Gaze data is also still reported during blinks, you can see the signal turn noisy, but we don’t automatically remove it.
This is intentional, so that you have full control over how you define a blink. For example, you might prefer to base it on a different eyelid aperture rather than rely on a hard cutoff. Lemme know if you need help filtering them out or plotting them!
Hello! I am a Phd student and our lab currently owns a pupil core and currently looking into upgrading to a Pupil Neon. My current concerns are as follows: 1. Does Neon require eye camera adjustments like the core? 2. Can we save videos without the Pupil Cloud for Neon?
Hi, @user-d2bc2a! Thanks for Considering Neon. To answer your questions 1. Neon does not require (or even allow) for eye camera adjustments. The eye cameras are in a fixed position on the module which is fixed to the frames. Our deep-learning approach and diverse training data allows Neon to work well on an incredible variety of facial geometries and wearing positions. Neon's eyetracking is even robust to slippage! 2. Uploads to Pupil Cloud are completely optional and can be easily disabled in the app. We provide open-source, offline analysis tools to help you accomplish your research goals without relying on our cloud service.
I should have the most up to date of both because we just received the device a few weeks ago. I just tried again on a new, much shorter recording and it worked, but for the longer ones its not working so maybe its a bug?
I think the processing just takes much longer, but maybe there's a way to optimize it that im missing?
Thanks for your quick reply! Fixations in the latest version of the app are computed directly on the device, as long as you have “Compute fixations” enabled in the Companion App settings.
That means Neon Player shouldn't take long to load them, since it doesn’t need to process them post-hoc.
Could you double-check that you’re using Neon Player 5.x?
Hi PupilCloud Team, could you let me know the dimensions of the red circle indicating gaze in the cloud - either in pixel or field of view (degrees)? Thanks!
Hi @user-037674 ! the Gaze overlay radius employed in Cloud with Neon is 45px but it scales with the video canvas.
Hello! I work for a market research company, and in a project with Neon glasses we are having problems with two videos loading in the cloud, it says "processing", but they don't load, these videos can be played on the mobile. Do you know what I can do?
Hi @user-33b314 , we also received your email and followed up there.
Hi, I must answer some questions to the "Datenschutzbeauftragte" (information security officer?) concerning the videos of the Iris/pupil. could they be identified to a special person? is the video "safe" - in aspects of the data-security and re-identification of a person? Is there any information about this issue? Maybe I could link to a document? Is it possible to remove the eyes-video without loosing information? Thanks in advance!
Hi @user-a5d1a8 , could you send an email to info@pupil-labs.com with this request? Then, we can provide you with the relevant Documentation.
Briefly:
ello everyone,
I recently used the Neon to record multiple videos. When I checked the cloud later, I noticed that six of the videos were not uploaded. I tried to upload them manually, but after a few seconds, the upload fails each time.
Is there any way to successfully upload these videos to the cloud?
Hi @user-878a5a , we also received your email and followed up there.
I am using Psychopy 2025.1.1 for an eye tracking experiment with videos. I have downloaded the Pupil Labs Plugin. In settings, I select Pupil Labs (Neon) but it does not allow me to Modify the IP address and port. I don't see those options in the dropdown.
Hi @user-1a3091 , that version of PsychoPy is still in beta and with that version, the PsychoPy team has made changes to the plugin system that are not yet accommodated. It would be recommended to use the latest stable PsychoPy, v2024.2.4.
Note that when switching versions, you may want to first clear PsychoPy's cache of the plugin, as follows for Windows:
psychopy3
folder in %APPDATA%
(just copy-paste that into Windows Explorer).On Linux and MacOS, the .psychopy3
(note the dot, .
) folder is found in the user's home
directory and the process is otherwise the same.
Hi, has anyone been able to synch fNIRS aurora lsl triggers and the neon recording? My triggers arent showing up for the neon recording
Hi @user-21cddf , are you already using Neon's LSL integration and the standard LSL LabRecorder app?
And also, does PupilLab have any devices that can output the gaze data in real time? So that we can combine the gaze data with other real time processing code?
Yes! We have a fully-featured Realtime API for Neon that can do all of this and more. Check it out here: https://docs.pupil-labs.com/neon/real-time-api/#real-time-api
Hello. I am trying to connect monitor my data collection in real-time with the neon monitor app, but the link, http://neon.local:8080/, doesn't seem to be working. Both my companion device and my computer are connected to the same network. Could I get help troubleshooting?
Hi @user-6eef09! Could you describe the network you're trying to use? Also, have you already seen the troubleshooting steps oulined here? https://docs.pupil-labs.com/neon/data-collection/monitor-app/#connection-problems
Hello, I’m currently trying out the Pupil Labs Neon our research unit recently bought. I appear to have some problems with local streaming, that is, syncing my computer with the Neon.
I am currently on PsychoPy trying out your Builder demo, gaze_contingent_demo.psyexp. While I can get it to run when using MouseGaze as the eyetracker device, I am unable to do so using the Pupil Labs (Neon) plugin. I’ve done the following troubleshooting steps:
Tldr; I would just like to try out the demo but unfortunately, it doesn’t work with my eyetracker. Is there any additional steps that I’m supposed to take?
Hi @user-30f8d5 , what kind of network are you using? Is it university WiFi?
Hi @user-f43a29 I am at home, using a home wifi. I believe it is a wifi 6
Ok, could you also try with the hotspot of your personal cellphone? This will help clarify if it is a configuration issue with your router. See these Troubleshooting steps for more details. Let us know the result and we can help further.
Hi @user-f43a29 , thanks for the quick reply. So my mobile hotspot did nothing to change it. I do realise that trying to access Neon Monitor via the URL, neon.local:8080 or the IP address provided on the Companion, results in some extremely slow lag, if not just screen freezing.
I’ve tried running dns-sd -B _services._dns-sd._udp via MacBook Terminal, and I couldn’t find anything related to the eyetracker. I do agree with you that it may be a router issue but my wifi and hotspot does allow for mDNS and UDP traffic. Any idea what I can do next?
Could you open a Support Ticket in 🛟 troubleshooting ? Thanks

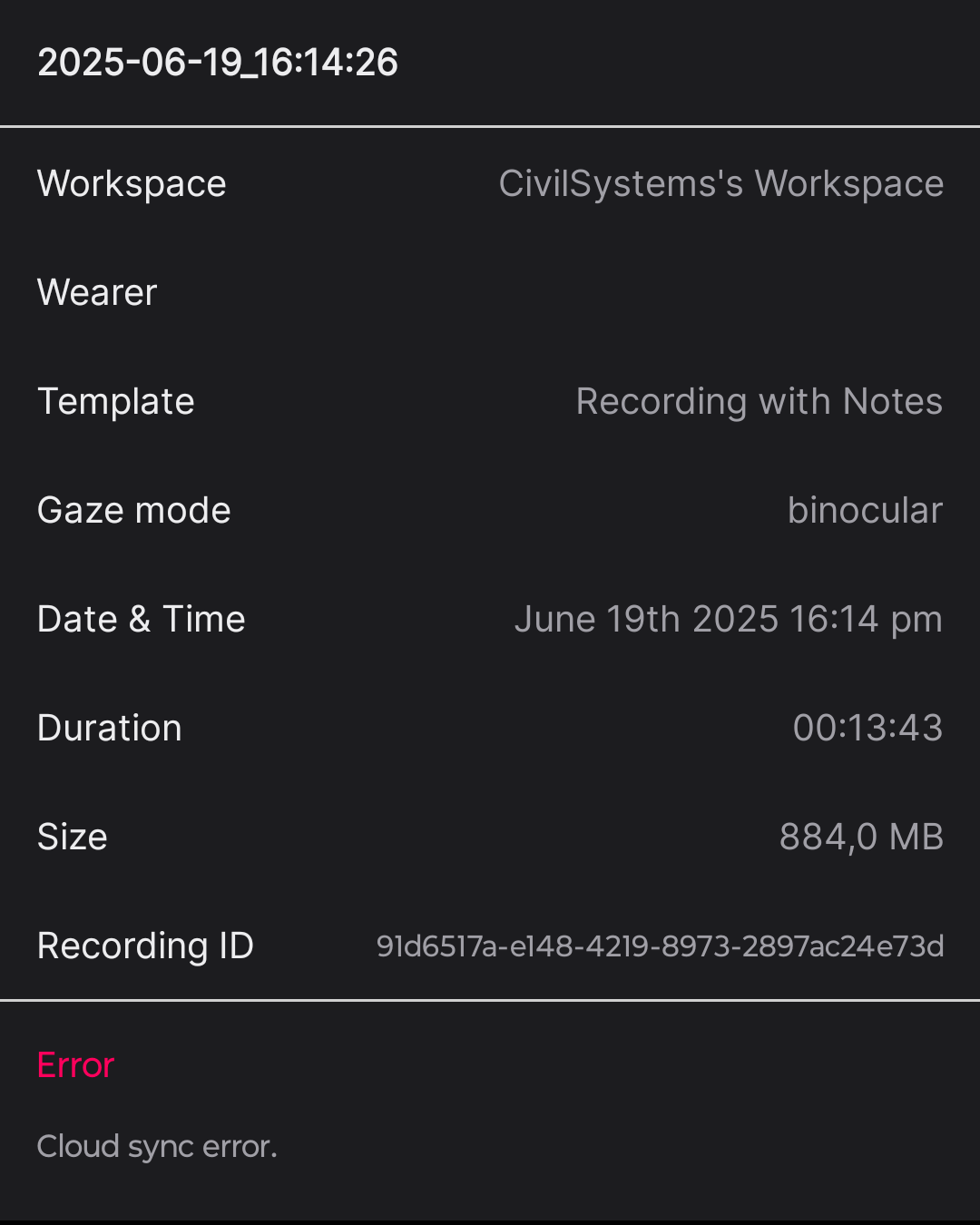

Hello everyone, I’m having trouble uploading 7 videos to Pupil Cloud from the phone, as the uploads keep failing. I can extract the videos from the phone, so I was wondering if it’s possible to upload them to Pupil Cloud directly from a computer. This seems like my best option, since I’ve already contacted Pupil Labs support and fixing the issue on the phone appears to be difficult.
Hi @user-878a5a , the team is aware of and handling your issue. We should have an answer to your email by Monday.
Please note that uploading to Pupil Cloud from a computer is not a supported workflow, but we will resolve the issue for you.
@user-f43a29 Yes. We have now managed to make it work for one pair of neon glasses, but the experiment involves 2 pair of glasses recording at the same time. The api only seems to recognize one pair at a time
Hi @user-21cddf , can you describe your setup in more detail? It sounds like you rather receive Aurora‘s triggers programmatically and then convert those to Neon‘s Events in your own Python code?
Hi everyone, I have a very simple Python script that remotely controls the start and stop of recordings. The code uses these two functions: recording_id = device.recording_start() and device.recording_stop_and_save(). I connect my PC and the smartphone connected to the NEON to my phone's hotspot (the code searches the device by IP). The problem is that sometimes (very often actually) I get this error --> Error: Python Error: DeviceError: (400, 'Cannot stop recording, not recording') etc ... I noticed that if I keep sending start and stop commands, the recordings either don't get saved or are corrupted (they contain no video of the scene), even though no error appears in the Python console. Moreover, after this error occurs, it's impossible to get valid recordings anymore—I had to reboot the device. How can I solve this issue? Next time I run experiments, I will make sure to use a router, but is this a connection problem or is it caused by something else? I have already used my phone's hotspot, and with the Pupil Labs Core I have never had this problem. Thank you very much.
Hi @user-a4aa71 , this is not a connection issue. May I ask if your code also uses device.close()
at the end of each session, and whenever it is quit, including when it is quit by Ctrl+C?
Hi, does anyone know of any publications or code bases that focus on gaze contingent research with multiple neon devices?
my code is this one, very simple... (I'm

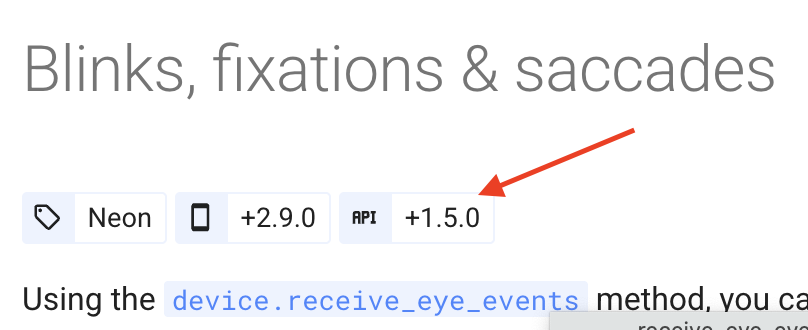

Hey guys. I may be doing things a bit unconventionally, but rather than having to load each of my recordings in neon player prior to analysis, I wrote a python script that will open up the .raw and .time files from all my exported recordings and spit out csvs for the data I need.
I have everything working for basic eye state and gaze data, but I am having trouble figuring out what the columns correspond to in the "fixations ps1.raw" file. It looks like there's 15 columns, but I am not sure whats what. Can someone with insider knowledge on this let me know the column names?
Hi @user-d086cf , you can save a lot of time by using our free & open-source Python library, pl-neon-recording. It does all this and more for you already and its code self-documents the structure of the binary files, such as the fixations files.
You may want to reference this example for exporting the data to CSV format.
Good afternoon, Quick question about wireless charging — we’re going to be doing several back-to-back hours of recordings using the Neon glasses, and I wanted to ask whether a wireless charger would work effectively with the companion phone while it's connected to the glasses. Has anyone tested this setup? Also, if you’ve got any recommendations for reliable Qi wireless chargers that have worked well with the phone and Neon during long sessions, I’d really appreciate it.
Hi @user-a578d9 👋 ! Whether wireless charging works depends on the companion device. Both the Samsung S25 and Moto Edge 40 Pro support Qi wireless charging.
Just a heads-up: they don’t attach magnetically, and wireless charging is generally less efficient, with the handicap that it tends to warm up the phone.
While this is not an official recommendation. I’ve been using a previous version of this, it helps keep things cool while charging 😉
Good evening, I ran into an issue when trying to time-align my cloud exports with my xdf data when recording using the LabRecorder. As we were able to find a neon lsl stream that was coming from the mobile device connected to the glasses directly, we did not record using the lsl_relay on a
separate laptop (how we did it before the app update). Now, after just recording using the stream coming directly from the neon phone, I am unable to time-sync gaze events using the lsl_relay_time_alignment. Is there another way to time-sync the streams without using the lsl_relay on a separate laptop? I could not find information on this topic in the Pupil Labs Companion LSL Relay documentation. This is the error message: WARNING Session id missing! Skipping incompatible Pupil Companion stream xdf_cloud_time_sync.py:107
[{'acquisition': [{'manufacturer': ['Pupil Labs'], 'model': ['Neon'], 'session_id': []}], 'channels': [{'channel': [{'label': ['Event'], 'format': ['string']}]}]}]
ERROR Could not extract any time alignments for [this is my path here]. No valid Pupil Companion event streams found!
Hi, @user-e0a71c - yes, the LSL Relay app is a solution provided for our older eyetracker (Pupil Invisible), but it worked for Neon as well until we integrated the LSL outlet directly in the companion app, so you're correct to avoid the LSL Relay with Neon.
To sync data between LabRecorder XDF data and a Neon Recording, you just need one or more Events that have been recorded in both. Then you can simply examine the timestamps of the same event recorded in both systems to compute the offset. A quick search of this discord server should turn up a few different conversations on this exact topic
Good morning! We are seeing some calibration issues in our setup. Person is sitting in front of a 27" (non-curved) screen with a distance of around 40 centimeters. Calibration routine is executed by displaying fixation points at the corners of the screen, asking person to look at it, and correcting mismatch on the phone (following https://docs.pupil-labs.com/neon/data-collection/offset-correction/).
Is this a problematic distance/setup for good calibration?
Hi @user-4b18ca 👋 Just to clarify, Gaze Offset is different from a traditional calibration.
On a traditional calibrated eye-tracker, you would look at different targets while the eyes are recorded. Then, a regression is built from detected features on the eye images (like dark pupil, Purkinje image, etc) and the location of the target in the scene camera or the screen. Such that you can estimate where the person looks, based on the location of these features on the eye images.
This is a bit frail, as if the person / headset moves the relationship can break. Neon, breaks with this paradigm, it uses a deep learning-based model (NeonNet) that does not require this step, it was trained on a large and diverse dataset, so it doesn’t require user-specific calibration. In other words, you can take the glasses off and put them back on, and you’ll continue receiving valid gaze data.
Although this deep learning approach has been trained with a vast amount of data, different faces, eyes, etc. For a small subset of participants, accuracy may be slightly off, in those cases, you can apply a gaze offset correction, which is a simple linear correction across the entire visual field.
As reported in our whitepaper, average gaze accuracy is 1.8° across a 60°×35° field of view. With an offset applied, this can improve to around 1.3°.
Because the correction is global, applying it multiple times (e.g., at different screen corners) just overwrites the previous offset, it’s not cumulative or spatially adaptive. So it does not make sense to apply it on multiple points.
You might now be wondering: - Does accuracy decrease in the periphery? Yes. That’s also reported in the whitepaper.
[email removed] I work in Matlab and import
Hi 🙂 I have a couple of questions, some may be a bit silly but I want to make sure I am doing the correct thing. Thank you in advance. If I download the Timeseries CSV and Scene Video are the video and gaze data undistorted, I mean, are they already corrected for lens distortions? From what I see in the videos, they are not. So, I am following the Undistort Video and Gaze Data tutorial (https://docs.pupil-labs.com/alpha-lab/undistort/). What data should I be using for this (Timeseries CSV and Scene Video or Native Recording Data)? Also I am a bit confused about what timestamps of every world video frame means in the context of the world_timestamps.csv? Could you please elaborate.
Hi @user-cc6fe4 , not silly! This space is for such questions.
May I first ask why you need to undistort the data? Knowing that, I can better assist, as the distorted data are fine for a variety of use cases.
With respect to the scene camera timestamps, could you clarify a bit more what is confusing? Briefly, they are the time at which each scene camera frame was taken, specified in nanoseconds. You can directly compare them to the timestamps for Neon's gaze, IMU, etc data.
What is the easiest way to calculate convergence from the eye state data?
Hi @user-539d55 , may I first ask, what is the end goal or what will be the application?
Hi another question here: in the Neon Player is there a way to adjust the offset at varying times and apply it to only a select portion of the video? In our experiments we will have participants looking at a table and later at a screen. The screen gazepoints seem right on the mark, but on the table when the participants are looking down it is a bit inaccurate and could use the offset. Thanks!
Hi @user-ffef53 , the Gaze Offset Correction applies for a whole recording. You could technically set the trim points in Neon Player to only export a subsection and then apply a separate Gaze Offset Correctlon for the export of each trim. However, may I ask if they are moving their heads to get a good view of the table or are they rather looking far down, such that gaze is towards the bottom edge of the scene camera video?
Hello, one of my students tried this script: https://pupil-labs.github.io/pl-realtime-api/dev/methods/simple/streaming/eye-events/ from the simple API but the .receive_eye_events() method does not exist on the device object. In contrast, it works with the async API version. Does the previous code need to be modified in some way? Thank you very much!
Hi @user-a4aa71 , are they on the latest version of the Python Real-time API? They may need to upgrade it in their virtual environment:
pip install --upgrade pupil-labs-realtime-api
Hi - I'm trying to figure out the precise timing differences between the source neon phone and the client, in order to eventually estimate what the jitter and offsets we can expect when compared to EEG data. I've been looking at the packets over wireshark and am a bit confused. 1 - eye gaze data should be 77 bytes when gaze and eyestate are included, but the closest packets I can find have an 88 byte payload? 2 - Theres an RSTP packet that described data from /?camera=gaze?audioenable=on. Aren't the eye camera stream under /?camera=eyes ? What is that stream describing? 3 - Similarly, what are the /trackID=0 rtsp streams? 4 - There are a bunch of payloads of 200 bytes that wireshark can only identify as udp or unknown rtcp version. Are there any filters/decode as options that would help me analyze this data better? Thanks!
Hi @user-a84f25 , for your case, there's no need to go so deeply into the packets, although cool to see it!
For example, we already offer methods for precisely estimating the time difference between the Companion Device and the client. And, we have Lab Streaming Layer support directly integrated into the Neon Companion app.
Or, is it rather that you are implementing your own Real-time API integration in another language?
Also, is the timestamp returned by the API as the time the data was taken just the timestamp on the RTP packet?
Thanks for the clarification! The reason I was turning to looking at the packets is because when I wrote a python script to compare the timestamps on the sensor data to the client ingestion time, and compared that to the estimated offset and roundtrip times provided by the timeestimate function, I get close matches for the time offset seen when comparing ingestion time and sensor times for the gaze data (they are like 10 ms more), but the video data seems to be off by like 80 ms. This made me think there was some parsing delay in my python code (even using the async library), so I wanted to compare the times to when the packets were actually received by the computer. So is the timestamp of the sensor data also embedded in the payload of the RTP packet, or is the time attached to the RTP packet just the time the sensor took the data? I'm really sorry for my confusion
No problem.
Time offset is the offset between the time reported by the clock of Neon and the clock of your computer. It is independent of and not related to transmission + processing latency, which is what it sounds like you are measuring.
Are you looking to do something like real-time gaze contigent experiments or do you just need the data to be synced for post-hoc analysis, after an experimental session is completed?
Also, I'm not sure I understand the difference between:
Could you clarify further?
Sure sorry for the confusion. This is mostly for post hoc analysis - aligning the neon data with an EEG or maybe other signals that are also synced via PTP. Ultimately I want to know the offset between the sensor clock and the computer/client clock. I know you provide that through the TimeEstimator class, but I'm essentially trying to self verify it as well. From what I understand, there are a couple of times to consider: the time the sensor took the data, the time the data is sent, and the time the data is received. From what you are saying, the time the sensor took the data is in the payload of the RTP packet, separate from the timestamp on the RTP packet (which is when the data was sent?). The time that the computer received the data should optimally be half the roundtrip time, which in my current setup should be < .5 ms according to your API. But there is probably some latency/processing which happens (ideally a smaller amount in the time wireshark received the packet compared to the python API). That latency (based on the time that wireshark received the packets, and the time on the RTP packet, and assuming a clock of 90000 which is in the RTSP description) is currently 2 - 5 ms. I'd like to be able to compare the time the sensor actually took the data to these other timestamps. But I don;'t know how to parse the RTP payloads. Through wireshark I have payloads that are 89 bytes, which matches up with the description of EyestateEyelidGazeData. But that doesn't include a timestamp in it? So is the timestamp on the RTP packet the time the sensor took the data? I.e. there is no difference between the time the sensor took the data, and the time on the RTP packet (not the payload of the packet)?
Sure sorry for the confusion. This is
Hi Team, I am not sure what's going on here. This recording has been uploading for quite a while already. ID: bf342863-0439-4edb-88fb-5edcb73c00e3
Also, it says the cloud storage is full. If I deleted my cloud recordings, is it going to help? Or do I have to purchase additional storage?
Hi @user-9a1aed , for the recording that is uploading, could you go to the Recordings
panel in the Neon Companion app and use the menu to Pause
uploading and then wait a few seconds before clicking the Upload
button?
For the recording with the "quota surpassed" message, that is unrelated to the upload process. To work with that recording, you either need to activate an Unlimited Add-on or delete some recordings from Pupil Cloud to free up the quota. Please note that when you delete a recording, that will permanently delete it from Pupil Cloud, so be sure to have a local backup.
Hi Team! Not sure if this topic has been touched on before here but I was wondering if there is a way to perform the same processing that is done in cloud on data that has been downloaded as native/raw data from a phone but has been deleted from the phone and is now only available on a computer? I am noticing that for 3 donwloaded recordings I am missing the data from the cloud but I have set up my analysis pipeline in a way that uses the fixations.csv and world_timestamps.csv files from the timeseries download. The neon player allows me to export a file that is also called fixations.csv, i assume this is the same as the one from the cloud agorithm. Can I somehow also create the world_timestamps.csv with the neon player? I only find a world_timestamps.npy and world_lookup.npy but these do not seem to be on the same scale as the world_timestamps.csv. Thanks!
Hi @user-898b32 , Neon Player's CSV formats match with Pupil Cloud's.
To get the world_timestamps.csv
file, make sure to also activate the World Video Exporter plugin.
You can also use pl-neon-recording
's CSV export script.
Hello 👋 New here. Not sure if this has been discussed, but can the Neon receive TTL pulses? Currently, trying to synchronise their data with intracranial EEG data, and couldn't find guides online. (P.S. Successfully followed this guide with my experiment: https://github.com/pupil-labs/pl-neon-matlab/blob/main/track-your-experiment-progress-using-events.md) Thank you in advance.
Neon doesn't receive analog TTL signals. But it has a real-time API that can send/receive software events over a local network. That said, often the easiest way to sync Neon with EEG equipment is via our Lab Streaming Layer integration, if your EEG device supports that.
[email removed] , there is the typical
Hi, sorry I am having the following error on the screen: May I know why this error happens and if anyone knows a possible solution? Thank you
Hi @user-ffc52e , I see you already opened a Support Ticket and are being helped. Thanks!
I tried unpluging it and plug it in back again all morning, but keeps having this error

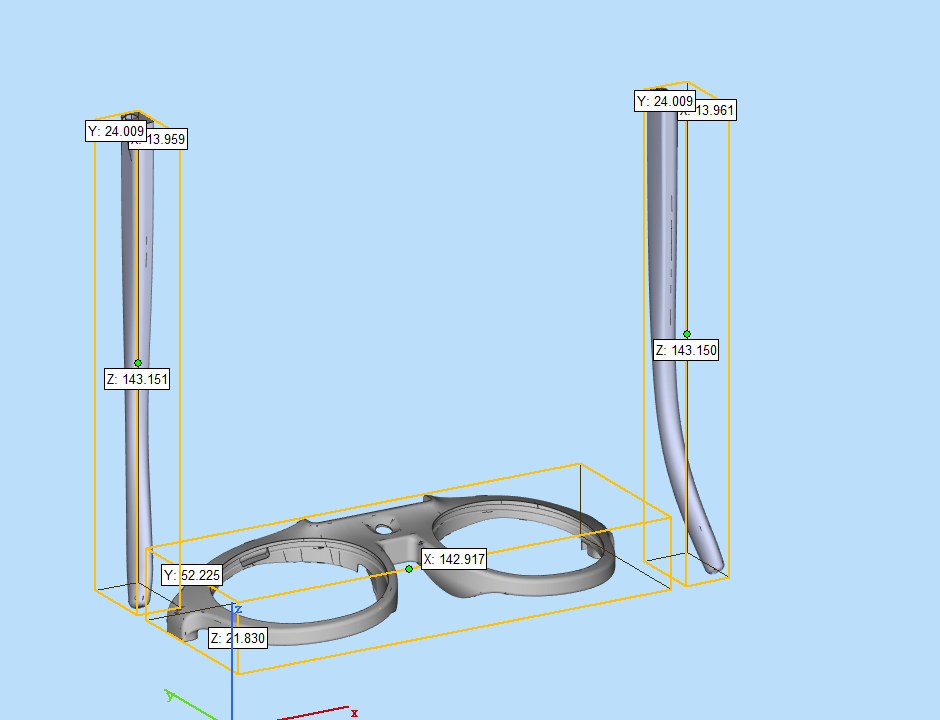

Hello, I have a question, as shown in the picture is the frame of neon, the temples and frame are separated, on the model do they have a link structure, or do I need to link myself. Thank you so much.

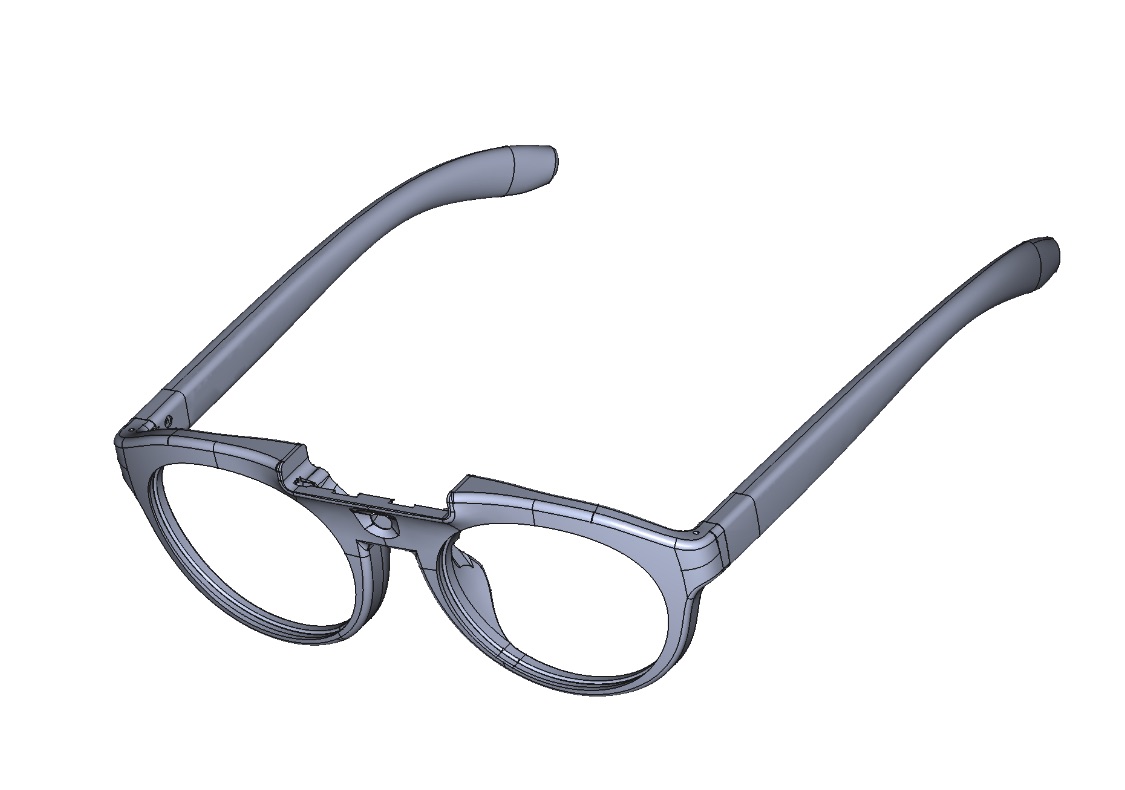

Hi @user-5a90f3, have you modified the CAD file after it was loaded into your software? It should look something like in the attached image when loaded. The CAD model is provided as reference geometry, to serve as a starting point for prototyping your own custom frames. When you say “link structure”, do you mean something in the CAD software that virtually assigns the temples to the front of the frames?
Hi @user-5a90f3 , some more info from the team:
Hi Team, on the Pupil Cloud are we able to set the number of fixations we want to be plotted on the gaze plot? Initially when we ran it through the google collab workbook we were able to select the number of fixations to be plotted. is that option not available anymore?
Hi @user-37a2bd , may I ask which notebook you are referring to?
Hi, all--Has anyone recorded an individual with infantile nystagmus syndrome (a.k.a. congenital nystagmus) with the Neon? A head-mounted tracker with a wide gaze angle operating range would be really useful but it would be nice to see a sample of a recording before asking my department to get one. Thanks!
Hi, I am working with data collected with Pupil Neon and have computed enrichments using PupilCloud to record fixations on AOI. I noticed that my fixations include cases of duration <100ms. I understand that 100-200ms is the treshold for the actual definition of fixation (from your online documentation). So I was wondering how others have dealt with this and whether a simple filter would suffice to clean my data, or whether I am missing something else in the settings of how raw data is used to extract fixation (if so, should I work in PupilPlayer instead before downloading my data / computing enrichments)?
Hi @user-7413e1 👋 Just a quick note, I think there might be some confusion between Pupil Core and Neon.
For Neon, fixation and saccade data are available via the fixations stream which is now computed in realtime too. You can also find more detail in the fixation's detector whitepaper (PDF) where you can find a table noting that the minimum fixation duration for Neon is 70 ms.
Is this on the fixations.csv from the TimeSeries or somewhere else?
This is in the fixations.csv file and the aoi_fixations.csv file downloaded from the enrichment (marker mapper)
Hi team, I'm running into some issues with the companion app and was hoping to get some insight: 1. When I start a recording, the duration shown is the time from button press, but it doesn't match the duration of scene capture. For example, a 9s recording will capture 3s of video. 2. The app becomes unresponsive randomly and will get rid of 1-3 of the previous recordings. I am using the Motorola edge 40 pro and I am trying to record 3sec clips back to back, but the cameras activation has been a various times, so I record 8sec and trim afterward. I would appreciate an help
Hi @user-7b0de7 , may I first ask why you make such short recordings? Is there a reason to not make one long recording and use Events to mark moments of interest?
Hi everyone! I could use some help with a couple of issues I’m having with my Pupil Neon glasses.
Connecting Pupil Neon to desktop software: I’ve used the glasses successfully with Pupil Cloud, but now I want to connect them to the desktop apps (like Pupil Service, Pupil Player, or Pupil Capture). I’m not sure how to do it, and I haven’t found clear instructions. Has anyone here managed to set it up? Any steps or tips would be appreciated!
Blink detection not working on Pupil Cloud: Even though calibration works fine, blinks are not being detected or logged on Pupil Cloud. Is there something I’m missing or need to activate?
Reference Image Mapper not detecting reference image: I’m also trying to use the Reference Image Mapper to track when a participant looks at a product image, but it doesn’t seem to detect the reference image during playback. Any idea why it might not be working or how to troubleshoot it?
Hi @user-241e99 , it is currently after hours for us, but has your group already had its free 30-minute Onboarding call? We can cover these and more questions a bit more efficiently that way. Then, you can also show us your Reference Image for direct feedback.
Also, to clarify the Pupil Capture/Player/Service software is for our original eyetracker, Pupil Core. With Neon, you connect to it from a computer via the Real-time API or Neon Monitor. Or, are you rather aiming to analyze data on your computer?
Hello?
Hi Team, I am processing a few sessions of neon data locally (v4.8 player and running offline fixation detection since the data are collected with v2.8 companion app).
I noticed that fixation accuracy is heavily influenced by blinking in many cases. In the linked example, it seems like fixation is assigned based on the instantaneous gaze positions post-blink (note these gaze are marked as "blink" by the blink detector), while the more accurate position (with gaze stable for >500ms) is higher above.
Is there a way to customize the algorithm such that fixation estimation ignores the initial post-blink gazes? Or register these as two separate events?
Hi @user-b442f7! Would you be able to show a screen recording showing the progression of the fixation and gaze? That would be helpful for us to understand what you're describing.
