Hello. I have a question. I would like to know how to output only a specific range of data (e.g., 3 minutes out of a 10-minute measurement period) uploaded to Pupil Cloud.

Hi @user-b16d4b! Which data are you looking to output? Are you referring to raw timeseries data, such as gaze, IMU data, etc. Or are you referring to enriched data, such as those generated by Reference Image Mapper, or other enrichments?

Hello - I recorded a session and it has been spinning (processing) in pupil lab for more than a week - I have a feeling there is some sort of error in the file? Is there any way to check on it and get it processed? Thanks - Dan

Hi @user-796c70 ! Can you open a ticket in our 🛟 troubleshooting channel and we'll assist you there in a private chat!

Hi, I'm trying to calculate the visual angle, and for that, I attempted to compute the azimuth using the definition: ψ = arctan2(x, z) However, I'm a bit confused because the values I get don't match the azimuth values provided in the CSV file from Pupil Labs. Could this be due to an error in my calculation, or is there another explanation? Thanks in advance for your help!

Yes, exactly — I’m using the eye pose measurements from Neon (x from the optical axis x and z from the optical axis z). I calculate the azimuth separately for each eye using arctan2(x, z), and in principle, the average of the two should represent the overall gaze azimuth. However, this is not the case

Thanks a lot for the detailed clarification — that really helped! In my project, I’m trying to compute the visual angle, so I’m a bit confused about the best way to go about it. Would it make more sense to calculate the visual angle using the gaze azimuth directly, or should I rather compute it separately for each eye based on the optical axis? Thanks again !

I would like to know how to use the marker mapper data enrichment, if there is any recommendation specifications (i.e., how far the eye-tracker is from the AprilTags). Furthermore, do I need to download the pupil core for the Neon if I would like to do manually post-hoc analysis not just relying on the pupil-cloud?

Thanks for the video, @user-9a1aed. Two points: * Your markers are too small. Doubling their size would be appropriate * More markers will help too. When showing the fixation cross you have 10 markers, but when showing your stimulus you only have four. With that screen/environment, the glare/reflection of the light against the display completely obscures some of the markers

The markers are presented in known positions on the display. Neon streams its scene video to our PsychoPy plugin, which detects the markers in each frame of the scene video. The corresponding points (specifically, the corners of each marker) between the scene frame and the known marker positions are then used to calculate a homography matrix. This, essentially, tells us the position and orientation of the display relative to Neon's scene camera. We can then use that information to map points from the scene-camera-space to surface-space.

Computing that homography matrix requires known, corresponding points in both spaces (scene-camera-space and surface-space). Our PsychoPy plugin already knows the surface-space points of the markers, but it has to detect them in the scene camera image. More markers = more points = more accurate mapping

Hi all, Is there a way to ask the app to 'export' a session via API? i.e. I do these manual steps after I stop a recording via API > https://docs.pupil-labs.com/neon/data-collection/transfer-recordings-via-usb/#export-from-neon-companion-app so is there still a programmable way to effect the exporting of the current recording to Documents/Neon Export directory on phone?

You'll want to use the PLEvent Component in PsychoPy builder to add events to your recording (e.g., trial-start, trial-end, etc). These timestamped events will appear in Pupil Cloud and will be available in CSV format as well. You can then compare your data timestamps to the event timestamps to filter the data for your needs

For my case, I would like to place the monitor that will display the robotic movement for the teleoperation. Then I would like to track the gaze movement and pupil diameter. So, I just attached the marker on the screen and recorded. But I can't define the surface in the enrichment. Furthermore, participants also rely on the 3D environment instead of screen by seeing the robotic movement. For this case, I guess it might be useful to use the reference-image based enrichment. If you need more information to be clarified, just let me know.

Hi! I'm new to this discord channel so please let me know if I should be posting questions at a different channel but I was wondering how to turn off the audio before recording?

Hi @user-60878d! This is the right place. You can disable audio capture by toggling the microphone icon in the top left of the Companion app home screen 🙂

Hi questions for the Neon real time API: we are able to stream real time gaze and pupil diameter following the steps outlined in the documentation using python and are looking to expand it to stream fixation,saccades, and blink rate. 1. Are all three metrics able to be streamed real time, i.e. line by line for a time series data or has to be done post-hoc? 2. Is the real time examples code on the website the best place to find how to do so? At the moment we tried using the sample code to get the data to stream but to no avail! Would love some help and insights on this! Thank you!

Is there a maximum distance Pupil Lab Neon module's eyetracker can handle? For example, there are other mobile eyetracking glasses from other companies that say they can only calculate up to 4 meters distance

Hi Team, you guys have helped me with the eyetracker's offset, etc. However, I still found that the eye-tracking results were not ideal. I have tried the demo program provided by PupilLab. Would you please take a look? It is very difficult for participants' fixation to land on the AOIs during eye tracking. If this happens during the experiment, it would be frustrating and tiring for participants. Are there any ways to improve my setup? https://hkustconnect-my.sharepoint.com/:v:/g/personal/yyangib_connect_ust_hk/EcPxM3QX32JJuFagkR_0mzgB0_ryJbWT6WAv6fon7rEjaA?e=BUNsht Thanks a lot in advance!

Hi @user-9a1aed! Thanks for sharing the screen capture. The gaze measurements look much noisier than expected. I think it would be beneficial for us to look at a raw recording. Please open a ticket in the 🛟 troubleshooting channel and we can coordinate their 🙂

Hi Team, I wonder if there is any documentation on converting screen-based gaze coordinates defined by AprilTags using scripts? I found this package from previous chats https://github.com/pupil-labs/real-time-screen-gaze but struggled to use it for data processing. I have tried Marker Mapper in Cloud, but the processing was a bit slow, especially if I had a large amount of data to process.

Hi, @user-9a1aed - if you want to do surface mapping without using Pupil Cloud, have you considered Neon Player?

Yes, this is our software as well.

If you are new to Neon Player, you may find the general overview to be helpful as well. Otherwise, if you have specific questions, feel free to ask here 🙂

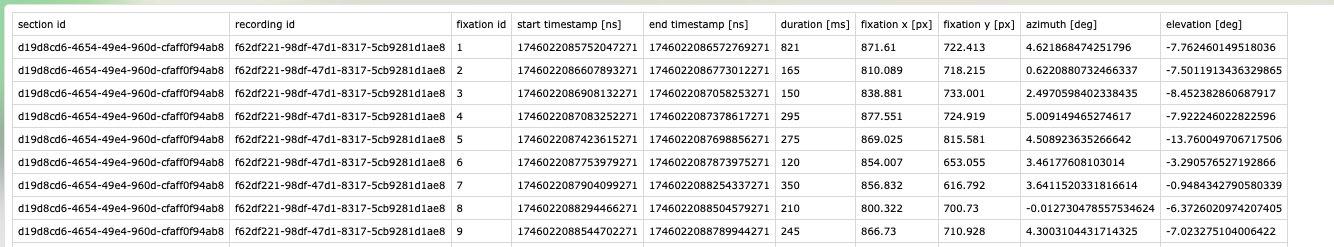

In the fixations.csv data downloaded from Marker Mapper. https://docs.pupil-labs.com/neon/pupil-cloud/enrichments/marker-mapper/#export-format Normalized x and y coordinates from the average of all mapped gaze samples within the fixation. Would you please clarify this a bit? If I want to know the x and y coordinates of a particular fixation on the surface from the top left (the x coordinates from the left and y coordinates from the top), I need to multiply by the pixel size of the surface, right?

It's difficult to compare Cloud-based processing times to offline processing simply because jobs submitted on Pupil Cloud are subjecting to queuing. Jobs are taken in the order they're received, so if there is a lot of work scheduled before your job, so it may take a little while before your job even starts. Once it does start, though, Pupil Cloud is pretty fast.

Running the analysis offline (e.g., using Neon Player, the screen-gaze package you found, or rolling your own solution) will, of course, run immediately without having to wait for anyone else's tasks to complete first.

I have to use one of your softwares? I worried about the processing efficiency if we have hundreds of participants.

We provide the software to help make your analysis easier, but you certainly don't have to use it. We use a pretty standard method of doing marker-based surface mapping - anybody with the right skill could implement their own surface mapping without using any of our software, but it would probably be difficult to be much more efficient without significant effort/skill.

Normalized x and y coordinates from the average of all mapped gaze samples within the fixation. Would you please clarify this a bit? A fixation occurs over a period of time. During that time, many gaze samples will have been collected (200 samples per second), and each gaze sample will be at a slightly different position. To produce a single point to describe the fixation, all of the gaze samples that are part of that fixation are averaged together.

If I want to know the x and y coordinates of a particular fixation on the surface from the top left (the x coordinates from the left and y coordinates from the top), I need to multiply by the pixel size of the surface, right? Yes, assuming you have aligned the bounds (corners) of your surface with the corners of the renderable area of your display.

Hi Dom, if I want to save gaze data into hdf5 files, do I have to add the code? I am using the demo provided here, https://docs.pupil-labs.com/neon/data-collection/psychopy/#data-format, but my local hdf5 files do not save any data. I can download the gaze data from Cloud tho.

You need to make sure that the HDF5 data is enabled in your experiment settings and initiate the recording using the PsychoPy Builder ETRecord component

Hi Pupil Labs team,

Today I made a recording which resulted in an error. After 30 minutes of recording, the companion device started to vibrate. I didn’t receive any error messages at that moment. I touched the screen, and the recording seemed to continue. When I stopped the recording after 1 hour and 8 minutes, I received two error messages:

1st: Sensor failure – The Neon Module has stopped providing Eye Sensor data! Unplug your Neon device and plug it back in. If this behavior persists, it may indicate a Neon Module or frame issue. Please reach out to our support team for help.

2nd: Sensor failure – The Companion App has stopped recording extimu data! Stop recording, unplug your Neon device and plug it back in. If this behavior persists, it may indicate a hardware issue. Please reach out to our support team for help.

The recording has been uploaded to the cloud, but it is not possible to view it.

The Neon Module and the companion device were already sent in to Pupil Labs in February 2024 after my former colleague Jonas Priedemann and I experienced similar problems with recordings. Is there any possibility to restore today’s recording? What can I do to avoid these kinds of error messages in future recordings?

Thanks in advance, Lara

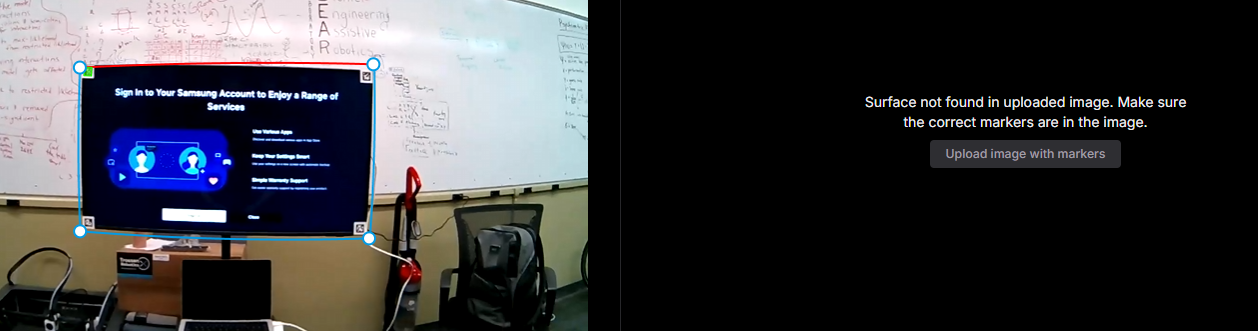

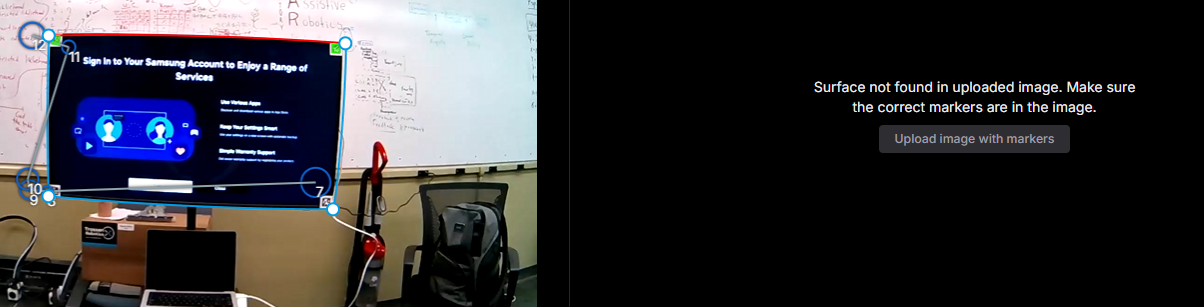

Hi, I am using Pupil Cloud and created an enrichment (image reference map), I uploaded a scan video and added two sessions to the project and processed the enrichment. I had since recorded and have uploaded 2 more videos. Do I need to setup and run a new enrichment to include the additional videos and process all 4 videos together? Or is there a way I can process just the 2 new sessions using the original enrichment? If that makes sense. Sorry if this is explained already in the docs, I haven't seen it.

Hi, we try to connect NEON with the SW on the companion-Mobile. And we try to grab the data via IP and port from the device to store these data in a simulator-software. - but the sim Software did not find the device via IP. how can we connect the NEON to the companion Device AND the sim-software (via socket-connection)?

Hi Team, if I want to control the psychopy program using the phone so that the experiment is controlled by the experimenters, how can I achieve that? Do you guys have some docs for this. Thanks!

Good morning. My team has asked me to reach out and ask about Neon and the Inter-Eye-Distance measure.

On the “Measuring the IED” tab on the pupil labs docs website, there is mention that the accuracy of pupil diameter measurements can be enhanced by doing this measurement for each user.

My team was wanting to know if you could provide any more details on what that means? Like, what is changing and if there is some significant range of error that could come from using the default 63 mm?

Hi, @user-9a1aed - PsychoPy doesn't have any built-in functionality for remote control. Since it runs on Python though, you can do just about anything you can imagine.

One could, for example, run a web server within your PsychoPy experiment and load the web page in the browser on the companion device. We don't have any examples or documentation for such a workflow, but you may have better luck asking for something like this within the PsychoPy community.

@nmt Hmmm. I am not shure - the sim-computer with data acquisition-socket has 10.1.2.3 ant the companion-app shows 10.1.2.215 (SMTP is working ;-)). if I try to connect from 10.1.2.3 to 10.1.2.215:8080 it shows me a blank page - same from an other computer (- no-sim but same network). no firewalls, no restrictions to IP and ports BUT also NO internet-connection. The installation is like an island. BUT If I use the companion's-WLAN-hotspot it is possible to connect to an other mobile (via 172.x.x.x and start/stop/close - no problem). so the functionality is OK, but not for the 'normal' network we must use.

Hi, I've reached 2hours storage capacity so I tried to delete some recordings. But on my Pupil Cloud page, it says all the time that "Storage is full. Manage recordings or upgrade your storage with an Add-on." Do I need extra step to empty trash bin or somehow to free the space? And by this moment can I still make new recordings to upload to the cloud?

Where can I empty the trash? It only says "Recordings in trash will be automatically deleted in the future."

@nmt thank you for your idea. All the SIM computers have no WLAN/BT. I checked all the connections - no firewalls, no restrictions anywhere (that is the reason why it is a closed system)

Hi Team, for the visualization method in Cloud, is there a way I can create heatmaps for each image stimulus? In my study, participants will view various images on the computer screen. When I use the Marker Mapper, the computer screen is a surface, thus, the visualization is the cumulative heatmap across all images. I have used plEvent to label the onset of each image stimulus. Thanks!

Sorry. One additional question about the plEvent label. When I processed the data, I found that some fixations span across two events (starts during "recording.begin" and ends after "study1StartplEvent" begins). Why is this the case? In this case, how should I assign this fixation to? Thanks!

Fixation 24: Fixation period: 1746608329.95 - 1746608330.34 seconds Assigned to event "recording.begin" (started at 1746608295.25 seconds)

Fixation 25: Fixation period: 1746608330.38 - 1746608330.52 seconds Assigned to event "study1StartplEvent" (started at 1746608330.05 seconds)

Hi. We are using the Neon device. My colleague recently used my device and I used his device for some lab recordings. I would now like to transfer the data from his device to my cloud. How can I do this?

Hello! I am currently using Neon, I captured the data in the companion device and exported the video and files to my computer. Is there anyway to process/export the .raw data without downloading neon player on my computer?

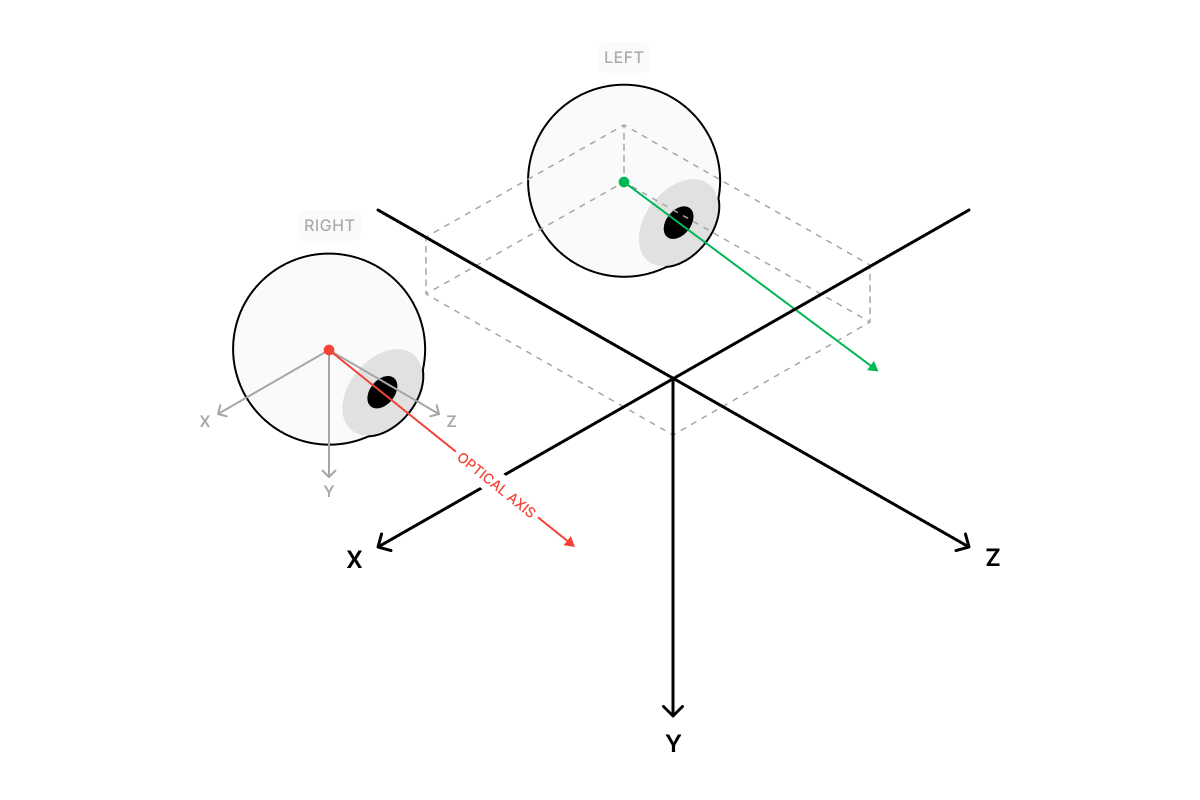

Hello @user-f43a29 , what are the axis(X,y,z) refer to in eye tracker camera ( Not Imu, Not scene camera) ?.

Hello, when automatically exporting blinks, gaze positions, and eye state, using neon player, I see that timestamps within the blink time have reasonable values for gaze positions and eye state (i.e., gaze position and eye state timestamps during blinks are saved). May I ask if gaze position and eye state are automatically interpolated by the NeonPlayer between the start and end of a blink? (not sure I expressed myself clearly)

@user-d407c1 it is respective to optical axis

And gaze directions.

@nmt the driving simulator is a huge installation with about 25 computers (210° view angle projection, simulated mirrors, driving dynamics configured as a closed system - no internet, all Win10 SP2), a real mockup (without motor, of course). All the computers are connected via LAN, static IPs, and there is a transparent WLAN connection (DHCP address starting at 10.1.2.210 -> .240). the companion device connects to the WLAN correctly. but if I point from a sim-computer to the companion's IP with :8080 there is a blank screen.

Is it possible to send simple messages via UDP/TCP to the companion device (start of simulation, stop of simulation, passed-by a POI, etc.) to be integrated as "Marker"? The use of the companion's "Marker" -button is not sufficient in timing. we need the marker to segment the recording. The companion-IP is 10.1.2.215. Whick protocol/port I should use to send these messages?

@user-d407c1 Hi Miguel, of copurse, be welcomed! ping is working

Sim Computer Network

Hi everyone, I'm Dario, and I'm new to Pupil Labs Neon. I'm currently working on analyzing pupil data, but I'm a bit confused about how the different .csv files relate to each other.

Specifically, I noticed that the fixation column in gaze.csv contains many of the same values as in fixations.csv, but with some gaps—i.e., some rows in gaze.csv have missing or blank fixation values.

Is this due to the difference in sampling rates between the gaze data and fixation data? Does gaze.csv simply align with fixations by interpolating or marking segments based on timestamps, resulting in some rows without fixation IDs?

Any clarification would be greatly appreciated!

Hello! We are running the Matlab/Python integration on macOS. In order to test synchronization, we created a sanity check in which both neon devices are recording a TV screen with a 60hz refresh rate. The TV shows a clock counting up by milliseconds.   We hypothesized that if our two devices were properly synchronized, the simultaneous events recorded on both devices (using the realtime API corrections) would point to the exact same image on the TV screen on both devices.    Like expected, we found that while the recorded events on both phones match the TV image (e.g., when navigating to event 1 on device 1 and event 1 on device 2, the image on the TV matches within ~20ms), they do NOT match in the output events.csv file in the downloaded timeseries data (e.g., event 1 on device 1 is >500ms different than event 1 on device 2).

As such, we dug deeper into the Matlab code and found what we believed to be an error: when we manually calculated the mean of the time_offset_ms.measurements, this provided a different calculation than the mean calculated by the code provided (time_offset_ms.mean). Thus, when calculating the corrected_time_ns_in_neon_clock, we subtracted the current time from our manually calculated mean. With our correction, the output changed. Now, we found that the event timestamps were matched in the output files downloaded from pupil labs, but the events no longer corresponded to the same image on the TV screen.   Going further, we looked into the Device.m Matlab file and discovered that the estimate of time offset measurements seemed to be taking the mean of the roundtrip duration instead of the time offset (Line 247).   When we edited the Device.m code to calculate for time offset instead, we came back to the original problem where the event timestamp is aligned in our “ground truth” and the events correspond to the same image on the TV screen, but the corrected timestamps in the events.csv files do not match.

Can you please help us better understand this discrepancy and what we can do to best ensure synchronization? Thank you in advance for your help, and please let me know if I can provide any additional clarification.

Hi! I am hoping you could help me solve the issue of the screen not showing the footage in pupil cloud. Today I had it in multiple recordings: sometimes the screen is completely grey, sometimes partly. What could be the reason for this and can it be fixed? Thank you.

Hi Team, if we put AprilTag around the corners of the laptop's screen, we are worried that it might interfere with their central vision. I wonder if we are able to print the AprilTag out on paper/board ,and we can stick it on the back of the laptop so that they do not appear on the screen. Has anyone tried that to avoid distraction of the computer screen? Thx!

@user-9a1aed - to add to what @user-d407c1 says, using off-screen AprilTag markers with our PsychoPy plugin requires a little extra effort.

The PsychoPy plugin needs to know the position of the markers in relation to the display. When you use on-screen markers provided by the plugin, then it already knows these positions. With off-screen markers though, it has no way of knowing where the markers are in relation to the screen.

So to make that work, you need provide the positions of the markers to the plugin. Probably the easiest way to do this is to use the individual AprilTag marker component in PsychoPy builder (rather than the marker frame component). For each off-screen marker you have, add an on-screen AprilTag marker with the same ID, set its size so that it's displayed size matches the size of your physical marker, and then change the position of the marker so that it's in the same "place" (off-screen) as your physical marker.

It's a bit unorthodox, but if you size and position the virtual markers correctly, it will work. Having said that, I think it may be worth a small pilot study to actually determine whether the on-screen markers actually cause an effect versus physical, off-screen markers

@user-cdcab0 That helps, thank you so much !

Hey All, Our lab is looking to purchase a Neon eye tracker and we need a quote to send in to finance it. Can someone please help with the same?

Hi @user-658b57! Please reach out to [email removed] in this regard or simply select the items of interest from our shop and fill out the quote request form: https://pupil-labs.com/products/neon/shop

Our android phone upgraded to android 15 - We are using the one plus 10 phone, which from what I have read requires android 13 - is there a way to rollback the phone to android 13 for the one plus 10?

one plus 10 pro that is

running neon companion app 2.9.4-prod

Hi, I want to use the PupilLabs Neon to investigate about the Quiet Eye in Golf. How are fixations defined in the Pupil Labs Neon system in terms of minimum duration and angular deviation thresholds (in degrees), and are these parameters configurable by the user?

@user-a0189b And, if you are open to hanging static AprilTags in your environment, then you could use the Head Pose Tracker plugin of Neon Player. To intersect the gaze ray with the robot arm would again require knowing the pose of the robot arm over time.

Hello @user-f43a29 , thank you so much for your response. the two neon devices and the computer running the code are all synched to the same NTP server (time.android.com).

In terms of calculating the clock offset between device 1 and device 2, I am still struggling to wrap my head around why the events are not matched. Both devices have been corrected to account for the offset to the source computer. shouldn't correcting this offset in theory make the timestamps on both phones identical?

With respect to the Events being "not matched", they actually are in principle matched and are "happening at the same time", since you accounted for the offset to the source computer and have validated that they correspond to the same physical process in the external world. I ask about the NTP sync steps, because if there was any discrepancy in the NTP process, then the clocks of both Devices will not be in sync and this would propagate down to the Events.

Hello, I’m testing out the Neon for the first time to pilot a new study. I’m noticing that during recordings where I’m walking from one point to another while wearing it, on Player some of the fixations show the green dot drifting away from the yellow fixation circle, when the green circle should probably stay within the yellow. Is this due to potential lag, headset slippage, and/or anything else? Is this cause for concern? Any tips would be appreciated.

@user-f43a29 every time we make a recording, we reset the date and time on the android phone and then make sure that the "set time automatically" is toggled on so that it is getting the lowest possible drift from the server. based on my research, with this function on, the android phone automatically connects to the NTP server time.android.com

Hi! I'm curious if there is a noticeable comfort difference between Just Act Natural vs Is this thing on vs Ready set go; similarly I'm curious if there is comfort difference between All fun and Games vs Crawl walk run because I got a feedback that All fun and games was not comfortable to wear for a long period of time and I'm curious if "lightweight" frames like Is this Thing on, Ready set go, Crawl Walk Run would be more comfortable to wear for ~ 1 hour or so. If any have experience with these and have thoughts on wearer comfort please let me know!

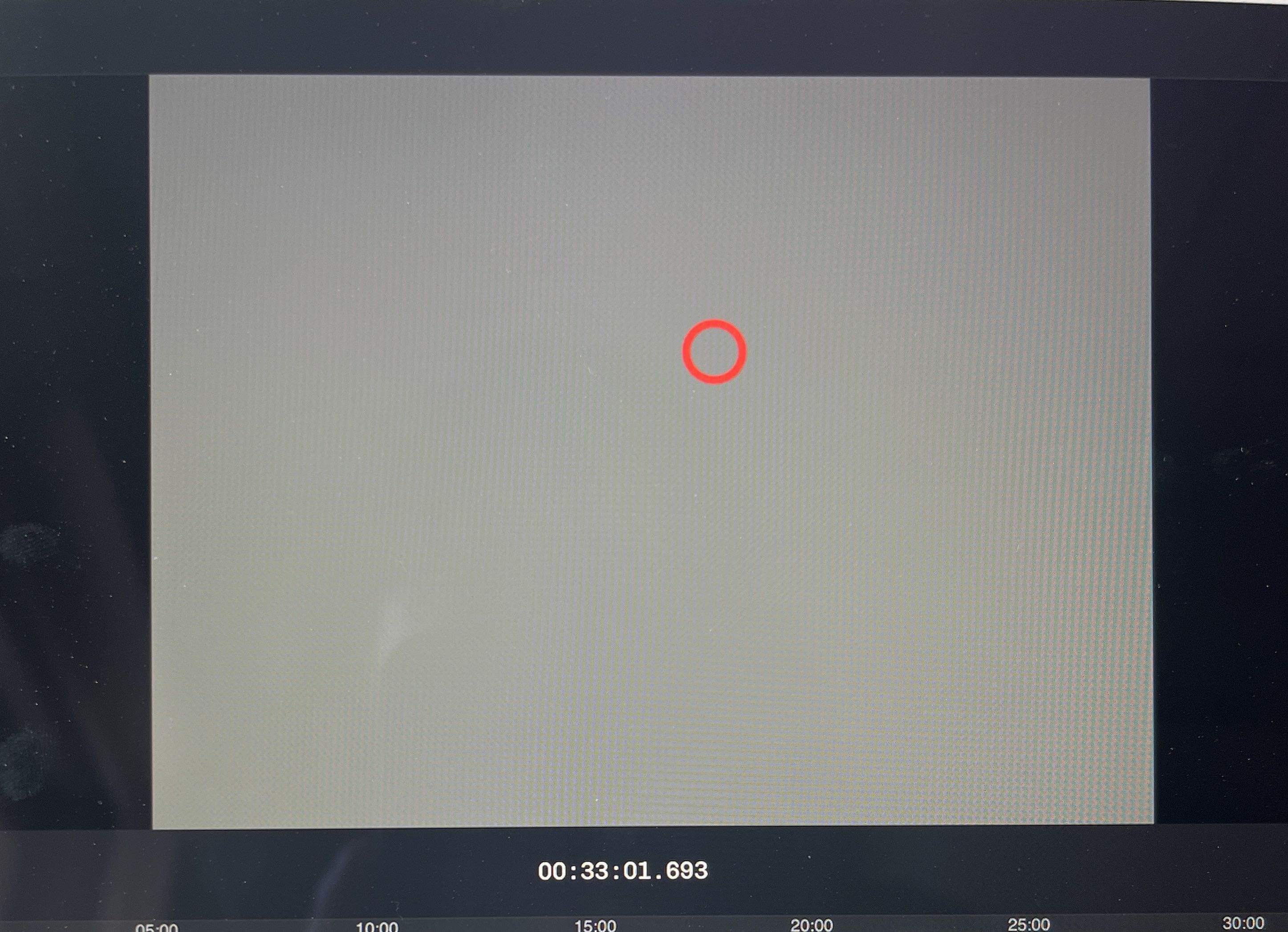

Hello everyone! I have a question regarding recordings in the cloud or recordings in general. When we record outdoors, it isn't always possible not to have short outages of the sensor. Participants jostle the device unintentionally and the USB-C connection briefly cuts out. As far as I know, this then makes it impossible for the cloud service to process the recording.

Can I do anything after the fact, to make analysis possible? If not for the entire recording, could I split the recording somehow, so the outage isn't part of it?

Hi @user-1391e7 ! While it's not typical for the USB connection to come loose unless a significant force is applied, both the Companion App and Cloud are designed to handle this scenario.

If the cable gets disconnected during a recording, the signal will drop — but once reconnected, the glasses will resume normal operation without needing to restart anything.

In Pupil Cloud, you'll notice gray frames in the timeline during the disconnection period. Here's a screen recording where I disconnect and reconnect the glasses multiple times, so you can see how it's handled.

Hi! I noticed that the camera module got hot after 3 minutes of recording -- is that expected or is the module malfunctioning?

Hello, my lab recently purchased the Neon eye tracking glasses and even as a freshman undergrad in EE, I am disappointed by the mechanical design of the glasses. If you’d like, I can help design a brand new frame for the glasses that you all can ship as the standard or sell separately.

That’s fair. I will email some suggestions. Otherwise, the product is great and really shines with its software.

It seems I copy pasted wrongly the neon geometries link, my colleague made me aware. I have modified the message, but it is also here (https://github.com/pupil-labs/neon-geometry)

I wouldl ike to know how big qr code is, how close it needs to be between the eyetracker and qr code

Just a note — the snippet is fully standalone, so if that’s exactly what you need and you have uv installed, you can run it like this:

uv run -s name_of_the_snippet.py path_to_timeseries.zip

That’ll give you the count and average duration of fixations in the specified intervals.

Also it might look a bit more complex than it actually is — most of that is just boilerplate to make it run standalone. The core logic starts around the events_sorted line.

Hello everyone, I have a quick question. What is the usual delivery time for delivering to the netherlands? I'm doing my thesis using the ready set go glasses and want to get started as soon as possible

Hi, can the Samsung S25 Ultra be used as a companion device?

I would like to know if the scene is changing due to the head movement without eye-movement, then the gaze data will be the same?

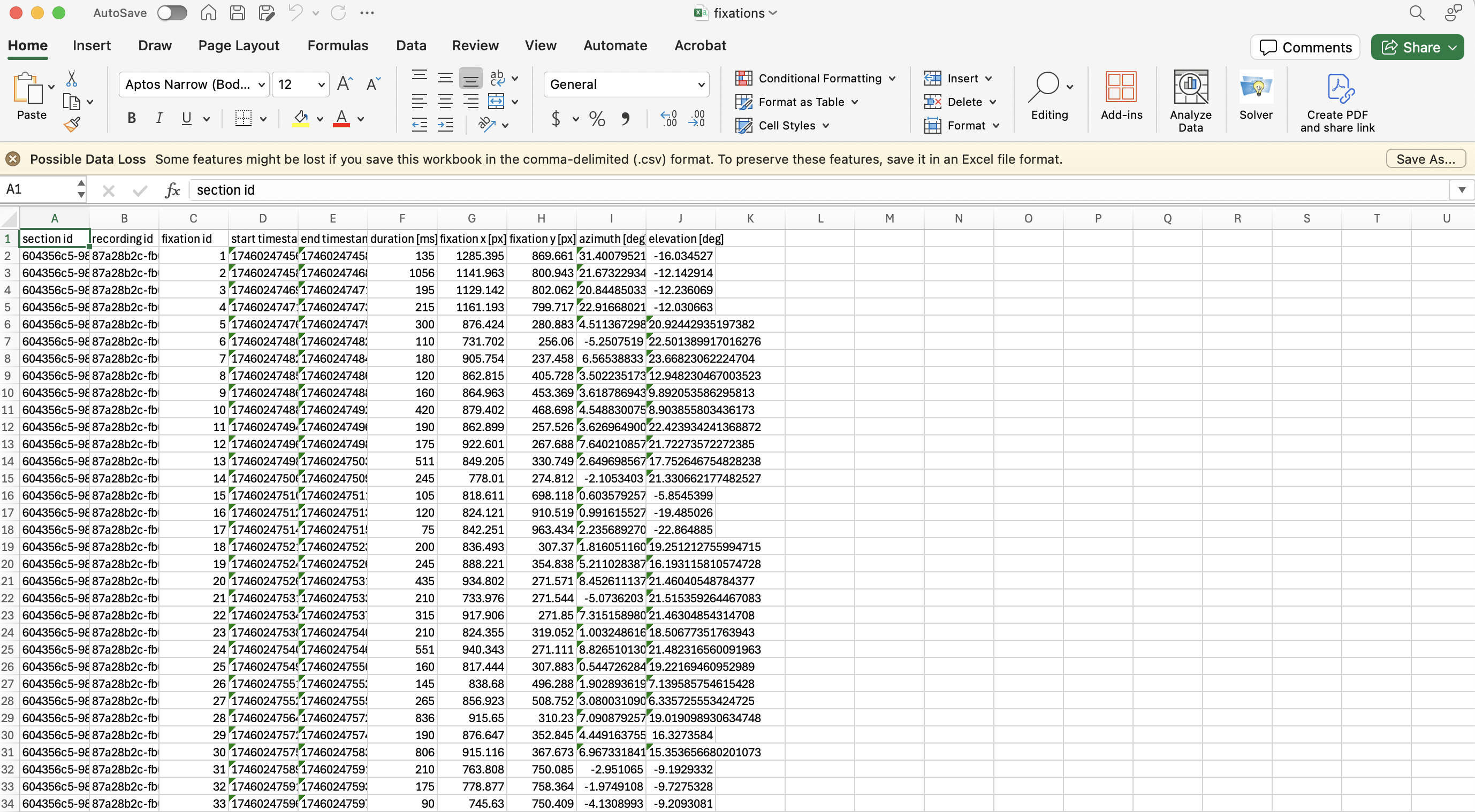

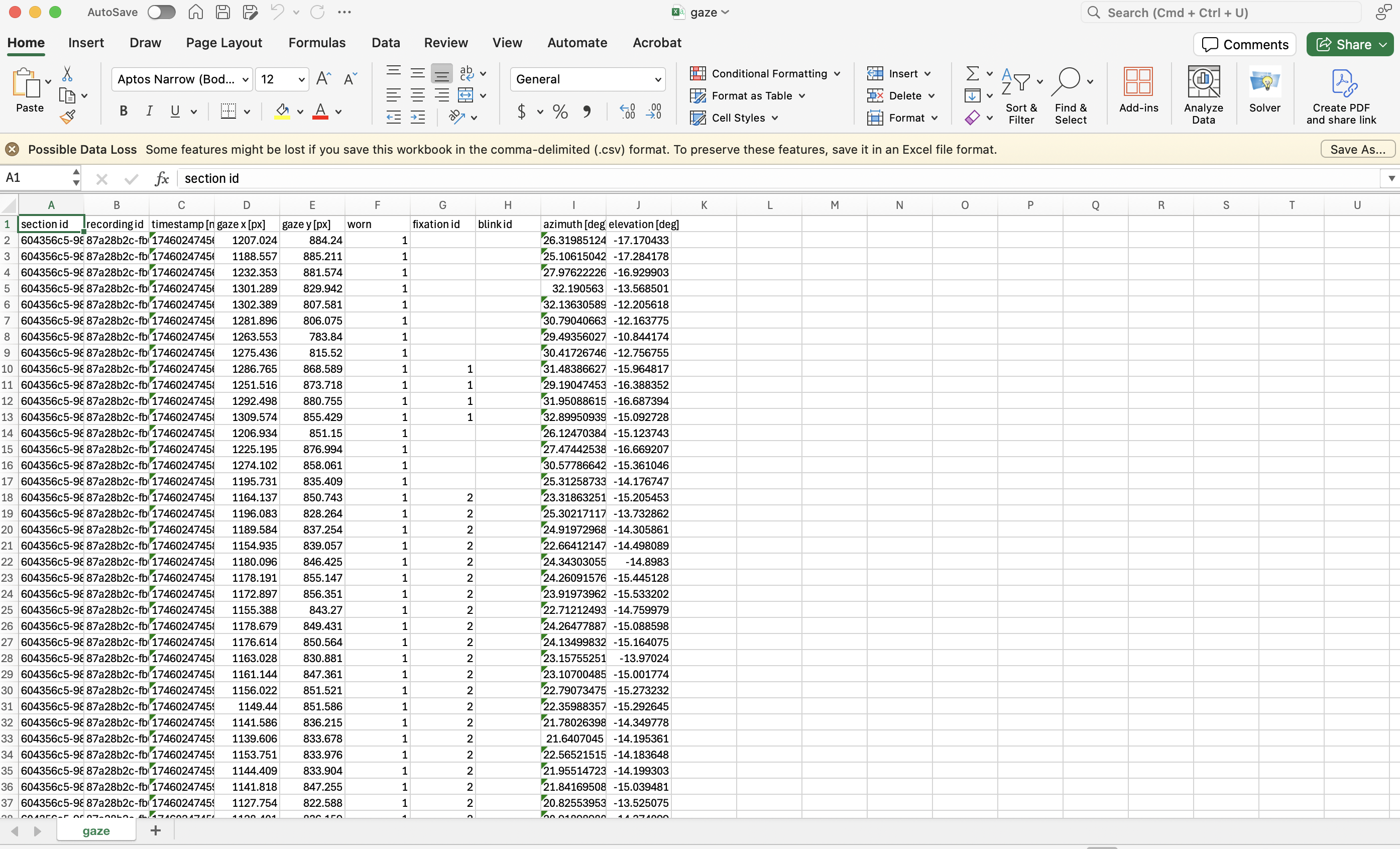

I used the surface tracker feature and compared the data with the fixations data. In some cases the fixations in and off surface combined are less than the total fixations detected. I would like to know the reasons for that. Is it possible to figure out which of the fixations were omitted when using the surface tracker?

Hello again! I had a quick question regarding Neon terminology. I am using the realtime API synchronization. Are the timestamps that are recorded and collected as part of the timeseries data (e.g., in the gaze data) reflective of the device time (the companion device) or the external clock time? Furthermore, in the world_timestamps.csv output, again can you please clarify whether these timestamps are reflective of the device time or the external clock time? Overall, I guess my question is whether the outputted timestamps are device specific or if they reflect a system time. Thank you so much in advance for your help!

Hi, in January I bought "Better safe than sorry - Neon eye tracking bundle". Unfortunately, the project got discontinued and I would like to sell the glasses with the phone. The glasses have barely been used. I would like to sell it for 5600 Euro. Contact me if you are interested [email removed]

The colors of the circles are

Hi @user-f43a29 - yes, by external clock time I was recievering to the recieving computer that is running the script.

As for the timestamps, thank you for clarifying. I was curious as how they might be meaningful and relevant across devices. For example, is a timestamp of 1747875211899127575 in one clock equal to the same timestamp in a separate device? Or, since they are two completely separate devices, we cannot equalize the timestamps without taking into account the offset correction provided by the real-time API code? I hope this line of reasoning makes sense! Thank you again for your help.

Hello, is there a way to look at the pov camera and the synced eye cameras to check if there are actually blinks? I am doing smooth pursuit tracking during a sports task and I am getting blinks during bat ball contact. I would like to manually check if blinks are being registered because participants are blinking or if it’s due to occlusion of the pupil because they are looking downward. Thanks!

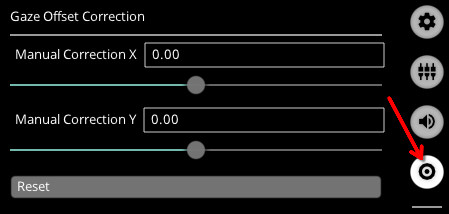

Hello, a question about offset calibration. Is the correction applied in pixels or in angles? The distance between the wearer and the target affects the perceived offset (and its correction). however, since pupil does not read the distance between the wearer and the target I assume the offset is based on pixels, right?

Moreover, is there a distance you recommend to check if calibration is needed?

Finally, I have seen this page: https://gist.github.com/papr/d3ec18dd40899353bb52b506e3cfb433 Is there something similar in NeonPlayer? Thanks

Note that the unit there is technically "norm" units, but that's just multiplied by the resolution. Effecitvely, it's still pixels

the new Tobii glasses look like half a Pupil Neon at twice the price and with most functionality locked away

Hi Team, for computer-based tasks, do u guys have a recommended viewing distance from a laptop? I could not find any article about the viewing distance. I understand that most Neon users may not conduct computer-based tasks. I appreciate any help/information!

I'm just a dev as well, so take this with a grain of salt :). afaik, the model was trained on larger viewing distances, but you can perform an offset correction. viewing distance from a laptop, wouldn't you always be placed ~60-100cm away anyways? just by nature of the screen and the resolution and what you do to interact with it?

Hi ! I have a question. I would like to get the x and y coordinates of the gaze in px of the screen that is in front of the person during the experiment. They will perform various tasks on the computer, looking at the screen. I'd like to know if it is possible to get the data from neon, transform it into pixel into the screen's plan that is in front of the user, all of that in 200Hz ? I tried to use the demo available on Github with the virtual apriltags but my supervisor told me that obstructing the screen during the experiment is an issue. I had issues on detecting edges to detect the screen as well bc the script didnt detect the screen at every frame so the frequence of data acquiring dropped significanlty. Do you have an idea of what the best solution could be for this problem ? Thanks a lot !

I'm having issues finding the neon device via local network. I am almost 100% sure it is due to a firewall restriction. is there a range of UDP ports I need to have open, on top of 5353, to allow the neon device to be found?

Hi Pupil Labs team, I am running a study using Pupil Labs Neon where participants are free to explore an exhibition space viewing multiple objects. What is the best approach to create the 3D model using April Tags? I am assuming I need to create multiple RIMs but not sure how many would be sufficient as the exhibition space contains multiple areas, and each participant is free to decide their own route. Many thanks!

Hi, I have a cloud registration for the Invisible. Can I register in the same cloud with Neon, or if this cannot be done, can I combine the two separate clouds?

Thanks @user-f43a29 for your prompt reply and info, very helpful, will look into the guides!

Hello, question about the model of the mobile device. Does the OnePlus brand only work with these two models of mobile devices: On OnePlus 8 and 8T: Android 11 On OnePlus 10 Pro: Android 12 and 13 , is it okay with OnePlus' latest phones？

Thanks @user-f43a29 for your prompt reply！

Dear Team, the USB-C port recommended by your company is not available in my region. May I check if you have an idea if this one works for data transfer and power? Thanks a lot in advance!

Anker 553 PowerExpand 8-in-1 USB-C PD Hub $640 x2 USB-C Port, 2 USB-A, 2 HDMI, Ethernet, Micro SD/SD 100W PD

https://www.amazon.com/Anker-PowerExpand-Adapter-Delivery-Ethernet/dp/B0874M3KW4?th=1

Hello, Does the new Motorola meet the requirements for mobile devices, such as the Moto edge 60 pro？Thanks

Hi team. I've opened a support ticket. I'm having trouble with my companion device. Could someone help me out. We are in the middle of a research project

Dear Team, I’m using Pupil Labs’ Realtime Python API to retrieve data from Neon in my Python code. After upgrading the Realtime API from version 1.4.0 to 1.5.0, the log message "No cached eyes video frames available for matching" started appearing frequently. Why is this happening? Can you reproduce the issue on your end as well? Thank you!

Hello. We have run into a problem in our data, and we were hoping to get some insight into possible ways to salvage it. Our experimental setup is such that we are running two Neon devices at the same time, and we need to ensure their synchronization for data analysis. Unfortunately, our problem is that we miscalculated the device offsets using the realtime API code, and thus we do not have synchronized events in our data. As such, we have been trying to brainstorm ways to post-hoc sync the data and then verify that the correction is correct.

In order to brainstorm ideas for offset correction, we recorded a “test” video that is not affected by the miscalculation bug. The test video involves both eye trackers recording a dual audio/visual event of a physical clap. With this video, here are some things we tried and our observations:

1. We calculated audio offset using cross correlation. When we arrive at an offset value and apply this correction to the audio data, the audio streams are perfectly synchronized, but this does not extend to the video (the clap does not coincide with the audio time series). It’s possible we are not regenerating the video properly.
2. We visually inspected the same video using the Neon Player to determine at what frame the claps occurred. This provided a different offset value than the audio cross correlation. And, it appears that in one of the recordings, even before any adjustments, the audio waveform of the clap does not match the video of the clap.
3. We did force sync to a master clock on both companion devices immediately prior to recording. From the world_timestamp.csv files, we calculated an offset by subtracting the first timestamp on both Neon devices. Then, we found the closest matching timestamps based on this offset. This provided a third value that was different from the previous two values, and still was not sufficient in synchronizing the data (either audio or video).

Based on these tests, we have a few remaining questions. First, how can we be confident about the timestamps and the auditory offset alignment? Is there a way we can see/prove to ourselves that the timestamps are fully synchronized both in the audio and visual mediums? Is there any chance that the audio/visual alignment is not perfect, but we can prove to ourselves that the timestamps are synchronized?

If you have any ideas/feedback on how we can move forward to salvage this data, that would be greatly appreciated. We are more than happy to share our test recordings, if that would help.

Hi there! We're having trouble getting our brand new Neon to work with psychopy. - We managed to get the Neon connected via ethernet and recognized by the Windows 10 computer, by using the recommended tp-link router (itself connected to the recommended Anker hub), so far so good. - We installed the pupil-labs toolbox from the "get more" component in Psychopy, hope this was the right way to do this (couldn't get the pip -install thing to work but we're probably doing it wrong). - We can get a recording to start on the phone from psychopy : from pupil_labs.realtime_api.simple import discover_one_device device = discover_one_device() device.recording_start() - Any attempt to send any other command (e.g. a simple "recording started" label with device.send_event) then throws a WinError 10048: only one use of each socket address is allowed ('', 9036). The traceback shows that this occurs when psychopy tries to run start_iohub_process.py. - Trying to use the embedded PsychoPy components (such as Eyetracker Record with default parameters) either does not start a recording at all, or creates a recording with null duration, or throws the same error. - Trying to setup things using the coder example (https://docs.pupil-labs.com/neon/data-collection/psychopy/) leads to similar consequences. Any help is appreciated ! 🤗

Thank you, will try a clean reinstall during opening hours. In the meantime if you have a minimal working example of script available somewhere that would be very helpful.

Hello @user-f43a29 ! I just sent the data files to [email removed] Please let me know if you have any issues accessing it, or if you have any other follow-up questions. To answer your previous question, we used MATLAB to identify the temporal offset, and then used ffmpeg to stitch the two videos back together with the offset correction accounted for. However, we understand that this might not be the best approach.

Hello, I forgot to tick Pupil Cloud unlimited storage when I bought a device, and I want to ask how to buy it? Thanks

Ok thanks! Why do I keep downloading failed when downloading time series data from pupil cloud, stuck at 14.1 MB and can't complete the download. I changed the network and asked a friend to help download it and it was still stuck at 14.1 MB, what is the reason for this situation and how should it be solved? Thank you

Hi! I had a question about the gaze-offset. It says the gaze-offset is only for that recording. Is there an option to make the gaze-offset universal for that participant? I was thinking something like Meta Aria's personalized calibration process.

Hello, how long does it take to process a thirty-minute video with Reference Image Mapper, what does the processing speed depend on, and how to speed it up?

Hello, may I know if I can collect eye movement data for a program that runs on jsPsych? I do not see any plugins for jsPysch. But I guess it is possible to treat the computer monitor as a physical object? Then I can use off-screen Apriltags to help convert the fixation to computer-based? Or is there a more efficient way to collect eye movements? thanks a lot in advance!

Hi, is there any tool or code available to automatically detect the target recommended for the core pupil labs eye tracker in a neon/invisible tracker's scene camera?

In my experiment, I included a 5 point validation since I needed to understand how accurate the specific tracking was for a specific recording and the the normal offset correction was not possible (due to the experiment timing, multiple recordings with multiple eye trackers at the same time, different eye trackers (Neon, Invisible, other brand) etc.). Now I need to calculate the exact validation error, but doing this manually is very time consuming and our automatic approaches did not work so far. When speaking with some of the Pupil Labs representatives who joined the project recording last September (in London), they mentioned, that there might be some code/solution available to do this automatically, specifically identifying the pixel corresponding to the center of the target in the scene camera frames (which can then be used to calculate the validation error). If there is any automatic solution or code like this availble? This would be extremely helpful! Thank you very much.

Hi! I'm having some trouble with enrichments. In my experiment, subjects look at multiple pictures on a screen, and I need to get data on these pictures individually. I tried using Reference Image Mapper, but it doesn't see the pictures in the recordings. I considered using marker mapper (I have used markers on the screen during the recordings) and use the temporal selection since every picture triggers a specific event, but I can't because the stimuli were randomized, so a picture is followed by a different one every time, which means I don't have anything to select under "to event". Is there anything I can do?

I tried using the original image as a reference, but when I run it Pupil Cloud doesn't recognize the image in any of my recordings

The Events are all called after the file titles, which are based on the type of painting it is (they're all paintings). For example, IMR1 is an impressionistic painting

Unfortunately, no

Alright, thank you!!

Hi @user-f43a29 , I hope you are well. I am analyzing a neon recording and have a question about gaze.csv that is obtained from the pupil cloud analysis of the recording. Specifically, I'd like to clarify if there are conditions in which an entry/row/trace in gaze.csv can have a fixation id and a blink id i.e., it is declared part of a fixation event and a blink event at the same time. If so, could you say a little bit about what those conditions might be? My basic assumption was that there are three cases 1) fixation 2) saccade 3) blink that are distinct from each other. Therefore if fixation id is populated in gaze.csv, i'm in a fixation (and blink id should not be populated). If a blink id is population then fixation id should not be populated. If neither blink id nor fixation id is populated, then those gaze traces correspond to a saccade. The data don't seem consistent with this expectation and I'm trying to figure out how to make sense of rows where blink id and fixation id are both populated.

From the one recording i'm analyzing - I see 37745 instances of fixation and blink overlapping and 132872 instances of saccade and blink overlapping out of 931866 entries.

4.05% of the time - blink and fixation overlap and 14.2% of the time saccade and blink overlap, for about 18% of the time total.

Is it fair to infer loss of eye-tracking when blinks are registered, and if so, does that imply that the gaze coordinates, azimuth and elevation readings during the blink events are some kind of interpolation/extrapolation made by the cloud fixation detector? maybe with something like a kalman filter running underneath?

to clarify, i've looked at the algorithm as detected in the whitepaper, and i just want to make sure i'm tracking it correctly. your guidance will help me decide which approach i should take of the three you mentioned above

There is no interpolation or filtering of the gaze data. Rather, NeonNet analyzes each eye image and makes a gaze estimate. Similar to before, we offer you the raw output. You then have the freedom to take & reject what is appropriate for your research context. Naturally, the gaze data will be less accurate when the eye is closed, but NeonNet still can provide its best estimate.

For example, many researchers filter out the data during a blink. The type of filtering they do varies from group to group.

Thank you for sharing those numbers. I can check with the team on Monday to be sure I give you the best answer. In the meantime, what do the eye videos look like around the moments that exhibit overlap?

Sorry to be a bother @user-f43a29 , could you give some insight on "the gaze data will be less accurate when the eye is closed, but NeonNet still can provide its best estimate."

if i'm following correctly, NeonNet provides a gaze estimate for each image but there is no smoothing over time for these raw estimates. the fixation detector in the white paper may do some smoothing on these raw estimates (with the LPF mentioned in the white paper - but that is to delineate the start/stop of each fixation. Am I interpreting reasonably?

In that case, if i have a couple of gaze traces at the beginning of a fixation also labeled as blink, then it might just be the blurring introduced by the low pass filters (edge effects). would that be a fair way to interpret what i'm seeing?

Sorry, I am not familiar with dark pupil detection necessarily. But i do follow that NeonNet will give a gaze estimate with whatever part of the eye is visible (even if less of it is visible or if it happens to be closed?). i am assuming that those cases (below a certain threshold) will be marked as blinks?

Hi, I have a question regarding the real time data on the Neon- I can see clearly now. Does that inlude degree angles? In addition, what is the standard adult sized glasses specifications? Are there any neons that work with different populations.

but the question I was trying to clarify above are what happens after the Neon Gaze estimate has been obtained. I assume that the fixation detection algorithm from the whitepaper is run on those estimates and it has a low pass filter (the SG 3rd order polynomial). I'm seeing blink and fixation overlap in many cases on the early traces of the fixation and on the last few traces of a fixation (this is not perfectly true). Could that overlap be attribute to the edge artifacts of the low pass filter that the eye gaze estimates are put through?

it is a little odd that the categorization itself might be blurred because the algorithm is only taking raw data, but i can imagine a setting where it works out that way

aha... ok. gotcha...

perfect, i think i am following you now

blink detection is thresholding the eye openness signal only?

sorry, for the blink i just got directed to a paragraph in the documentation not a whitepaper.

i got a whitepaper for the fixation detection

no problem. i think the blink whitepaper you mentioned might be the missing piece for me. I might be able to work through what I should do upon reading it.

@user-7c5b51 Also, may I ask what populations are you working with? Neon has been designed to work with as many as possible, and has a monocular estimation mode that can be helpful in clinical research.

You can learn more about how we assessed & validated Neon’s gaze estimation accuracy across a sample of the population in the Neon Accuracy Test Report

Sure, so that is not provided as a base real-time stream, but we give you all the elements needed to compute it in real time. You can:

• Use the scene camera calibration info to then undistort & unproject the 2D gaze point to the corresponding 3D gaze ray.
• Then, you can convert it to spherical coordinates and have azimuth/elevation.

Do you have a specific latency requirement?

Also, if you would like to see this added, feel free to open a 💡 features-requests

Hello there! I'm trying to catalogue my neon devices and frames, i have multiple frames and some are the same model. I would like to confirm they have the same Frame ID? For example if I have two Just act natural glasses, it shows they are the same. I thought they would have a different ID.
