Hi team, I downloaded the MRTK3 Template in Unity with neon-xr in Quest3. However, it just does head-tracking by showing heatmap when I move my head, but not eye-tracking when I move my eyes. Could you let me know how to solve this problem?

Hi, this query is related to the neon XR for Quest 3. Based on one of the exisiting posts in this channel, I recorded the VR scene with OBS along with recording the eye tracking data on the phone. I wanted to overlay the eye tracking data on this OBS recording using Reference Image Mapper. I first uploaded a video, and later took a screen grab and just uploaded an image, but the enrichment process always ended up in an error: The enrichment could not be computed based on the selected scanning video and reference image. Please refer to the setup instructions and try again with a different video or image. Please suggest what to do.

hi! do you think that is possible, in the calibration example, to change the interaction when I look at the target from "pinching" to "press a button on the meta quest 3 controller". For me the hand pinching interaction doesn't work very well.

Hi @user-d5c9ea , the purpose of the Reference Image Mapper is to build a 3D model of an arbitrary scene and map gaze onto the Reference Image. It is very powerful for real-world scenes, where it can be difficult to get access to the ground truth.

To derive the 3D model, Reference Image Mapper requires a Scanning Recording. Since Neon's scene camera is typically blocked in a VR context, the result would be a black video feed, which would not be usable for the purposes of Reference Imager Mapper. I believe this is what the error message is referring to.

Aside from that, in the case of VR, you already have access to the ground truth 3D model and the wearer's position in that model, so Reference Image Mapper is not really needed in such a case.

Overall, it sounds like you want to map gaze onto a VR video recording. To that end, we now offer an open-source tool, neon-vr-recorder, that can do this. If you have already completed data collection, then you could use parts of that code to do the video overlay post-hoc. It might just require some manual time sync.

@user-d5c9ea While there are currently no XR specific analysis tools or video overlay features in Pupil Cloud, it still offers benefits for such recordings:

• Gaze is re-computed at 200Hz, which is relevant when the Gaze data rate is lowered in the Neon Companion app settings or when using a OnePlus 8 device with Neon.
• Blinks and fixations are then computed for the 200Hz gaze data.
• Soon, blinks & fixations will also be computed in real-time on the Companion device. We will make a post in 📯 announcements , once that is available.
• You can invite Collaborators to your Workspace to more easily share data with them.
• Pupil Cloud also serves as a data backup.

Note that the above mentioned gaze & fixation data will be in the coordinate system of Neon's scene camera. To convert them to the VR coordinate system, as it is done in the Neon XR Core Package, you can follow the tips here: https://discord.com/channels/285728493612957698/1187405314908233768/1339268128722518229

You can then synchronize these data post-hoc.

Thanks, @user-f43a29 for this info. I would be honest that coming from Pupil Core and its integration with XR, Neon tools feel a little underdeveloped to me. Anyway, I hope that more support is extended for Neon XR, especially for analysis in near future. On the flipside, I was looking at the neon VR recorder code and wasn't sure how to stop the recording, as well as can you elaborate a bit more on where the data is saved, format, and any tips on the post hoc sync. Thanks !

Thanks @user-f43a29 , I was able to make the neon vr recorded work, but as a feedback, the code tries to automatically gather the Neon IP which it is failing to do. I manually set the args.ip to the IP address of the Neon device. However, the stream is now binocular and if I want to record the monocular stream, how can I do that ? any insight would be helpful. Thanks !

Hi @user-f43a29 , we were doing it over wifi and even turned the firewall off too, but ip showed as none when printed. Also, the setting change in the companion app is not reflected in the streaming frame of neon VR recorder.

Are you changing the setting while the VR recorder is running? Be sure to unplug and re-plug Neon after changing the setting.

May I also ask how you confirmed that it is not changing? To be clear, you will see only one gaze circle in all modes. The data source for gaze is what is changing.

Hi all! I am considering purchasing a neon XR bundle, and was hoping someone might be open to share their experiences - to get a sense of what time investment and skillsets are needed. I am building solutions to use XR for market research purpuses on a number of use cases.

For my initial (most basic ) use case, i would actually just want to show a (very large) webbrowser in a VR or MR evironment and want to get analytics on what people are looking at like those offered on pupil clouds (gaze tracking, heat maps, AOIs, time to first fixation etc) , Does anyone have a similar use case?

I am planning to use the meta quest 3 initially, but also have an Apple Vision Pro - so if anyone is using that already , I would love to hear too!

(PS I am based in Amsterdam, any more Dutchies here by any chance?)

Hi @user-9b48d1 , how do you connect the headset and Neon?

Otherwise, would you be able to provide the contents of Unity's console when you run the app while the headset is connected via cable to your computer?

If you have adb installed, then if possible, could you also provide the contents of:

adb logcat -d > out.txt

Running it after you start up your app. Thanks!

Hi @user-9b48d1 , thanks for the update. Is your network running on a local, dedicated WiFi router?

Otherwise, could you try the following:

• First, uninstall the app from the Meta Quest 3 Library.
• Then, install a new copy of your APK.

If that does not resolve it, then please send the full contents of the Unity console, after the app has been started. You can send it via DM, if you prefer.

Hello All I predominently work with Meta quest pro i see that there is a mount for meta quest 3 but do we have custom mount for meta quest pro as well can anybody please help me out Thanks!

Hi Rob, so I have been tinkering a while now, with seemingly no effect. I have done as you suggested, no change yet. However, now it seems as though I cannot even connect with the Neon Companion Device through Unity, as I get a connection error where the Neon device is not found. I already attempted to change the rtsp settings in the config file to the ip address displayed by the Neon app, no luck yet. I will try again tomorrow and attach the console readout.

AId4Children Support :)

Hy

We were wondering if it would be possible to wire the neon eye tracker straight to the quests 3 headset and read in the eye tracking natively on headset? we would prefer if we can eliminate the phone part.

we recently got the eye tracker and mount, just seeing what our options are. running it natively on headset would the simplest aproach

what makes it not possible?

when connecting the neon module to the phone, the neon companion app crashes after a few seconds. any idea what could be the issue?

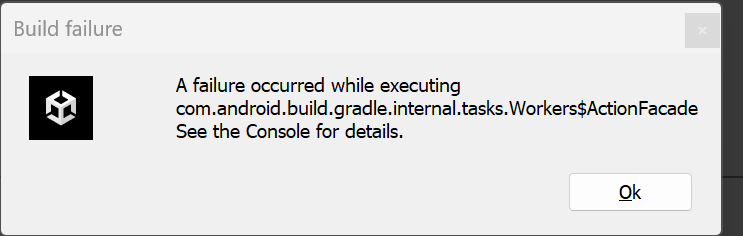

Hi I'm trying to build the MRTK neon example for quest3, I followed all of the steps but it shows that error.

How should I switch to other scenes from PL_HandInteractionExamples scene? I successfully install the example to Quest3 but it seems PL_HandInteractionExamples scene won't visualize the gaze point

Thanks, but I noticed that the gaze dot is only at the center of the view, It's not moving to where I actually looking at. I already connect pupil neon to the phone and the phone, the quest3 are connect to same wifi

It works after I replugin the eye tracker Thanks!

Hi 🤿 neon-xr , I'm looking for more information on neon/core setup as I would like a quickiest way to integrate eye-tracking onto my custom AR glasses (custom Android ROM)... The device needs to be running standalone, so may I know if the eye-tracking can run locally at all time. And since I intend to integrate the hardware (cameras, leds ,etc) into my custom device for compactness, I'm curious if this is even possible later on?

so far, I only see videos of neon/core being used in AR/VR headsets while being tethered to a companion phone... hence i'm having these doubts

would appreciate anyone sharing their experiences integrating neon/core into any headset 🙏

hi there!

I'm looking to get my lab set up with Neon and I had some questions:

1. Is it easy to switch between using Neon in glasses and an HMD? I've got experiments where I'd like to one or the other.

2. I've got a Meta Quest Pro, can Neon integrate with a MQP? By integrate, I mean can I use Neon eye tracking in a Unity scene with a MQP instead of the MQP's eye tracking?

3. I know this was asked by a colleague of mine earlier but I need a fresher answer to the question: I'm going to need gaze data for each individual eye in real time. Is it possible to configure Neon to provide eye gaze vectors for each individual eye, like you'd get from Pupil-Core? If so, is this something the Pupil team could help me implement or would my lab be on our own?

Thanks!

Hi @user-8bd1e2 👋 ! See below the answer to your questions.

1. Swapping Frames: It is quite easy to swap the module across frames (inc. XR ones). See the video attached.

2a. Gaze in Unity: Yes. The NeonXR Core package facilitates getting gaze coordinates on your Unity environment.

2b. MetaQuest Pro: For the Meta Quest 3 we offer a mount/frame, but for the MetaQuest Pro note that you would need to develop your own mount. See more here.

3. Dual monocular: As of today, gaze is either single monocular or binocular but not dual monocular. While we are working towards that end, there is no current ETA. That said, optical axes vectors are reported binocularly independent for each eye.

Let me know if you have any other questions.

This is useful! Thank you.

One follow-up, is there an example out there of someone using Neon to build a gaze-contingent display? An example could be using the gaze data to create a retinally persistent (new) blind spot

Hello @user-f43a29 Can you help me with setting up the neon xr with unity?

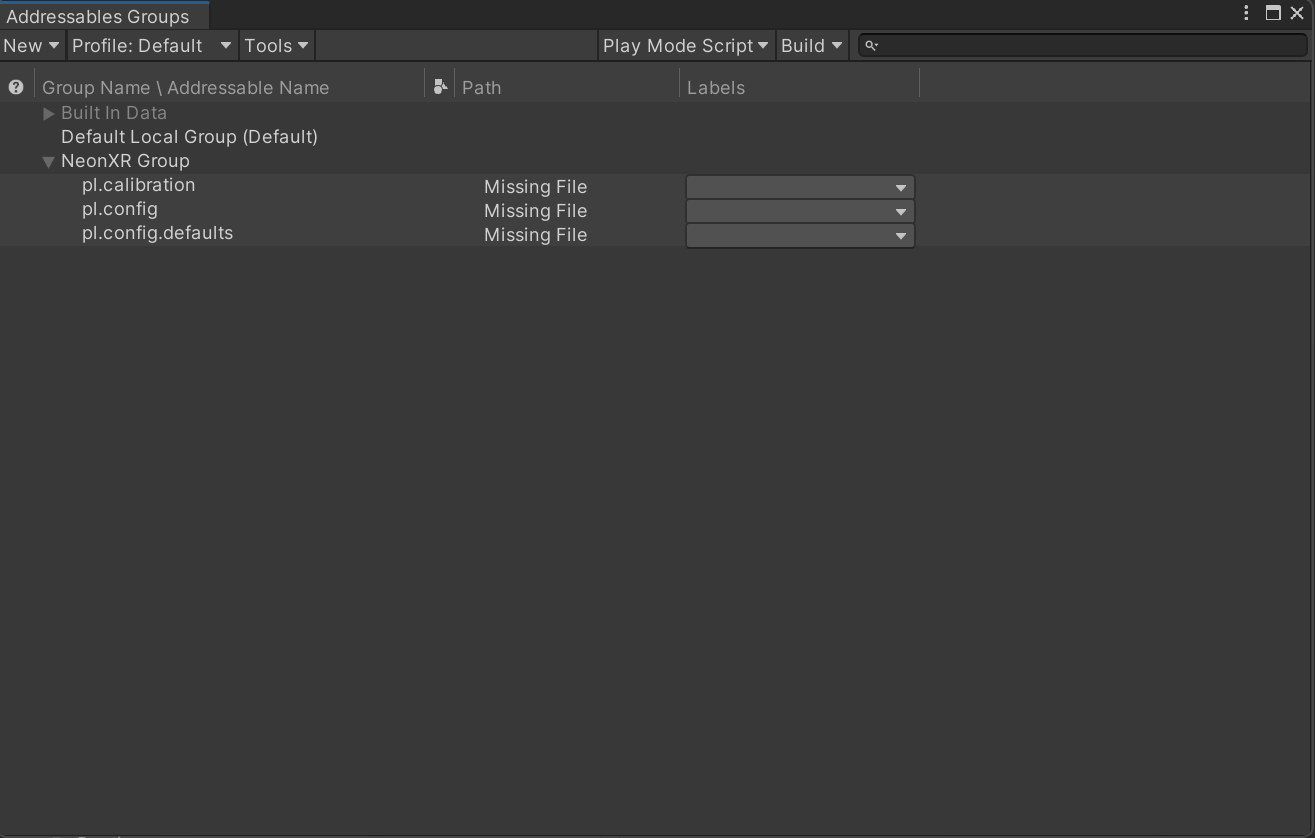

Hello @user-f43a29 pl.calibration, pl.config, pl.config.defaults files are missing. They are not even available in NeonXR package i installed. i do have normal json files but the pl.xxx files are missing. please help me with this.

Hey @user-f43a29 I followed those steps again, but still im facing the issue.

[email removed] I followed those steps again,
